TRU500-TGMMK3 (2007)
Toyota Dyna/Toyoace
Production
May 2007
-
Jun 2011
Engine
2TRFE
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)

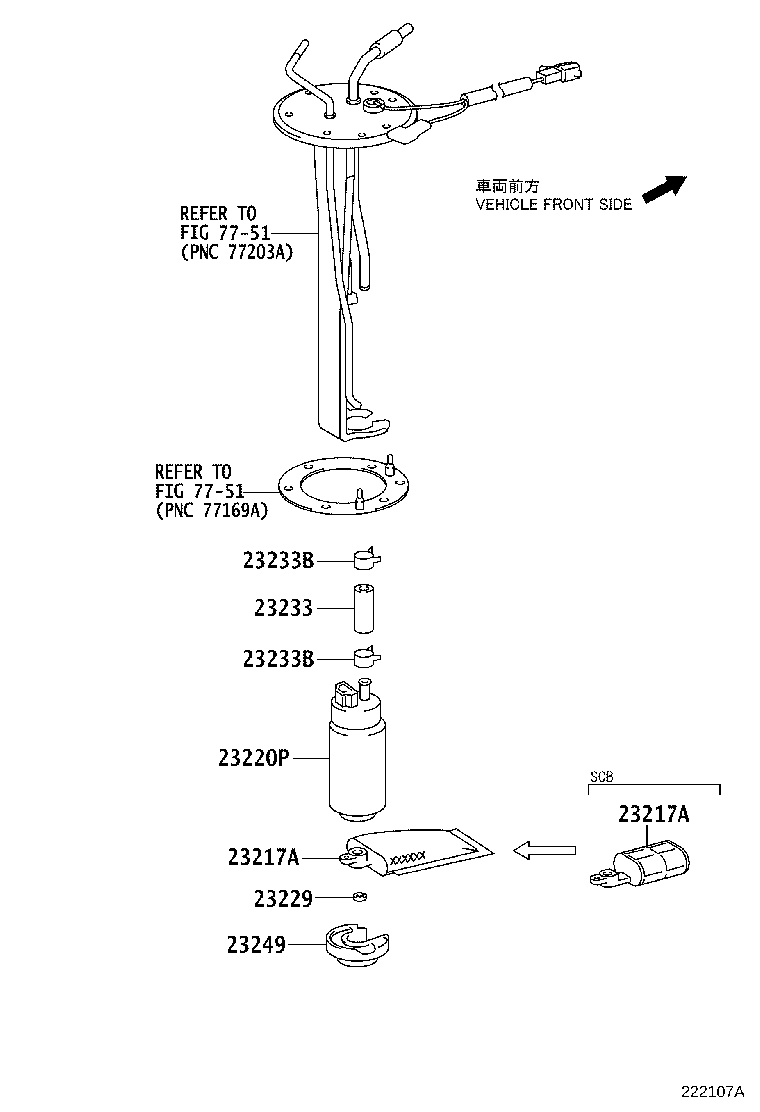

ILLUST NO. 2 OF 2(0705- )2TRFE
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 23217A - FILTER, FUEL PUMP | ||||
| 23217-46011 |
2TRFE..TRU300,340,500..SCB |
1 | ||
| 23217A - FILTER, FUEL PUMP | ||||
| 23217-46011 |
2TRFE..TRU300,340,500..SCB |
1 | ||
| 23220P - PUMP ASSY, FUEL | ||||
| 23221-46010 |
2TRFE..TRU300,340,500 |
1 | ||
| 23229 - CLIP(FOR FUEL PUMP FILTER) | ||||
| 23229-16010 |
2TRFE..TRU300,340,500 |
1 | ||
| 23233 - HOSE, FUEL PUMP | ||||
| 23239-11010 |
2TRFE..TRU300,340,500 |
1 | ||
| 23233B - CLIP(FOR FUEL PUMP HOSE) | ||||
| 90467-12067 |
2TRFE..TRU300,340,500 |
2 | ||
| 23233B - CLIP(FOR FUEL PUMP HOSE) | ||||
| 90467-12067 |
2TRFE..TRU300,340,500 |
2 | ||
| 23249 - RUBBER, CUSHION(FOR FUEL PUMP) | ||||
| 23249-74610 |
2TRFE..TRU300,340,500 |
1 | ||
| Linked diagrams | ||||
| 7751 | ||||

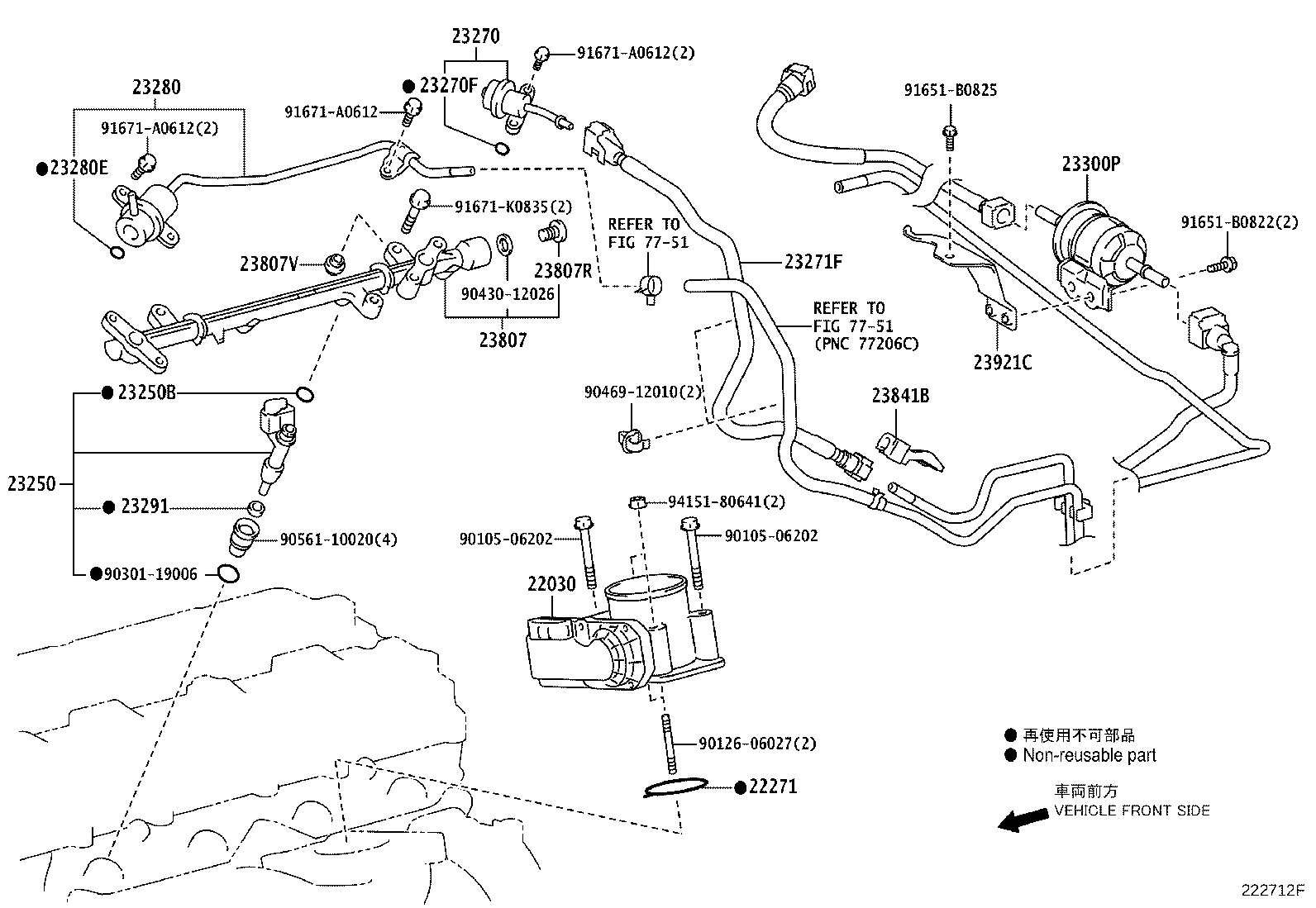

ILLUST NO. 1 OF 2(0705- )2TRFE
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 22030 - BODY ASSY, THROTTLE W/THROTTLE POSITION SENSOR | ||||
| 22030-75020 |
2TRFE..TRU300,340,500 |
1 | ||
| 22271 - GASKET, THROTTLE BODY | ||||
| 22271-0C021 |
2TRFE..TRU300,340,500 |
1 | ||
| 23250 - INJECTOR ASSY, FUEL | ||||
| 23209-79155 |
2TRFE..TRU300,340,500 |
4 | ||
| 23250B - RING, O(FOR FUEL INJECTOR) | ||||
| 90301-07037 |
2TRFE..TRU300,340,500 |
4 | ||
| 23270 - DAMPER ASSY, FUEL PRESSURE PULSATION | ||||
| 23270-75010 |
2TRFE..TRU300,340,500 |
1 | ||
| 23270F - RING, O(FOR PULSATION DAMPER) | ||||
| 90301-07037 |
2TRFE..TRU300,340,500 |
1 | ||
| 23271F - HOSE, FUEL | ||||
| 23271-78410 |
2TRFE..TRU300,340,500 |
1 | ||
| 23280 - REGULATOR ASSY, FUEL PRESSURE | ||||
| 23280-75040 |
2TRFE..TRU300,340,500 |
1 | ||
| 23280E - RING, O(FOR FUEL PRESSURE REGULATOR) | ||||
| 90301-07037 |
2TRFE..TRU300,340,500 |
1 | ||
| 23291 - INSULATOR, INJECTOR VIBRATION | ||||
| 23291-73010 |
2TRFE..TRU300,340,500 |
4 | ||
| 23300P - FILTER, FUEL(FOR EFI) | ||||
| 23300-75130 |
2TRFE..TRU300,340,500 |
1 | ||
| 23807 - PIPE SUB-ASSY, FUEL DELIVERY | ||||
| 23807-75050 |
2TRFE..TRU300,340,500 |
1 | ||
| 23807R - PLUG, FUEL DELIVARY PIPE | ||||
| 90341-12030 |
2TRFE..TRU300,340,500 |
1 | ||
| 23807V - SPACER, NO.1(FOR DELIVERY PIPE) | ||||
| 90561-08036 |
2TRFE..TRU300,340,500 |
2 | ||
| 23841B - CLAMP, FUEL PIPE, NO.1(FOR EFI) | ||||
| 23841-21050 |
2TRFE..TRU300,340,500 |
1 | ||
| 23921C - BRACKET, FUEL FILTER | ||||
| 23921-78310 |
2TRFE..TRU300,340,500 |
1 | ||
| Common parts | ||||
| 90105-06202 | ||||
| 90126-06027 | ||||
| 90301-19006 | ||||
| 90430-12026 | ||||
| 90469-12010 | ||||
| 90561-10020 | ||||
| 91651-B0822 | ||||
| 91651-B0825 | ||||
| 91671-A0612 | ||||
| 91671-K0835 | ||||
| 94151-80641 | ||||
| Linked diagrams | ||||
| 7751 | ||||
