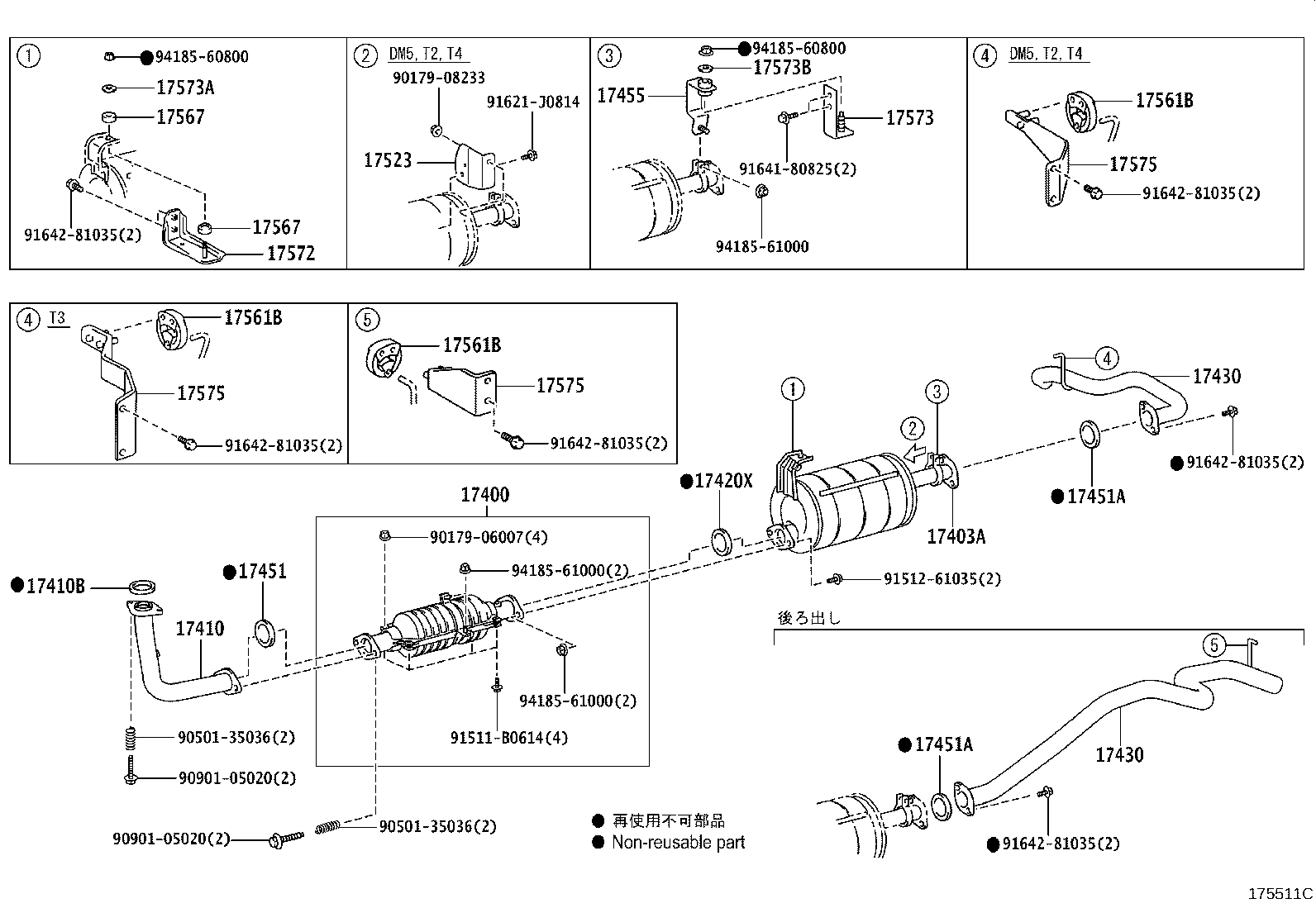

TRU500-TGMMK (2007)
Toyota Dyna/Toyoace
(0705- )2TRFE..TRU300,500
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17400 - CONVERTER ASSY, W/CATALYST | ||||
| 17406-75050 |
2TRFE..TRU300,340,500 |
1 | ||
| 17403A - PIPE SUB-ASSY, EXHAUST, CENTER NO.2 | ||||
| 17403-75250 |
2TRFE..TRU300,500..DM5,T2,T4 |
1 | ||
| 17410 - PIPE ASSY, EXHAUST, FRONT | ||||
| 17401-75490 |
2TRFE..TRU300,340,500 |
1 | ||
| 17410B - GASKET, EXHAUST PIPE | ||||
| 17451-74040 |
2TRFE..TRU300,340,500 |
1 | ||
| 17420X - GASKET, EXHAUST PIPE, CENTER | ||||
| 90917-06076 |
1BZFPE,2TRFE..BZU300,340,TRU300,340,500 |
1 | ||
| 17430 - PIPE ASSY, EXHAUST, TAIL | ||||
| 17405-75660 |
2TRFE..TRU300,500..DM5,T2,T4 |
1 | ||
| 17430 - PIPE ASSY, EXHAUST, TAIL | ||||
| 17405-75660 |
2TRFE..TRU300,500..DM5,T2,T4 |
1 | ||
| 17451 - GASKET, EXHAUST PIPE | ||||
| 17451-74040 |
2TRFE..TRU300,340,500 |
1 | ||
| 17451A - GASKET, EXHAUST PIPE, NO.2 | ||||
| 90917-06076 |
1BZFPE,2TRFE..BZU300,340,TRU300,340,500 |
1 | ||
| 17451A - GASKET, EXHAUST PIPE, NO.2 | ||||
| 90917-06076 |
1BZFPE,2TRFE..BZU300,340,TRU300,340,500 |
1 | ||
| 17455 - BRACKET, EXHAUST PIPE | ||||
| 17455-75080 |
1BZFPE,2TRFE..BZU300,TRU300,500 |
1 | ||
| 17523 - PROTECTOR, EXHAUST PIPE, UPPER NO.3 | ||||
| 17523-75040 |
1BZFPE,2TRFE..BZU300,TRU300,500..DM5,DM6,T2,T4 |
1 | ||
| 17561B - SUPPORT, EXHAUST PIPE, NO.1 | ||||
| 17561-73020 |
N04C..XZU508..VAN;N04C..XZU348..DCRTM;N04C..XZU368,378,388;N04C..XZU308..DCRTM..CBU;N04C..XZU508..(T4,T5)..IV3;N04C..XZU538..5F..DCRTH..IV3;N04C..XZU304..DCRTK..CBU..4NO;N04C..XZU308..T4..5F..(IV3,IV6);N04C..XZU334..T3..6FC..(IV3,IV4);N04C..XZU538..(DCRTJ,DCRUE)..IV3;N04C..XZU304..6FC..30T..CBU..4NO;N04C,2TRFE..TRU300,XZU314..DCRTK,EFI;N04C..XZU30#..(DM6,T4,T5)..6FC..(IV3,IV6);N04C..XZU304,548..(T3,T4)..5F..20T..DCRTJ..IV3;N04C..XZU304,338..(T3,T4)..6FC..DCRTJ..IV3..1NO;N04C..XZU308,334,344..(T3,T5)..5F..DCRTK..(IV3,IV4);N04C,1BZFPE,2TRFE..BZU300,TRU500,XZU324,354,524,554,568..20T;N04C..XZU304,504..(5F,6FC)..WT..(DCRTH,DCRTK,DCRTM,DCRUD,DCRUE)..(IV3,IV4,IV7) |
1 | ||
| 17561B - SUPPORT, EXHAUST PIPE, NO.1 | ||||
| 17561-73020 |
N04C..XZU508..VAN;N04C..XZU348..DCRTM;N04C..XZU368,378,388;N04C..XZU308..DCRTM..CBU;N04C..XZU508..(T4,T5)..IV3;N04C..XZU538..5F..DCRTH..IV3;N04C..XZU304..DCRTK..CBU..4NO;N04C..XZU308..T4..5F..(IV3,IV6);N04C..XZU334..T3..6FC..(IV3,IV4);N04C..XZU538..(DCRTJ,DCRUE)..IV3;N04C..XZU304..6FC..30T..CBU..4NO;N04C,2TRFE..TRU300,XZU314..DCRTK,EFI;N04C..XZU30#..(DM6,T4,T5)..6FC..(IV3,IV6);N04C..XZU304,548..(T3,T4)..5F..20T..DCRTJ..IV3;N04C..XZU304,338..(T3,T4)..6FC..DCRTJ..IV3..1NO;N04C..XZU308,334,344..(T3,T5)..5F..DCRTK..(IV3,IV4);N04C,1BZFPE,2TRFE..BZU300,TRU500,XZU324,354,524,554,568..20T;N04C..XZU304,504..(5F,6FC)..WT..(DCRTH,DCRTK,DCRTM,DCRUD,DCRUE)..(IV3,IV4,IV7) |
1 | ||
| 17561B - SUPPORT, EXHAUST PIPE, NO.1 | ||||
| 17561-73020 |
N04C..XZU508..VAN;N04C..XZU348..DCRTM;N04C..XZU368,378,388;N04C..XZU308..DCRTM..CBU;N04C..XZU508..(T4,T5)..IV3;N04C..XZU538..5F..DCRTH..IV3;N04C..XZU304..DCRTK..CBU..4NO;N04C..XZU308..T4..5F..(IV3,IV6);N04C..XZU334..T3..6FC..(IV3,IV4);N04C..XZU538..(DCRTJ,DCRUE)..IV3;N04C..XZU304..6FC..30T..CBU..4NO;N04C,2TRFE..TRU300,XZU314..DCRTK,EFI;N04C..XZU30#..(DM6,T4,T5)..6FC..(IV3,IV6);N04C..XZU304,548..(T3,T4)..5F..20T..DCRTJ..IV3;N04C..XZU304,338..(T3,T4)..6FC..DCRTJ..IV3..1NO;N04C..XZU308,334,344..(T3,T5)..5F..DCRTK..(IV3,IV4);N04C,1BZFPE,2TRFE..BZU300,TRU500,XZU324,354,524,554,568..20T;N04C..XZU304,504..(5F,6FC)..WT..(DCRTH,DCRTK,DCRTM,DCRUD,DCRUE)..(IV3,IV4,IV7) |
1 | ||
| 17567 - CUSHION, EXHAUST PIPE SUPPORT | ||||
| 17567-78010 |
1BZFPE,2TRFE..BZU300,340,TRU300,340,500 |
2 | ||
| 17567 - CUSHION, EXHAUST PIPE SUPPORT | ||||
| 17567-78010 |
1BZFPE,2TRFE..BZU300,340,TRU300,340,500 |
2 | ||
| 17572 - BRACKET, EXHAUST PIPE NO.1 SUPPORT | ||||
| 17572-78260 |
1BZFPE,2TRFE..BZU300,340,TRU300,340,500 |
1 | ||
| 17573 - BRACKET, EXHAUST PIPE NO.1 SUPPORT, LOWER | ||||
| 17573-78050 |
1BZFPE,2TRFE..BZU300,TRU300,500 |
1 | ||
| 17573A - BRACKET, EXHAUST PIPE SUPPORT, NO.3 | ||||
| 16721-78010 |
1BZFPE,2TRFE..BZU300,340,TRU300,340,500 |
1 | ||
| 17573B - BRACKET, EXHAUST PIPE SUPPORT, NO.5 | ||||
| 16721-78010 |
1BZFPE,2TRFE..BZU300,340,TRU300,340,500 |
1 | ||
| 17575 - BRACKET, EXHAUST PIPE SUPPORT, NO.5 | ||||
| 17575-78200 |
N04C..XZU304..DM3,DM6;N04C..XZU308..6F..IV3;N04C..XZU304..30T..4NO;N04C..XZU308..DCRUE..IV6;N04C..XZU308..DCRTM..CBU;N04C..XZU508..(T4,T5)..IV3;2TRFE..TRU300,500..DM5,T2,T4;N04C..XZU538..5F..DCRTH..IV3;N04C..XZU308..DCB..DCRUE..IV3;N04C..XZU304,338,538..(T4,T5)..20T..(DCRTJ,DCRUE)..IV3;N04C..XZU308,504..(T4,T5)..WT..(DCRTH,DCRTJ,DCRTK,DCRTM,DCRUD)..(IV3,IV6) |
1 | ||
| 17575 - BRACKET, EXHAUST PIPE SUPPORT, NO.5 | ||||
| 17575-78200 |
N04C..XZU304..DM3,DM6;N04C..XZU308..6F..IV3;N04C..XZU304..30T..4NO;N04C..XZU308..DCRUE..IV6;N04C..XZU308..DCRTM..CBU;N04C..XZU508..(T4,T5)..IV3;2TRFE..TRU300,500..DM5,T2,T4;N04C..XZU538..5F..DCRTH..IV3;N04C..XZU308..DCB..DCRUE..IV3;N04C..XZU304,338,538..(T4,T5)..20T..(DCRTJ,DCRUE)..IV3;N04C..XZU308,504..(T4,T5)..WT..(DCRTH,DCRTJ,DCRTK,DCRTM,DCRUD)..(IV3,IV6) |
1 | ||
| 17575 - BRACKET, EXHAUST PIPE SUPPORT, NO.5 | ||||
| 17575-78200 |
N04C..XZU304..DM3,DM6;N04C..XZU308..6F..IV3;N04C..XZU304..30T..4NO;N04C..XZU308..DCRUE..IV6;N04C..XZU308..DCRTM..CBU;N04C..XZU508..(T4,T5)..IV3;2TRFE..TRU300,500..DM5,T2,T4;N04C..XZU538..5F..DCRTH..IV3;N04C..XZU308..DCB..DCRUE..IV3;N04C..XZU304,338,538..(T4,T5)..20T..(DCRTJ,DCRUE)..IV3;N04C..XZU308,504..(T4,T5)..WT..(DCRTH,DCRTJ,DCRTK,DCRTM,DCRUD)..(IV3,IV6) |
1 | ||
| Common parts | ||||
| 90179-06007 | ||||
| 90179-08233 | ||||
| 90501-35036 | ||||
| 90901-05020 | ||||
| 91511-B0614 | ||||
| 91512-61035 | ||||
| 91621-J0814 | ||||
| 91641-80825 | ||||
| 91642-81035 | ||||
| 94185-60800 | ||||
| 94185-61000 | ||||
