TRC600A-TWMMK3 (2011)

Toyota Dyna/Toyoace

Production Jul 2011 - May 2015
Engine 2TRFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 4(1107- )TRC600,TRU600

Click highlighted areas on diagram

ｺﾝﾃﾞﾝｻ(ﾒｲﾝ)

diagram 88453A 88454B 88460 88460R 88461B 88462A 88463 8846325110 8846335120 8846337360 8846337360 8846337360 88463A 88463B 88550 8856937020 88590 88648E 886883V610 88706A 9004179141 9009120512 9009120512 9009120512 9009120512 9009120609 9009120609 9009120609 9009120642 9009904119 9009914120 9011910522 9011910522 9155180825 9155180825 9155180825 9415180800 9415180800 9415180800
Part # Description Qty Price
88453A - FAN, COOLING
88453-37010

TRU600..CBU;TRU600..T3..IV3;XZU650..30T..DCRTK;XZU640..T3..6FC..CBU;XZU650..T3..6FC..30T..DCRTJ..IV3;XZC600,XZU640,650..(T4,T5)..6FC..DCRTJ;TRC600,XZU600..(DM5,T3)..(5F,6FC)..(20T,40T)

 1
88454B - SHROUD, FAN
88454-37031

TRC600..DM5;TRU600..CBU;TRU600..T3..IV3

 1
88460 - CONDENSER ASSY, COOLER
88460-37680

TRC600..DM5;TRU600..CBU;TRU600..T3..IV3

 1
88460R - CONDENSER ASSY NO.1
88460-37640

TRC600..DM5;TRU600..CBU;TRU600..T3..IV3

 1
88461B - COVER, COOLER CONDENSER
53715-37180

TRU600..CBU;TRU600..T3..IV3;XZU650..30T..DCRTK;XZU640..T3..6FC..CBU;XZU650..T3..6FC..30T..DCRTJ..IV3;XZC600,XZU640,650..(T4,T5)..6FC..DCRTJ;TRC600,XZU600..(DM5,T3)..(5F,6FC)..(20T,40T)

 1
88462A - HOLDER, CONDENSER
88462-37130

TRU600..CBU;TRU600..T3..IV3;XZU650..30T..DCRTK;XZU640..T3..6FC..CBU;XZU650..T3..6FC..30T..DCRTJ..IV3;XZC600,XZU640,650..(T4,T5)..6FC..DCRTJ;TRC600,XZU600..(DM5,T3)..(5F,6FC)..(20T,40T)

 1
88463 - BRACKET, COOLER CONDENSER, NO.1
88463-37140

TRU600..CBU;TRU600..T3..IV3;XZU650..30T..DCRTK;XZU640..T3..6FC..CBU;XZU650..T3..6FC..30T..DCRTJ..IV3;XZC600,XZU640,650..(T4,T5)..6FC..DCRTJ;TRC600,XZU600..(DM5,T3)..(5F,6FC)..(20T,40T)

 1
88463A - BRACKET, COOLER CONDENSER, NO.2
88463-37150

TRU600..CBU;TRU600..T3..IV3;XZU650..30T..DCRTK;XZU640..T3..6FC..CBU;XZU650..T3..6FC..30T..DCRTJ..IV3;XZC600,XZU640,650..(T4,T5)..6FC..DCRTJ;TRC600,XZU600..(DM5,T3)..(5F,6FC)..(20T,40T)

 1
88463B - BRACKET, COOLER CONDENSER, NO.3
88463-37160

TRU600..CBU;TRU600..T3..IV3;XZU650..30T..DCRTK;XZU640..T3..6FC..CBU;XZU650..T3..6FC..30T..DCRTJ..IV3;XZC600,XZU640,650..(T4,T5)..6FC..DCRTJ;TRC600,XZU600..(DM5,T3)..(5F,6FC)..(20T,40T)

 1
88550 - MOTOR ASSY, BLOWER (FOR CONDENSER)
88550-37070

TRC600..DM5;TRU600..CBU;TRU600..T3..IV3

 1
88590 - BLOWER ASSY, W/SHROUD
88590-37130

TRC600..DM5;TRU600..CBU;TRU600..T3..IV3

 1
88648E - WIRING, COOLER
88648-37130

TRU600..CBU;TRU600..T3..IV3;XZU650..30T..DCRTK;XZU640..T3..6FC..CBU;XZU650..T3..6FC..30T..DCRTJ..IV3;XZC600,XZU640,650..(T4,T5)..6FC..DCRTJ;TRC600,XZU600..(DM5,T3)..(5F,6FC)..(20T,40T)

 1
88706A - TUBE SUB-ASSY, LIQUID, A
88716-3V550

TRC600..DM5;TRU600..CBU;TRU600..T3..IV3

 1
Common parts
88463-25110
88463-35120
88463-37360
88569-37020
88688-3V610
90041-79141
90091-20512
90091-20609
90091-20642
90099-04119
90099-14120
90119-10522
91551-80825
94151-80800

ILLUST NO. 2 OF 4(1107- )TRC600,XZU645,655..20T..DCRTJ,DCRTK,EFI

Click highlighted areas on diagram

ｺﾝﾃﾞﾝｻ(ｻﾌﾞ)

diagram 88460S 8846335120 8846335120 8846337370 8868837F10 886883V630 88710 8871824060 9009120609 9009120609 9009914119 9151160612 9151160612
Part # Description Qty Price
88460S - CONDENSER ASSY NO.2
88460-37630

TRU600..CBU;TRU600..T3..IV3;XZU650..30T..DCRTK;XZU640..T3..6FC..CBU;XZU650..T3..6FC..30T..DCRTJ..IV3;XZC600,XZU640,650..(T4,T5)..6FC..DCRTJ;TRC600,XZU600..(DM5,T3)..(5F,6FC)..(20T,40T)

 1
88460-37630

TRU600..CBU;TRU600..T3..IV3;XZU650..30T..DCRTK;XZU640..T3..6FC..CBU;XZU650..T3..6FC..30T..DCRTJ..IV3;XZC600,XZU640,650..(T4,T5)..6FC..DCRTJ;TRC600,XZU600..(DM5,T3)..(5F,6FC)..(20T,40T)

 1
88710 - TUBE ASSY, AIR CONDITIONER
88710-37670

TRU600..CBU;TRU600..T3..IV3;XZU650..30T..DCRTK;XZU640..T3..6FC..CBU;XZU650..T3..6FC..30T..DCRTJ..IV3;XZC600,XZU640,650..(T4,T5)..6FC..DCRTJ;TRC600,XZU600..(DM5,T3)..(5F,6FC)..(20T,40T)

 1
88710-37670

TRU600..CBU;TRU600..T3..IV3;XZU650..30T..DCRTK;XZU640..T3..6FC..CBU;XZU650..T3..6FC..30T..DCRTJ..IV3;XZC600,XZU640,650..(T4,T5)..6FC..DCRTJ;TRC600,XZU600..(DM5,T3)..(5F,6FC)..(20T,40T)

 1
Common parts
88463-35120
88463-37370
88688-37F10
88688-3V630
88718-24060
90091-20609
90099-14119
91511-60612

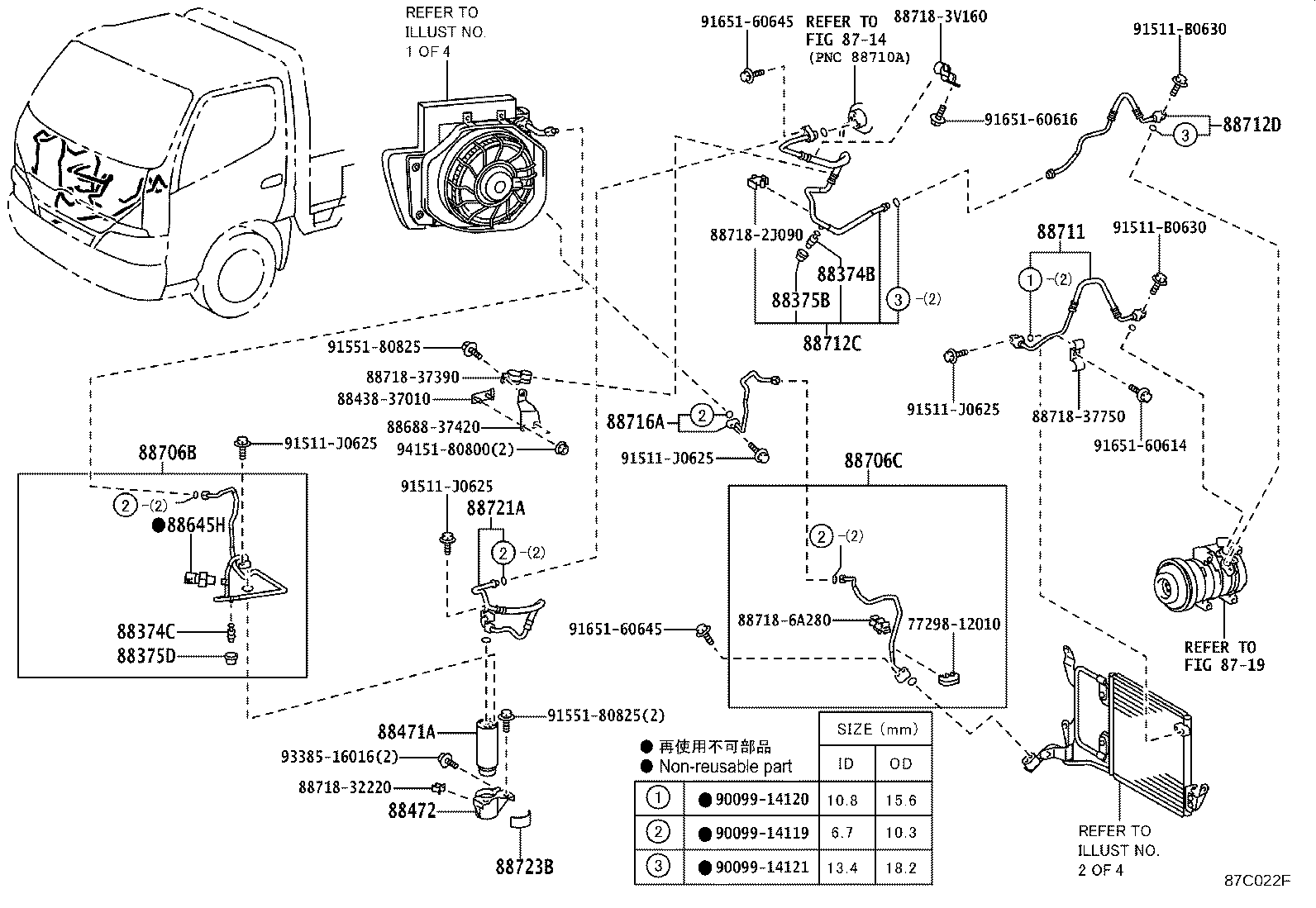

ILLUST NO. 3 OF 4(1107- )TRC600,TRU600

Click highlighted areas on diagram

ｸｰﾗﾊｲｶﾝ

diagram 7729812010 8714 8719 88374B 88374C 88375B 88375D 8843837010 88471A 88472 88645H 8868837420 88706B 88706C 88711 88712C 88712D 88716A 887182J090 8871832220 8871837390 8871837750 887183V160 887186A280 88721A 88723B 9009914119 9009914120 9009914121 91511B0630 91511B0630 91511J0625 91511J0625 91511J0625 91511J0625 9155180825 9155180825 9165160614 9165160616 9165160645 9165160645 9338516016 9415180800
Part # Description Qty Price
88374B - VALVE, SERVICE, NO.1
88374-30010

XZC600..6FC..ST;XZU650..T4..30T;XZU640..T4..6FC..IV3;XZU650..T3..30T..IV3;XZU650..T3..30T..DCRTK..CBU;TRU600,XZU640..(DCRTJ,EFI)..CBU;TRU600,XZU640..T3..5F..(DCRTJ,EFI)..IV3;TRC600,XZU600..(DM5,T3)..(5F,6FC)..(20T,40T)

 1
88374C - VALVE, SERVICE, NO.2
88374-30010

XZC600..6FC..ST;XZU650..T4..30T;XZU640..T4..6FC..IV3;XZU650..T3..30T..IV3;XZU650..T3..30T..DCRTK..CBU;TRU600,XZU640..(DCRTJ,EFI)..CBU;TRU600,XZU640..T3..5F..(DCRTJ,EFI)..IV3;TRC600,XZU600..(DM5,T3)..(5F,6FC)..(20T,40T)

 1
88375B - CAP, SERVICE VALVE, NO.1
88375-30290

XZC600..6FC..ST;XZU650..T4..30T;XZU640..T4..6FC..IV3;XZU650..T3..30T..IV3;XZU650..T3..30T..DCRTK..CBU;TRU600,XZU640..(DCRTJ,EFI)..CBU;TRU600,XZU640..T3..5F..(DCRTJ,EFI)..IV3;TRC600,XZU600..(DM5,T3)..(5F,6FC)..(20T,40T)

 1
88375D - CAP, SERVICE VALVE, NO.2
88375-30280

XZC600..6FC..ST;XZU650..T4..30T;XZU640..T4..6FC..IV3;XZU650..T3..30T..IV3;XZU650..T3..30T..DCRTK..CBU;TRU600,XZU640..(DCRTJ,EFI)..CBU;TRU600,XZU640..T3..5F..(DCRTJ,EFI)..IV3;TRC600,XZU600..(DM5,T3)..(5F,6FC)..(20T,40T)

 1
88471A - TANK, RECEIVER
88471-34010

TRU600..CBU;TRU600..T3..IV3;XZU650..30T..DCRTK;XZU640..T3..6FC..CBU;XZU650..T3..6FC..30T..DCRTJ..IV3;XZC600,XZU640,650..(T4,T5)..6FC..DCRTJ;TRC600,XZU600..(DM5,T3)..(5F,6FC)..(20T,40T)

 1
88472 - BRACKET, RECEIVER TANK, NO.1
88472-37260

TRU600..CBU;TRU600..T3..IV3;XZU650..30T..DCRTK;XZU640..T3..6FC..CBU;XZU650..T3..6FC..30T..DCRTJ..IV3;XZC600,XZU640,650..(T4,T5)..6FC..DCRTJ;TRC600,XZU600..(DM5,T3)..(5F,6FC)..(20T,40T)

 1
88645H - SWITCH, PRESSURE NO.1
88645-34010

XZC600..6FC..ST;XZU650..T4..30T;XZU640..T4..6FC..IV3;XZU650..T3..30T..IV3;XZU650..T3..30T..DCRTK..CBU;TRU600,XZU640..(DCRTJ,EFI)..CBU;TRU600,XZU640..T3..5F..(DCRTJ,EFI)..IV3;TRC600,XZU600..(DM5,T3)..(5F,6FC)..(20T,40T)

 1
88706B - TUBE SUB-ASSY, LIQUID, B
88706-37290

TRU600..CBU;TRU600..T3..IV3;XZU650..30T..DCRTK;XZU640..T3..6FC..CBU;XZU650..T3..6FC..30T..DCRTJ..IV3;XZC600,XZU640,650..(T4,T5)..6FC..DCRTJ;TRC600,XZU600..(DM5,T3)..(5F,6FC)..(20T,40T)

 1
88706C - TUBE SUB-ASSY, LIQUID, C
88706-37300

TRU600..CBU;TRU600..T3..IV3;XZU650..30T..DCRTK;XZU640..T3..6FC..CBU;XZU650..T3..6FC..30T..DCRTJ..IV3;XZC600,XZU640,650..(T4,T5)..6FC..DCRTJ;TRC600,XZU600..(DM5,T3)..(5F,6FC)..(20T,40T)

 1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-3V120

TRC600..DM5;TRU600..CBU;TRU600..T3..IV3

 1
88712C - HOSE, SUCTION
88712-37A90

TRC600..DM5;TRU600..CBU;TRU600..T3..IV3

 1
88712D - HOSE, SUCTION
88712-37C00

TRC600..DM5;TRU600..CBU;TRU600..T3..IV3

 1
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88716-3V570

TRU600..CBU;TRU600..T3..IV3;XZU650..30T..DCRTK;XZU640..T3..6FC..CBU;XZU650..T3..6FC..30T..DCRTJ..IV3;XZC600,XZU640,650..(T4,T5)..6FC..DCRTJ;TRC600,XZU600..(DM5,T3)..(5F,6FC)..(20T,40T)

 1
88721A - HOSE, LIQUID, A
88721-37B20

TRU600..CBU;TRU600..T3..IV3;XZU650..30T..DCRTK;XZU640..T3..6FC..CBU;XZU650..T3..6FC..30T..DCRTJ..IV3;XZC600,XZU640,650..(T4,T5)..6FC..DCRTJ;TRC600,XZU600..(DM5,T3)..(5F,6FC)..(20T,40T)

 1
88723B - LABEL, COOLER SERVICE CAUTION
88733-27010

TRU600..CBU;TRU600..T3..IV3;XZU650..30T..DCRTK;XZU640..T3..6FC..CBU;XZU650..T3..6FC..30T..DCRTJ..IV3;XZC600,XZU640,650..(T4,T5)..6FC..DCRTJ;TRC600,XZU600..(DM5,T3)..(5F,6FC)..(20T,40T)

 1
Common parts
77298-12010
88438-37010
88688-37420
88718-2J090
88718-32220
88718-37390
88718-37750
88718-3V160
88718-6A280
90099-14119
90099-14120
90099-14121
91511-B0630
91511-J0625
91551-80825
91651-60614
91651-60616
91651-60645
93385-16016
94151-80800
Linked diagrams
8714
8719
