TRC600A-TWMMK3 (2011)

Toyota Dyna/Toyoace

Production Jul 2011 - May 2015
Engine 2TRFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1107- )TRC600,TRU600

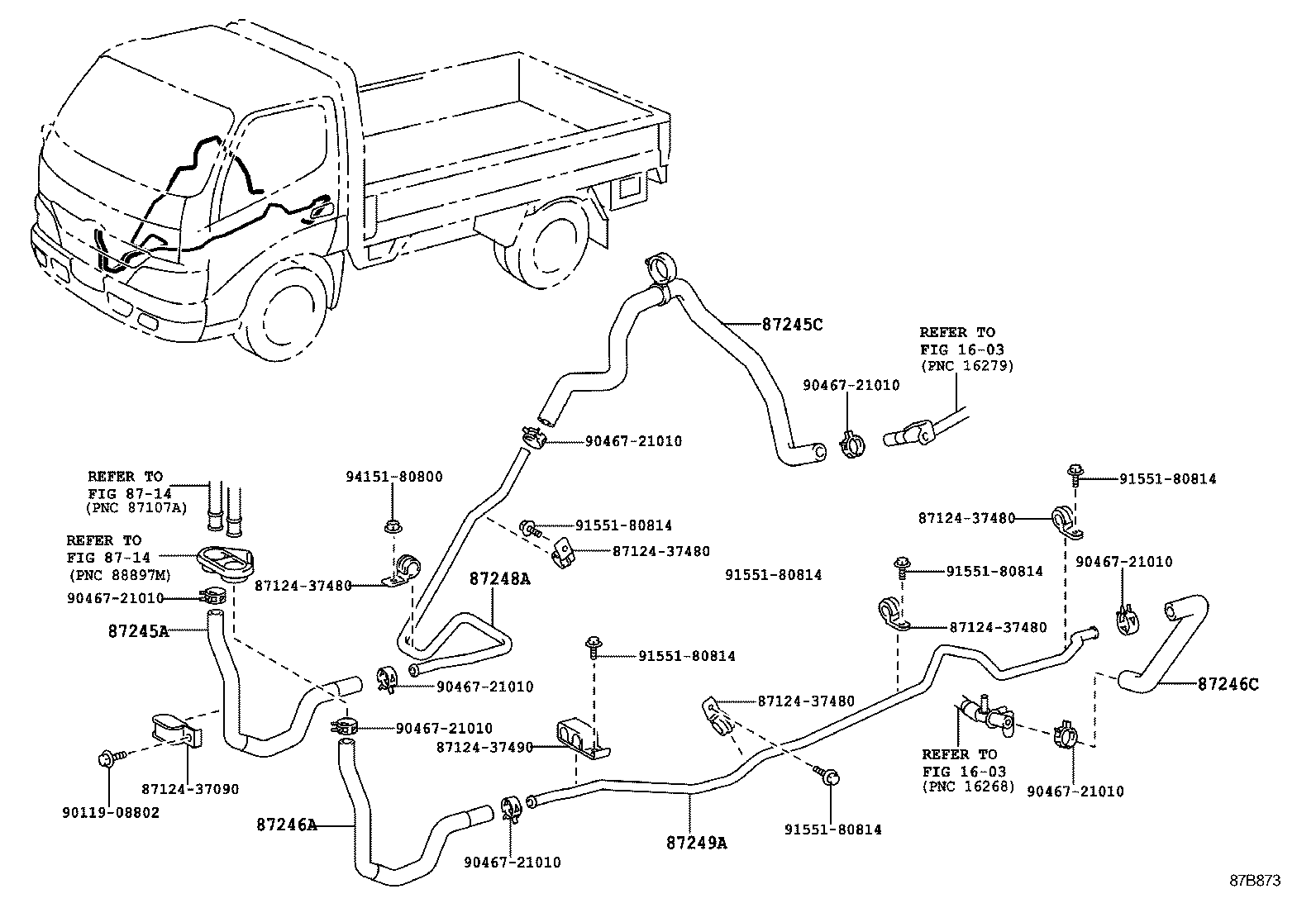

Click highlighted areas on diagram

diagram 1603 1603 8712437090 8712437480 8712437480 8712437480 8712437480 8712437480 8712437490 8714 8714 87245A 87245C 87246A 87246C 87248A 87249A 9011908802 9046721010 9046721010 9046721010 9046721010 9046721010 9046721010 9046721010 9046721010 9155180814 9155180814 9155180814 9155180814 9155180814 9155180814 9415180800
Part # Description Qty Price
87245A - HOSE, HEATER WATER, INLET A
87245-37A00

XZC600..6FC..ST;XZU650..T4..30T;XZU640..T4..6FC..IV3;XZU650..T3..30T..IV3;XZU650..T3..30T..DCRTK..CBU;TRU600,XZU640..(DCRTJ,EFI)..CBU;TRU600,XZU640..T3..5F..(DCRTJ,EFI)..IV3;TRC600,XZU600..(DM5,T3)..(5F,6FC)..(20T,40T)

 1
87245C - HOSE, HEATER WATER ,INLET C
87245-37D11

TRC600..DM5;TRU600..CBU;TRU600..T3..IV3

 1
87246A - HOSE, HEATER WATER, OUTLET A
87245-37A00

XZC600..6FC..ST;XZU650..T4..30T;XZU640..T4..6FC..IV3;XZU650..T3..30T..IV3;XZU650..T3..30T..DCRTK..CBU;TRU600,XZU640..(DCRTJ,EFI)..CBU;TRU600,XZU640..T3..5F..(DCRTJ,EFI)..IV3;TRC600,XZU600..(DM5,T3)..(5F,6FC)..(20T,40T)

 1
87246C - HOSE, HEATER WATER, OUTLET C
87246-37710

TRC600..DM5;TRU600..CBU;TRU600..T3..IV3

 1
87248A - PIPE, HEATER WATER INLET, A
87248-37451

TRC600..DM5;TRU600..CBU;TRU600..T3..IV3

 1
87249A - PIPE, HEATER WATER OUTLET, A
87248-37A40

TRC600..DM5;TRU600..CBU;TRU600..T3..IV3

 1
Common parts
87124-37090
87124-37480
87124-37490
90119-08802
90467-21010
91551-80814
94151-80800
Linked diagrams
1603
8714
