Toyota Dyna/toyoace TRC600 ABS & VSC

TRC600A-TWMMK3 (2011)

Toyota Dyna/Toyoace

Production Jul 2011 - May 2015

Engine 2TRFE

Transmission 5F MTM

Displacement 2500cc

Power 168 HP (125 kW)

ILLUST NO. 1 OF 3(1107-1505)

Click highlighted areas on diagram

ｶｳﾙ

Part #	Description	Period	Qty
89421F - SENSOR, VACUUM (FOR SKID CONTROL)
89421-37030	XZC600..6FC..ST;XZU650..T4..30T;XZU640..T4..6FC..IV3;XZU650..T3..30T..IV3;XZU650..T3..30T..DCRTK..CBU;TRU600,XZU640..(DCRTJ,EFI)..CBU;TRU600,XZU640..T3..5F..(DCRTJ,EFI)..IV3;TRC600,XZU600..(DM5,T3)..(5F,6FC)..(20T,40T)	07/2011 - 05/2015	2
89421F - SENSOR, VACUUM (FOR SKID CONTROL)
89421-37030	XZC600..6FC..ST;XZU650..T4..30T;XZU640..T4..6FC..IV3;XZU650..T3..30T..IV3;XZU650..T3..30T..DCRTK..CBU;TRU600,XZU640..(DCRTJ,EFI)..CBU;TRU600,XZU640..T3..5F..(DCRTJ,EFI)..IV3;TRC600,XZU600..(DM5,T3)..(5F,6FC)..(20T,40T)	07/2011 - 05/2015	2
Common parts
87615-37010
91551-80616
91621-40616

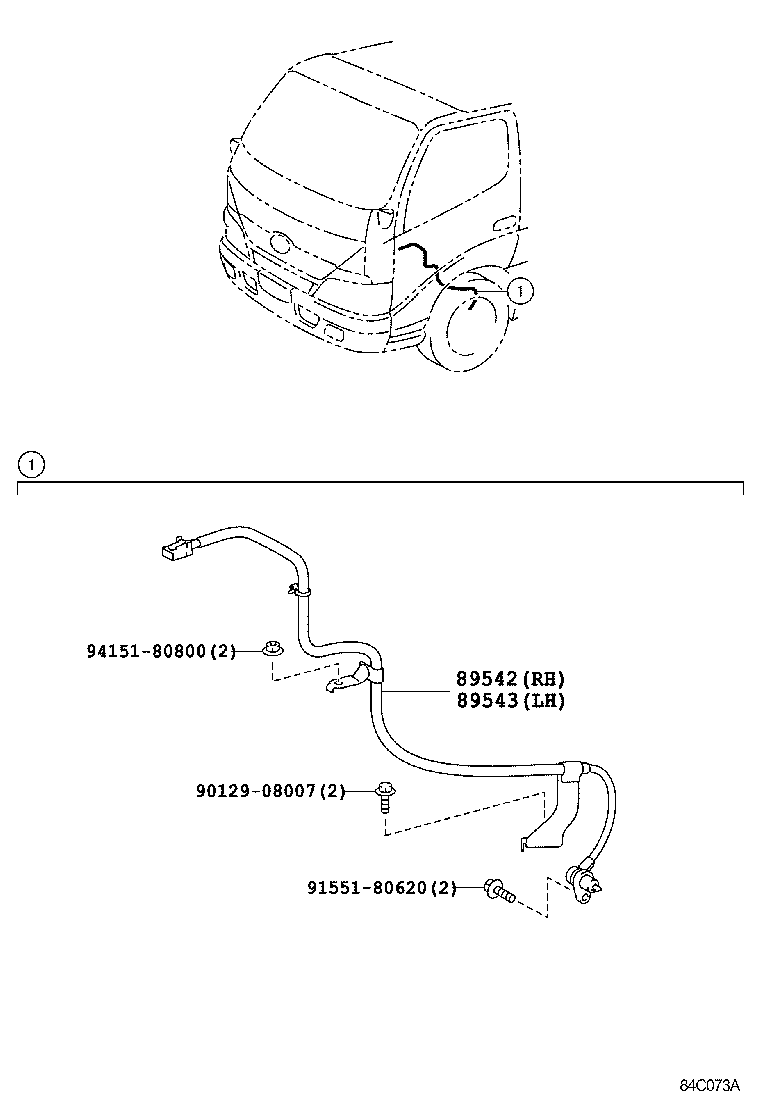

ILLUST NO. 2 OF 3(1107- )BZU600,TRC600,TRU600,XZC600,610,630,XZU600,610,620,630,640,650..20T,30T

Click highlighted areas on diagram

ﾌﾛﾝﾄｽﾋﾟｰﾄﾞｾﾝｻ

Part #	Description	Period	Qty
89542 - SENSOR, SPEED, FRONT RH
89542-37070	TRC600..DM5;XZC600..6FC..ST;XZU650..T4..30T;XZU640..T4..6FC..IV3;XZU650..T3..30T..IV3;XZU650..T3..30T..DCRTK..CBU;TRU600,XZU640..(DCRTJ,EFI)..CBU;TRU600,XZU640..T3..5F..(DCRTJ,EFI)..IV3	07/2011 - 05/2015	1
89543 - SENSOR, SPEED, FRONT LH
89543-37100	TRC600..DM5;XZC600..6FC..ST;XZU650..T4..30T;XZU640..T4..6FC..IV3;XZU650..T3..30T..IV3;XZU650..T3..30T..DCRTK..CBU;TRU600,XZU640..(DCRTJ,EFI)..CBU;TRU600,XZU640..T3..5F..(DCRTJ,EFI)..IV3	07/2011 - 05/2015	1
Common parts
90129-08007
91551-80620
94151-80800

ILLUST NO. 3 OF 3(1107-1605)DM3 ; (1107-1605)XZC675,XZU675,685,695..T3,T4..CBU,IV3,IV6 ; (1107-1705)

Click highlighted areas on diagram

ﾘﾔｽﾋﾟｰﾄﾞｾﾝｻ

Part #	Description	Period	Qty
42141A - ATTACHMENT, SKID CONTROL WIRE, NO.1
42141-37230	TRC600..DM5	07/2011 - 05/2015	1
42141-37230	TRC600..DM5	07/2011 - 05/2015	1
42141-37230	TRC600..DM5	07/2011 - 05/2015	1
42141-37230	TRC600..DM5	07/2011 - 05/2015	1
89545 - SENSOR, SPEED, REAR RH
89545-37130	TRC600..DM5	07/2011 - 02/2013	1
89545-37130	TRC600..DM5	07/2011 - 02/2013	1
89545-37130	TRC600..DM5	07/2011 - 02/2013	1
89545-37130	TRC600..DM5	07/2011 - 02/2013	1
89545-37131	TRC600..DM5	02/2013 - 05/2015	1
89545-37131	TRC600..DM5	02/2013 - 05/2015	1
89545-37131	TRC600..DM5	02/2013 - 05/2015	1
89545-37131	TRC600..DM5	02/2013 - 05/2015	1
89545 - SENSOR, SPEED, REAR RH
89545-37130	TRC600..DM5	07/2011 - 02/2013	1
89545-37130	TRC600..DM5	07/2011 - 02/2013	1
89545-37130	TRC600..DM5	07/2011 - 02/2013	1
89545-37130	TRC600..DM5	07/2011 - 02/2013	1
89545-37131	TRC600..DM5	02/2013 - 05/2015	1
89545-37131	TRC600..DM5	02/2013 - 05/2015	1
89545-37131	TRC600..DM5	02/2013 - 05/2015	1
89545-37131	TRC600..DM5	02/2013 - 05/2015	1
89546 - SENSOR, SPEED, REAR LH
89546-37130	TRC600..DM5	07/2011 - 02/2013	1
89546-37130	TRC600..DM5	07/2011 - 02/2013	1
89546-37130	TRC600..DM5	07/2011 - 02/2013	1
89546-37130	TRC600..DM5	07/2011 - 02/2013	1
89546-37131	TRC600..DM5	02/2013 - 05/2015	1
89546-37131	TRC600..DM5	02/2013 - 05/2015	1
89546-37131	TRC600..DM5	02/2013 - 05/2015	1
89546-37131	TRC600..DM5	02/2013 - 05/2015	1
89546 - SENSOR, SPEED, REAR LH
89546-37130	TRC600..DM5	07/2011 - 02/2013	1
89546-37130	TRC600..DM5	07/2011 - 02/2013	1
89546-37130	TRC600..DM5	07/2011 - 02/2013	1
89546-37130	TRC600..DM5	07/2011 - 02/2013	1
89546-37131	TRC600..DM5	02/2013 - 05/2015	1
89546-37131	TRC600..DM5	02/2013 - 05/2015	1
89546-37131	TRC600..DM5	02/2013 - 05/2015	1
89546-37131	TRC600..DM5	02/2013 - 05/2015	1
89549E - BRACKET, SPEED SENSOR
82715-3VM20	TRC600..DM5	07/2011 - 05/2015	1
82715-3VM20	TRC600..DM5	07/2011 - 05/2015	1
82715-3VM20	TRC600..DM5	07/2011 - 05/2015	1
82715-3VM20	TRC600..DM5	07/2011 - 05/2015	1
Common parts
42141-37330
90129-08007
91551-80620
91551-80635
94151-80800

ILLUST NO. 3 OF 3(1107- )TRC600..DM5

Click highlighted areas on diagram

ﾘﾔｽﾋﾟｰﾄﾞｾﾝｻ

Part #	Description	Period	Qty
42141A - ATTACHMENT, SKID CONTROL WIRE, NO.1
42141-37230	TRC600..DM5	07/2011 - 05/2015	1
89545 - SENSOR, SPEED, REAR RH
89545-37130	TRC600..DM5	07/2011 - 02/2013	1
89545-37131	TRC600..DM5	02/2013 - 05/2015	1
89546 - SENSOR, SPEED, REAR LH
89546-37130	TRC600..DM5	07/2011 - 02/2013	1
89546-37131	TRC600..DM5	02/2013 - 05/2015	1
89549E - BRACKET, SPEED SENSOR
82715-3VM20	TRC600..DM5	07/2011 - 05/2015	1
Common parts
90129-08007
91551-80635
94151-80800
94151-81000
