TRC600A-TWMMK3 (2011)

Toyota Dyna/Toyoace

Production Jul 2011 - May 2015
Engine 2TRFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1107- )TRC600,TRU600..SCB

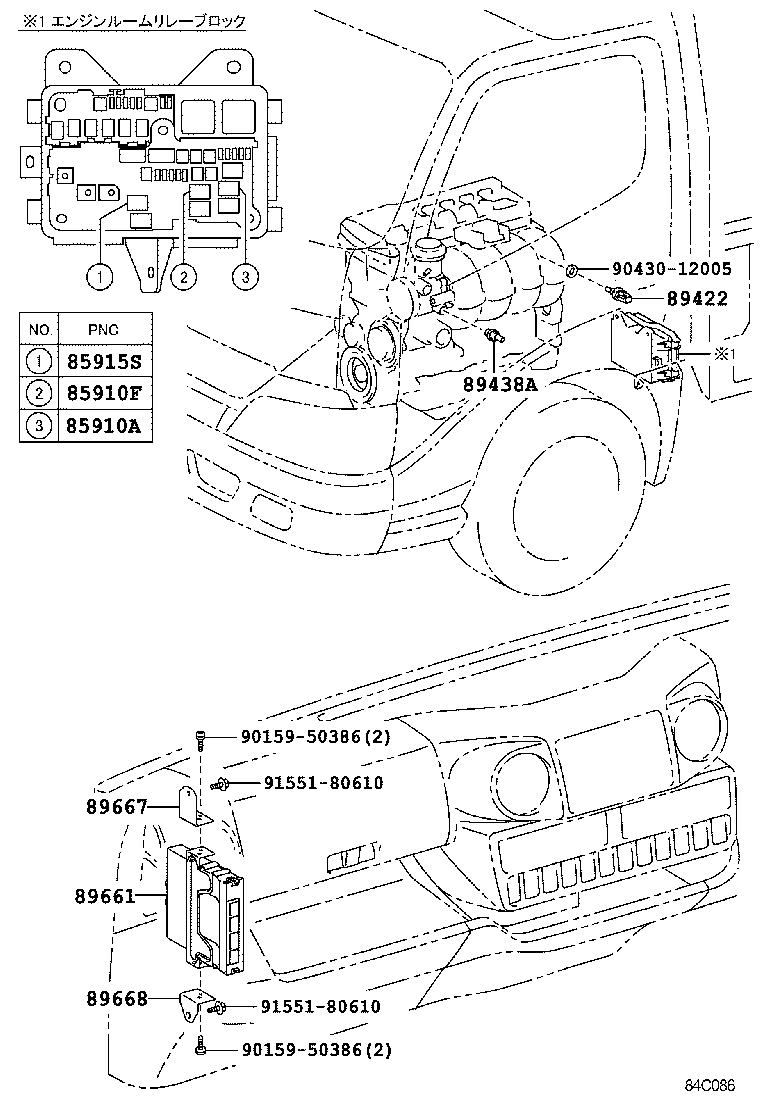

Click highlighted areas on diagram

diagram 85910A 85910F 85915S 89422 89438A 89661 89667 89668 9015950386 9015950386 9043012005 9155180610 9155180610
Part # Description Qty Price
85910A - RELAY ASSY, CIRCUIT OPENING (FOR EFI)
90987-02012

TRC600..DM5;TRU600..CBU;TRU600..T3..IV3

 1
85910F - RELAY, COMPUTER (FOR EFI)
90987-02012

TRC600..DM5;TRU600..CBU;TRU600..T3..IV3

 1
85915S - RELAY, HEATER (FOR AIR FUEL RATIO SENSOR)
90987-02012

TRC600..DM5;TRU600..CBU;TRU600..T3..IV3

 1
89422 - SENSOR, WATER TEMPERATURE (FOR E.F.I.)
89422-33030

TRC600..DM5;TRU600..CBU;TRU600..T3..IV3

 1
89438A - SWITCH, POWER STEERING OIL PRESSURE
89438-33010

TRC600..DM5;TRU600..CBU;TRU600..T3..IV3

 1
89661 - COMPUTER, ENGINE CONTROL
89661-37C00

TRC600..DM5;TRU600..CBU;TRU600..T3..IV3

DENSO

 1
89667 - BRACKET, ENGINE CONTROL COMPUTER
89667-37140

TRC600..DM5;TRU600..CBU;TRU600..T3..IV3

 1
89668 - BRACKET, ENGINE CONTROL COMPUTER, NO.2
89668-37140

TRC600..DM5;TRU600..CBU;TRU600..T3..IV3

 1
Common parts
90159-50386
90430-12005
91551-80610
