TRC600A-TWMMK3 (2011)
Toyota Dyna/Toyoace
ILLUST NO. 7 OF10(1107- )
ｽﾃｱﾘﾝｸﾞ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84052 - SWITCH ASSY, UN-LOCK WARNING | ||||
| 84052-37010 |
XZC600..6FC..ST;XZU650..T4..30T;XZU640..T4..6FC..IV3;XZU650..T3..30T..IV3;XZU650..T3..30T..DCRTK..CBU;TRU600,XZU640..(DCRTJ,EFI)..CBU;TRU600,XZU640..T3..5F..(DCRTJ,EFI)..IV3;TRC600,XZU600..(DM5,T3)..(5F,6FC)..(20T,40T) |
1 | ||
| 84140 - SWITCH ASSY, HEADLAMP DIMMER | ||||
| 84140-37131 |
XZC600..6FC..ST;XZU650..T4..30T;XZU640..T4..6FC..IV3;XZU650..T3..30T..IV3;XZU650..T3..30T..DCRTK..CBU;TRU600,XZU640..(DCRTJ,EFI)..CBU;TRU600,XZU640..T3..5F..(DCRTJ,EFI)..IV3;TRC600,XZU600..(DM5,T3)..(5F,6FC)..(20T,40T) ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り(ﾊﾞﾙﾌﾞ) |
1 | ||
| 84140-37121 |
XZC600..6FC..ST;XZU650..T4..30T;XZU640..T4..6FC..IV3;XZU650..T3..30T..IV3;XZU650..T3..30T..DCRTK..CBU;TRU600,XZU640..(DCRTJ,EFI)..CBU;TRU600,XZU640..T3..5F..(DCRTJ,EFI)..IV3;TRC600,XZU600..(DM5,T3)..(5F,6FC)..(20T,40T) |
1 | ||
| 84306 - CABLE SUB-ASSY, SPIRAL | ||||
| 84306-37031 |
XZC600..6FC..ST;XZU650..T4..30T;XZU640..T4..6FC..IV3;XZU650..T3..30T..IV3;XZU650..T3..30T..DCRTK..CBU;TRU600,XZU640..(DCRTJ,EFI)..CBU;TRU600,XZU640..T3..5F..(DCRTJ,EFI)..IV3;TRC600,XZU600..(DM5,T3)..(5F,6FC)..(20T,40T) |
1 | ||
| 84306-37030 |
BZU600,TRC600,TRU600,XZC60#,610,630,645,655,675,XZU60#,610,620,630,64#,65#,675,685,695 |
1 | ||
| 84306 - CABLE SUB-ASSY, SPIRAL | ||||
| 84306-37031 |
XZC600..6FC..ST;XZU650..T4..30T;XZU640..T4..6FC..IV3;XZU650..T3..30T..IV3;XZU650..T3..30T..DCRTK..CBU;TRU600,XZU640..(DCRTJ,EFI)..CBU;TRU600,XZU640..T3..5F..(DCRTJ,EFI)..IV3;TRC600,XZU600..(DM5,T3)..(5F,6FC)..(20T,40T) |
1 | ||
| 84306-37030 |
BZU600,TRC600,TRU600,XZC60#,610,630,645,655,675,XZU60#,610,620,630,64#,65#,675,685,695 |
1 | ||
| 84450 - SWITCH ASSY, IGNITION OR STARTER | ||||
| 84450-E0020 |
XZC600..6FC..ST;XZU650..T4..30T;XZU640..T4..6FC..IV3;XZU650..T3..30T..IV3;XZU650..T3..30T..DCRTK..CBU;TRU600,XZU640..(DCRTJ,EFI)..CBU;TRU600,XZU640..T3..5F..(DCRTJ,EFI)..IV3;TRC600,XZU600..(DM5,T3)..(5F,6FC)..(20T,40T) |
1 | ||
| 84650 - SWITCH ASSY, WINDSHIELD WIPER | ||||
| 84652-37320 |
TRC600..DM5;TRU600..CBU;TRU600..T3..IV3 |
1 | ||
| Common parts | ||||
| 90159-50199 | ||||
| 90168-40129 | ||||
| Linked diagrams | ||||
| 4501 | ||||
| 4504 | ||||
ILLUST NO. 6 OF10(1107-1705)TRC600,TRU600,XZC60#,610,630,645,655,675,XZU60#,610,620,630,64#,65#,675,
ｲﾝｽﾄﾙﾒﾝﾄﾊﾟﾈﾙ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83950M - LAMP ASSY, TELLTALE | ||||
| 83950-37030 |
XZC600..6FC..ST;XZU650..T4..30T;XZU640..T4..6FC..IV3;XZU650..T3..30T..IV3;XZU650..T3..30T..DCRTK..CBU;TRU600,XZU640..(DCRTJ,EFI)..CBU;TRU600,XZU640..T3..5F..(DCRTJ,EFI)..IV3;TRC600,XZU600..(DM5,T3)..(5F,6FC)..(20T,40T) SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席) |
1 | ||
| 84152 - SWITCH, HEADLAMP LEVELING | ||||
| 84152-37050 |
BZU600,TRC600,TRU600 |
1 | ||
| 84152-37051 |
TRC600..DM5;TRU600..CBU;TRU600..T3..IV3 |
1 | ||
| 84160 - SWITCH ASSY, ROOM LAMP | ||||
| 84270-37260 |
XZC600..6FC..ST;XZU650..T4..30T;XZU640..T4..6FC..IV3;XZU650..T3..30T..IV3;XZU650..T3..30T..DCRTK..CBU;TRU600,XZU640..(DCRTJ,EFI)..CBU;TRU600,XZU640..T3..5F..(DCRTJ,EFI)..IV3;TRC600,XZU600..(DM5,T3)..(5F,6FC)..(20T,40T) ﾙｰﾑﾗﾝﾌﾟ−有り(LED照明) |
1 | ||
| 84270D - SWITCH ASSY, ES START TIMING | ||||
| 84270-37320 |
TRC600..DM5;TRU600..CBU;TRU600..T3..IV3 坂道発進補助装置−有り(ESｽﾀｰﾄ) |
1 | ||
| 84330 - SWITCH ASSY, HAZARD WARNING SIGNAL | ||||
| 84332-37110 |
XZC600..6FC..ST;XZU650..T4..30T;XZU640..T4..6FC..IV3;XZU650..T3..30T..IV3;XZU650..T3..30T..DCRTK..CBU;TRU600,XZU640..(DCRTJ,EFI)..CBU;TRU600,XZU640..T3..5F..(DCRTJ,EFI)..IV3;TRC600,XZU600..(DM5,T3)..(5F,6FC)..(20T,40T) |
1 | ||
| 84873A - SWITCH, RETRACTABLE OUTER MIRROR | ||||
| 84873-37030 |
TRU600..T3;XZU650..T4..30T;XZU640..DCRTJ..CBU;XZU640..T4..6FC..IV3;XZC600..6FC..ST..IV3;XZU650..T3..30T..IV3;XZU640..T3..5F..DCRTJ..IV3;XZU650..T3..30T..DCRTK..CBU;TRC600,XZU600..(DM5,T3)..(5F,6FC)..(20T,40T)..(IV3,IV6) ｱｳﾀﾐﾗｰ−*DRS(*TM)､*PAS(*57&*LOS&*TM) |
1 | ||
| 84873-37030 |
TRC600..DM5;TRU600..T4..CBU;XZC600..6FC..ST ｱｳﾀﾐﾗｰ−*DRS(*TM)､*PAS(*57&*SHS)､*CR(DOP) |
1 | ||
| 84873-37030 |
TRU600..T3;XZU650..T4..30T;XZU640..DCRTJ..CBU;XZU640..T4..6FC..IV3;XZC600..6FC..ST..IV3;XZU650..T3..30T..IV3;XZU640..T3..5F..DCRTJ..IV3;XZU650..T3..30T..DCRTK..CBU;TRC600,XZU600..(DM5,T3)..(5F,6FC)..(20T,40T)..(IV3,IV6) ｱｳﾀﾐﾗｰ−*DRS(*WVM)､*PAS(*57&*LOS&*TM(*WVM)) |
1 | ||
| 84873-37030 |
TRC600..DM5;TRU600..T4..CBU;XZC600..6FC..ST ｱｳﾀﾐﾗｰ−*DRS(*TM)､*PAS(*57&*SHS&*TM) |
1 | ||
| 84873-37030 |
TRC600..DM5;TRU600..T4..CBU;XZC600..6FC..ST ｱｳﾀﾐﾗｰ−*DRS(*TM)､*PAS(*57&*SHS&*WVM) |
1 | ||
| 84873-37030 |
TRU600..T3;XZU650..T4..30T;XZU640..DCRTJ..CBU;XZU640..T4..6FC..IV3;XZC600..6FC..ST..IV3;XZU650..T3..30T..IV3;XZU640..T3..5F..DCRTJ..IV3;XZU650..T3..30T..DCRTK..CBU;TRC600,XZU600..(DM5,T3)..(5F,6FC)..(20T,40T)..(IV3,IV6) ｱｳﾀﾐﾗｰ−*DRS(*TM)､*PAS(*57&*LOS&*TM(*WVM)) |
1 | ||
| 84873-37030 |
TRU600..T3;XZU650..T4..30T;XZU640..DCRTJ..CBU;XZU640..T4..6FC..IV3;XZC600..6FC..ST..IV3;XZU650..T3..30T..IV3;XZU640..T3..5F..DCRTJ..IV3;XZU650..T3..30T..DCRTK..CBU;TRC600,XZU600..(DM5,T3)..(5F,6FC)..(20T,40T)..(IV3,IV6) ｱｳﾀﾐﾗｰ−*DRS(*TM)､*PAS(*57&*LOS&*TM)､*CR(DOP) |
1 | ||
| 84873-37030 |
TRC600..DM5;TRU600..T4..CBU;XZC600..6FC..ST ｱｳﾀﾐﾗｰ−*DRS(*WVM)､*PAS(*57&*SHS&*TM(*WVM)) |
1 | ||
| 85500 - LIGHTER ASSY, CIGARETTE | ||||
| 85500-12240 |
BZU600,TRC600,TRU600 |
1 | ||
| 85513 - COVER, CIGARETTE LIGHTER | ||||
| 85513-12020 |
XZC600..6FC..ST;XZU650..T4..30T;XZU640..T4..6FC..IV3;XZU650..T3..30T..IV3;XZU650..T3..30T..DCRTK..CBU;TRU600,XZU640..(DCRTJ,EFI)..CBU;TRU600,XZU640..T3..5F..(DCRTJ,EFI)..IV3;TRC600,XZU600..(DM5,T3)..(5F,6FC)..(20T,40T) |
1 | ||
| 85520 - KNOB AND ELEMENT ASSY, CIGARETTE LIGHTER | ||||
| 85520-28010 |
BZU600,TRC600,TRU600 |
1 | ||
| 85533 - LENS, CIGARETTE LIGHTER INDICATOR | ||||
| 85533-26010 |
XZC600..6FC..ST;XZU650..T4..30T;XZU640..T4..6FC..IV3;XZU650..T3..30T..IV3;XZU650..T3..30T..DCRTK..CBU;TRU600,XZU640..(DCRTJ,EFI)..CBU;TRU600,XZU640..T3..5F..(DCRTJ,EFI)..IV3;TRC600,XZU600..(DM5,T3)..(5F,6FC)..(20T,40T) |
1 | ||
| Linked diagrams | ||||
| 7851 | ||||
| 8413 | ||||
| 8420 | ||||
| 8609 | ||||

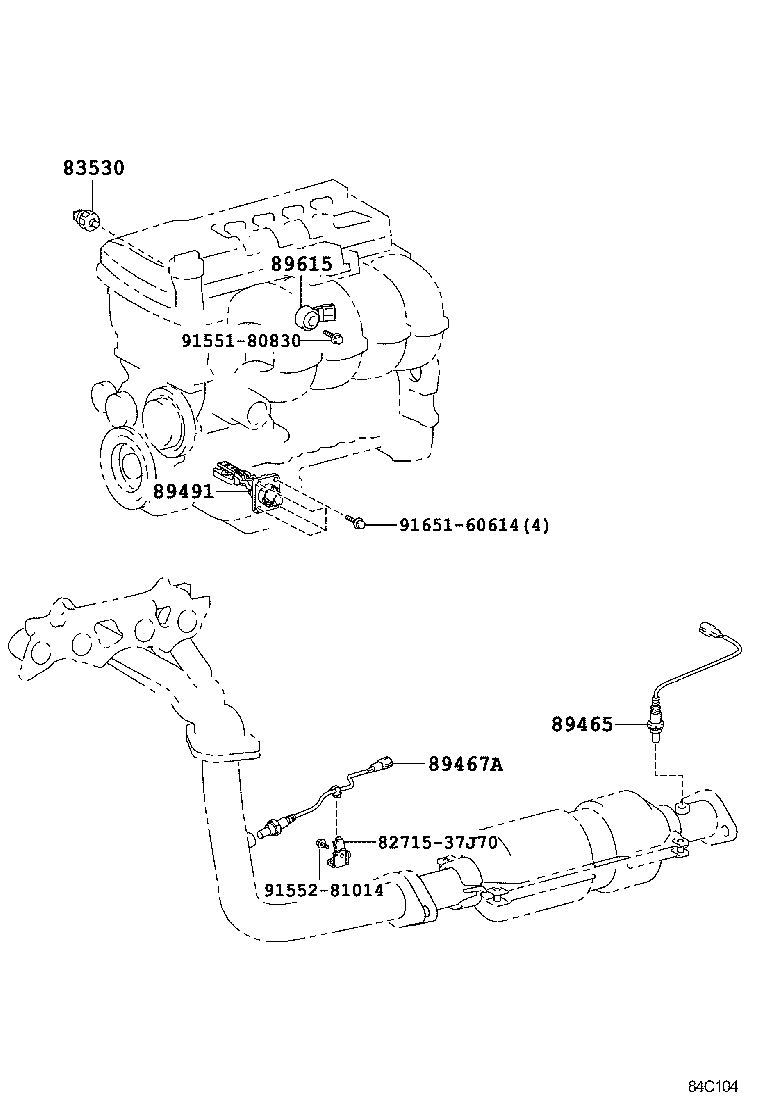

ILLUST NO. 1 OF10(1107-1605)TRC600,TRU600
ｴﾝｼﾞﾝ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE) | ||||
| 83530-60020 |
TRC600..DM5;TRU600..CBU;TRU600..T3..IV3 YAZAKI |
1 | ||
| 83530-28020 |
TRC600..DM5;TRU600..CBU;TRU600..T3..IV3 DENSO |
1 | ||
| 89465 - SENSOR, OXYGEN | ||||
| 89465-37150 |
TRC600..DM5;TRU600..CBU;TRU600..T3..IV3 |
1 | ||
| 89467A - SENSOR, WIDE RANGE AIR FUEL RATIO | ||||
| 89467-37060 |
TRC600..DM5;TRU600..CBU;TRU600..T3..IV3 |
1 | ||
| 89491 - SENSOR, ENGINE OIL LEVEL | ||||
| 89491-25030 |
TRC600..DM5;TRU600..CBU;TRU600..T3..IV3 |
1 | ||
| 89615 - SENSOR, KNOCK CONTROL | ||||
| 89615-20090 |
TRC600..DM5;TRU600..CBU;TRU600..T3..IV3 |
1 | ||
| Common parts | ||||
| 82715-37J70 | ||||
| 91551-80830 | ||||
| 91552-81014 | ||||
| 91651-60614 | ||||
ILLUST NO. 5 OF10(1107- )DCRTH,DCRTJ,DCRTK,DCRVT,EFI,LPG
ｶｳﾙ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81713 - HOLDER, FUSEE | ||||
| SZ950-79033 |
XZC600..6FC..ST;XZU650..T4..30T;XZU640..T4..6FC..IV3;XZU650..T3..30T..IV3;XZU650..T3..30T..DCRTK..CBU;TRU600,XZU640..(DCRTJ,EFI)..CBU;TRU600,XZU640..T3..5F..(DCRTJ,EFI)..IV3;TRC600,XZU600..(DM5,T3)..(5F,6FC)..(20T,40T) |
1 | ||
| 81980 - FLASHER ASSY, TURN SIGNAL | ||||
| 81980-37240 |
TRC600..DM5;TRU600..CBU;TRU600..T3..IV3 |
1 | ||
| 81980 - FLASHER ASSY, TURN SIGNAL | ||||
| 81980-37240 |
TRC600..DM5;TRU600..CBU;TRU600..T3..IV3 |
1 | ||
| 82600D - INSTRUMENT PANEL FUSE | ||||
| 90982-09021 |
XZC600..6FC..ST;XZU650..T4..30T;XZU640..T4..6FC..IV3;XZU650..T3..30T..IV3;XZU650..T3..30T..DCRTK..CBU;TRU600,XZU640..(DCRTJ,EFI)..CBU;TRU600,XZU640..T3..5F..(DCRTJ,EFI)..IV3;TRC600,XZU600..(DM5,T3)..(5F,6FC)..(20T,40T) 10A,ﾐﾆ ﾋｭｰｽﾞ,赤 |
1 | ||
| 90982-09024 |
XZC600..6FC..ST;XZU650..T4..30T;XZU640..T4..6FC..IV3;XZU650..T3..30T..IV3;XZU650..T3..30T..DCRTK..CBU;TRU600,XZU640..(DCRTJ,EFI)..CBU;TRU600,XZU640..T3..5F..(DCRTJ,EFI)..IV3;TRC600,XZU600..(DM5,T3)..(5F,6FC)..(20T,40T) 25A,ﾐﾆ ﾋｭｰｽﾞ |
1 | ||
| 90982-09025 |
TRC600..DM5;TRU600..CBU;TRU600..T3..IV3 30A,ﾐﾆ ﾋｭｰｽﾞ,緑 |
1 | ||
| 90982-09022 |
XZC600..6FC..ST;XZU650..T4..30T;XZU640..T4..6FC..IV3;XZU650..T3..30T..IV3;XZU650..T3..30T..DCRTK..CBU;TRU600,XZU640..(DCRTJ,EFI)..CBU;TRU600,XZU640..T3..5F..(DCRTJ,EFI)..IV3;TRC600,XZU600..(DM5,T3)..(5F,6FC)..(20T,40T) 15A,ﾐﾆ ﾋｭｰｽﾞ,青 |
1 | ||
| 90982-09023 |
XZC600..6FC..ST;XZU650..T4..30T;XZU640..T4..6FC..IV3;XZU650..T3..30T..IV3;XZU650..T3..30T..DCRTK..CBU;TRU600,XZU640..(DCRTJ,EFI)..CBU;TRU600,XZU640..T3..5F..(DCRTJ,EFI)..IV3;TRC600,XZU600..(DM5,T3)..(5F,6FC)..(20T,40T) 20A,ﾐﾆ ﾋｭｰｽﾞ,黄 |
1 | ||
| 82600G - PLATE, CAUTION(FOR FUSE) | ||||
| 82683-37550 |
TRC600..DM5;TRU600..CBU;TRU600..T3..IV3 |
1 | ||
| 82616 - PULLER, FUSE | ||||
| 82616-58010 |
XZC600..6FC..ST;XZU650..T4..30T;XZU640..T4..6FC..IV3;XZU650..T3..30T..IV3;XZU650..T3..30T..DCRTK..CBU;TRU600,XZU640..(DCRTJ,EFI)..CBU;TRU600,XZU640..T3..5F..(DCRTJ,EFI)..IV3;TRC600,XZU600..(DM5,T3)..(5F,6FC)..(20T,40T) |
1 | ||
| 82641 - RELAY, INTEGRATION NO.1 | ||||
| 82641-37030 |
TRC600..DM5;TRU600..CBU;TRU600..T3..IV3 |
1 | ||
| 82730A - BLOCK ASSY, DRIVER SIDE JUNCTION | ||||
| 82730-37080 |
TRC600..DM5;TRU600..CBU;TRU600..T3..IV3 |
1 | ||
| 82821B - COVER, CONNECTOR | ||||
| 82821-37250 |
XZC600..6FC..ST;XZU650..T4..30T;XZU640..T4..6FC..IV3;XZU650..T3..30T..IV3;XZU650..T3..30T..DCRTK..CBU;TRU600,XZU640..(DCRTJ,EFI)..CBU;TRU600,XZU640..T3..5F..(DCRTJ,EFI)..IV3;TRC600,XZU600..(DM5,T3)..(5F,6FC)..(20T,40T) |
1 | ||
| 83650 - FUSEE | ||||
| 90986-01005 |
XZC600..6FC..ST;XZU650..T4..30T;XZU640..T4..6FC..IV3;XZU650..T3..30T..IV3;XZU650..T3..30T..DCRTK..CBU;TRU600,XZU640..(DCRTJ,EFI)..CBU;TRU600,XZU640..T3..5F..(DCRTJ,EFI)..IV3;TRC600,XZU600..(DM5,T3)..(5F,6FC)..(20T,40T) |
1 | ||
| 84340 - SWITCH ASSY, STOP LAMP | ||||
| 84340-37050 |
XZC600..6FC..ST;XZU650..T4..30T;XZU640..T4..6FC..IV3;XZU650..T3..30T..IV3;XZU650..T3..30T..DCRTK..CBU;TRU600,XZU640..(DCRTJ,EFI)..CBU;TRU600,XZU640..T3..5F..(DCRTJ,EFI)..IV3;TRC600,XZU600..(DM5,T3)..(5F,6FC)..(20T,40T) |
1 | ||
| 84345 - ADJUSTER, STOP LAMP SWITCH MOUNTING | ||||
| 84345-51010 |
XZC600..6FC..ST;XZU650..T4..30T;XZU640..T4..6FC..IV3;XZU650..T3..30T..IV3;XZU650..T3..30T..DCRTK..CBU;TRU600,XZU640..(DCRTJ,EFI)..CBU;TRU600,XZU640..T3..5F..(DCRTJ,EFI)..IV3;TRC600,XZU600..(DM5,T3)..(5F,6FC)..(20T,40T) |
1 | ||
| 84640C - SWITCH ASSY, EXHAUST RETARDER | ||||
| 84640-37080 |
TRC600..DM5;TRU600..CBU;TRU600..T3..IV3 坂道発進補助装置−有り(ESｽﾀｰﾄ) |
1 | ||
| 85916P - RELAY, HEADLAMP | ||||
| 90987-02027 |
TRC600..DM5;TRU600..CBU;TRU600..T3..IV3 |
2 | ||
| 85916P - RELAY, HEADLAMP | ||||
| 90987-02027 |
TRC600..DM5;TRU600..CBU;TRU600..T3..IV3 |
2 | ||
| 89280 - SENSOR ASSY, CLUTCH PEDAL STROKE | ||||
| 89280-37020 |
TRC600..DM5;TRU600..CBU;TRU600..T3..IV3 坂道発進補助装置−有り(ESｽﾀｰﾄ) |
1 | ||
| 89539E - BRACKET, COMPUTER | ||||
| 89539-37031 |
BZU600,TRC600,TRU600,XZC60#,610,630,645,655,675,XZU60#,610,620,630,64#,65#,675,685,695 |
1 | ||
| 89880 - COMPUTER ASSY, ELECTRIC VEHICLE CONTROL | ||||
| 89880-37211 |
TRC600,TRU600 坂道発進補助装置−有り(ESｽﾀｰﾄ) |
1 | ||
| 89880-37212 |
TRC600,TRU600 坂道発進補助装置−有り(ESｽﾀｰﾄ) |
1 | ||
| 89880-37213 |
TRC600,TRU600 坂道発進補助装置−有り(ESｽﾀｰﾄ) |
1 | ||
| 89880-37214 |
TRC600,TRU600 坂道発進補助装置−有り(ESｽﾀｰﾄ) |
1 | ||
| 89880-37215 |
TRC600,TRU600 坂道発進補助装置−有り(ESｽﾀｰﾄ) |
1 | ||
| Common parts | ||||
| 87241-37060 | ||||
| 90119-06536 | ||||
| 90159-50322 | ||||
| 90159-50386 | ||||
| 90159-60382 | ||||
| 90467-07211 | ||||
| 91551-80610 | ||||
| 91551-80612 | ||||
| 91551-80814 | ||||
| 91551-80816 | ||||
| 94120-41000 | ||||
| 94151-80600 | ||||
| Linked diagrams | ||||
| 8413 | ||||
ILLUST NO.10 OF10(1107-1705)TRC600,TRU600,XZC60#,610,630,645,655,675,XZU60#,610,620,630,64#,65#,675,
ﾘﾔﾎﾞﾃﾞｰ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-80387 |
TRC600..DM5;TRU600..CBU;TRU600..T3..IV3 |
1 | ||
| 83361 - GASKET, FUEL SENDER GAGE | ||||
| 83361-20030 |
XZC600..6FC..ST;XZU650..T4..30T;XZU640..T4..6FC..IV3;XZU650..T3..30T..IV3;XZU650..T3..30T..DCRTK..CBU;TRU600,XZU640..(DCRTJ,EFI)..CBU;TRU600,XZU640..T3..5F..(DCRTJ,EFI)..IV3;TRC600,XZU600..(DM5,T3)..(5F,6FC)..(20T,40T) |
1 | ||
| 86650H - BUZZER ASSY, BACK | ||||
| 86650-37090 |
TRC600..DM5;TRU600..CBU;TRU600..T3..IV3 |
1 | ||
| Common parts | ||||
| 83161-20200 | ||||
| 91551-80820 | ||||
| 91551-80825 | ||||
| 91611-B0816 | ||||
| 91611-B0825 | ||||
| 93319-A4010 | ||||
| 94130-00802 | ||||
| 94151-80800 | ||||
ILLUST NO. 8 OF10(1107- )SCB
ﾄﾞｱ,ﾙｰﾌ & ﾌﾛｱ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83390 - SWITCH ASSY, VACUUM WARNING | ||||
| 83390-12340 |
XZC600..6FC..ST;XZU650..T4..30T;XZU640..T4..6FC..IV3;XZU650..T3..30T..IV3;XZU650..T3..30T..DCRTK..CBU;TRU600,XZU640..(DCRTJ,EFI)..CBU;TRU600,XZU640..T3..5F..(DCRTJ,EFI)..IV3;TRC600,XZU600..(DM5,T3)..(5F,6FC)..(20T,40T) |
1 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-60070 |
XZC600..6FC..ST;XZU650..T4..30T;XZU640..T4..6FC..IV3;XZU650..T3..30T..IV3;XZU650..T3..30T..DCRTK..CBU;TRU600,XZU640..(DCRTJ,EFI)..CBU;TRU600,XZU640..T3..5F..(DCRTJ,EFI)..IV3;TRC600,XZU600..(DM5,T3)..(5F,6FC)..(20T,40T) |
2 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-60070 |
XZC600..6FC..ST;XZU650..T4..30T;XZU640..T4..6FC..IV3;XZU650..T3..30T..IV3;XZU650..T3..30T..DCRTK..CBU;TRU600,XZU640..(DCRTJ,EFI)..CBU;TRU600,XZU640..T3..5F..(DCRTJ,EFI)..IV3;TRC600,XZU600..(DM5,T3)..(5F,6FC)..(20T,40T) |
2 | ||
| 84550 - SWITCH ASSY, PARKING BRAKE | ||||
| 84550-37050 |
TRC600..DM5;XZC600..6FC..ST;XZU650..T4..30T;XZU640..T4..6FC..IV3;XZU650..T3..30T..IV3;XZU600..6FC..(IV5,IV6);XZU650..T3..30T..DCRTK..CBU;TRU600,XZU640..(DCRTJ,EFI)..CBU;TRU600,XZU640..T3..5F..(DCRTJ,EFI)..IV3 |
1 | ||
| 84550-37070 |
TRC600..DM5;XZC600..6FC..ST;XZU650..T4..30T;XZU640..T4..6FC..IV3;XZU650..T3..30T..IV3;XZU650..T3..30T..DCRTK..CBU;TRU600,XZU640..(DCRTJ,EFI)..CBU;TRU600,XZU640..T3..5F..(DCRTJ,EFI)..IV3 ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−固定式ﾚﾊﾞｰ(ﾄﾞﾗﾑ内径178ﾐﾘ) |
1 | ||
| 84550 - SWITCH ASSY, PARKING BRAKE | ||||
| 84550-37050 |
TRC600..DM5;XZC600..6FC..ST;XZU650..T4..30T;XZU640..T4..6FC..IV3;XZU650..T3..30T..IV3;XZU600..6FC..(IV5,IV6);XZU650..T3..30T..DCRTK..CBU;TRU600,XZU640..(DCRTJ,EFI)..CBU;TRU600,XZU640..T3..5F..(DCRTJ,EFI)..IV3 |
1 | ||
| 84550-37070 |
TRC600..DM5;XZC600..6FC..ST;XZU650..T4..30T;XZU640..T4..6FC..IV3;XZU650..T3..30T..IV3;XZU650..T3..30T..DCRTK..CBU;TRU600,XZU640..(DCRTJ,EFI)..CBU;TRU600,XZU640..T3..5F..(DCRTJ,EFI)..IV3 ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−固定式ﾚﾊﾞｰ(ﾄﾞﾗﾑ内径178ﾐﾘ) |
1 | ||
| 84550 - SWITCH ASSY, PARKING BRAKE | ||||
| 84550-37050 |
TRC600..DM5;XZC600..6FC..ST;XZU650..T4..30T;XZU640..T4..6FC..IV3;XZU650..T3..30T..IV3;XZU600..6FC..(IV5,IV6);XZU650..T3..30T..DCRTK..CBU;TRU600,XZU640..(DCRTJ,EFI)..CBU;TRU600,XZU640..T3..5F..(DCRTJ,EFI)..IV3 |
1 | ||
| 84550-37070 |
TRC600..DM5;XZC600..6FC..ST;XZU650..T4..30T;XZU640..T4..6FC..IV3;XZU650..T3..30T..IV3;XZU650..T3..30T..DCRTK..CBU;TRU600,XZU640..(DCRTJ,EFI)..CBU;TRU600,XZU640..T3..5F..(DCRTJ,EFI)..IV3 ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−固定式ﾚﾊﾞｰ(ﾄﾞﾗﾑ内径178ﾐﾘ) |
1 | ||
| 84810 - SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84810-37050 |
XZC600..6FC..ST;XZU650..T4..30T;XZU640..T4..6FC..IV3;XZU650..T3..30T..IV3;XZU650..T3..30T..DCRTK..CBU;TRU600,XZU640..(DCRTJ,EFI)..CBU;TRU600,XZU640..T3..5F..(DCRTJ,EFI)..IV3;TRC600,XZU600..(DM5,T3)..(5F,6FC)..(20T,40T) |
1 | ||
| 84820 - MASTER SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84820-37053 |
TRC600..DM5;TRU600..CBU;TRU600..T3..IV3 |
1 | ||
| Common parts | ||||
| 47774-37010 | ||||
| 90119-06915 | ||||
| 90159-50386 | ||||
| 90164-30009 | ||||
| 90901-48003 | ||||
| 91551-80612 | ||||
| 91551-80820 | ||||
ILLUST NO. 9 OF10(1107- )SCB ; (1107- )DCRTK..IV4
ﾁﾙﾄｽｲｯﾁ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84512 - SWITCH, TILT CAB CONTROL | ||||
| 84512-37010 |
TRC600..DM5;TRU600..CBU;TRU600..T3..IV3 |
1 | ||
| 84512 - SWITCH, TILT CAB CONTROL | ||||
| 84512-37010 |
TRC600..DM5;TRU600..CBU;TRU600..T3..IV3 |
1 | ||
| Common parts | ||||
| 90159-40215 | ||||
| 91651-60616 | ||||
| 94130-60600 | ||||
| 94151-80600 | ||||
| 94151-80800 | ||||
| Linked diagrams | ||||
| 5251 | ||||

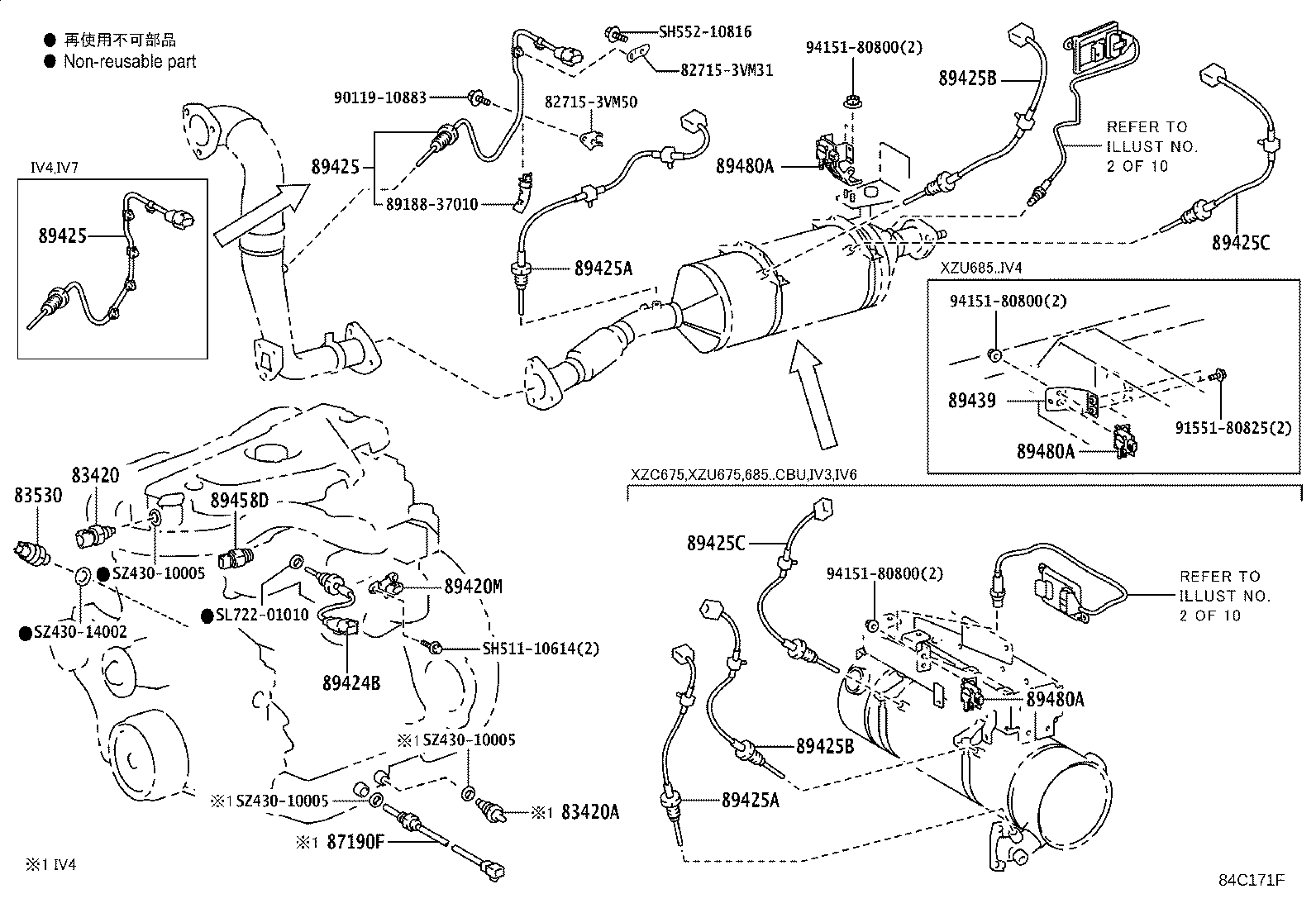

ILLUST NO. 1 OF10(1107- )XZU642..DCRTK,DCRVT ; (1107- )XZC60#,610,630,645,655,675,XZU60#,610,6
ｴﾝｼﾞﾝ 1/2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE) | ||||
| 83530-60020 |
TRC600..DM5;TRU600..CBU;TRU600..T3..IV3 YAZAKI |
1 | ||
| 83530-28020 |
TRC600..DM5;TRU600..CBU;TRU600..T3..IV3 DENSO |
1 | ||
| Common parts | ||||
| 82715-3VM31 | ||||
| 82715-3VM50 | ||||
| 89188-37010 | ||||
| 90119-10883 | ||||
| 91551-80825 | ||||
| 94151-80800 | ||||
| SH511-10614 | ||||
| SH552-10816 | ||||
| SL722-01010 | ||||
| SZ430-10005 | ||||
| SZ430-14002 | ||||
ILLUST NO. 4 OF10(1107- )BZU600,TRC600,TRU600..SCB
ﾘﾚｰﾌﾞﾛｯｸ(12V)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28300 - RELAY ASSY, STARTER | ||||
| 90987-02025 |
2TRFE..TRC600..DM5;2TRFE..TRU600..CBU;2TRFE..TRU600..T3..IV3 |
1 | ||
| 28371 - RELAY, IGNITION, NO.1 | ||||
| 90987-02027 |
2TRFE..TRC600..DM5;2TRFE..TRU600..CBU;2TRFE..TRU600..T3..IV3 |
1 | ||
| 28371C - RELAY, IGNITION, NO.2 | ||||
| 90987-02027 |
2TRFE..TRC600..DM5;2TRFE..TRU600..CBU;2TRFE..TRU600..T3..IV3 |
1 | ||
| 82210P - ENGINE ROOM FUSIBLE LINK | ||||
| 82627-37030 |
XZC600..6FC..ST;XZU650..T4..30T;XZU640..T4..6FC..IV3;XZU650..T3..30T..IV3;XZU650..T3..30T..DCRTK..CBU;TRU600,XZU640..(DCRTJ,EFI)..CBU;TRU600,XZU640..T3..5F..(DCRTJ,EFI)..IV3;TRC600,XZU600..(DM5,T3)..(5F,6FC)..(20T,40T) 20A,ﾒｽ端子 |
1 | ||
| 90982-08223 |
TRC600..DM5;TRU600..CBU;TRU600..T3..IV3 30A,ｵｽ端子,ﾋﾟﾝｸ |
1 | ||
| 90982-08296 |
XZC600..6FC..ST;XZU650..T4..30T;XZU640..T4..6FC..IV3;XZU650..T3..30T..IV3;XZU650..T3..30T..DCRTK..CBU;TRU600,XZU640..(DCRTJ,EFI)..CBU;TRU600,XZU640..T3..5F..(DCRTJ,EFI)..IV3;TRC600,XZU600..(DM5,T3)..(5F,6FC)..(20T,40T) 50A,ﾒｽ端子,赤,ﾏｰｸ 58V |
1 | ||
| 90982-08286 |
TRC600..DM5;TRU600..CBU;TRU600..T3..IV3 140A,ｵｽ端子,赤茶 |
1 | ||
| 90982-08282 |
XZC600..6FC..ST;XZU650..T4..30T;XZU640..T4..6FC..IV3;XZU650..T3..30T..IV3;XZU650..T3..30T..DCRTK..CBU;TRU600,XZU640..(DCRTJ,EFI)..CBU;TRU600,XZU640..T3..5F..(DCRTJ,EFI)..IV3;TRC600,XZU600..(DM5,T3)..(5F,6FC)..(20T,40T) 50A,ﾒｽ端子,赤,ﾏｰｸ 32V |
1 | ||
| 90982-08302 |
TRC600..DM5;TRU600..CBU;TRU600..T3..IV3 50A−30A−50A,ﾒｽ端子,黒 |
1 | ||
| 90982-08295 |
XZC600..6FC..ST;XZU650..T4..30T;XZU640..T4..6FC..IV3;XZU650..T3..30T..IV3;XZU650..T3..30T..DCRTK..CBU;TRU600,XZU640..(DCRTJ,EFI)..CBU;TRU600,XZU640..T3..5F..(DCRTJ,EFI)..IV3;TRC600,XZU600..(DM5,T3)..(5F,6FC)..(20T,40T) 30A,ﾒｽ端子,桃 |
1 | ||
| 82600E - ENGINE ROOM FUSE | ||||
| 90982-09023 |
XZC600..6FC..ST;XZU650..T4..30T;XZU640..T4..6FC..IV3;XZU650..T3..30T..IV3;XZU650..T3..30T..DCRTK..CBU;TRU600,XZU640..(DCRTJ,EFI)..CBU;TRU600,XZU640..T3..5F..(DCRTJ,EFI)..IV3;TRC600,XZU600..(DM5,T3)..(5F,6FC)..(20T,40T) 20A,ﾐﾆ ﾋｭｰｽﾞ,黄 |
1 | ||
| 90982-09021 |
XZC600..6FC..ST;XZU650..T4..30T;XZU640..T4..6FC..IV3;XZU650..T3..30T..IV3;XZU650..T3..30T..DCRTK..CBU;TRU600,XZU640..(DCRTJ,EFI)..CBU;TRU600,XZU640..T3..5F..(DCRTJ,EFI)..IV3;TRC600,XZU600..(DM5,T3)..(5F,6FC)..(20T,40T) 10A,ﾐﾆ ﾋｭｰｽﾞ,赤 |
1 | ||
| 90982-09022 |
XZC600..6FC..ST;XZU650..T4..30T;XZU640..T4..6FC..IV3;XZU650..T3..30T..IV3;XZU650..T3..30T..DCRTK..CBU;TRU600,XZU640..(DCRTJ,EFI)..CBU;TRU600,XZU640..T3..5F..(DCRTJ,EFI)..IV3;TRC600,XZU600..(DM5,T3)..(5F,6FC)..(20T,40T) 15A,ﾐﾆ ﾋｭｰｽﾞ,青 |
1 | ||
| 90982-09025 |
XZC600..6FC..ST;XZU650..T4..30T;XZU640..T4..6FC..IV3;XZU650..T3..30T..IV3;XZU650..T3..30T..DCRTK..CBU;TRU600,XZU640..(DCRTJ,EFI)..CBU;TRU600,XZU640..T3..5F..(DCRTJ,EFI)..IV3;TRC600,XZU600..(DM5,T3)..(5F,6FC)..(20T,40T) 30A,ﾐﾆ ﾋｭｰｽﾞ,緑 |
1 | ||
| 82662A - COVER, RELAY BLOCK, UPPER, NO.1 | ||||
| 82662-37480 |
TRC600..DM5;TRU600..CBU;TRU600..T3..IV3 |
1 | ||
| 82663 - COVER, RELAY BLOCK, LOWER | ||||
| 82663-37130 |
XZC600..6FC..ST;XZU650..T4..30T;XZU640..T4..6FC..IV3;XZU650..T3..30T..IV3;XZU650..T3..30T..DCRTK..CBU;TRU600,XZU640..(DCRTJ,EFI)..CBU;TRU600,XZU640..T3..5F..(DCRTJ,EFI)..IV3;TRC600,XZU600..(DM5,T3)..(5F,6FC)..(20T,40T) |
1 | ||
| 82741 - BLOCK, ENGINE ROOM RELAY | ||||
| 82741-37050 |
XZC600..6FC..ST;XZU650..T4..30T;XZU640..T4..6FC..IV3;XZU650..T3..30T..IV3;XZU650..T3..30T..DCRTK..CBU;TRU600,XZU640..(DCRTJ,EFI)..CBU;TRU600,XZU640..T3..5F..(DCRTJ,EFI)..IV3;TRC600,XZU600..(DM5,T3)..(5F,6FC)..(20T,40T) |
1 | ||
| 82742 - BLOCK, ENGINE ROOM RELAY, NO.2 | ||||
| 82742-37030 |
XZC600..6FC..ST;XZU650..T4..30T;XZU640..T4..6FC..IV3;XZU650..T3..30T..IV3;XZU650..T3..30T..DCRTK..CBU;TRU600,XZU640..(DCRTJ,EFI)..CBU;TRU600,XZU640..T3..5F..(DCRTJ,EFI)..IV3;TRC600,XZU600..(DM5,T3)..(5F,6FC)..(20T,40T) |
1 | ||
| 85900Q - RELAY, TAIL | ||||
| 90987-02027 |
TRC600..DM5;TRU600..CBU;TRU600..T3..IV3 |
1 | ||
| 85909A - BRACKET SUB-ASSY, RELAY BLOCK | ||||
| 82760-37240 |
TRC600..DM5;XZC600..6FC..ST;XZU650..T4..30T;XZU640..T4..6FC..IV3;XZU650..T3..30T..IV3;XZU650..T3..30T..DCRTK..CBU;TRU600,XZU640..(DCRTJ,EFI)..CBU;TRU600,XZU640..T3..5F..(DCRTJ,EFI)..IV3 |
1 | ||
| 85910C - RELAY ASSY (FOR HEATER BLOWER MOTOR) | ||||
| 90987-04010 |
TRC600..DM5;TRU600..CBU;TRU600..T3..IV3 |
1 | ||
| 85930G - RELAY, ACC | ||||
| 90987-02027 |
TRC600..DM5;TRU600..CBU;TRU600..T3..IV3 |
1 | ||
| 85934 - RELAY, MAGNET-CLUTCH | ||||
| 90987-02012 |
TRC600..DM5;TRU600..CBU;TRU600..T3..IV3 |
1 | ||
| 85934A - RELAY CONDENSER FAN | ||||
| 90987-02012 |
TRC600..DM5;TRU600..CBU;TRU600..T3..IV3 |
1 | ||
| Common parts | ||||
| 82715-37V80 | ||||
| 82715-37Y30 | ||||
| 91551-80825 | ||||
| 91552-81025 | ||||
| 94151-80800 | ||||
| Linked diagrams | ||||
| 8404 | ||||
ILLUST NO. 3 OF10(1107- )BZU600,TRC600,TRU600
ﾄﾗﾝｽﾐｯｼｮﾝ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84210 - SWITCH ASSY, BACK-UP LAMP | ||||
| 84210-52050 |
TRC600..DM5;TRU600..CBU;TRU600..T3..IV3 |
1 | ||
| 84210-12040 |
BZU600,TRC600,TRU600 |
1 | ||
| 84210 - SWITCH ASSY, BACK-UP LAMP | ||||
| 84210-52050 |
TRC600..DM5;TRU600..CBU;TRU600..T3..IV3 |
1 | ||
| 84210-12040 |
BZU600,TRC600,TRU600 |
1 | ||
| 84540 - SWITCH ASSY, NEUTRAL START | ||||
| 84540-37020 |
TRC600..DM5;TRU600..CBU;TRU600..T3..IV3 |
1 | ||
| Common parts | ||||
| 90430-18008 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
