TRC600A-TWMMK3 (2011)
Toyota Dyna/Toyoace

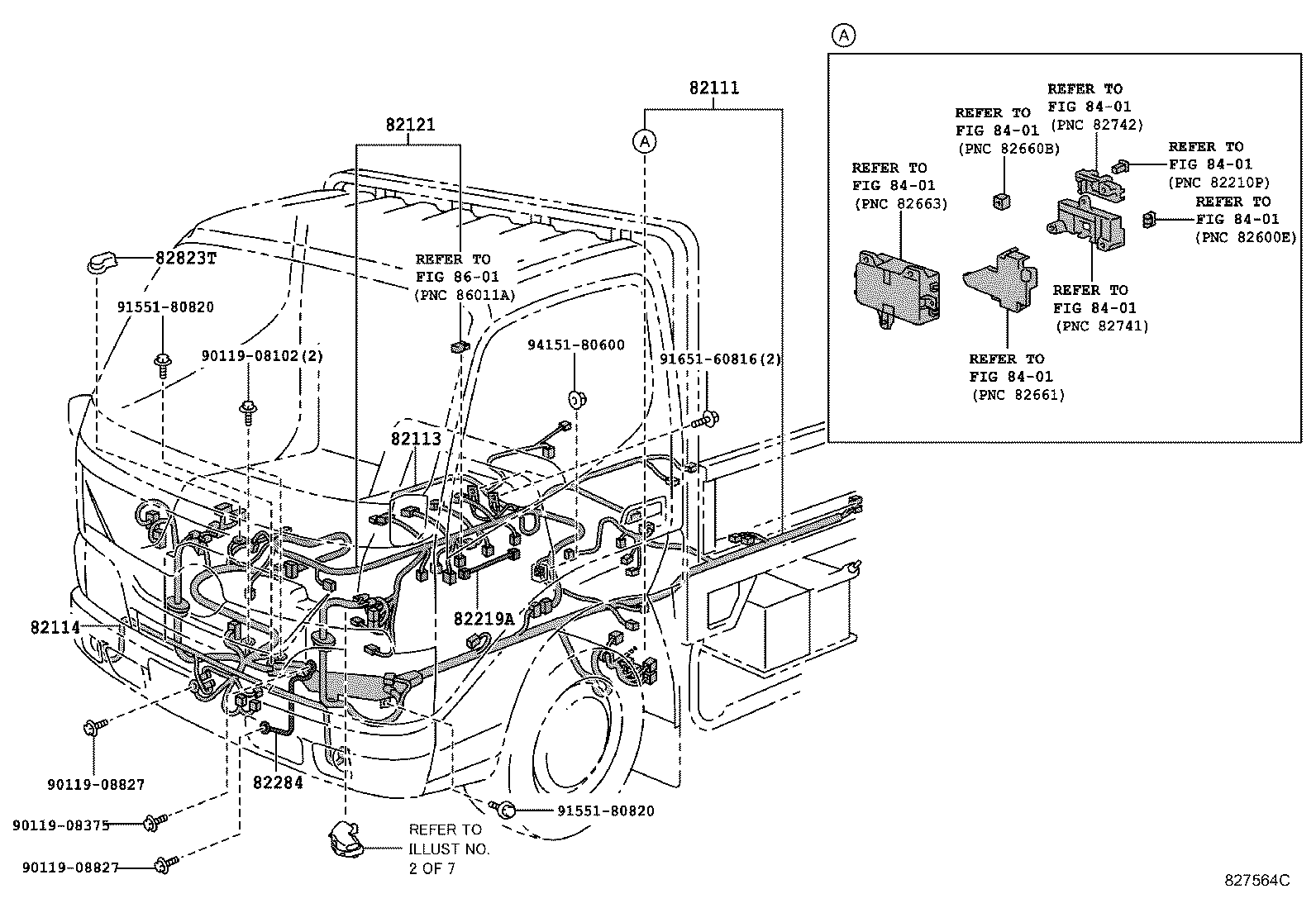

ILLUST NO. 1 OF10(1107- )TRC600,TRU600..SCB
ｴﾝｼﾞﾝﾙｰﾑ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82111 - WIRE, ENGINE ROOM MAIN | ||||
| 82115-37N70 |
TRC600..DM5;TRU600..CBU;TRU600..T3..IV3 |
1 | ||
| 82113 - WIRE, ENGINE ROOM, NO.3 | ||||
| 82113-37E30 |
TRC600..DM5;TRU600..CBU;TRU600..T3..IV3 |
1 | ||
| 82114 - WIRE, ENGINE ROOM, NO.4 | ||||
| 82114-37120 |
XZC600..6FC..ST;XZU650..T4..30T;XZU640..T4..6FC..IV3;XZU650..T3..30T..IV3;XZU650..T3..30T..DCRTK..CBU;TRU600,XZU640..(DCRTJ,EFI)..CBU;TRU600,XZU640..T3..5F..(DCRTJ,EFI)..IV3;TRC600,XZU600..(DM5,T3)..(5F,6FC)..(20T,40T) ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り(ﾊﾞﾙﾌﾞ) |
1 | ||
| 82121 - WIRE, ENGINE | ||||
| 82121-37C71 |
TRC600..DM5;TRU600..CBU;TRU600..T3..IV3 |
1 | ||
| 82219A - WIRE, SENSOR | ||||
| 82219-35050 |
TRC600,TRU600 |
1 | ||
| 82219-26190 |
TRC600..DM5;TRU600..CBU;TRU600..T3..IV3 |
1 | ||
| 82284 - WIRE, EARTH | ||||
| 82284-37030 |
XZC600..6FC..ST;XZU650..T4..30T;XZU640..T4..6FC..IV3;XZU650..T3..30T..IV3;XZU650..T3..30T..DCRTK..CBU;TRU600,XZU640..(DCRTJ,EFI)..CBU;TRU600,XZU640..T3..5F..(DCRTJ,EFI)..IV3;TRC600,XZU600..(DM5,T3)..(5F,6FC)..(20T,40T) |
1 | ||
| 82823T - CAP, ALTERNATOR TERMINAL | ||||
| 82823-22050 |
XZC600..6FC..ST;XZU650..T4..30T;XZU640..T4..6FC..IV3;XZU650..T3..30T..IV3;XZU650..T3..30T..DCRTK..CBU;TRU600,XZU640..(DCRTJ,EFI)..CBU;TRU600,XZU640..T3..5F..(DCRTJ,EFI)..IV3;TRC600,XZU600..(DM5,T3)..(5F,6FC)..(20T,40T) |
1 | ||
| Common parts | ||||
| 90119-08102 | ||||
| 90119-08375 | ||||
| 90119-08827 | ||||
| 91551-80820 | ||||
| 91651-60816 | ||||
| 94151-80600 | ||||
| Linked diagrams | ||||
| 8401 | ||||
| 8601 | ||||
ILLUST NO. 2 OF10(1107- )DCRTH,DCRTJ,DCRTK,DCRVT,EFI,LPG
ｲﾝｽﾄﾙﾒﾝﾄﾊﾟﾈﾙ & ｶｳﾙ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82131 - WIRE, COWL | ||||
| 82129-37Q20 |
BZU600;TRC600,TRU600,XZC60#,610,630,645,655,675,XZU60#,610,620,630,64#,65#,675,685,695..(DCB,SCB)..MTM..(CBU,IV3,IV5,IV6) |
1 | ||
| 82129-37Q50 |
BZU600,TRC600,TRU600,XZC60#,610,630,675,XZU60#,610,620,630,675..(DM3,DM5,DM6,DM7,T2,T4,T5)..5F ｱｳﾀﾐﾗｰ−*DRS(*TM)､*PAS(*57&*SHS&*TM) |
1 | ||
| 82129-37Q50 |
XZU600..5F..20T..IV3;BZU600,TRU600..T3..CBU;XZU600..(DM6,T3)..MTM..(CBU,IV3,IV5,IV6);XZC645,655,XZU64#,65#,685,695..MTM..(CBU,IV3,IV6);BZU600,TRC600,TRU600,XZC60#,610,630,675,XZU605,610,620,630,675..5F..(IV3,IV5,IV6) ｱｳﾀﾐﾗｰ−*DRS(*TM)､*PAS(*57&*LOS&*TM) |
1 | ||
| 82129-37Q50 |
XZU600..5F..20T..IV3;BZU600,TRU600..T3..CBU;XZU600..(DM6,T3)..MTM..(CBU,IV3,IV5,IV6);XZC645,655,XZU64#,65#,685,695..MTM..(CBU,IV3,IV6);BZU600,TRC600,TRU600,XZC60#,610,630,675,XZU605,610,620,630,675..5F..(IV3,IV5,IV6) ｱｳﾀﾐﾗｰ−*DRS(*TM)､*PAS(*57&*LOS&*TM)､*CR(DOP) |
1 | ||
| 82129-37Q50 |
BZU600,TRC600,TRU600,XZC60#,610,630,675,XZU60#,610,620,630,675..(DM3,DM5,DM6,DM7,T2,T4,T5)..5F ｱｳﾀﾐﾗｰ−*DRS(*TM)､*PAS(*57&*SHS)､*CR(DOP) |
1 | ||
| 82129-37Q50 |
XZU600..5F..20T..IV3;BZU600,TRU600..T3..CBU;XZU600..(DM6,T3)..MTM..(CBU,IV3,IV5,IV6);XZC645,655,XZU64#,65#,685,695..MTM..(CBU,IV3,IV6);BZU600,TRC600,TRU600,XZC60#,610,630,675,XZU605,610,620,630,675..5F..(IV3,IV5,IV6) ｱｳﾀﾐﾗｰ−*DRS(*TM)､*PAS(*57&*LOS&*TM(*WVM)) |
1 | ||
| 82129-37Q50 |
BZU600,TRC600,TRU600,XZC60#,610,630,675,XZU60#,610,620,630,675..(DM3,DM5,DM6,DM7,T2,T4,T5)..5F ｱｳﾀﾐﾗｰ−*DRS(*TM)､*PAS(*57&*SHS&*WVM) |
1 | ||
| 82129-37Q50 |
BZU600,TRC600,TRU600,XZC60#,610,630,675,XZU60#,610,620,630,675..(DM3,DM5,DM6,DM7,T2,T4,T5)..5F ｱｳﾀﾐﾗｰ−*DRS(*WVM)､*PAS(*57&*SHS&*TM(*WVM)) |
1 | ||
| 82129-37Q50 |
XZU600..5F..20T..IV3;BZU600,TRU600..T3..CBU;XZU600..(DM6,T3)..MTM..(CBU,IV3,IV5,IV6);XZC645,655,XZU64#,65#,685,695..MTM..(CBU,IV3,IV6);BZU600,TRC600,TRU600,XZC60#,610,630,675,XZU605,610,620,630,675..5F..(IV3,IV5,IV6) ｱｳﾀﾐﾗｰ−*DRS(*WVM)､*PAS(*57&*LOS&*TM(*WVM)) |
1 | ||
| 82129-37Q21 |
TRC600..DM5;XZU650..T4..5F..30T;XZU650..T3..5F..30T..IV3;XZU650..T3..5F..DCRTK..CBU;TRU600,XZU640..5F..(DCRTJ,EFI)..CBU;TRU600,XZU640..T3..5F..(DCRTJ,EFI)..IV3 |
1 | ||
| 82129-37Q51 |
TRC600..DM5;TRU600..T4..CBU ｱｳﾀﾐﾗｰ−*DRS(*TM)､*PAS(*57&*SHS&*TM) |
1 | ||
| 82129-37Q51 |
TRC600..DM5;TRU600..T4..CBU ｱｳﾀﾐﾗｰ−*DRS(*TM)､*PAS(*57&*SHS&*WVM) |
1 | ||
| 82129-37Q51 |
TRU600..T3;XZU650..T4..5F..30T;XZU640..5F..DCRTJ..CBU;XZU650..T3..5F..30T..IV3;XZU650..T3..5F..DCRTK..CBU;TRC600,XZU640..(DM5,T3)..5F..(DCRTJ,EFI)..IV3 ｱｳﾀﾐﾗｰ−*DRS(*TM)､*PAS(*57&*LOS&*TM)､*CR(DOP) |
1 | ||
| 82129-37Q51 |
TRU600..T3;XZU650..T4..5F..30T;XZU640..5F..DCRTJ..CBU;XZU650..T3..5F..30T..IV3;XZU650..T3..5F..DCRTK..CBU;TRC600,XZU640..(DM5,T3)..5F..(DCRTJ,EFI)..IV3 ｱｳﾀﾐﾗｰ−*DRS(*TM)､*PAS(*57&*LOS&*TM(*WVM)) |
1 | ||
| 82129-37Q51 |
TRC600..DM5;TRU600..T4..CBU ｱｳﾀﾐﾗｰ−*DRS(*TM)､*PAS(*57&*SHS)､*CR(DOP) |
1 | ||
| 82129-37Q51 |
TRU600..T3;XZU650..T4..5F..30T;XZU640..5F..DCRTJ..CBU;XZU650..T3..5F..30T..IV3;XZU650..T3..5F..DCRTK..CBU;TRC600,XZU640..(DM5,T3)..5F..(DCRTJ,EFI)..IV3 ｱｳﾀﾐﾗｰ−*DRS(*WVM)､*PAS(*57&*LOS&*TM(*WVM)) |
1 | ||
| 82129-37Q51 |
TRC600..DM5;TRU600..T4..CBU ｱｳﾀﾐﾗｰ−*DRS(*WVM)､*PAS(*57&*SHS&*TM(*WVM)) |
1 | ||
| 82129-37Q51 |
TRU600..T3;XZU650..T4..5F..30T;XZU640..5F..DCRTJ..CBU;XZU650..T3..5F..30T..IV3;XZU650..T3..5F..DCRTK..CBU;TRC600,XZU640..(DM5,T3)..5F..(DCRTJ,EFI)..IV3 ｱｳﾀﾐﾗｰ−*DRS(*TM)､*PAS(*57&*LOS&*TM) |
1 | ||
| 82132 - WIRE, COWL, NO.2 | ||||
| 82132-37110 |
TRC600..DM5 |
1 | ||
| 82133 - WIRE, COWL, NO.3 | ||||
| 82133-37030 |
XZC600..6FC..ST;XZU650..T4..30T;XZU600,640,685..IV4;XZU640..T4..6FC..IV3;XZU650..T3..30T..IV3;XZU650..T3..30T..DCRTK..CBU;TRU600,XZU640..(DCRTJ,EFI)..CBU;TRU600,XZU640..T3..5F..(DCRTJ,EFI)..IV3;TRC600,XZU600..(DM5,T3)..(5F,6FC)..(20T,40T) |
1 | ||
| 82141 - WIRE, INSTRUMENT PANEL | ||||
| 82141-37R50 |
TRC600..DM5;TRU600..CBU;TRU600..T3..IV3 |
1 | ||
| 82141-37W40 |
TRC600..DM5;TRU600..CBU;TRU600..T3..IV3 坂道発進補助装置−有り(ESｽﾀｰﾄ) |
1 | ||
| 82142 - WIRE, INSTRUMENT PANEL, NO.2 | ||||
| 82142-37800 |
TRC600..DM5;TRU600..CBU;TRU600..T3..IV3 |
1 | ||
| 82213B - WIRE, HEATER | ||||
| 82213-37110 |
TRC600..DM5;TRU600..CBU;TRU600..T3..IV3 |
1 | ||
| 82817C - PROTECTOR, WIRING HARNESS, NO.4 | ||||
| 82817-37330 |
XZC600..6FC..ST;XZU650..T4..30T;XZU640..T4..6FC..IV3;XZU650..T3..30T..IV3;XZU650..T3..30T..DCRTK..CBU;TRU600,XZU640..(DCRTJ,EFI)..CBU;TRU600,XZU640..T3..5F..(DCRTJ,EFI)..IV3;TRC600,XZU600..(DM5,T3)..(5F,6FC)..(20T,40T) |
2 | ||
| 82817C - PROTECTOR, WIRING HARNESS, NO.4 | ||||
| 82817-37330 |
XZC600..6FC..ST;XZU650..T4..30T;XZU640..T4..6FC..IV3;XZU650..T3..30T..IV3;XZU650..T3..30T..DCRTK..CBU;TRU600,XZU640..(DCRTJ,EFI)..CBU;TRU600,XZU640..T3..5F..(DCRTJ,EFI)..IV3;TRC600,XZU600..(DM5,T3)..(5F,6FC)..(20T,40T) |
2 | ||
| 82817D - PROTECTOR, WIRING HARNESS, NO.5 | ||||
| 82817-37440 |
XZC600..6FC..ST;XZU650..T4..30T;XZU640..T4..6FC..IV3;XZU650..T3..30T..IV3;XZU650..T3..30T..DCRTK..CBU;TRU600,XZU640..(DCRTJ,EFI)..CBU;TRU600,XZU640..T3..5F..(DCRTJ,EFI)..IV3;TRC600,XZU600..(DM5,T3)..(5F,6FC)..(20T,40T) |
1 | ||
| Common parts | ||||
| 82712-37010 | ||||
| 82712-37401 | ||||
| 82712-37420 | ||||
| 90119-06923 | ||||
| 90467-07041P5 | ||||
| 91551-80616 | ||||
ILLUST NO. 4 OF10(1107- )
ｸﾗﾝﾌﾟ & ﾌﾞﾗｹｯﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82711-28380 | ||||
| 82711-37310 | ||||
| 82715-37220 | ||||
| 82715-37680 | ||||
| 82715-37690 | ||||
| 82715-37770 | ||||
| 82715-37A90 | ||||
| 82715-37B40 | ||||
| 82715-37C50 | ||||
| 82715-37D20 | ||||
| 82715-37J10 | ||||
| 82715-37J90 | ||||
| 82715-37L20 | ||||
| 82715-37L30 | ||||
| 82715-37L60 | ||||
| 82715-37L80 | ||||
| 82715-37L90 | ||||
| 82715-37M00 | ||||
| 82715-37W20 | ||||
| 82715-37W70 | ||||
| 82715-37Z30 | ||||
| 82715-37Z70 | ||||
| 82715-3V050 | ||||
| 82715-3V090 | ||||
| 82715-3V140 | ||||
| 82715-3V190 | ||||
| 82715-3V210 | ||||
| 82715-3V240 | ||||
| 82715-3V490 | ||||
| 82715-3VG20 | ||||
| 82715-3VJ10 | ||||
| 82715-3VJ30 | ||||
| 82715-3VL30 | ||||
| 82729-37060 | ||||
| 82729-37090 | ||||
| 82729-3V040 | ||||
| 90119-08827 | ||||
| 91551-80814 | ||||
| 91551-80816 | ||||
| 91551-80818 | ||||
| 91551-80820 | ||||
| 91551-80825 | ||||
| 91651-60614 | ||||
| 94151-80800 | ||||
ILLUST NO. 5 OF10(1107- )
ｸﾗﾝﾌﾟ & ﾌﾞﾗｹｯﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82711-37330 | ||||
| 82715-37D20 | ||||
| 82715-37K90 | ||||
| 82715-37L00 | ||||
| 82715-37Z41 | ||||
| 82715-37Z60 | ||||
| 82715-3V160 | ||||
| 82715-3V320 | ||||
| 82715-3VQ50 | ||||
| 82715-3VQ60 | ||||
| 82715-3VQ70 | ||||
| 82715-3VR10 | ||||
| 82715-3VR20 | ||||
| 82715-3VR30 | ||||
| 82715-3VR40 | ||||
| 82715-3VU00 | ||||
| 82715-3VU60 | ||||
| 82715-3VV30 | ||||
| 82715-3VV50 | ||||
| 82715-3VW60 | ||||
| 82715-3VY30 | ||||
| 82729-37240 | ||||
| 90119-08827 | ||||
| 91551-80814 | ||||
| 91551-80825 | ||||
| 91552-81030 | ||||
| 94151-80800 | ||||
ILLUST NO. 6 OF10(1107- )
ｸﾗﾝﾌﾟ & ﾌﾞﾗｹｯﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82702-37711 | ||||
| 82702-37720 | ||||
| 82702-37730 | ||||
| 82702-37752 | ||||
| 82702-37801 | ||||
| 82702-37890 | ||||
| 82702-37A02 | ||||
| 82702-37A10 | ||||
| 82702-37B40 | ||||
| 82702-E1F90 | ||||
| 82702-E1G02 | ||||
| 82702-E1G11 | ||||
| 82702-E1G20 | ||||
| 82702-E1G31 | ||||
| 82702-E1W60 | ||||
| 82712-37230 | ||||
| 82715-25830 | ||||
| 82715-25840 | ||||
| 82715-25850 | ||||
| 82715-25870 | ||||
| 82715-25A30 | ||||
| 82715-3VA40 | ||||
| 82715-3VQ80 | ||||
| 82715-3VS21 | ||||
| 82715-E1P00 | ||||
| 82715-E1P20 | ||||
| 82715-E1V20 | ||||
| 82729-37850 | ||||
| 82729-37860 | ||||
| 82729-37870 | ||||
| 82729-37880 | ||||
| 82729-37890 | ||||
| 90119-10056 | ||||
| 91612-B1020 | ||||
| 91621-J0612 | ||||
| 91651-60816 | ||||
| 91651-60835 | ||||
| 94151-80800 | ||||
| S1549-27010 | ||||
| SH552-10816 | ||||
| SH552-10850 | ||||
| SH552-11225 | ||||
ILLUST NO. 3 OF10(1107- )SCB..DCRTH,DCRTJ,DCRTK,DCRVT,EFI,LPG
ﾎﾞﾃﾞｰ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82151 - WIRE, FRONT DOOR, RH | ||||
| 82151-37B10 |
XZC600..6FC..ST;XZU650..T4..30T;XZU640..T4..6FC..IV3;XZU650..T3..30T..IV3;XZU650..T3..30T..DCRTK..CBU;TRU600,XZU640..(DCRTJ,EFI)..CBU;TRU600,XZU640..T3..5F..(DCRTJ,EFI)..IV3;TRC600,XZU600..(DM5,T3)..(5F,6FC)..(20T,40T) |
1 | ||
| 82151-37B70 |
XZC600..6FC..ST;XZU650..T4..30T;XZU640..T4..6FC..IV3;XZU650..T3..30T..IV3;XZU650..T3..30T..DCRTK..CBU;TRU600,XZU640..(DCRTJ,EFI)..CBU;TRU600,XZU640..T3..5F..(DCRTJ,EFI)..IV3;TRC600,XZU600..(DM5,T3)..(5F,6FC)..(20T,40T) ﾊﾟﾜｰﾄﾞｱﾛｯｸ−有り(ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ付き) |
1 | ||
| 82152 - WIRE, FRONT DOOR, LH | ||||
| 82152-37A10 |
XZC600..6FC..ST;XZU650..T4..30T;XZU640..T4..6FC..IV3;XZU650..T3..30T..IV3;XZU650..T3..30T..DCRTK..CBU;TRU600,XZU640..(DCRTJ,EFI)..CBU;TRU600,XZU640..T3..5F..(DCRTJ,EFI)..IV3;TRC600,XZU600..(DM5,T3)..(5F,6FC)..(20T,40T) |
1 | ||
| 82161 - WIRE, FLOOR | ||||
| 82161-37B60 |
TRC600..DM5;XZC600..6FC..ST;XZU650..T4..30T;XZU640..T4..6FC..IV3;XZU650..T3..30T..IV3;XZU600..6FC..(IV5,IV6);XZU650..T3..30T..DCRTK..CBU;TRU600,XZU640..(DCRTJ,EFI)..CBU;TRU600,XZU640..T3..5F..(DCRTJ,EFI)..IV3 |
1 | ||
| 82162 - WIRE, FLOOR, NO.2 | ||||
| 82162-37290 |
BZU600,TRC600,TRU600..SCB |
1 | ||
| 82162-37300 |
BZU600,TRC600,TRU600..SCB SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席) |
1 | ||
| 82162-37291 |
TRC600..DM5;TRU600..CBU;TRU600..T3..IV3 |
1 | ||
| 82162-37301 |
TRC600..DM5;TRU600..CBU;TRU600..T3..IV3 SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席) |
1 | ||
| 82164 - WIRE, FRAME | ||||
| 82164-37T80 |
TRC600..DM5 |
1 | ||
| 82165 - WIRE, FRAME, NO.2 | ||||
| 82165-37630 |
TRC600..DM5 |
1 | ||
| 82171 - WIRE, ROOF, NO.1 | ||||
| 82171-37A50 |
XZC600..6FC..ST;XZU650..T4..30T;XZU640..T4..6FC..IV3;XZU650..T3..30T..IV3;XZU650..T3..30T..DCRTK..CBU;TRU600,XZU640..(DCRTJ,EFI)..CBU;TRU600,XZU640..T3..5F..(DCRTJ,EFI)..IV3;TRC600,XZU600..(DM5,T3)..(5F,6FC)..(20T,40T) ﾙｰﾑﾗﾝﾌﾟ−有り(LED照明) |
1 | ||
| 82171-37A40 |
XZC600..6FC..ST;XZU650..T4..30T;XZU640..T4..6FC..IV3;XZU650..T3..30T..IV3;XZU650..T3..30T..DCRTK..CBU;TRU600,XZU640..(DCRTJ,EFI)..CBU;TRU600,XZU640..T3..5F..(DCRTJ,EFI)..IV3;TRC600,XZU600..(DM5,T3)..(5F,6FC)..(20T,40T) |
1 | ||
| 82171-37A70 |
TRC600..DM5;XZC600..6FC..ST;XZU650..T4..30T;XZU640..T4..6FC..IV3;XZU650..T3..30T..IV3;XZU650..T3..30T..DCRTK..CBU;TRU600,XZU640..(DCRTJ,EFI)..CBU;TRU600,XZU640..T3..5F..(DCRTJ,EFI)..IV3 ｳｨﾝﾄﾞｼｰﾙﾄﾞｶﾞﾗｽ−ｸﾞﾘｰﾝ(接着ﾀｲﾌﾟ)&ﾙｰﾑﾗﾝﾌﾟ−有り(LED照明) |
1 | ||
| 82171-37A60 |
TRC600..DM5;XZC600..6FC..ST;XZU650..T4..30T;XZU640..T4..6FC..IV3;XZU650..T3..30T..IV3;XZU650..T3..30T..DCRTK..CBU;TRU600,XZU640..(DCRTJ,EFI)..CBU;TRU600,XZU640..T3..5F..(DCRTJ,EFI)..IV3 ｳｨﾝﾄﾞｼｰﾙﾄﾞｶﾞﾗｽ−ｸﾞﾘｰﾝ(接着ﾀｲﾌﾟ) |
1 | ||
| 82817B - PROTECTOR, WIRING HARNESS, NO.3 | ||||
| 82712-37082 |
XZC600..6FC..ST;XZU650..T4..30T;XZU640..T4..6FC..IV3;XZU650..T3..30T..IV3;XZU650..T3..30T..DCRTK..CBU;TRU600,XZU640..(DCRTJ,EFI)..CBU;TRU600,XZU640..T3..5F..(DCRTJ,EFI)..IV3;TRC600,XZU600..(DM5,T3)..(5F,6FC)..(20T,40T) |
1 | ||
| Common parts | ||||
| 90119-08827 | ||||
| 93560-15014 | ||||
ILLUST NO. 9 OF10(1107- )
ｺﾈｸﾀ 1/2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82824-37T60 | ||||
| 82824-60460 | ||||
| 90980-10173 | ||||
| 90980-10355 | ||||
| 90980-10942 | ||||
| 90980-11003 | ||||
| 90980-11016 | ||||
| 90980-11019 | ||||
| 90980-11148 | ||||
| 90980-11149 | ||||
| 90980-11156 | ||||
| 90980-11162 | ||||
| 90980-11290 | ||||
| 90980-11294 | ||||
ILLUST NO. 7 OF10(1107- )
ｸﾗﾝﾌﾟ & ﾌﾞﾗｹｯﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82702-37700 | ||||
| 82715-37D00 | ||||
| 82715-37V10 | ||||
| 82715-3V300 | ||||
| 82715-3VA60 | ||||
| 82715-3VA80 | ||||
| 82715-3VA90 | ||||
| 82715-3VB00 | ||||
| 82715-3VB50 | ||||
| 82715-3VB91 | ||||
| 82715-3VC60 | ||||
| 82715-3VC90 | ||||
| 82715-3VR00 | ||||
| 82715-3VU10 | ||||
| 82715-3VU30 | ||||
| 82715-3VV90 | ||||
| 82715-3VW10 | ||||
| 82715-3VW20 | ||||
| 82715-95D04 | ||||
| 82729-37680 | ||||
| 90950-01796 | ||||
| 91551-80610 | ||||
| 91551-80614 | ||||
| 91551-80814 | ||||
| 91551-80816 | ||||
| 91651-60816 | ||||
ILLUST NO.10 OF10(1107- )
ｺﾈｸﾀ 2/2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82824-78020 | ||||
| 90980-10619 | ||||
| 90980-10795 | ||||
| 90980-10868 | ||||
| 90980-11070 | ||||
| 90980-11856 | ||||
| 90980-11973 | ||||
| 90980-12520 | ||||
| 90980-12686 | ||||
ILLUST NO. 8 OF10(1107- )
ｸﾗﾝﾌﾟ & ﾌﾞﾗｹｯﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82711-12220 | ||||
| 82711-37340 | ||||
| 82715-37W40 | ||||
| 82715-3V050 | ||||
| 82715-3V140 | ||||
| 82715-3V250 | ||||
| 82715-3VB71 | ||||
| 82715-3VC30 | ||||
| 82715-3VC40 | ||||
| 82715-3VC70 | ||||
| 82715-3VC80 | ||||
| 82715-3VL80 | ||||
| 82715-3VM70 | ||||
| 82715-3VR90 | ||||
| 82715-3VU20 | ||||
| 82715-3VV10 | ||||
| 82715-3VV20 | ||||
| 82715-3VV60 | ||||
| 82715-3VV70 | ||||
| 82715-3VV80 | ||||
| 82715-3VW50 | ||||
| 82715-3VW70 | ||||
| 82715-3VY20 | ||||
| 90159-50322 | ||||
| 90463-12011 | ||||
| 91551-80610 | ||||
| 91551-80612 | ||||
| 91551-80814 | ||||
| 91551-80825 | ||||
| 91552-81030 | ||||
| 94151-80600 | ||||
| Linked diagrams | ||||
| 4702 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
