TRC600A-TWMMK3 (2011)
Toyota Dyna/Toyoace
(1107- )TRC600,TRU600
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

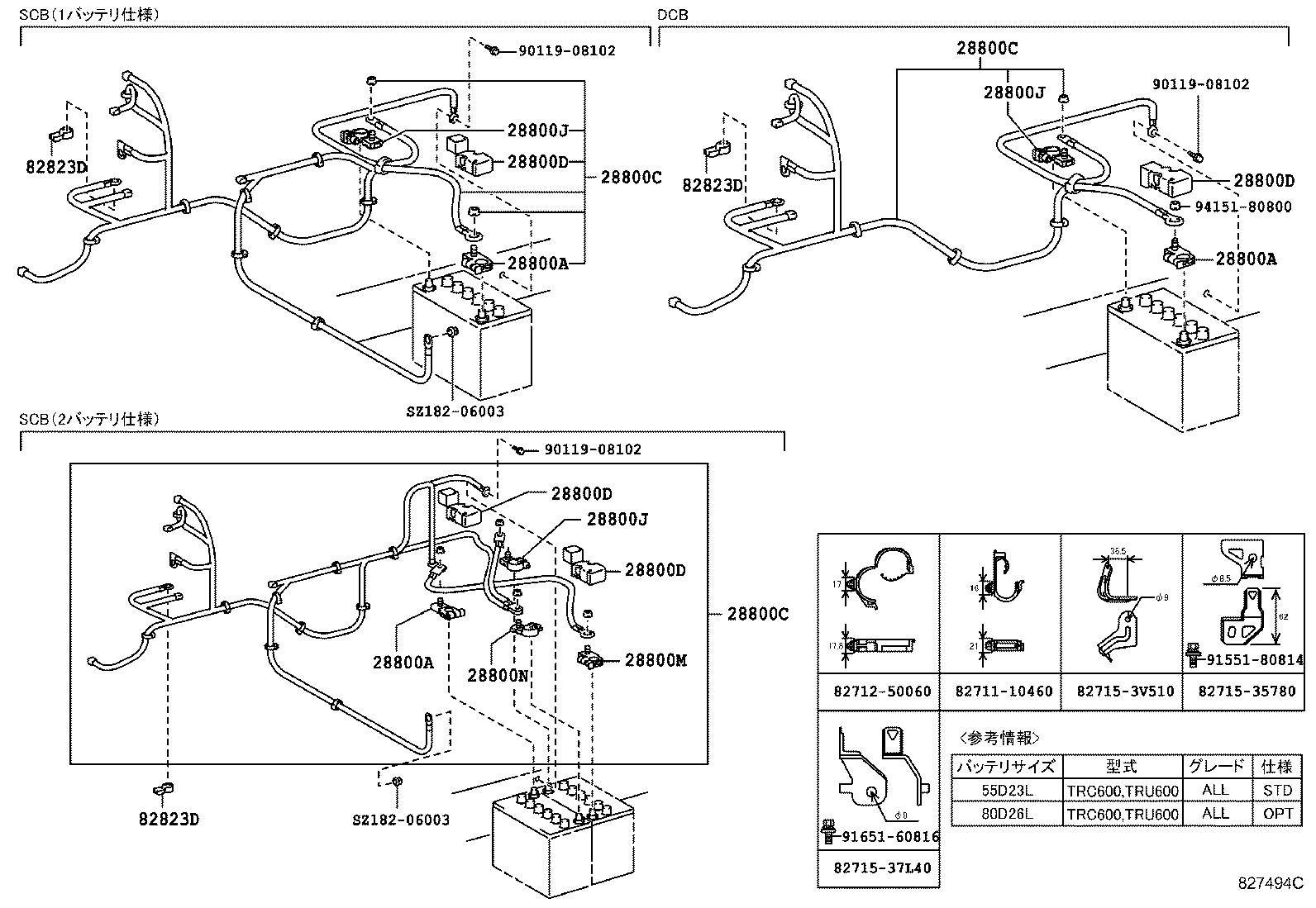

| 28800A - TERMINAL, BATTERY POSITIVE | ||||
| 90982-05065 |
2TRFE..TRC600..DM5;2TRFE..TRU600..CBU;2TRFE..TRU600..T3..IV3 |
1 | ||
| 28800A - TERMINAL, BATTERY POSITIVE | ||||
| 90982-05065 |
2TRFE..TRC600..DM5;2TRFE..TRU600..CBU;2TRFE..TRU600..T3..IV3 |
1 | ||
| 28800A - TERMINAL, BATTERY POSITIVE | ||||
| 90982-05065 |
2TRFE..TRC600..DM5;2TRFE..TRU600..CBU;2TRFE..TRU600..T3..IV3 |
1 | ||
| 28800C - CABLE, BATTERY TO STARTER(FOR BATTERY TO MAIN SWITCH) | ||||
| 82122-37G90 |
2TRFE..TRC600..DM5;2TRFE..TRU600..CBU;2TRFE..TRU600..T3..IV3 |
1 | ||
| 28800C - CABLE, BATTERY TO STARTER(FOR BATTERY TO MAIN SWITCH) | ||||
| 82122-37G90 |
2TRFE..TRC600..DM5;2TRFE..TRU600..CBU;2TRFE..TRU600..T3..IV3 |
1 | ||
| 28800C - CABLE, BATTERY TO STARTER(FOR BATTERY TO MAIN SWITCH) | ||||
| 82122-37G90 |
2TRFE..TRC600..DM5;2TRFE..TRU600..CBU;2TRFE..TRU600..T3..IV3 |
1 | ||
| 28800D - COVER, CONNECTOR(FOR BATTERY TERMINAL) | ||||
| 82821-37071 |
N04C..XZC600..6FC..ST;N04C..XZU650..T4..30T;N04C..XZU640..T4..6FC..IV3;N04C..XZU650..T3..30T..IV3;N04C..XZU650..T3..30T..DCRTK..CBU;N04C,2TRFE..TRU600,XZU640..(DCRTJ,EFI)..CBU;N04C,2TRFE..TRU600,XZU640..T3..5F..(DCRTJ,EFI)..IV3;N04C,2TRFE..TRC600,XZU600..(DM5,T3)..(5F,6FC)..(20T,40T) |
1 | ||
| 28800D - COVER, CONNECTOR(FOR BATTERY TERMINAL) | ||||
| 82821-37071 |
N04C..XZC600..6FC..ST;N04C..XZU650..T4..30T;N04C..XZU640..T4..6FC..IV3;N04C..XZU650..T3..30T..IV3;N04C..XZU650..T3..30T..DCRTK..CBU;N04C,2TRFE..TRU600,XZU640..(DCRTJ,EFI)..CBU;N04C,2TRFE..TRU600,XZU640..T3..5F..(DCRTJ,EFI)..IV3;N04C,2TRFE..TRC600,XZU600..(DM5,T3)..(5F,6FC)..(20T,40T) |
1 | ||
| 28800D - COVER, CONNECTOR(FOR BATTERY TERMINAL) | ||||
| 82821-37071 |
N04C..XZC600..6FC..ST;N04C..XZU650..T4..30T;N04C..XZU640..T4..6FC..IV3;N04C..XZU650..T3..30T..IV3;N04C..XZU650..T3..30T..DCRTK..CBU;N04C,2TRFE..TRU600,XZU640..(DCRTJ,EFI)..CBU;N04C,2TRFE..TRU600,XZU640..T3..5F..(DCRTJ,EFI)..IV3;N04C,2TRFE..TRC600,XZU600..(DM5,T3)..(5F,6FC)..(20T,40T) |
1 | ||
| 28800D - COVER, CONNECTOR(FOR BATTERY TERMINAL) | ||||
| 82821-37071 |
N04C..XZC600..6FC..ST;N04C..XZU650..T4..30T;N04C..XZU640..T4..6FC..IV3;N04C..XZU650..T3..30T..IV3;N04C..XZU650..T3..30T..DCRTK..CBU;N04C,2TRFE..TRU600,XZU640..(DCRTJ,EFI)..CBU;N04C,2TRFE..TRU600,XZU640..T3..5F..(DCRTJ,EFI)..IV3;N04C,2TRFE..TRC600,XZU600..(DM5,T3)..(5F,6FC)..(20T,40T) |
1 | ||
| 28800J - TERMINAL, BATTERY NEGATIVE | ||||
| 90982-06056 |
2TRFE..TRC600..DM5;2TRFE..TRU600..CBU;2TRFE..TRU600..T3..IV3 |
1 | ||
| 28800J - TERMINAL, BATTERY NEGATIVE | ||||
| 90982-06056 |
2TRFE..TRC600..DM5;2TRFE..TRU600..CBU;2TRFE..TRU600..T3..IV3 |
1 | ||
| 28800J - TERMINAL, BATTERY NEGATIVE | ||||
| 90982-06056 |
2TRFE..TRC600..DM5;2TRFE..TRU600..CBU;2TRFE..TRU600..T3..IV3 |
1 | ||
| 82823D - CAP, TERMINAL | ||||
| 82823-35040 |
TRC600..DM5;TRU600..CBU;TRU600..T3..IV3 |
1 | ||
| 82823D - CAP, TERMINAL | ||||
| 82823-35040 |
TRC600..DM5;TRU600..CBU;TRU600..T3..IV3 |
1 | ||
| 82823D - CAP, TERMINAL | ||||
| 82823-35040 |
TRC600..DM5;TRU600..CBU;TRU600..T3..IV3 |
1 | ||
| Common parts | ||||
| 82711-10460 | ||||
| 82712-50060 | ||||
| 82715-35780 | ||||
| 82715-37L40 | ||||
| 82715-3V510 | ||||
| 90119-08102 | ||||
| 91551-80814 | ||||
| 91651-60816 | ||||
| 94151-80800 | ||||
| SZ182-06003 | ||||
