TRC600A-TWMMK3 (2011)
Toyota Dyna/Toyoace

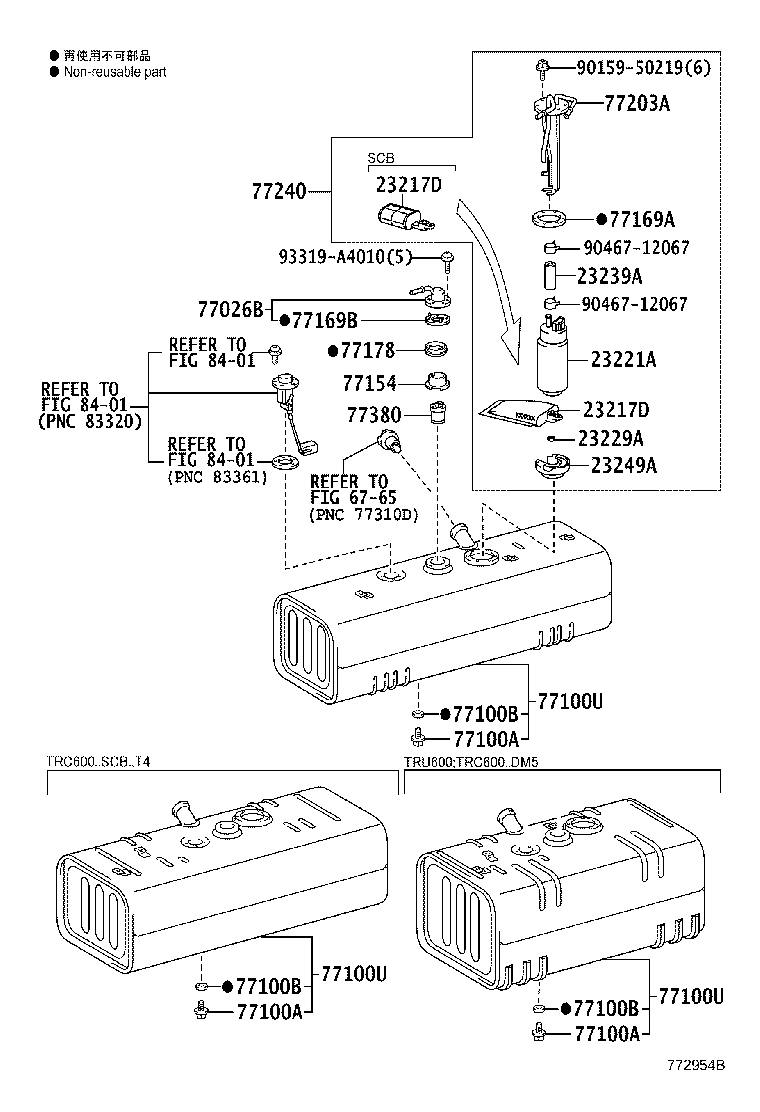

ILLUST NO. 1 OF 3(1107- )TRC600,TRU600
ﾌｭｰｴﾙﾀﾝｸ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 23217D - FILTER, FUEL PUMP | ||||
| 23217-46011 |
2TRFE..TRC600..DM5;2TRFE..TRU600..CBU;2TRFE..TRU600..T3..IV3 |
1 | ||
| 23217D - FILTER, FUEL PUMP | ||||
| 23217-46011 |
2TRFE..TRC600..DM5;2TRFE..TRU600..CBU;2TRFE..TRU600..T3..IV3 |
1 | ||
| 23221A - PUMP, FUEL, NO.1 | ||||
| 23221-46010 |
2TRFE..TRC600..DM5;2TRFE..TRU600..CBU;2TRFE..TRU600..T3..IV3 |
1 | ||
| 23229A - CLIP(FOR FUEL PUMP FILTER) | ||||
| 23229-16010 |
2TRFE..TRC600..DM5;2TRFE..TRU600..CBU;2TRFE..TRU600..T3..IV3 |
1 | ||
| 23239A - HOSE | ||||
| 23239-11010 |
2TRFE..TRC600..DM5;2TRFE..TRU600..CBU;2TRFE..TRU600..T3..IV3 |
1 | ||
| 23249A - RUBBER, CUSHION(FOR FUEL PUMP) | ||||
| 23249-74610 |
2TRFE..TRC600..DM5;2TRFE..TRU600..CBU;2TRFE..TRU600..T3..IV3 |
1 | ||
| 77026B - TUBE SUB-ASSY, FUEL EVAPORATION, NO.1 | ||||
| 77026-37010 |
XZC600..6FC..ST;XZU650..T4..30T;XZU640..T4..6FC..IV3;XZU650..T3..30T..IV3;XZU650..T3..30T..DCRTK..CBU;TRU600,XZU640..(DCRTJ,EFI)..CBU;TRU600,XZU640..T3..5F..(DCRTJ,EFI)..IV3;TRC600,XZU600..(DM5,T3)..(5F,6FC)..(20T,40T) |
1 | ||
| 77100A - PLUG(FOR FUEL TANK) | ||||
| 90105-12116 |
XZC600..6FC..ST;XZU650..T4..30T;XZU640..T4..6FC..IV3;XZU650..T3..30T..IV3;XZU650..T3..30T..DCRTK..CBU;TRU600,XZU640..(DCRTJ,EFI)..CBU;TRU600,XZU640..T3..5F..(DCRTJ,EFI)..IV3;TRC600,XZU600..(DM5,T3)..(5F,6FC)..(20T,40T) |
1 | ||
| 77100A - PLUG(FOR FUEL TANK) | ||||
| 90105-12116 |
XZC600..6FC..ST;XZU650..T4..30T;XZU640..T4..6FC..IV3;XZU650..T3..30T..IV3;XZU650..T3..30T..DCRTK..CBU;TRU600,XZU640..(DCRTJ,EFI)..CBU;TRU600,XZU640..T3..5F..(DCRTJ,EFI)..IV3;TRC600,XZU600..(DM5,T3)..(5F,6FC)..(20T,40T) |
1 | ||
| 77100A - PLUG(FOR FUEL TANK) | ||||
| 90105-12116 |
XZC600..6FC..ST;XZU650..T4..30T;XZU640..T4..6FC..IV3;XZU650..T3..30T..IV3;XZU650..T3..30T..DCRTK..CBU;TRU600,XZU640..(DCRTJ,EFI)..CBU;TRU600,XZU640..T3..5F..(DCRTJ,EFI)..IV3;TRC600,XZU600..(DM5,T3)..(5F,6FC)..(20T,40T) |
1 | ||
| 77100B - GASKET(FOR FUEL TANK) | ||||
| 90430-12245 |
XZC600..6FC..ST;XZU650..T4..30T;XZU640..T4..6FC..IV3;XZU650..T3..30T..IV3;XZU650..T3..30T..DCRTK..CBU;TRU600,XZU640..(DCRTJ,EFI)..CBU;TRU600,XZU640..T3..5F..(DCRTJ,EFI)..IV3;TRC600,XZU600..(DM5,T3)..(5F,6FC)..(20T,40T) |
1 | ||
| 77100B - GASKET(FOR FUEL TANK) | ||||
| 90430-12245 |
XZC600..6FC..ST;XZU650..T4..30T;XZU640..T4..6FC..IV3;XZU650..T3..30T..IV3;XZU650..T3..30T..DCRTK..CBU;TRU600,XZU640..(DCRTJ,EFI)..CBU;TRU600,XZU640..T3..5F..(DCRTJ,EFI)..IV3;TRC600,XZU600..(DM5,T3)..(5F,6FC)..(20T,40T) |
1 | ||
| 77100B - GASKET(FOR FUEL TANK) | ||||
| 90430-12245 |
XZC600..6FC..ST;XZU650..T4..30T;XZU640..T4..6FC..IV3;XZU650..T3..30T..IV3;XZU650..T3..30T..DCRTK..CBU;TRU600,XZU640..(DCRTJ,EFI)..CBU;TRU600,XZU640..T3..5F..(DCRTJ,EFI)..IV3;TRC600,XZU600..(DM5,T3)..(5F,6FC)..(20T,40T) |
1 | ||
| 77100U - TANK SUB-ASSY, FUEL | ||||
| 77001-37362 |
TRC600..DM5;TRU600..CBU;TRU600..T3..IV3 780X310X385 |
1 | ||
| 77100U - TANK SUB-ASSY, FUEL | ||||
| 77001-37362 |
TRC600..DM5;TRU600..CBU;TRU600..T3..IV3 780X310X385 |
1 | ||
| 77100U - TANK SUB-ASSY, FUEL | ||||
| 77001-37362 |
TRC600..DM5;TRU600..CBU;TRU600..T3..IV3 780X310X385 |
1 | ||
| 77154 - PLATE, FUEL TANK EVAP/VENT TUBE SUPPORT | ||||
| 77154-25010 |
XZC600..6FC..ST;XZU650..T4..30T;XZU640..T4..6FC..IV3;XZU650..T3..30T..IV3;XZU650..T3..30T..DCRTK..CBU;TRU600,XZU640..(DCRTJ,EFI)..CBU;TRU600,XZU640..T3..5F..(DCRTJ,EFI)..IV3;TRC600,XZU600..(DM5,T3)..(5F,6FC)..(20T,40T) |
1 | ||
| 77169A - GASKET, FUEL SUCTION TUBE SET | ||||
| 77169-32010 |
TRC600..DM5;TRU600..CBU;TRU600..T3..IV3 |
1 | ||
| 77169B - GASKET, FUEL SUCTION TUBE SET, NO.1 | ||||
| 77169-14020 |
XZC600..6FC..ST;XZU650..T4..30T;XZU640..T4..6FC..IV3;XZU650..T3..30T..IV3;XZU650..T3..30T..DCRTK..CBU;TRU600,XZU640..(DCRTJ,EFI)..CBU;TRU600,XZU640..T3..5F..(DCRTJ,EFI)..IV3;TRC600,XZU600..(DM5,T3)..(5F,6FC)..(20T,40T) |
1 | ||
| 77178 - GASKET, FUEL TANK FILLER PIPE, LOWER | ||||
| 77178-44010 |
XZC600..6FC..ST;XZU650..T4..30T;XZU640..T4..6FC..IV3;XZU650..T3..30T..IV3;XZU650..T3..30T..DCRTK..CBU;TRU600,XZU640..(DCRTJ,EFI)..CBU;TRU600,XZU640..T3..5F..(DCRTJ,EFI)..IV3;TRC600,XZU600..(DM5,T3)..(5F,6FC)..(20T,40T) |
1 | ||
| 77203A - TUBE SUB-ASSY, FUEL SUCTION | ||||
| 77203-37090 |
TRC600..DM5;TRU600..CBU;TRU600..T3..IV3 |
1 | ||
| 77240 - TUBE ASSY, FUEL SUCTION | ||||
| 77240-37100 |
TRC600..DM5;TRU600..CBU;TRU600..T3..IV3 |
1 | ||
| 77380 - VALVE ASSY, FUEL CUT OFF | ||||
| 77380-26010 |
XZC600..6FC..ST;XZU650..T4..30T;XZU640..T4..6FC..IV3;XZU650..T3..30T..IV3;XZU650..T3..30T..DCRTK..CBU;TRU600,XZU640..(DCRTJ,EFI)..CBU;TRU600,XZU640..T3..5F..(DCRTJ,EFI)..IV3;TRC600,XZU600..(DM5,T3)..(5F,6FC)..(20T,40T) |
1 | ||
| Common parts | ||||
| 90159-50219 | ||||
| 90467-12067 | ||||
| 93319-A4010 | ||||
| Linked diagrams | ||||
| 6765 | ||||
| 8401 | ||||

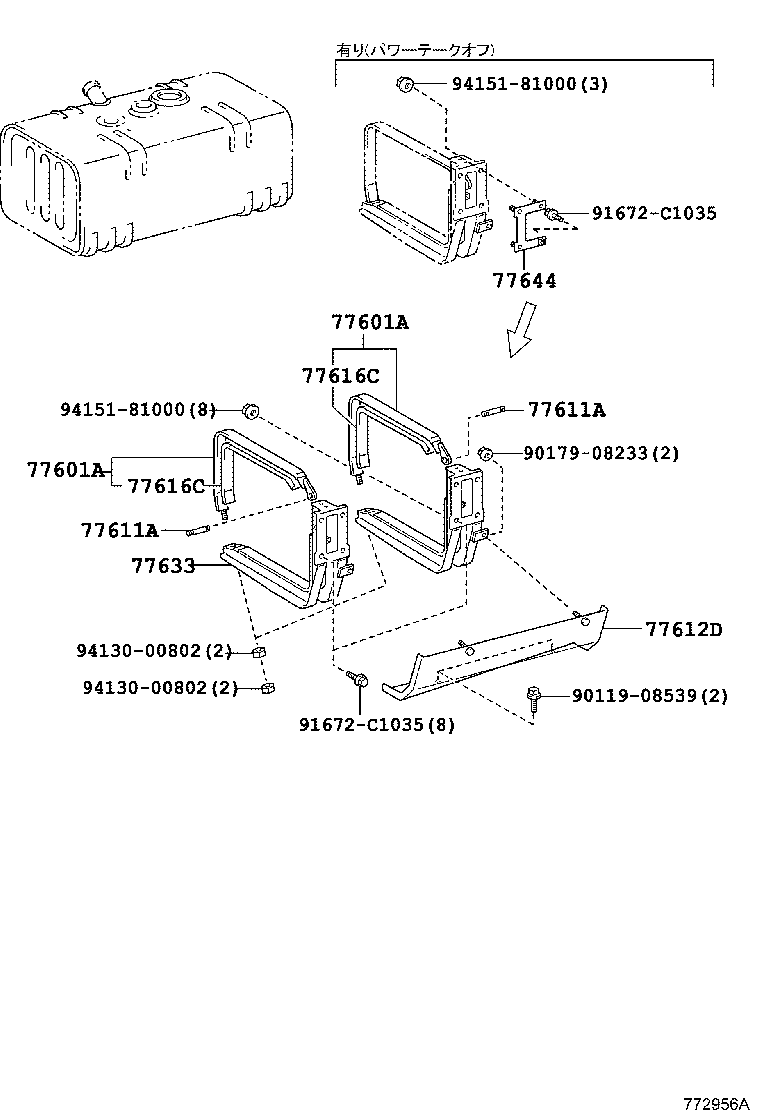

ILLUST NO. 2 OF 3(1107- )TRU600 ; (1107- )TRC600..DM5
ﾌｭｰｴﾙﾀﾝｸｽﾃｰ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77601A - BAND SUB-ASSY, FUEL TANK, NO.1 | ||||
| 77601-37041 |
TRU600..CBU;XZU640..T4..CBU;XZU650..T4..30T;XZU640..T4..6FC..IV3;XZC600..6FC..ST..IV3;XZU650..T3..30T..IV3;TRU600,XZU640..T3..5F..(DCRTJ,EFI)..IV3;TRC600,XZU600..(DM5,T3)..(5F,6FC)..(20T,40T) |
2 | ||
| 77601A - BAND SUB-ASSY, FUEL TANK, NO.1 | ||||
| 77601-37041 |
TRU600..CBU;XZU640..T4..CBU;XZU650..T4..30T;XZU640..T4..6FC..IV3;XZC600..6FC..ST..IV3;XZU650..T3..30T..IV3;TRU600,XZU640..T3..5F..(DCRTJ,EFI)..IV3;TRC600,XZU600..(DM5,T3)..(5F,6FC)..(20T,40T) |
2 | ||
| 77611A - PIN (FOR FUEL TANK BAND) | ||||
| 77629-36010 |
XZC600..6FC..ST;XZU650..T4..30T;XZU640..T4..6FC..IV3;XZU650..T3..30T..IV3;XZU650..T3..30T..DCRTK..CBU;TRU600,XZU640..(DCRTJ,EFI)..CBU;TRU600,XZU640..T3..5F..(DCRTJ,EFI)..IV3;TRC600,XZU600..(DM5,T3)..(5F,6FC)..(20T,40T) |
2 | ||
| 77611A - PIN (FOR FUEL TANK BAND) | ||||
| 77629-36010 |
XZC600..6FC..ST;XZU650..T4..30T;XZU640..T4..6FC..IV3;XZU650..T3..30T..IV3;XZU650..T3..30T..DCRTK..CBU;TRU600,XZU640..(DCRTJ,EFI)..CBU;TRU600,XZU640..T3..5F..(DCRTJ,EFI)..IV3;TRC600,XZU600..(DM5,T3)..(5F,6FC)..(20T,40T) |
2 | ||
| 77612D - COVER, FUEL TANK, LH | ||||
| 77612-37040 |
TRC600..DM5;TRU600..CBU;TRU600..T3..IV3 |
1 | ||
| 77616C - SEAT, FUEL TANK BAND | ||||
| 77616-36030 |
TRU600..CBU;XZU640..T4..CBU;XZU650..T4..30T;XZU640..T4..6FC..IV3;XZC600..6FC..ST..IV3;XZU650..T3..30T..IV3;TRU600,XZU640..T3..5F..(DCRTJ,EFI)..IV3;TRC600,XZU600..(DM5,T3)..(5F,6FC)..(20T,40T) |
2 | ||
| 77616C - SEAT, FUEL TANK BAND | ||||
| 77616-36030 |
TRU600..CBU;XZU640..T4..CBU;XZU650..T4..30T;XZU640..T4..6FC..IV3;XZC600..6FC..ST..IV3;XZU650..T3..30T..IV3;TRU600,XZU640..T3..5F..(DCRTJ,EFI)..IV3;TRC600,XZU600..(DM5,T3)..(5F,6FC)..(20T,40T) |
2 | ||
| 77633 - STAY, FUEL TANK | ||||
| 77609-37030 |
TRC600..DM5;TRU600..CBU;TRU600..T3..IV3 |
2 | ||
| 77644 - BOLT, FUEL TANK | ||||
| 77644-37101 |
TRC600,XZU600..(DM5,T3)..(5F,6FC)..(20T,40T) |
1 | ||
| Common parts | ||||
| 90119-08539 | ||||
| 90179-08233 | ||||
| 91672-C1035 | ||||
| 94130-00802 | ||||
| 94151-81000 | ||||

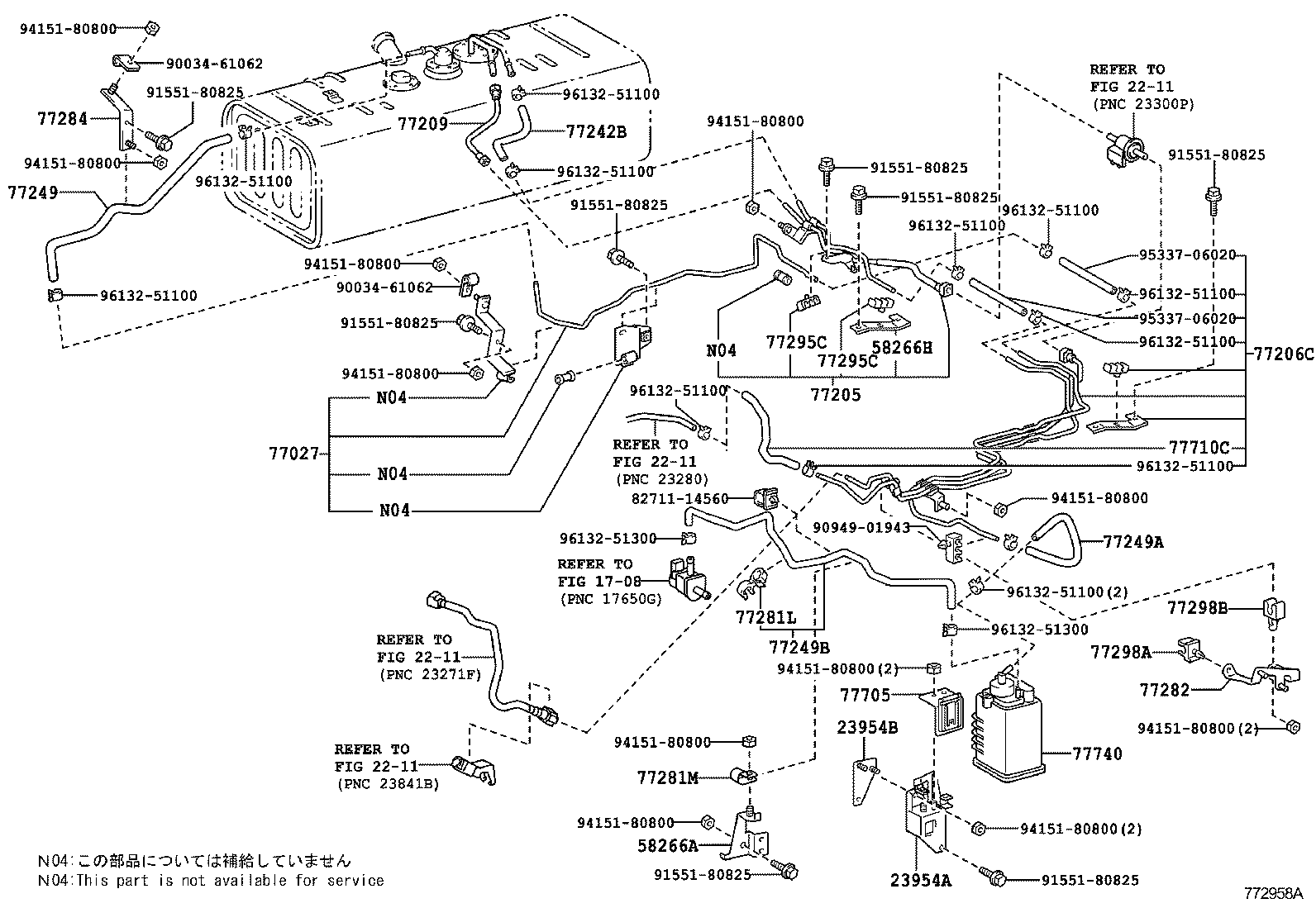

ILLUST NO. 3 OF 3(1107- )TRC600,TRU600..SCB
ﾌｭｰｴﾙﾁｭｰﾌﾞ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 23954A - BRACKET, CHARCOAL CANISTER, NO.1 | ||||
| 23954-78021 |
2TRFE..TRC600..DM5;2TRFE..TRU600..CBU;2TRFE..TRU600..T3..IV3 |
1 | ||
| 23954B - BRACKET, CHARCOAL CANISTER, NO.2 | ||||
| 23954-78030 |
2TRFE..TRC600..DM5;2TRFE..TRU600..CBU;2TRFE..TRU600..T3..IV3 |
1 | ||
| 58266A - BRACKET, FUEL TUBE CLAMP | ||||
| 58266-37220 |
TRC600..DM5;TRU600..CBU;TRU600..T3..IV3 |
1 | ||
| 58266H - BRACKET, FUEL TUBE CLAMP | ||||
| 58266-37250 |
TRC600..DM5;TRU600..CBU;TRU600..T3..IV3 |
1 | ||
| 77027 - TUBE SUB-ASSY, FUEL EVAPORATION, NO.2 | ||||
| 77027-37130 |
TRC600..DM5;TRU600..CBU;TRU600..T3..IV3 |
1 | ||
| 77205 - TUBE SUB-ASSY, FUEL MAIN | ||||
| 77205-37B80 |
TRC600..DM5;TRU600..CBU;TRU600..T3..IV3 |
1 | ||
| 77206C - TUBE SUB-ASSY, FUEL MAIN, NO.2 | ||||
| 77206-37G80 |
TRC600..DM5;TRU600..CBU;TRU600..T3..IV3 |
1 | ||
| 77209 - CONNECTOR SUB-ASSY, FUEL TUBE | ||||
| 77209-37070 |
TRC600..DM5;TRU600..CBU;TRU600..T3..IV3 |
1 | ||
| 77242B - HOSE, FUEL, NO.2 (FOR MAIN TUBE, NO.2) | ||||
| 95337-06030 |
TRC600..DM5;TRU600..CBU;TRU600..T3..IV3 長さ=260 |
1 | ||
| 77249 - HOSE, FUEL EMISSION | ||||
| 77249-37140 |
TRC600,TRU600..SCB |
1 | ||
| 77249-37141 |
TRC600..DM5;TRU600..CBU;TRU600..T3..IV3 |
1 | ||
| 77249A - HOSE, FUEL EMISSION | ||||
| 77249-37090 |
TRC600..DM5;TRU600..CBU;TRU600..T3..IV3 |
1 | ||
| 77249B - HOSE, FUEL | ||||
| 77249-37200 |
TRC600..DM5;TRU600..CBU;TRU600..T3..IV3 |
1 | ||
| 77281L - CLAMP, FUEL HOSE | ||||
| 77281-37560 |
TRC600..DM5;TRU600..CBU;TRU600..T3..IV3 |
1 | ||
| 77281M - CLAMP, FUEL HOSE | ||||
| 77281-37250 |
TRC600..DM5;TRU600..CBU;TRU600..T3..IV3 |
1 | ||
| 77282 - BRACKET, FUEL MAIN TUBE, NO.2 | ||||
| 77282-37010 |
TRC600..DM5;TRU600..CBU;TRU600..T3..IV3 |
1 | ||
| 77284 - CLAMP, FUEL TUBE | ||||
| 77281-37480 |
TRC600..DM5;TRU600..CBU;TRU600..T3..IV3 |
1 | ||
| 77295C - GROMMET, FUEL TUBE | ||||
| 77295-37020 |
TRC600..DM5;TRU600..CBU;TRU600..T3..IV3 |
2 | ||
| 77295C - GROMMET, FUEL TUBE | ||||
| 77295-37020 |
TRC600..DM5;TRU600..CBU;TRU600..T3..IV3 |
2 | ||
| 77298A - CLAMP, FUEL TUBE, NO.4 | ||||
| 77298-37020 |
TRC600..DM5;TRU600..CBU;TRU600..T3..IV3 |
1 | ||
| 77298B - CLAMP, FUEL TUBE, NO.4 | ||||
| 77298-37070 |
TRC600..DM5;TRU600..CBU;TRU600..T3..IV3 |
1 | ||
| 77705 - BRACKET SUB-ASSY, CHARCOAL CANISTER | ||||
| 77705-37030 |
TRC600..DM5;TRU600..CBU;TRU600..T3..IV3 |
1 | ||
| 77710C - HOSE, FUEL | ||||
| 23273-78380 |
TRC600..DM5;TRU600..CBU;TRU600..T3..IV3 |
1 | ||
| 77740 - CANISTER ASSY, CHARCOAL | ||||
| 77740-52050 |
TRC600..DM5;TRU600..CBU;TRU600..T3..IV3 |
1 | ||
| Common parts | ||||
| 82711-14560 | ||||
| 90034-61062 | ||||
| 90949-01943 | ||||
| 91551-80825 | ||||
| 94151-80800 | ||||
| 95337-06020 | ||||
| 96132-51100 | ||||
| 96132-51300 | ||||
| Linked diagrams | ||||
| 1708 | ||||
| 2211 | ||||
