TRC600A-TWMMK3 (2011)
Toyota Dyna/Toyoace

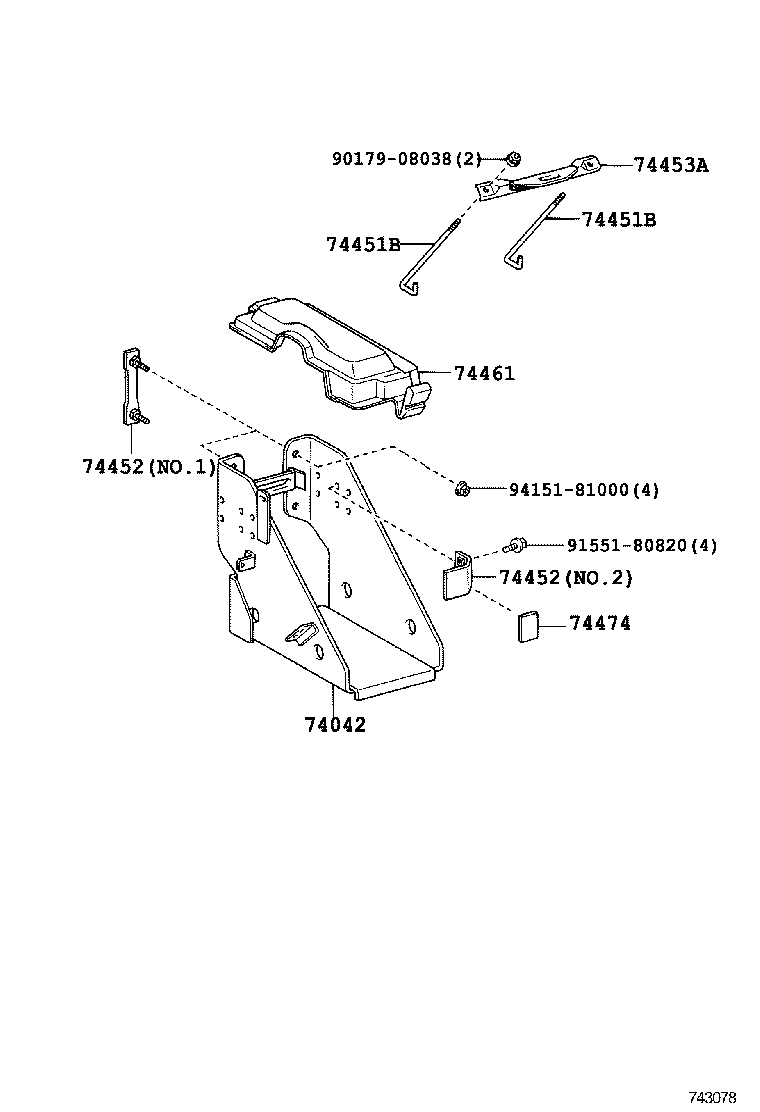

(1107- )DCB,SCB..DCRTH,DCRTJ,DCRTK,DCRVT,EFI,LPG..CBU,IV3,IV5,IV6,IV7
ﾊﾞｯﾃﾘ X 2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 74042 - BRACKET SUB-ASSY, BATTERY | ||||
| 74042-37181 |
TRU600;BZU600,TRC600..SCB..(DM5,DM6,T4) |
1 | ||
| 74042 - BRACKET SUB-ASSY, BATTERY | ||||
| 74042-37181 |
TRU600;BZU600,TRC600..SCB..(DM5,DM6,T4) |
1 | ||
| 74451B - BOLT, BATTERY CLAMP | ||||
| 74451-37011 |
TRU600,XZC655..5F;BZU600,TRC600,XZC600,610,630,645,675,XZU605..(DM5,DM6,DM7,T2,T4,T5)..5F..(DCRTH,DCRTJ,DCRTK,EFI,LPG);XZC605,XZU600,610,620,630,640,645,650,655,675,685,695..(DCB,SCB)..MTM..(DCRTH,DCRTJ,DCRTK)..(CBU,IV3,IV5,IV6,IV7) |
2 | ||
| 74451B - BOLT, BATTERY CLAMP | ||||
| 74451-37011 |
TRU600,XZC655..5F;BZU600,TRC600,XZC600,610,630,645,675,XZU605..(DM5,DM6,DM7,T2,T4,T5)..5F..(DCRTH,DCRTJ,DCRTK,EFI,LPG);XZC605,XZU600,610,620,630,640,645,650,655,675,685,695..(DCB,SCB)..MTM..(DCRTH,DCRTJ,DCRTK)..(CBU,IV3,IV5,IV6,IV7) |
2 | ||
| 74452 - PLATE, BATTERY SET | ||||
| 74452-37080 |
TRC600..DM5;TRU600..CBU;TRU600..T3..IV3 NO.2:ｲﾗｽﾄ参照 |
2 | ||
| 74452-37020 |
TRC600..DM5;TRU600..CBU;TRU600..T3..IV3 NO.1:ｲﾗｽﾄ参照 |
2 | ||
| 74452 - PLATE, BATTERY SET | ||||
| 74452-37080 |
TRC600..DM5;TRU600..CBU;TRU600..T3..IV3 NO.2:ｲﾗｽﾄ参照 |
2 | ||
| 74452-37020 |
TRC600..DM5;TRU600..CBU;TRU600..T3..IV3 NO.1:ｲﾗｽﾄ参照 |
2 | ||
| 74453A - BAR, BATTERY SET PLATE | ||||
| 74453-37010 |
TRC600..DM5;TRU600..CBU;TRU600..T3..IV3 |
1 | ||
| 74461 - COVER, BATTERY | ||||
| 74461-37060 |
TRC600..DM5;TRU600..CBU;TRU600..T3..IV3 |
1 | ||
| 74474 - PAD, BATTERY | ||||
| 74475-36040 |
XZC600..6FC..ST;XZU650..T4..30T;XZU640..T4..6FC..IV3;XZU650..T3..30T..IV3;XZU650..T3..30T..DCRTK..CBU;TRU600,XZU640..(DCRTJ,EFI)..CBU;TRU600,XZU640..T3..5F..(DCRTJ,EFI)..IV3;TRC600,XZU600..(DM5,T3)..(5F,6FC)..(20T,40T) |
2 | ||
| 74474 - PAD, BATTERY | ||||
| 74475-36040 |
XZC600..6FC..ST;XZU650..T4..30T;XZU640..T4..6FC..IV3;XZU650..T3..30T..IV3;XZU650..T3..30T..DCRTK..CBU;TRU600,XZU640..(DCRTJ,EFI)..CBU;TRU600,XZU640..T3..5F..(DCRTJ,EFI)..IV3;TRC600,XZU600..(DM5,T3)..(5F,6FC)..(20T,40T) |
2 | ||
| Common parts | ||||
| 90179-08038 | ||||
| 90333-20001 | ||||
| 91552-81030 | ||||
| 94151-81000 | ||||
(1107- )BZU600,TRC600,TRU600..SCB
ﾊﾞｯﾃﾘ X 1
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 74042 - BRACKET SUB-ASSY, BATTERY | ||||
| 74042-37181 |
TRU600;BZU600,TRC600..SCB..(DM5,DM6,T4) |
1 | ||
| 74451B - BOLT, BATTERY CLAMP | ||||
| 74451-37011 |
TRU600,XZC655..5F;BZU600,TRC600,XZC600,610,630,645,675,XZU605..(DM5,DM6,DM7,T2,T4,T5)..5F..(DCRTH,DCRTJ,DCRTK,EFI,LPG);XZC605,XZU600,610,620,630,640,645,650,655,675,685,695..(DCB,SCB)..MTM..(DCRTH,DCRTJ,DCRTK)..(CBU,IV3,IV5,IV6,IV7) |
2 | ||
| 74451B - BOLT, BATTERY CLAMP | ||||
| 74451-37011 |
TRU600,XZC655..5F;BZU600,TRC600,XZC600,610,630,645,675,XZU605..(DM5,DM6,DM7,T2,T4,T5)..5F..(DCRTH,DCRTJ,DCRTK,EFI,LPG);XZC605,XZU600,610,620,630,640,645,650,655,675,685,695..(DCB,SCB)..MTM..(DCRTH,DCRTJ,DCRTK)..(CBU,IV3,IV5,IV6,IV7) |
2 | ||
| 74452 - PLATE, BATTERY SET | ||||
| 74452-37080 |
TRC600..DM5;TRU600..CBU;TRU600..T3..IV3 NO.2:ｲﾗｽﾄ参照 |
2 | ||
| 74452-37020 |
TRC600..DM5;TRU600..CBU;TRU600..T3..IV3 NO.1:ｲﾗｽﾄ参照 |
2 | ||
| 74452 - PLATE, BATTERY SET | ||||
| 74452-37080 |
TRC600..DM5;TRU600..CBU;TRU600..T3..IV3 NO.2:ｲﾗｽﾄ参照 |
2 | ||
| 74452-37020 |
TRC600..DM5;TRU600..CBU;TRU600..T3..IV3 NO.1:ｲﾗｽﾄ参照 |
2 | ||
| 74453A - BAR, BATTERY SET PLATE | ||||
| 74453-37010 |
TRC600..DM5;TRU600..CBU;TRU600..T3..IV3 |
1 | ||
| 74461 - COVER, BATTERY | ||||
| 74461-37060 |
TRC600..DM5;TRU600..CBU;TRU600..T3..IV3 |
1 | ||
| 74474 - PAD, BATTERY | ||||
| 74475-36040 |
XZC600..6FC..ST;XZU650..T4..30T;XZU640..T4..6FC..IV3;XZU650..T3..30T..IV3;XZU650..T3..30T..DCRTK..CBU;TRU600,XZU640..(DCRTJ,EFI)..CBU;TRU600,XZU640..T3..5F..(DCRTJ,EFI)..IV3;TRC600,XZU600..(DM5,T3)..(5F,6FC)..(20T,40T) |
2 | ||
| Common parts | ||||
| 90179-08038 | ||||
| 91551-80820 | ||||
| 94151-81000 | ||||
