TRC600A-TWMMK3 (2011)
Toyota Dyna/Toyoace
ILLUST NO. 2 OF 2(1107- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 51961C - HOOK, FRONT | ||||
| 51961-37070 |
TRC600..DM5;XZC600..6FC..ST |
1 | ||
| 51962 - HOOK, NO.2 | ||||
| 51961-36040 |
XZC600..6FC..ST;XZU650..T4..30T;XZU640..T4..6FC..IV3;XZU650..T3..30T..IV3;XZU650..T3..30T..DCRTK..CBU;TRU600,XZU640..(DCRTJ,EFI)..CBU;TRU600,XZU640..T3..5F..(DCRTJ,EFI)..IV3;TRC600,XZU600..(DM5,T3)..(5F,6FC)..(20T,40T) 牽引ﾌｯｸ−有り(ﾘﾔ & ﾄﾗﾝｽﾎﾟｰﾄﾌｯｸ付き) |
1 | ||
| 51962 - HOOK, NO.2 | ||||
| 51961-36040 |
XZC600..6FC..ST;XZU650..T4..30T;XZU640..T4..6FC..IV3;XZU650..T3..30T..IV3;XZU650..T3..30T..DCRTK..CBU;TRU600,XZU640..(DCRTJ,EFI)..CBU;TRU600,XZU640..T3..5F..(DCRTJ,EFI)..IV3;TRC600,XZU600..(DM5,T3)..(5F,6FC)..(20T,40T) 牽引ﾌｯｸ−有り(ﾘﾔ & ﾄﾗﾝｽﾎﾟｰﾄﾌｯｸ付き) |
1 | ||
| 51963B - HOOK, TRANSPORT, FRONT RH | ||||
| 51963-37030 |
TRC600..DM5;XZC600..6FC..ST;XZU650..T4..30T;XZU640..T4..6FC..IV3;XZU650..T3..30T..IV3;XZU650..T3..30T..DCRTK..CBU;TRU600,XZU640..(DCRTJ,EFI)..CBU;TRU600,XZU640..T3..5F..(DCRTJ,EFI)..IV3 |
1 | ||
| 51964B - HOOK, TRANSPORT, FRONT LH | ||||
| 51964-37040 |
TRC600..DM5;XZC600..6FC..ST;XZU650..T4..30T;XZU640..T4..6FC..IV3;XZU650..T3..30T..IV3;XZU650..T3..30T..DCRTK..CBU;TRU600,XZU640..(DCRTJ,EFI)..CBU;TRU600,XZU640..T3..5F..(DCRTJ,EFI)..IV3 |
1 | ||
| Common parts | ||||
| 90178-14007 | ||||
| 90179-14007 | ||||
| 91552-81030 | ||||
| 91672-01450 | ||||
| 91672-01460 | ||||
| 94130-01002 | ||||
| 94130-01402 | ||||
| 94130-01432 | ||||
| 94622-41400 | ||||
| C5191-51010 | ||||

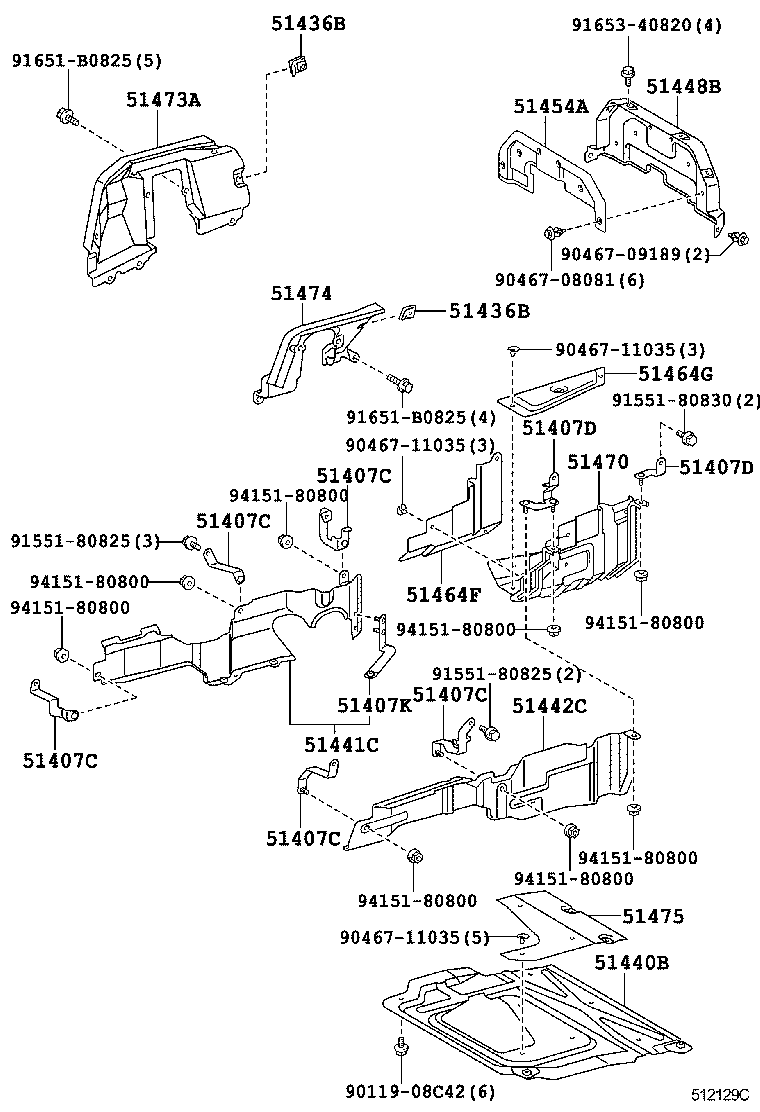

ILLUST NO. 1 OF 2(1107- )BZU600,TRC600,TRU600..SCB
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 51407C - BRACKET SUB-ASSY, ENGINE UNDER COVER | ||||
| 51407-37200 |
TRC600..DM5;TRU600..CBU;TRU600..T3..IV3 右側 ｾﾝﾀｰ |
1 | ||
| 51407-37440 |
TRC600..DM5;TRU600..CBU;TRU600..T3..IV3 左側ﾘﾔ |
1 | ||
| 51407-37190 |
TRC600..DM5;TRU600..CBU;TRU600..T3..IV3 右側ﾌﾛﾝﾄ |
1 | ||
| 51407-37220 |
TRC600..DM5;TRU600..CBU;TRU600..T3..IV3 左側ﾌﾛﾝﾄ |
1 | ||
| 51407-37320 |
TRC600..DM5;TRU600..CBU;TRU600..T3..IV3 右側ﾘﾔ |
1 | ||
| 51407C - BRACKET SUB-ASSY, ENGINE UNDER COVER | ||||
| 51407-37200 |
TRC600..DM5;TRU600..CBU;TRU600..T3..IV3 右側 ｾﾝﾀｰ |
1 | ||
| 51407-37440 |
TRC600..DM5;TRU600..CBU;TRU600..T3..IV3 左側ﾘﾔ |
1 | ||
| 51407-37190 |
TRC600..DM5;TRU600..CBU;TRU600..T3..IV3 右側ﾌﾛﾝﾄ |
1 | ||
| 51407-37220 |
TRC600..DM5;TRU600..CBU;TRU600..T3..IV3 左側ﾌﾛﾝﾄ |
1 | ||
| 51407-37320 |
TRC600..DM5;TRU600..CBU;TRU600..T3..IV3 右側ﾘﾔ |
1 | ||
| 51407C - BRACKET SUB-ASSY, ENGINE UNDER COVER | ||||
| 51407-37200 |
TRC600..DM5;TRU600..CBU;TRU600..T3..IV3 右側 ｾﾝﾀｰ |
1 | ||
| 51407-37440 |
TRC600..DM5;TRU600..CBU;TRU600..T3..IV3 左側ﾘﾔ |
1 | ||
| 51407-37190 |
TRC600..DM5;TRU600..CBU;TRU600..T3..IV3 右側ﾌﾛﾝﾄ |
1 | ||
| 51407-37220 |
TRC600..DM5;TRU600..CBU;TRU600..T3..IV3 左側ﾌﾛﾝﾄ |
1 | ||
| 51407-37320 |
TRC600..DM5;TRU600..CBU;TRU600..T3..IV3 右側ﾘﾔ |
1 | ||
| 51407C - BRACKET SUB-ASSY, ENGINE UNDER COVER | ||||
| 51407-37200 |
TRC600..DM5;TRU600..CBU;TRU600..T3..IV3 右側 ｾﾝﾀｰ |
1 | ||
| 51407-37440 |
TRC600..DM5;TRU600..CBU;TRU600..T3..IV3 左側ﾘﾔ |
1 | ||
| 51407-37190 |
TRC600..DM5;TRU600..CBU;TRU600..T3..IV3 右側ﾌﾛﾝﾄ |
1 | ||
| 51407-37220 |
TRC600..DM5;TRU600..CBU;TRU600..T3..IV3 左側ﾌﾛﾝﾄ |
1 | ||
| 51407-37320 |
TRC600..DM5;TRU600..CBU;TRU600..T3..IV3 右側ﾘﾔ |
1 | ||
| 51407C - BRACKET SUB-ASSY, ENGINE UNDER COVER | ||||
| 51407-37200 |
TRC600..DM5;TRU600..CBU;TRU600..T3..IV3 右側 ｾﾝﾀｰ |
1 | ||
| 51407-37440 |
TRC600..DM5;TRU600..CBU;TRU600..T3..IV3 左側ﾘﾔ |
1 | ||
| 51407-37190 |
TRC600..DM5;TRU600..CBU;TRU600..T3..IV3 右側ﾌﾛﾝﾄ |
1 | ||
| 51407-37220 |
TRC600..DM5;TRU600..CBU;TRU600..T3..IV3 左側ﾌﾛﾝﾄ |
1 | ||
| 51407-37320 |
TRC600..DM5;TRU600..CBU;TRU600..T3..IV3 右側ﾘﾔ |
1 | ||
| 51407D - BRACKET SUB-ASSY, ENGINE UNDER COVER | ||||
| 51407-37070 |
TRC600..DM5;TRU600..CBU;TRU600..T3..IV3 ﾘﾔ |
1 | ||
| 51407-37251 |
TRC600..DM5;TRU600..CBU;TRU600..T3..IV3 ﾌﾛﾝﾄ |
1 | ||
| 51407D - BRACKET SUB-ASSY, ENGINE UNDER COVER | ||||
| 51407-37070 |
TRC600..DM5;TRU600..CBU;TRU600..T3..IV3 ﾘﾔ |
1 | ||
| 51407-37251 |
TRC600..DM5;TRU600..CBU;TRU600..T3..IV3 ﾌﾛﾝﾄ |
1 | ||
| 51407K - BRACKET SUB-ASSY, ENGINE UNDER COVER | ||||
| 51407-37430 |
TRC600..DM5;TRU600..CBU;TRU600..T3..IV3 |
1 | ||
| 51436B - BRACKET, ENGINE SIDE COVER, NO.1 RH | ||||
| 51436-37080 |
XZC600..6FC..ST;XZU650..T4..30T;XZU640..T4..6FC..IV3;XZU650..T3..30T..IV3;XZU650..T3..30T..DCRTK..CBU;TRU600,XZU640..(DCRTJ,EFI)..CBU;TRU600,XZU640..T3..5F..(DCRTJ,EFI)..IV3;TRC600,XZU600..(DM5,T3)..(5F,6FC)..(20T,40T) |
2 | ||
| 51436B - BRACKET, ENGINE SIDE COVER, NO.1 RH | ||||
| 51436-37080 |
XZC600..6FC..ST;XZU650..T4..30T;XZU640..T4..6FC..IV3;XZU650..T3..30T..IV3;XZU650..T3..30T..DCRTK..CBU;TRU600,XZU640..(DCRTJ,EFI)..CBU;TRU600,XZU640..T3..5F..(DCRTJ,EFI)..IV3;TRC600,XZU600..(DM5,T3)..(5F,6FC)..(20T,40T) |
2 | ||
| 51440B - COVER ASSY, ENGINE FRONT UNDER, CENTER | ||||
| 51440-37470 |
TRC600..DM5;TRU600..CBU;TRU600..T3..IV3 |
1 | ||
| 51441C - COVER, ENGINE UNDER, RH | ||||
| 51440-37560 |
TRC600..DM5;TRU600..CBU;TRU600..T3..IV3 |
1 | ||
| 51442C - COVER, ENGINE UNDER, LH | ||||
| 51440-37490 |
TRC600..DM5;TRU600..CBU;TRU600..T3..IV3 |
1 | ||
| 51448B - SHUTTER, ENGINE REAR SIDE | ||||
| 51448-37030 |
TRC600..DM5;TRU600..CBU;TRU600..T3..IV3 |
1 | ||
| 51454A - SILENCER, ENGINE REAR COVER | ||||
| 51454-37140 |
TRC600..DM5;TRU600..CBU;TRU600..T3..IV3 |
1 | ||
| 51464F - SILENCER, TRANSMISSION UNDER | ||||
| 51464-37230 |
TRC600..DM5;TRU600..CBU;TRU600..T3..IV3 |
1 | ||
| 51464G - SILENCER, TRANSMISSION UNDER | ||||
| 51464-37140 |
TRC600..DM5;TRU600..CBU;TRU600..T3..IV3 |
1 | ||
| 51470 - COVER ASSY, TRANSMISSION UNDER | ||||
| 51470-37310 |
BZU600,TRC600,TRU600..SCB |
1 | ||
| 51470-37311 |
TRC600..DM5;TRU600..CBU;TRU600..T3..IV3 |
1 | ||
| 51473A - COVER SUB-ASSY, ENGINE SIDE, RH | ||||
| 51473-37180 |
BZU600,TRC600,TRU600,XZC600,610,630,XZU600,610,620,630,640,650 |
1 | ||
| 51473-37182 |
XZC600..6FC..ST;XZU650..T4..30T;XZU640..T4..6FC..IV3;XZU650..T3..30T..IV3;XZU650..T3..30T..DCRTK..CBU;TRU600,XZU640..(DCRTJ,EFI)..CBU;TRU600,XZU640..T3..5F..(DCRTJ,EFI)..IV3;TRC600,XZU600..(DM5,T3)..(5F,6FC)..(20T,40T) |
1 | ||
| 51474 - COVER SUB-ASSY, ENGINE SIDE, LH | ||||
| 51474-37120 |
XZC600..6FC..ST;XZU650..T4..30T;XZU640..T4..6FC..IV3;XZU650..T3..30T..IV3;XZU650..T3..30T..DCRTK..CBU;TRU600,XZU640..(DCRTJ,EFI)..CBU;TRU600,XZU640..T3..5F..(DCRTJ,EFI)..IV3;TRC600,XZU600..(DM5,T3)..(5F,6FC)..(20T,40T) |
1 | ||
| 51475 - SILENCER, ENGINE UNDER COVER, NO.5 | ||||
| 51475-37060 |
TRC600..DM5;TRU600..CBU;TRU600..T3..IV3 |
1 | ||
| Common parts | ||||
| 90119-08C42 | ||||
| 90467-08081 | ||||
| 90467-09189 | ||||
| 90467-11035 | ||||
| 91551-80825 | ||||
| 91551-80830 | ||||
| 91651-B0825 | ||||
| 91653-40820 | ||||
| 94151-80800 | ||||
