TRC600A-TWMMK3 (2011)

Toyota Dyna/Toyoace

Production Jul 2011 - May 2015
Engine 2TRFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 5(1107- )DCB,SCB..DCRTH,DCRTJ,DCRTK,DCRVT,EFI,LPG

Click highlighted areas on diagram

diagram 51100F 51401 51402 51454D 51705A 51705D 51706D 51717C 82715K 9046709101 9155281240 9155281240 9155281240 9155281240 91552F1240 9415121201 9415181200 9415181200
Part # Description Qty Price
51100F - FRAME SUB-ASSY
51001-3VQ90

TRC600..DM5;TRU600..T4..CBU

 1
51401 - BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, RH
51421-37170

TRC600..DM5;TRU600..CBU;TRU600..T3..IV3

TYPE D:ｲﾗｽﾄ参照

 1
51402 - BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, LH
51422-37171

TRC600..DM5;TRU600..CBU;TRU600..T3..IV3

TYPE D:ｲﾗｽﾄ参照

 1
51705A - BRACKET SUB-ASSY, CAB MOUNTING, NO.3
51705-37332

TRC600..DM5;TRU600..CBU;TRU600..T3..IV3

 1
82715K - BRACKET, WIRING HARNESS CLAMP
82715-3VN20

XZC600..6FC..ST;XZU650..T4..30T;XZU640..T4..6FC..IV3;XZU650..T3..30T..IV3;XZU650..T3..30T..DCRTK..CBU;TRU600,XZU640..(DCRTJ,EFI)..CBU;TRU600,XZU640..T3..5F..(DCRTJ,EFI)..IV3;TRC600,XZU600..(DM5,T3)..(5F,6FC)..(20T,40T)

 1
Common parts
90467-09101
91552-81240
91552-F1240
94151-21201
94151-81200

ILLUST NO. 4 OF 5(1107- )DCRTH,DCRTJ,DCRTK,DCRVT,EFI,LPG

Click highlighted areas on diagram

ﾌﾟﾛﾍﾟﾗｼｬﾌﾄｶﾞｰﾄﾞ

diagram 51568 51568C 51568D 51568E 51569 51569 51569C 51569D 51569E 9155180825 9155180825 9155180825 9155180825 9155180825
Part # Description Qty Price
51569 - GUARD, PROPELLER SHAFT
51569-37290

XZU640..T4..6FC..IV3;TRU600,XZU640..(DCRTJ,EFI)..CBU;TRU600,XZU640..T3..5F..(DCRTJ,EFI)..IV3;TRC600,XZU600..(DM5,T3)..(5F,6FC)..(20T,40T)

 1
51569 - GUARD, PROPELLER SHAFT
51569-37290

XZU640..T4..6FC..IV3;TRU600,XZU640..(DCRTJ,EFI)..CBU;TRU600,XZU640..T3..5F..(DCRTJ,EFI)..IV3;TRC600,XZU600..(DM5,T3)..(5F,6FC)..(20T,40T)

 1
Common parts
91551-80825

ILLUST NO. 5 OF 5(1107- )

Click highlighted areas on diagram

ﾘﾍﾞｯﾄ

diagram 9512101024 9512101026 9512101028 9512101032 9512101036 9512101038 9512101040
Part # Description Qty Price
Common parts
95121-01024
95121-01026
95121-01028
95121-01032
95121-01036
95121-01038
95121-01040

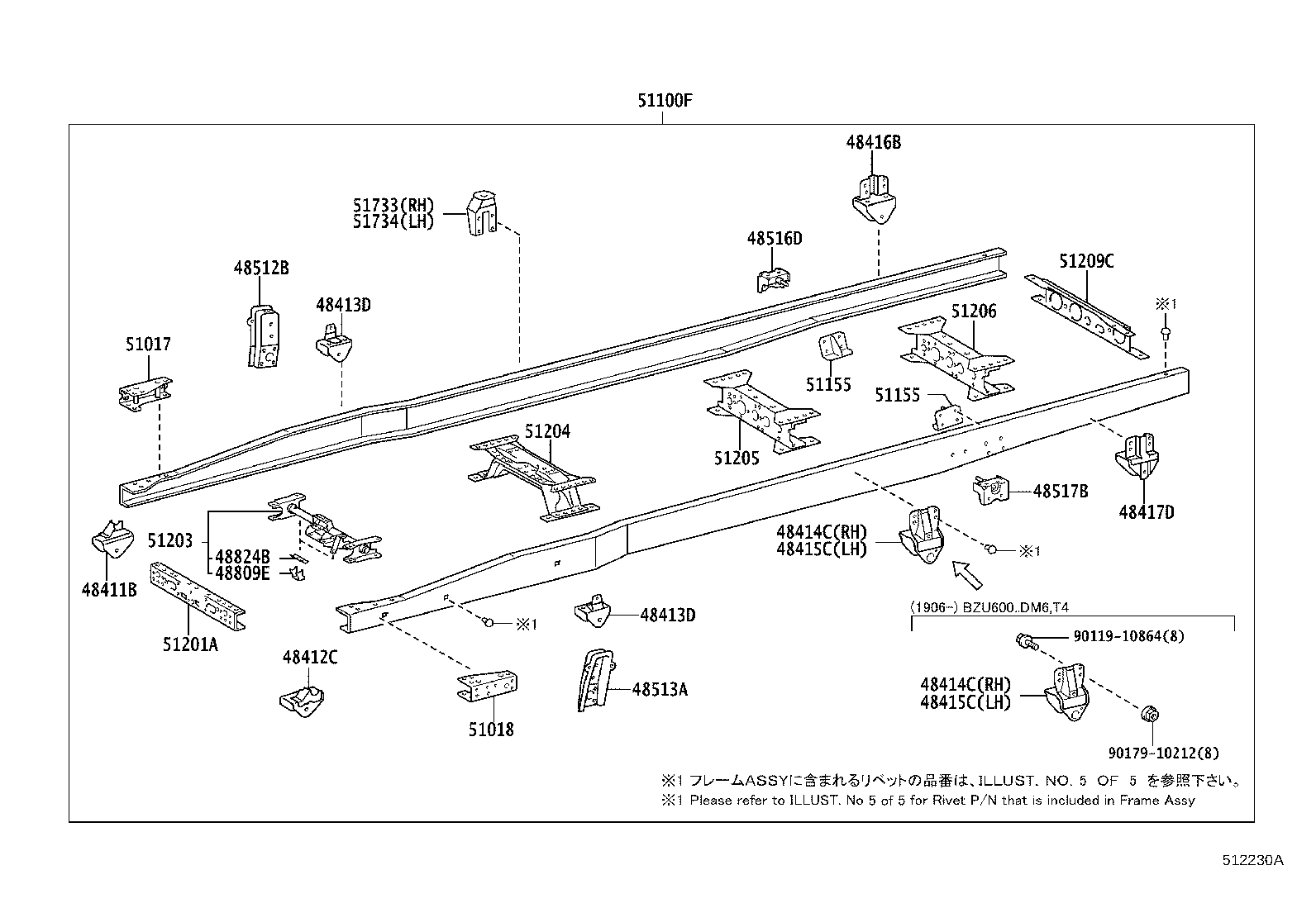

ILLUST NO. 2 OF 5(1107- )DM3,DM6..DCRTJ,DCRTK ; (1107- )BZU600,TRC600,TRU600..DM5,DM6,T4

Click highlighted areas on diagram

diagram 48411B 48412C 48413D 48413D 48414C 48414C 48415C 48415C 48416B 48417D 48512B 48513A 48516D 48517B 48809E 48824B 51017 51018 51100F 51155 51155 51201A 51203 51204 51205 51206 51209C 51733 51734 9011910864 9017910212
Part # Description Qty Price
48411B - BRACKET, SPRING, NO.1 RH
48411-37070

XZC600..6FC..ST;XZU650..T4..30T;XZU640..T4..6FC..IV3;XZU650..T3..30T..IV3;XZU650..T3..30T..DCRTK..CBU;TRU600,XZU640..(DCRTJ,EFI)..CBU;TRU600,XZU640..T3..5F..(DCRTJ,EFI)..IV3;TRC600,XZU600..(DM5,T3)..(5F,6FC)..(20T,40T)

 1
48412C - BRACKET, SPRING, NO.1 LH
48412-37060

XZC600..6FC..ST;XZU650..T4..30T;XZU640..T4..6FC..IV3;XZU650..T3..30T..IV3;XZU650..T3..30T..DCRTK..CBU;TRU600,XZU640..(DCRTJ,EFI)..CBU;TRU600,XZU640..T3..5F..(DCRTJ,EFI)..IV3;TRC600,XZU600..(DM5,T3)..(5F,6FC)..(20T,40T)

 1
48413D - BRACKET, SPRING, NO.2
48413-37060

XZU640..T4..6FC..IV3;TRU600,XZU640..(DCRTJ,EFI)..CBU;TRU600,XZU640..T3..5F..(DCRTJ,EFI)..IV3;TRC600,XZU600..(DM5,T3)..(5F,6FC)..(20T,40T)

 2
48413D - BRACKET, SPRING, NO.2
48413-37060

XZU640..T4..6FC..IV3;TRU600,XZU640..(DCRTJ,EFI)..CBU;TRU600,XZU640..T3..5F..(DCRTJ,EFI)..IV3;TRC600,XZU600..(DM5,T3)..(5F,6FC)..(20T,40T)

 2
48414C - BRACKET, SPRING, NO.3 RH
48414-37180

TRC600..DM5;TRU600..T4..CBU

 1
48414C - BRACKET, SPRING, NO.3 RH
48414-37180

TRC600..DM5;TRU600..T4..CBU

 1
48415C - BRACKET, SPRING, NO.3 LH
48414-37180

BZU600,TRC600,TRU600..DM5,DM6,T4;XZC675,XZU675..T4..(DCRTJ,DCRTK);XZU600..(DM3,DM6)..(DCRTJ,DCRTK)

 1
48415C - BRACKET, SPRING, NO.3 LH
48414-37180

BZU600,TRC600,TRU600..DM5,DM6,T4;XZC675,XZU675..T4..(DCRTJ,DCRTK);XZU600..(DM3,DM6)..(DCRTJ,DCRTK)

 1
48416B - BRACKET, SPRING, NO.4 RH
48416-37150

TRC600..DM5;TRU600..T4..CBU

 1
48417D - BRACKET, SPRING, NO.4 LH
48416-37150

TRC600..DM5;TRU600..T4..CBU

 1
48512B - BRACKET, FRONT SHOCK ABSORBER, UPPER RH
48512-37050

XZC600..6FC..ST;XZU650..T4..30T;XZU640..T4..6FC..IV3;XZU650..T3..30T..IV3;XZU650..T3..30T..DCRTK..CBU;TRU600,XZU640..(DCRTJ,EFI)..CBU;TRU600,XZU640..T3..5F..(DCRTJ,EFI)..IV3;TRC600,XZU600..(DM5,T3)..(5F,6FC)..(20T,40T)

 1
48513A - BRACKET, FRONT SHOCK ABSORBER, UPPER LH
48512-37130

XZC600..6FC..ST;XZU650..T4..30T;XZU640..T4..6FC..IV3;XZU650..T3..30T..IV3;XZU650..T3..30T..DCRTK..CBU;TRU600,XZU640..(DCRTJ,EFI)..CBU;TRU600,XZU640..T3..5F..(DCRTJ,EFI)..IV3;TRC600,XZU600..(DM5,T3)..(5F,6FC)..(20T,40T)

 1
48516D - BRACKET SUB-ASSY, REAR SHOCK ABSORBER, UPPER RH
48505-37010

XZC675,XZU675..T4;BZU600,TRC600,TRU600,XZC60#,645,655,XZU600,605,640,645,650,655,685,695..WT..(DCRTH,DCRTJ,DCRTK,EFI,LPG)

 1
48517B - BRACKET SUB-ASSY, REAR SHOCK ABSORBER, UPR LH
48505-37010

XZC675,XZU675..T4;BZU600,TRC600,TRU600,XZC60#,645,655,XZU600,605,640,645,650,655,685,695..WT..(DCRTH,DCRTJ,DCRTK,EFI,LPG)

 1
48809E - BRACKET SUB-ASSY, STABILIZER
48809-37040

XZC600..6FC..ST;XZU650..T4..30T;XZU640..T4..6FC..IV3;XZU650..T3..30T..IV3;XZU650..T3..30T..DCRTK..CBU;TRU600,XZU640..(DCRTJ,EFI)..CBU;TRU600,XZU640..T3..5F..(DCRTJ,EFI)..IV3;TRC600,XZU600..(DM5,T3)..(5F,6FC)..(20T,40T)

 2
48824B - BRACKET, STABILIZER
48824-37230

XZC600..6FC..ST;XZU650..T4..30T;XZU640..T4..6FC..IV3;XZU650..T3..30T..IV3;XZU650..T3..30T..DCRTK..CBU;TRU600,XZU640..(DCRTJ,EFI)..CBU;TRU600,XZU640..T3..5F..(DCRTJ,EFI)..IV3;TRC600,XZU600..(DM5,T3)..(5F,6FC)..(20T,40T)

 2
51017 - REINFORCEMENT SUB-ASSY, SIDE RAIL, NO.1 RH
51017-37130

XZU640..T4..6FC..IV3;TRU600,XZU640..(DCRTJ,EFI)..CBU;TRU600,XZU640..T3..5F..(DCRTJ,EFI)..IV3;TRC600,XZU600..(DM5,T3)..(5F,6FC)..(20T,40T)

 1
51018 - REINFORCEMENT SUB-ASSY, SIDE RAIL, NO.1 LH
51018-37021

XZU640..T4..6FC..IV3;TRU600,XZU640..(DCRTJ,EFI)..CBU;TRU600,XZU640..T3..5F..(DCRTJ,EFI)..IV3;TRC600,XZU600..(DM5,T3)..(5F,6FC)..(20T,40T)

 1
51100F - FRAME SUB-ASSY
51001-3VQ90

TRC600..DM5;TRU600..T4..CBU

 1
51155 - STIFFENER, FRAME SIDE RAIL, REAR RH
51155-37060

TRC600..DM5;XZU640..T4..6FC..IV3;TRU600,XZU640..(DCRTJ,EFI)..CBU;TRU600,XZU640..T3..5F..(DCRTJ,EFI)..IV3

 2
51155 - STIFFENER, FRAME SIDE RAIL, REAR RH
51155-37060

TRC600..DM5;XZU640..T4..6FC..IV3;TRU600,XZU640..(DCRTJ,EFI)..CBU;TRU600,XZU640..T3..5F..(DCRTJ,EFI)..IV3

 2
51201A - CROSSMEMBER SUB-ASSY, FRAME, FRONT
51211-37090

XZC600..6FC..ST;XZU650..T4..30T;XZU640..DCRTJ..CBU;XZU640..T4..6FC..IV3;BZU600,TRC600,TRU600;XZU650..T3..30T..IV3;XZU640..T3..5F..DCRTJ..IV3;XZU650..T3..30T..DCRTK..CBU;XZC605,XZU600..(06S,T3)..(5F,6FC)..(20T,40T)..(DCRTH,DCRTK)

 1
51203 - CROSSMEMBER SUB-ASSY, FRAME, NO.2
51202-37230

XZC600..6FC..ST;XZU650..T4..30T;XZU640..T4..6FC..IV3;XZU650..T3..30T..IV3;XZU650..T3..30T..DCRTK..CBU;TRU600,XZU640..(DCRTJ,EFI)..CBU;TRU600,XZU640..T3..5F..(DCRTJ,EFI)..IV3;TRC600,XZU600..(DM5,T3)..(5F,6FC)..(20T,40T)

 1
51204 - CROSSMEMBER SUB-ASSY, FRAME, NO.3
51203-37121

TRC600,TRU600,XZU640..CBU,IV3;XZU600..SCB..(DM3,DM6,T3)..(20T,30T)

 1
51205 - CROSSMEMBER SUB-ASSY, FRAME, NO.4
51205-37140

XZU645..30T..DCRTJ;XZC675,XZU675..T4..(DCRTJ,DCRTK);XZU600..SCB..(DM3,DM6,T3)..(DCRTJ,DCRTK);BZU600,TRC600,TRU600,XZU640,685..(DCRTJ,DCRTK,EFI,LPG)..(CBU,IV3,IV5,IV6)

 1
51206 - CROSSMEMBER SUB-ASSY, FRAME, NO.5
51206-37030

XZU645..30T..DCRTJ;XZC675,XZU675..T4..(DCRTJ,DCRTK);XZU600..(DM3,DM6,T3)..(DCRTJ,DCRTK);BZU600,TRC600,TRU600,XZC655,XZU640,650,655,685,695..DCRTJ,DCRTK,EFI,LPG

 1
51209C - CROSSMEMBER SUB-ASSY, FRAME, REAR
51291-37140

TRC600..DM5;TRU600..T4..CBU;XZC600..6FC..ST

 1
Common parts
90119-10864
90179-10212
