TRC600A-TWMMK3 (2011)
Toyota Dyna/Toyoace

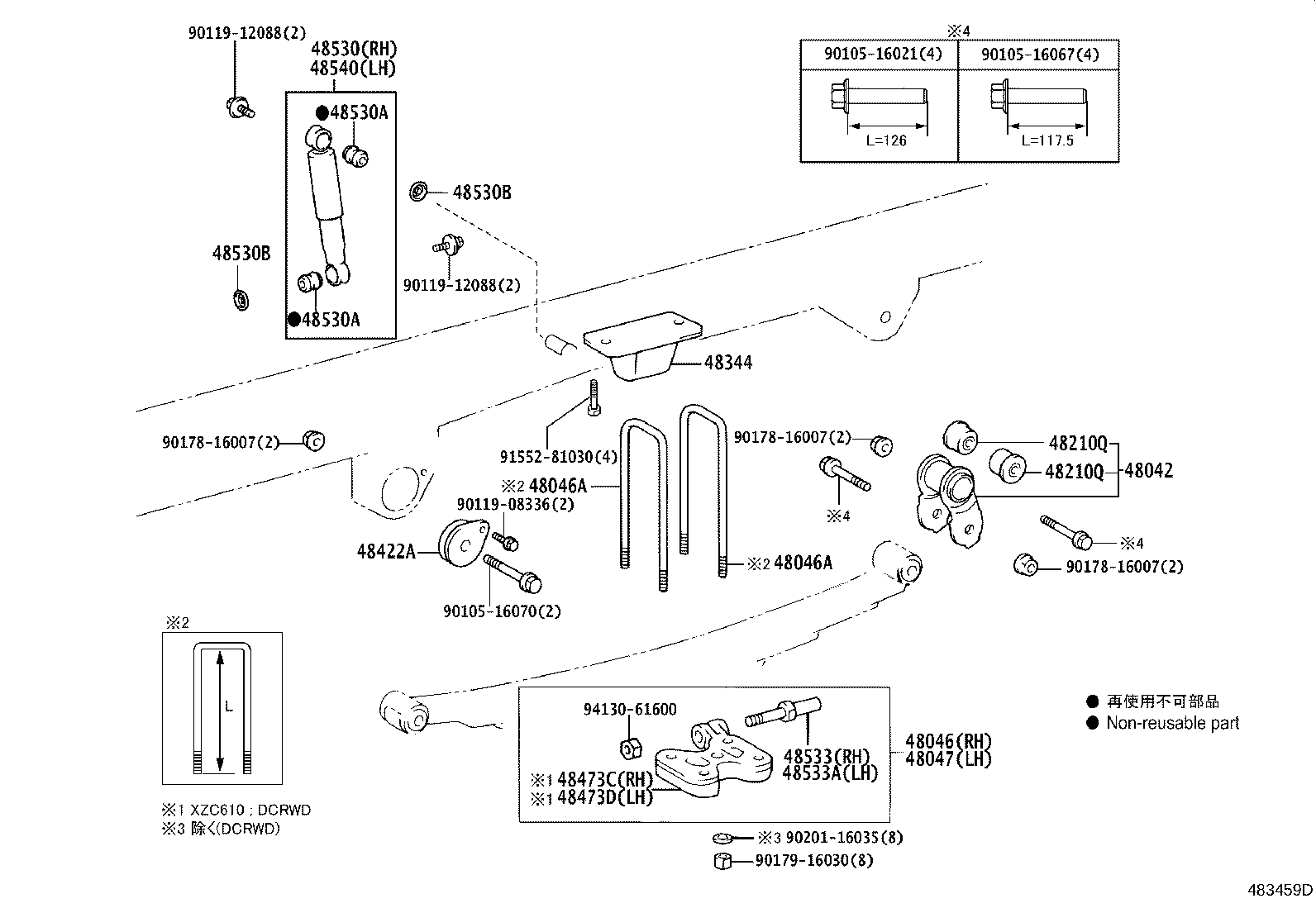

ILLUST NO. 1 OF 2(1107- )XZU645..20T ; (1107- )BZU600,TRC600,TRU600,XZC600..DM5,DM6,T4..DCRTH,
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48042 - SHACKLE SUB-ASSY, REAR SPRING, NO.2 | ||||
| 48042-37020 |
TRC600..DM5;XZC600..6FC..ST;XZU650..T4..30T;XZU640..T4..6FC..IV3;XZU650..T3..30T..IV3;XZU650..T3..30T..DCRTK..CBU;TRU600,XZU640..(DCRTJ,EFI)..CBU;TRU600,XZU640..T3..5F..(DCRTJ,EFI)..IV3 |
2 | ||
| 48042-37020 |
TRC600..DM5;XZC600..6FC..ST;XZU650..T4..30T;XZU640..T4..6FC..IV3;XZU650..T3..30T..IV3;XZU650..T3..30T..DCRTK..CBU;TRU600,XZU640..(DCRTJ,EFI)..CBU;TRU600,XZU640..T3..5F..(DCRTJ,EFI)..IV3 |
2 | ||
| 48046 - SEAT SUB-ASSY, SPRING U BOLT, RH | ||||
| 48046-37090 |
TRC600..DM5 |
1 | ||
| 48046-37090 |
TRC600..DM5 |
1 | ||
| 48046A - BOLT, U(FOR REAR SPRING) | ||||
| 90117-16028 |
TRC600..DM5 長さ=240 |
4 | ||
| 90117-16028 |
TRC600..DM5 長さ=240 |
4 | ||
| 48046A - BOLT, U(FOR REAR SPRING) | ||||
| 90117-16028 |
TRC600..DM5 長さ=240 |
4 | ||
| 90117-16028 |
TRC600..DM5 長さ=240 |
4 | ||
| 48047 - SEAT SUB-ASSY, SPRING U BOLT, LH | ||||
| 48047-37090 |
TRC600..DM5 |
1 | ||
| 48047-37090 |
TRC600..DM5 |
1 | ||
| 48210Q - BUSH(FOR REAR SPRING SHACKLE) | ||||
| 90389-16026 |
TRC600..DM5;XZC600..6FC..ST;XZU650..T4..30T;XZU640..T4..6FC..IV3;XZU650..T3..30T..IV3;XZU650..T3..30T..DCRTK..CBU;TRU600,XZU640..(DCRTJ,EFI)..CBU;TRU600,XZU640..T3..5F..(DCRTJ,EFI)..IV3 |
4 | ||
| 90389-16026 |
TRC600..DM5;XZC600..6FC..ST;XZU650..T4..30T;XZU640..T4..6FC..IV3;XZU650..T3..30T..IV3;XZU650..T3..30T..DCRTK..CBU;TRU600,XZU640..(DCRTJ,EFI)..CBU;TRU600,XZU640..T3..5F..(DCRTJ,EFI)..IV3 |
4 | ||
| 48210Q - BUSH(FOR REAR SPRING SHACKLE) | ||||
| 90389-16026 |
TRC600..DM5;XZC600..6FC..ST;XZU650..T4..30T;XZU640..T4..6FC..IV3;XZU650..T3..30T..IV3;XZU650..T3..30T..DCRTK..CBU;TRU600,XZU640..(DCRTJ,EFI)..CBU;TRU600,XZU640..T3..5F..(DCRTJ,EFI)..IV3 |
4 | ||
| 90389-16026 |
TRC600..DM5;XZC600..6FC..ST;XZU650..T4..30T;XZU640..T4..6FC..IV3;XZU650..T3..30T..IV3;XZU650..T3..30T..DCRTK..CBU;TRU600,XZU640..(DCRTJ,EFI)..CBU;TRU600,XZU640..T3..5F..(DCRTJ,EFI)..IV3 |
4 | ||
| 48344 - STOPPER, BUMPER, REAR | ||||
| 48344-37370 |
TRC600..DM5 |
2 | ||
| 48344-37370 |
TRC600..DM5 |
2 | ||
| 48422A - SUPPORT, REAR SPRING PIN | ||||
| 48422-36090 |
XZU645..20T..DCRTJ;BZU600,TRC600,TRU600..DM5,DM6,T4;XZC60#,610,630,645,675,XZU600,605,610,620,630,675..(03S,06S,DM3,DM5,DM6,DM7,T2,T4,T5)..(DCRTH,DCRTJ,DCRTK) |
2 | ||
| 48422-36090 |
XZU645..20T..DCRTJ;BZU600,TRC600,TRU600..DM5,DM6,T4;XZC60#,610,630,645,675,XZU600,605,610,620,630,675..(03S,06S,DM3,DM5,DM6,DM7,T2,T4,T5)..(DCRTH,DCRTJ,DCRTK) |
2 | ||
| 48530 - ABSORBER ASSY, SHOCK, REAR RH | ||||
| 48531-80770 |
XZU605..T4..30T;XZC605,XZU605..T5;BZU600,TRC600,TRU600,XZC600,675,XZU600,610,620,675..(DM3,DM5,DM6,T4,T5)..WT ﾏｰｸ 48531−37020 |
1 | ||
| 48531-80770 |
XZU605..T4..30T;XZC605,XZU605..T5;BZU600,TRC600,TRU600,XZC600,675,XZU600,610,620,675..(DM3,DM5,DM6,T4,T5)..WT ﾏｰｸ 48531−37020 |
1 | ||
| 48530A - BUSH(FOR REAR SHOCK ABSORBER) | ||||
| 90385-19011 |
XZC600..6FC..ST;XZU650..T4..30T;XZU640..T4..6FC..IV3;XZU650..T3..30T..IV3;XZU650..T3..30T..DCRTK..CBU;TRU600,XZU640..(DCRTJ,EFI)..CBU;TRU600,XZU640..T3..5F..(DCRTJ,EFI)..IV3;TRC600,XZU600..(DM5,T3)..(5F,6FC)..(20T,40T) |
4 | ||
| 90385-19011 |
XZC600..6FC..ST;XZU650..T4..30T;XZU640..T4..6FC..IV3;XZU650..T3..30T..IV3;XZU650..T3..30T..DCRTK..CBU;TRU600,XZU640..(DCRTJ,EFI)..CBU;TRU600,XZU640..T3..5F..(DCRTJ,EFI)..IV3;TRC600,XZU600..(DM5,T3)..(5F,6FC)..(20T,40T) |
4 | ||
| 48530A - BUSH(FOR REAR SHOCK ABSORBER) | ||||
| 90385-19011 |
XZC600..6FC..ST;XZU650..T4..30T;XZU640..T4..6FC..IV3;XZU650..T3..30T..IV3;XZU650..T3..30T..DCRTK..CBU;TRU600,XZU640..(DCRTJ,EFI)..CBU;TRU600,XZU640..T3..5F..(DCRTJ,EFI)..IV3;TRC600,XZU600..(DM5,T3)..(5F,6FC)..(20T,40T) |
4 | ||
| 90385-19011 |
XZC600..6FC..ST;XZU650..T4..30T;XZU640..T4..6FC..IV3;XZU650..T3..30T..IV3;XZU650..T3..30T..DCRTK..CBU;TRU600,XZU640..(DCRTJ,EFI)..CBU;TRU600,XZU640..T3..5F..(DCRTJ,EFI)..IV3;TRC600,XZU600..(DM5,T3)..(5F,6FC)..(20T,40T) |
4 | ||
| 48530B - WASHER, REAR SHOCK ABSORBER CUSHION, NO.1 | ||||
| 90948-03011 |
XZC600..6FC..ST;XZU650..T4..30T;XZU640..T4..6FC..IV3;XZU650..T3..30T..IV3;XZU650..T3..30T..DCRTK..CBU;TRU600,XZU640..(DCRTJ,EFI)..CBU;TRU600,XZU640..T3..5F..(DCRTJ,EFI)..IV3;TRC600,XZU600..(DM5,T3)..(5F,6FC)..(20T,40T) |
4 | ||
| 90948-03011 |
XZC600..6FC..ST;XZU650..T4..30T;XZU640..T4..6FC..IV3;XZU650..T3..30T..IV3;XZU650..T3..30T..DCRTK..CBU;TRU600,XZU640..(DCRTJ,EFI)..CBU;TRU600,XZU640..T3..5F..(DCRTJ,EFI)..IV3;TRC600,XZU600..(DM5,T3)..(5F,6FC)..(20T,40T) |
4 | ||
| 48530B - WASHER, REAR SHOCK ABSORBER CUSHION, NO.1 | ||||
| 90948-03011 |
XZC600..6FC..ST;XZU650..T4..30T;XZU640..T4..6FC..IV3;XZU650..T3..30T..IV3;XZU650..T3..30T..DCRTK..CBU;TRU600,XZU640..(DCRTJ,EFI)..CBU;TRU600,XZU640..T3..5F..(DCRTJ,EFI)..IV3;TRC600,XZU600..(DM5,T3)..(5F,6FC)..(20T,40T) |
4 | ||
| 90948-03011 |
XZC600..6FC..ST;XZU650..T4..30T;XZU640..T4..6FC..IV3;XZU650..T3..30T..IV3;XZU650..T3..30T..DCRTK..CBU;TRU600,XZU640..(DCRTJ,EFI)..CBU;TRU600,XZU640..T3..5F..(DCRTJ,EFI)..IV3;TRC600,XZU600..(DM5,T3)..(5F,6FC)..(20T,40T) |
4 | ||
| 48533 - PIN, REAR SHOCK ABSORBER LOWER PIVOT, RH | ||||
| 48522-37030 |
TRC600..DM5;TRU600..T4..CBU;XZC600..6FC..ST |
1 | ||
| 48522-37030 |
TRC600..DM5;TRU600..T4..CBU;XZC600..6FC..ST |
1 | ||
| 48533A - PIN, REAR SHOCK ABSORBER LOWER PIVOT, LH | ||||
| 48522-37030 |
TRC600..DM5;TRU600..T4..CBU;XZC600..6FC..ST |
1 | ||
| 48522-37030 |
TRC600..DM5;TRU600..T4..CBU;XZC600..6FC..ST |
1 | ||
| 48540 - ABSORBER ASSY, SHOCK, REAR LH | ||||
| 48531-80770 |
XZU605..T4..30T;XZC605,XZU605..T5;BZU600,TRC600,TRU600,XZC600,675,XZU600,610,620,675..(DM3,DM5,DM6,T4,T5)..WT ﾏｰｸ 48531−37020 |
1 | ||
| 48531-80770 |
XZU605..T4..30T;XZC605,XZU605..T5;BZU600,TRC600,TRU600,XZC600,675,XZU600,610,620,675..(DM3,DM5,DM6,T4,T5)..WT ﾏｰｸ 48531−37020 |
1 | ||
| 48802 - LINK SUB-ASSY, STABILIZER | ||||
| 48802-37010 |
TRC600..DM5 ｽﾀﾋﾞﾗｲｻﾞ−有り(ﾌﾛﾝﾄ & ﾘﾔ) |
2 | ||
| 48802-37010 |
TRC600..DM5 ｽﾀﾋﾞﾗｲｻﾞ−有り(ﾌﾛﾝﾄ & ﾘﾔ) |
2 | ||
| 48802D - BUSH, STABILIZER LINK | ||||
| 90385-13009 |
TRC600..DM5 ｽﾀﾋﾞﾗｲｻﾞ−有り(ﾌﾛﾝﾄ & ﾘﾔ) |
2 | ||
| 90385-13009 |
TRC600..DM5 ｽﾀﾋﾞﾗｲｻﾞ−有り(ﾌﾛﾝﾄ & ﾘﾔ) |
2 | ||
| 48802E - SPACER(FOR REAR STABILIZER BAR) | ||||
| 90560-10044 |
TRC600..DM5 ｽﾀﾋﾞﾗｲｻﾞ−有り(ﾌﾛﾝﾄ & ﾘﾔ) |
2 | ||
| 90560-10044 |
TRC600..DM5 ｽﾀﾋﾞﾗｲｻﾞ−有り(ﾌﾛﾝﾄ & ﾘﾔ) |
2 | ||
| 48805 - BAR SUB-ASSY, REAR STABILIZER | ||||
| 48805-37030 |
TRC600..DM5 ｽﾀﾋﾞﾗｲｻﾞ−有り(ﾌﾛﾝﾄ & ﾘﾔ) |
1 | ||
| 48805-37030 |
TRC600..DM5 ｽﾀﾋﾞﾗｲｻﾞ−有り(ﾌﾛﾝﾄ & ﾘﾔ) |
1 | ||
| 48805A - BUSH(FOR REAR STABILIZER BAR) | ||||
| 90385-13009 |
TRC600..DM5 ｽﾀﾋﾞﾗｲｻﾞ−有り(ﾌﾛﾝﾄ & ﾘﾔ) |
2 | ||
| 90385-13009 |
TRC600..DM5 ｽﾀﾋﾞﾗｲｻﾞ−有り(ﾌﾛﾝﾄ & ﾘﾔ) |
2 | ||
| 48818 - BUSH, STABILIZER, REAR | ||||
| 48815-37060 |
TRC600..DM5 ｽﾀﾋﾞﾗｲｻﾞ−有り(ﾌﾛﾝﾄ & ﾘﾔ) |
2 | ||
| 48815-37060 |
TRC600..DM5 ｽﾀﾋﾞﾗｲｻﾞ−有り(ﾌﾛﾝﾄ & ﾘﾔ) |
2 | ||
| 48823R - COVER, STABILIZER LINK(FOR REAR) | ||||
| 48823-37011 |
TRC600..DM5 ｽﾀﾋﾞﾗｲｻﾞ−有り(ﾌﾛﾝﾄ & ﾘﾔ) |
2 | ||
| 48823-37011 |
TRC600..DM5 ｽﾀﾋﾞﾗｲｻﾞ−有り(ﾌﾛﾝﾄ & ﾘﾔ) |
2 | ||
| 48830C - SPACER(FOR REAR STABILIZER LINK) | ||||
| 90560-10044 |
TRC600..DM5 ｽﾀﾋﾞﾗｲｻﾞ−有り(ﾌﾛﾝﾄ & ﾘﾔ) |
2 | ||
| 90560-10044 |
TRC600..DM5 ｽﾀﾋﾞﾗｲｻﾞ−有り(ﾌﾛﾝﾄ & ﾘﾔ) |
2 | ||
| 48830D - LINK ASSY, REAR STABILIZER, RH | ||||
| 48830-37010 |
TRC600..DM5 ｽﾀﾋﾞﾗｲｻﾞ−有り(ﾌﾛﾝﾄ & ﾘﾔ) |
1 | ||
| 48830-37010 |
TRC600..DM5 ｽﾀﾋﾞﾗｲｻﾞ−有り(ﾌﾛﾝﾄ & ﾘﾔ) |
1 | ||
| 48832A - BRACKET, REAR STABILIZER BAR, NO.1 | ||||
| 48832-37020 |
TRC600..DM5 ｽﾀﾋﾞﾗｲｻﾞ−有り(ﾌﾛﾝﾄ & ﾘﾔ) |
2 | ||
| 48832-37020 |
TRC600..DM5 ｽﾀﾋﾞﾗｲｻﾞ−有り(ﾌﾛﾝﾄ & ﾘﾔ) |
2 | ||
| 48840A - LINK ASSY, REAR STABILIZER, LH | ||||
| 48830-37010 |
TRC600..DM5 ｽﾀﾋﾞﾗｲｻﾞ−有り(ﾌﾛﾝﾄ & ﾘﾔ) |
1 | ||
| 48830-37010 |
TRC600..DM5 ｽﾀﾋﾞﾗｲｻﾞ−有り(ﾌﾛﾝﾄ & ﾘﾔ) |
1 | ||
| Common parts | ||||
| 90105-16021 | ||||
| 90105-16067 | ||||
| 90105-16070 | ||||
| 90119-08336 | ||||
| 90119-10740 | ||||
| 90119-12088 | ||||
| 90178-16007 | ||||
| 90179-16030 | ||||
| 90201-16035 | ||||
| 91552-81030 | ||||
| 91552-81045 | ||||
| 94130-61600 | ||||
| 94151-80800 | ||||
| 94151-81000 | ||||
| 94184-01001 | ||||
ILLUST NO. 1 OF 2(1107- )DM5
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48042 - SHACKLE SUB-ASSY, REAR SPRING, NO.2 | ||||
| 48042-37020 |
TRC600..DM5;XZC600..6FC..ST;XZU650..T4..30T;XZU640..T4..6FC..IV3;XZU650..T3..30T..IV3;XZU650..T3..30T..DCRTK..CBU;TRU600,XZU640..(DCRTJ,EFI)..CBU;TRU600,XZU640..T3..5F..(DCRTJ,EFI)..IV3 |
2 | ||
| 48046 - SEAT SUB-ASSY, SPRING U BOLT, RH | ||||
| 48046-37090 |
TRC600..DM5 |
1 | ||
| 48046A - BOLT, U(FOR REAR SPRING) | ||||
| 90117-16028 |
TRC600..DM5 長さ=240 |
4 | ||
| 48046A - BOLT, U(FOR REAR SPRING) | ||||
| 90117-16028 |
TRC600..DM5 長さ=240 |
4 | ||
| 48047 - SEAT SUB-ASSY, SPRING U BOLT, LH | ||||
| 48047-37090 |
TRC600..DM5 |
1 | ||
| 48210Q - BUSH(FOR REAR SPRING SHACKLE) | ||||
| 90389-16026 |
TRC600..DM5;XZC600..6FC..ST;XZU650..T4..30T;XZU640..T4..6FC..IV3;XZU650..T3..30T..IV3;XZU650..T3..30T..DCRTK..CBU;TRU600,XZU640..(DCRTJ,EFI)..CBU;TRU600,XZU640..T3..5F..(DCRTJ,EFI)..IV3 |
4 | ||
| 48210Q - BUSH(FOR REAR SPRING SHACKLE) | ||||
| 90389-16026 |
TRC600..DM5;XZC600..6FC..ST;XZU650..T4..30T;XZU640..T4..6FC..IV3;XZU650..T3..30T..IV3;XZU650..T3..30T..DCRTK..CBU;TRU600,XZU640..(DCRTJ,EFI)..CBU;TRU600,XZU640..T3..5F..(DCRTJ,EFI)..IV3 |
4 | ||
| 48344 - STOPPER, BUMPER, REAR | ||||
| 48344-37370 |
TRC600..DM5 |
2 | ||
| 48422A - SUPPORT, REAR SPRING PIN | ||||
| 48422-36090 |
XZU645..20T..DCRTJ;BZU600,TRC600,TRU600..DM5,DM6,T4;XZC60#,610,630,645,675,XZU600,605,610,620,630,675..(03S,06S,DM3,DM5,DM6,DM7,T2,T4,T5)..(DCRTH,DCRTJ,DCRTK) |
2 | ||
| 48530 - ABSORBER ASSY, SHOCK, REAR RH | ||||
| 48531-80770 |
XZU605..T4..30T;XZC605,XZU605..T5;BZU600,TRC600,TRU600,XZC600,675,XZU600,610,620,675..(DM3,DM5,DM6,T4,T5)..WT ﾏｰｸ 48531−37020 |
1 | ||
| 48530A - BUSH(FOR REAR SHOCK ABSORBER) | ||||
| 90385-19011 |
XZC600..6FC..ST;XZU650..T4..30T;XZU640..T4..6FC..IV3;XZU650..T3..30T..IV3;XZU650..T3..30T..DCRTK..CBU;TRU600,XZU640..(DCRTJ,EFI)..CBU;TRU600,XZU640..T3..5F..(DCRTJ,EFI)..IV3;TRC600,XZU600..(DM5,T3)..(5F,6FC)..(20T,40T) |
4 | ||
| 48530A - BUSH(FOR REAR SHOCK ABSORBER) | ||||
| 90385-19011 |
XZC600..6FC..ST;XZU650..T4..30T;XZU640..T4..6FC..IV3;XZU650..T3..30T..IV3;XZU650..T3..30T..DCRTK..CBU;TRU600,XZU640..(DCRTJ,EFI)..CBU;TRU600,XZU640..T3..5F..(DCRTJ,EFI)..IV3;TRC600,XZU600..(DM5,T3)..(5F,6FC)..(20T,40T) |
4 | ||
| 48530B - WASHER, REAR SHOCK ABSORBER CUSHION, NO.1 | ||||
| 90948-03011 |
XZC600..6FC..ST;XZU650..T4..30T;XZU640..T4..6FC..IV3;XZU650..T3..30T..IV3;XZU650..T3..30T..DCRTK..CBU;TRU600,XZU640..(DCRTJ,EFI)..CBU;TRU600,XZU640..T3..5F..(DCRTJ,EFI)..IV3;TRC600,XZU600..(DM5,T3)..(5F,6FC)..(20T,40T) |
4 | ||
| 48530B - WASHER, REAR SHOCK ABSORBER CUSHION, NO.1 | ||||
| 90948-03011 |
XZC600..6FC..ST;XZU650..T4..30T;XZU640..T4..6FC..IV3;XZU650..T3..30T..IV3;XZU650..T3..30T..DCRTK..CBU;TRU600,XZU640..(DCRTJ,EFI)..CBU;TRU600,XZU640..T3..5F..(DCRTJ,EFI)..IV3;TRC600,XZU600..(DM5,T3)..(5F,6FC)..(20T,40T) |
4 | ||
| 48533 - PIN, REAR SHOCK ABSORBER LOWER PIVOT, RH | ||||
| 48522-37030 |
TRC600..DM5;TRU600..T4..CBU;XZC600..6FC..ST |
1 | ||
| 48533A - PIN, REAR SHOCK ABSORBER LOWER PIVOT, LH | ||||
| 48522-37030 |
TRC600..DM5;TRU600..T4..CBU;XZC600..6FC..ST |
1 | ||
| 48540 - ABSORBER ASSY, SHOCK, REAR LH | ||||
| 48531-80770 |
XZU605..T4..30T;XZC605,XZU605..T5;BZU600,TRC600,TRU600,XZC600,675,XZU600,610,620,675..(DM3,DM5,DM6,T4,T5)..WT ﾏｰｸ 48531−37020 |
1 | ||
| Common parts | ||||
| 90105-16021 | ||||
| 90105-16067 | ||||
| 90105-16070 | ||||
| 90119-08336 | ||||
| 90119-12088 | ||||
| 90178-16007 | ||||
| 90179-16030 | ||||
| 90201-16035 | ||||
| 91552-81030 | ||||
| 94130-61600 | ||||
ILLUST NO. 2 OF 2(1107-1503)BZU600,TRU600..T4..30T ; (1107-1503)XZC605..T4..6FC..DCRTJ..IV3 ; (1107-
6-LEAF
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-37640 |
TRC600..DM5 6枚ﾘｰﾌ |
1 | ||
| 48210-37640 |
TRC600..DM5 6枚ﾘｰﾌ |
1 | ||
| 48210-37641 |
TRC600..DM5;TRU600..T4..CBU 6枚ﾘｰﾌ |
1 | ||
| 48210-37641 |
TRC600..DM5;TRU600..T4..CBU 6枚ﾘｰﾌ |
1 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16024 |
TRC600..DM5;TRU600..T4..CBU;XZC600..6FC..ST ﾌﾛﾝﾄ |
4 | ||
| 90389-16024 |
TRC600..DM5;TRU600..T4..CBU;XZC600..6FC..ST ﾌﾛﾝﾄ |
4 | ||
| 90389-16026 |
TRC600..DM5;TRU600..T4..CBU;XZC600..6FC..ST ﾘﾔ |
4 | ||
| 90389-16026 |
TRC600..DM5;TRU600..T4..CBU;XZC600..6FC..ST ﾘﾔ |
4 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16024 |
TRC600..DM5;TRU600..T4..CBU;XZC600..6FC..ST ﾌﾛﾝﾄ |
4 | ||
| 90389-16024 |
TRC600..DM5;TRU600..T4..CBU;XZC600..6FC..ST ﾌﾛﾝﾄ |
4 | ||
| 90389-16026 |
TRC600..DM5;TRU600..T4..CBU;XZC600..6FC..ST ﾘﾔ |
4 | ||
| 90389-16026 |
TRC600..DM5;TRU600..T4..CBU;XZC600..6FC..ST ﾘﾔ |
4 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16024 |
TRC600..DM5;TRU600..T4..CBU;XZC600..6FC..ST ﾌﾛﾝﾄ |
4 | ||
| 90389-16024 |
TRC600..DM5;TRU600..T4..CBU;XZC600..6FC..ST ﾌﾛﾝﾄ |
4 | ||
| 90389-16026 |
TRC600..DM5;TRU600..T4..CBU;XZC600..6FC..ST ﾘﾔ |
4 | ||
| 90389-16026 |
TRC600..DM5;TRU600..T4..CBU;XZC600..6FC..ST ﾘﾔ |
4 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16024 |
TRC600..DM5;TRU600..T4..CBU;XZC600..6FC..ST ﾌﾛﾝﾄ |
4 | ||
| 90389-16024 |
TRC600..DM5;TRU600..T4..CBU;XZC600..6FC..ST ﾌﾛﾝﾄ |
4 | ||
| 90389-16026 |
TRC600..DM5;TRU600..T4..CBU;XZC600..6FC..ST ﾘﾔ |
4 | ||
| 90389-16026 |
TRC600..DM5;TRU600..T4..CBU;XZC600..6FC..ST ﾘﾔ |
4 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48201-37640 |
TRC600,XZU600..DM3,DM5;BZU600,TRU600,XZU605..T4..30T |
2 | ||
| 48201-37640 |
TRC600,XZU600..DM3,DM5;BZU600,TRU600,XZU605..T4..30T |
2 | ||
| 48201-37641 |
TRC600..DM5;TRU600..T4..CBU |
2 | ||
| 48201-37641 |
TRC600..DM5;TRU600..T4..CBU |
2 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48212-37640 |
TRC600,XZU600..DM3,DM5;BZU600,TRU600,XZU605..T4..30T |
2 | ||
| 48212-37640 |
TRC600,XZU600..DM3,DM5;BZU600,TRU600,XZU605..T4..30T |
2 | ||
| 48212-37641 |
TRC600..DM5;TRU600..T4..CBU |
2 | ||
| 48212-37641 |
TRC600..DM5;TRU600..T4..CBU |
2 | ||
| 48213 - LEAF, REAR SPRING, NO.3 | ||||
| 48213-37640 |
TRC600,XZU600..DM3,DM5;BZU600,TRU600,XZU605..T4..30T |
2 | ||
| 48213-37640 |
TRC600,XZU600..DM3,DM5;BZU600,TRU600,XZU605..T4..30T |
2 | ||
| 48213-37641 |
TRC600..DM5;TRU600..T4..CBU |
2 | ||
| 48213-37641 |
TRC600..DM5;TRU600..T4..CBU |
2 | ||
| 48214 - LEAF, REAR SPRING, NO.4 | ||||
| 48214-37640 |
TRC600,XZU600..DM3,DM5;BZU600,TRU600,XZU605..T4..30T |
2 | ||
| 48214-37640 |
TRC600,XZU600..DM3,DM5;BZU600,TRU600,XZU605..T4..30T |
2 | ||
| 48214-37641 |
TRC600..DM5;TRU600..T4..CBU |
2 | ||
| 48214-37641 |
TRC600..DM5;TRU600..T4..CBU |
2 | ||
| 48215 - LEAF, REAR SPRING, NO.5 | ||||
| 48202-37640 |
TRC600,XZU600..DM3,DM5;BZU600,TRU600,XZU605..T4..30T |
2 | ||
| 48202-37640 |
TRC600,XZU600..DM3,DM5;BZU600,TRU600,XZU605..T4..30T |
2 | ||
| 48202-37641 |
TRC600..DM5;TRU600..T4..CBU |
2 | ||
| 48202-37641 |
TRC600..DM5;TRU600..T4..CBU |
2 | ||
| 48216 - LEAF, REAR SPRING, NO.6 | ||||
| 48203-37641 |
TRC600..DM5;TRU600..T4..CBU |
2 | ||
| 48203-37641 |
TRC600..DM5;TRU600..T4..CBU |
2 | ||
| 48203-37640 |
TRC600,XZU600..DM3,DM5;BZU600,TRU600,XZU605..T4..30T |
2 | ||
| 48203-37640 |
TRC600,XZU600..DM3,DM5;BZU600,TRU600,XZU605..T4..30T |
2 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-37640 |
TRC600..DM5 6枚ﾘｰﾌ |
1 | ||
| 48210-37640 |
TRC600..DM5 6枚ﾘｰﾌ |
1 | ||
| 48210-37641 |
TRC600..DM5;TRU600..T4..CBU 6枚ﾘｰﾌ |
1 | ||
| 48210-37641 |
TRC600..DM5;TRU600..T4..CBU 6枚ﾘｰﾌ |
1 | ||
| 48246 - CASE, REAR SPRING CLIP BOLT | ||||
| 48246-36052 |
XZU675..20T;XZU60#..DM3,T4,T5;BZU600,TRC600,TRU600,XZC60#,645,675,XZU620,645..DM5,T4 |
2 | ||
| 48246-36052 |
XZU675..20T;XZU60#..DM3,T4,T5;BZU600,TRC600,TRU600,XZC60#,645,675,XZU620,645..DM5,T4 |
2 | ||
| 48246-0W060 |
TRC600..DM5;TRU600..T4..CBU |
2 | ||
| 48246-0W060 |
TRC600..DM5;TRU600..T4..CBU |
2 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-37641 |
TRC600..DM5;TRU600..T4..CBU |
2 | ||
| 48247-37641 |
TRC600..DM5;TRU600..T4..CBU |
2 | ||
| 48247-37640 |
TRC600,XZU600..DM3,DM5;BZU600,TRU600,XZU605..(T4,T5)..30T |
2 | ||
| 48247-37640 |
TRC600,XZU600..DM3,DM5;BZU600,TRU600,XZU605..(T4,T5)..30T |
2 | ||
| 48251 - SPACER, REAR SPRING LEAF | ||||
| 48251-36530 |
TRC600,XZU600,620..DM3,DM5;BZU600,TRU600,XZU605..(T4,T5)..30T |
2 | ||
| 48251-36530 |
TRC600,XZU600,620..DM3,DM5;BZU600,TRU600,XZU605..(T4,T5)..30T |
2 | ||
| 48282-37521 |
TRC600..DM5;TRU600..T4..CBU |
2 | ||
| 48282-37521 |
TRC600..DM5;TRU600..T4..CBU |
2 | ||
| 48252B - SILENCER, REAR SPRING, NO.1 | ||||
| 48252-37521 |
TRC600..DM5;TRU600..T4..CBU |
4 | ||
| 48252-37521 |
TRC600..DM5;TRU600..T4..CBU |
4 | ||
| 48252-37670 |
XZU675..20T;XZU60#..DM3,T4,T5;BZU600,TRC600,TRU600,XZC60#,645,675,XZU620,645..DM5,T4 |
4 | ||
| 48252-37670 |
XZU675..20T;XZU60#..DM3,T4,T5;BZU600,TRC600,TRU600,XZC60#,645,675,XZU620,645..DM5,T4 |
4 | ||
| 48252B - SILENCER, REAR SPRING, NO.1 | ||||
| 48252-37521 |
TRC600..DM5;TRU600..T4..CBU |
4 | ||
| 48252-37521 |
TRC600..DM5;TRU600..T4..CBU |
4 | ||
| 48252-37670 |
XZU675..20T;XZU60#..DM3,T4,T5;BZU600,TRC600,TRU600,XZC60#,645,675,XZU620,645..DM5,T4 |
4 | ||
| 48252-37670 |
XZU675..20T;XZU60#..DM3,T4,T5;BZU600,TRC600,TRU600,XZC60#,645,675,XZU620,645..DM5,T4 |
4 | ||
| 48252C - SILENCER, REAR SPRING, NO.2 | ||||
| 48252-37890 |
TRC600..DM5;TRU600..T4..CBU |
4 | ||
| 48252-37890 |
TRC600..DM5;TRU600..T4..CBU |
4 | ||
| 48252C - SILENCER, REAR SPRING, NO.2 | ||||
| 48252-37890 |
TRC600..DM5;TRU600..T4..CBU |
4 | ||
| 48252-37890 |
TRC600..DM5;TRU600..T4..CBU |
4 | ||
| 48252F - SILENCER, REAR SPRING, NO.3 | ||||
| 48252-37380 |
XZU675..20T;XZU60#..DM3,T4,T5;BZU600,TRC600,TRU600,XZC60#,645,675,XZU620,645..DM5,T4 NO.2 |
8 | ||
| 48252-37380 |
XZU675..20T;XZU60#..DM3,T4,T5;BZU600,TRC600,TRU600,XZC60#,645,675,XZU620,645..DM5,T4 NO.2 |
8 | ||
| 48252-37630 |
XZU675..20T;TRU600,XZC675..DM5,T4;BZU600,XZU605..T4..30T;TRC600,XZU60#,620..DM3,DM5,T5 NO.1 |
4 | ||
| 48252-37630 |
XZU675..20T;TRU600,XZC675..DM5,T4;BZU600,XZU605..T4..30T;TRC600,XZU60#,620..DM3,DM5,T5 NO.1 |
4 | ||
| 48252F - SILENCER, REAR SPRING, NO.3 | ||||
| 48252-37380 |
XZU675..20T;XZU60#..DM3,T4,T5;BZU600,TRC600,TRU600,XZC60#,645,675,XZU620,645..DM5,T4 NO.2 |
8 | ||
| 48252-37380 |
XZU675..20T;XZU60#..DM3,T4,T5;BZU600,TRC600,TRU600,XZC60#,645,675,XZU620,645..DM5,T4 NO.2 |
8 | ||
| 48252-37630 |
XZU675..20T;TRU600,XZC675..DM5,T4;BZU600,XZU605..T4..30T;TRC600,XZU60#,620..DM3,DM5,T5 NO.1 |
4 | ||
| 48252-37630 |
XZU675..20T;TRU600,XZC675..DM5,T4;BZU600,XZU605..T4..30T;TRC600,XZU60#,620..DM3,DM5,T5 NO.1 |
4 | ||
| 48252F - SILENCER, REAR SPRING, NO.3 | ||||
| 48252-37380 |
XZU675..20T;XZU60#..DM3,T4,T5;BZU600,TRC600,TRU600,XZC60#,645,675,XZU620,645..DM5,T4 NO.2 |
8 | ||
| 48252-37380 |
XZU675..20T;XZU60#..DM3,T4,T5;BZU600,TRC600,TRU600,XZC60#,645,675,XZU620,645..DM5,T4 NO.2 |
8 | ||
| 48252-37630 |
XZU675..20T;TRU600,XZC675..DM5,T4;BZU600,XZU605..T4..30T;TRC600,XZU60#,620..DM3,DM5,T5 NO.1 |
4 | ||
| 48252-37630 |
XZU675..20T;TRU600,XZC675..DM5,T4;BZU600,XZU605..T4..30T;TRC600,XZU60#,620..DM3,DM5,T5 NO.1 |
4 | ||
| 48252F - SILENCER, REAR SPRING, NO.3 | ||||
| 48252-37380 |
XZU675..20T;XZU60#..DM3,T4,T5;BZU600,TRC600,TRU600,XZC60#,645,675,XZU620,645..DM5,T4 NO.2 |
8 | ||
| 48252-37380 |
XZU675..20T;XZU60#..DM3,T4,T5;BZU600,TRC600,TRU600,XZC60#,645,675,XZU620,645..DM5,T4 NO.2 |
8 | ||
| 48252-37630 |
XZU675..20T;TRU600,XZC675..DM5,T4;BZU600,XZU605..T4..30T;TRC600,XZU60#,620..DM3,DM5,T5 NO.1 |
4 | ||
| 48252-37630 |
XZU675..20T;TRU600,XZC675..DM5,T4;BZU600,XZU605..T4..30T;TRC600,XZU60#,620..DM3,DM5,T5 NO.1 |
4 | ||
| 48256 - BOLT, HEXAGON(FOR REAR SPRING CLIP SET) | ||||
| 48256-3B770 |
XZU675..20T;XZU60#..DM3,T4,T5;BZU600,TRC600,TRU600,XZC60#,645,675,XZU620,645..DM5,T4 |
2 | ||
| 48256-3B770 |
XZU675..20T;XZU60#..DM3,T4,T5;BZU600,TRC600,TRU600,XZC60#,645,675,XZU620,645..DM5,T4 |
2 | ||
| 48256-37521 |
TRC600..DM5;TRU600..T4..CBU |
2 | ||
| 48256-37521 |
TRC600..DM5;TRU600..T4..CBU |
2 | ||
| 48284 - NUT, REAR SPRING CENTER BOLT | ||||
| 48299-27620 |
XZU675..20T;XZU60#..DM3,T4,T5;BZU600,TRC600,TRU600,XZC60#,645,675,XZU620,645..DM5,T4 |
2 | ||
| 48299-27620 |
XZU675..20T;XZU60#..DM3,T4,T5;BZU600,TRC600,TRU600,XZC60#,645,675,XZU620,645..DM5,T4 |
2 | ||
| 48284-0W060 |
TRC600..DM5;TRU600..T4..CBU |
2 | ||
| 48284-0W060 |
TRC600..DM5;TRU600..T4..CBU |
2 | ||
| 48284A - NUT, REAR SPRING CLIP | ||||
| 48284-37521 |
TRC600..DM5;TRU600..T4..CBU |
2 | ||
| 48284-37521 |
TRC600..DM5;TRU600..T4..CBU |
2 | ||
| 94130-00802 |
XZU675..20T;XZU60#..DM3,T4,T5;BZU600,TRC600,TRU600,XZC60#,645,675,XZU620,645..DM5,T4 |
2 | ||
| 94130-00802 |
XZU675..20T;XZU60#..DM3,T4,T5;BZU600,TRC600,TRU600,XZC60#,645,675,XZU620,645..DM5,T4 |
2 | ||
| Common parts | ||||
| 94184-61000 | ||||
ILLUST NO. 2 OF 2(1107-1503)T5..30T ; (1107-1503)DM3..CBU ; (1107-1503)TRC600..DM5 ; (1107-1503)XZC6
6-LEAF
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-37640 |
TRC600..DM5 6枚ﾘｰﾌ |
1 | ||
| 48210-37640 |
TRC600..DM5 6枚ﾘｰﾌ |
1 | ||
| 48210-37641 |
TRC600..DM5;TRU600..T4..CBU 6枚ﾘｰﾌ |
1 | ||
| 48210-37641 |
TRC600..DM5;TRU600..T4..CBU 6枚ﾘｰﾌ |
1 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16024 |
TRC600..DM5;TRU600..T4..CBU;XZC600..6FC..ST ﾌﾛﾝﾄ |
4 | ||
| 90389-16024 |
TRC600..DM5;TRU600..T4..CBU;XZC600..6FC..ST ﾌﾛﾝﾄ |
4 | ||
| 90389-16026 |
TRC600..DM5;TRU600..T4..CBU;XZC600..6FC..ST ﾘﾔ |
4 | ||
| 90389-16026 |
TRC600..DM5;TRU600..T4..CBU;XZC600..6FC..ST ﾘﾔ |
4 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16024 |
TRC600..DM5;TRU600..T4..CBU;XZC600..6FC..ST ﾌﾛﾝﾄ |
4 | ||
| 90389-16024 |
TRC600..DM5;TRU600..T4..CBU;XZC600..6FC..ST ﾌﾛﾝﾄ |
4 | ||
| 90389-16026 |
TRC600..DM5;TRU600..T4..CBU;XZC600..6FC..ST ﾘﾔ |
4 | ||
| 90389-16026 |
TRC600..DM5;TRU600..T4..CBU;XZC600..6FC..ST ﾘﾔ |
4 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16024 |
TRC600..DM5;TRU600..T4..CBU;XZC600..6FC..ST ﾌﾛﾝﾄ |
4 | ||
| 90389-16024 |
TRC600..DM5;TRU600..T4..CBU;XZC600..6FC..ST ﾌﾛﾝﾄ |
4 | ||
| 90389-16026 |
TRC600..DM5;TRU600..T4..CBU;XZC600..6FC..ST ﾘﾔ |
4 | ||
| 90389-16026 |
TRC600..DM5;TRU600..T4..CBU;XZC600..6FC..ST ﾘﾔ |
4 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16024 |
TRC600..DM5;TRU600..T4..CBU;XZC600..6FC..ST ﾌﾛﾝﾄ |
4 | ||
| 90389-16024 |
TRC600..DM5;TRU600..T4..CBU;XZC600..6FC..ST ﾌﾛﾝﾄ |
4 | ||
| 90389-16026 |
TRC600..DM5;TRU600..T4..CBU;XZC600..6FC..ST ﾘﾔ |
4 | ||
| 90389-16026 |
TRC600..DM5;TRU600..T4..CBU;XZC600..6FC..ST ﾘﾔ |
4 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48201-37640 |
TRC600,XZU600..DM3,DM5;BZU600,TRU600,XZU605..T4..30T |
2 | ||
| 48201-37640 |
TRC600,XZU600..DM3,DM5;BZU600,TRU600,XZU605..T4..30T |
2 | ||
| 48201-37641 |
TRC600..DM5;TRU600..T4..CBU |
2 | ||
| 48201-37641 |
TRC600..DM5;TRU600..T4..CBU |
2 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48212-37640 |
TRC600,XZU600..DM3,DM5;BZU600,TRU600,XZU605..T4..30T |
2 | ||
| 48212-37640 |
TRC600,XZU600..DM3,DM5;BZU600,TRU600,XZU605..T4..30T |
2 | ||
| 48212-37641 |
TRC600..DM5;TRU600..T4..CBU |
2 | ||
| 48212-37641 |
TRC600..DM5;TRU600..T4..CBU |
2 | ||
| 48213 - LEAF, REAR SPRING, NO.3 | ||||
| 48213-37640 |
TRC600,XZU600..DM3,DM5;BZU600,TRU600,XZU605..T4..30T |
2 | ||
| 48213-37640 |
TRC600,XZU600..DM3,DM5;BZU600,TRU600,XZU605..T4..30T |
2 | ||
| 48213-37641 |
TRC600..DM5;TRU600..T4..CBU |
2 | ||
| 48213-37641 |
TRC600..DM5;TRU600..T4..CBU |
2 | ||
| 48214 - LEAF, REAR SPRING, NO.4 | ||||
| 48214-37640 |
TRC600,XZU600..DM3,DM5;BZU600,TRU600,XZU605..T4..30T |
2 | ||
| 48214-37640 |
TRC600,XZU600..DM3,DM5;BZU600,TRU600,XZU605..T4..30T |
2 | ||
| 48214-37641 |
TRC600..DM5;TRU600..T4..CBU |
2 | ||
| 48214-37641 |
TRC600..DM5;TRU600..T4..CBU |
2 | ||
| 48215 - LEAF, REAR SPRING, NO.5 | ||||
| 48202-37640 |
TRC600,XZU600..DM3,DM5;BZU600,TRU600,XZU605..T4..30T |
2 | ||
| 48202-37640 |
TRC600,XZU600..DM3,DM5;BZU600,TRU600,XZU605..T4..30T |
2 | ||
| 48202-37641 |
TRC600..DM5;TRU600..T4..CBU |
2 | ||
| 48202-37641 |
TRC600..DM5;TRU600..T4..CBU |
2 | ||
| 48216 - LEAF, REAR SPRING, NO.6 | ||||
| 48203-37641 |
TRC600..DM5;TRU600..T4..CBU |
2 | ||
| 48203-37641 |
TRC600..DM5;TRU600..T4..CBU |
2 | ||
| 48203-37640 |
TRC600,XZU600..DM3,DM5;BZU600,TRU600,XZU605..T4..30T |
2 | ||
| 48203-37640 |
TRC600,XZU600..DM3,DM5;BZU600,TRU600,XZU605..T4..30T |
2 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-37640 |
TRC600..DM5 6枚ﾘｰﾌ |
1 | ||
| 48210-37640 |
TRC600..DM5 6枚ﾘｰﾌ |
1 | ||
| 48210-37641 |
TRC600..DM5;TRU600..T4..CBU 6枚ﾘｰﾌ |
1 | ||
| 48210-37641 |
TRC600..DM5;TRU600..T4..CBU 6枚ﾘｰﾌ |
1 | ||
| 48246 - CASE, REAR SPRING CLIP BOLT | ||||
| 48246-36052 |
XZU675..20T;XZU60#..DM3,T4,T5;BZU600,TRC600,TRU600,XZC60#,645,675,XZU620,645..DM5,T4 |
2 | ||
| 48246-36052 |
XZU675..20T;XZU60#..DM3,T4,T5;BZU600,TRC600,TRU600,XZC60#,645,675,XZU620,645..DM5,T4 |
2 | ||
| 48246-0W060 |
TRC600..DM5;TRU600..T4..CBU |
2 | ||
| 48246-0W060 |
TRC600..DM5;TRU600..T4..CBU |
2 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-37641 |
TRC600..DM5;TRU600..T4..CBU |
2 | ||
| 48247-37641 |
TRC600..DM5;TRU600..T4..CBU |
2 | ||
| 48247-37640 |
TRC600,XZU600..DM3,DM5;BZU600,TRU600,XZU605..(T4,T5)..30T |
2 | ||
| 48247-37640 |
TRC600,XZU600..DM3,DM5;BZU600,TRU600,XZU605..(T4,T5)..30T |
2 | ||
| 48251 - SPACER, REAR SPRING LEAF | ||||
| 48251-36530 |
TRC600,XZU600,620..DM3,DM5;BZU600,TRU600,XZU605..(T4,T5)..30T |
2 | ||
| 48251-36530 |
TRC600,XZU600,620..DM3,DM5;BZU600,TRU600,XZU605..(T4,T5)..30T |
2 | ||
| 48282-37521 |
TRC600..DM5;TRU600..T4..CBU |
2 | ||
| 48282-37521 |
TRC600..DM5;TRU600..T4..CBU |
2 | ||
| 48252B - SILENCER, REAR SPRING, NO.1 | ||||
| 48252-37521 |
TRC600..DM5;TRU600..T4..CBU |
4 | ||
| 48252-37521 |
TRC600..DM5;TRU600..T4..CBU |
4 | ||
| 48252-37670 |
XZU675..20T;XZU60#..DM3,T4,T5;BZU600,TRC600,TRU600,XZC60#,645,675,XZU620,645..DM5,T4 |
4 | ||
| 48252-37670 |
XZU675..20T;XZU60#..DM3,T4,T5;BZU600,TRC600,TRU600,XZC60#,645,675,XZU620,645..DM5,T4 |
4 | ||
| 48252B - SILENCER, REAR SPRING, NO.1 | ||||
| 48252-37521 |
TRC600..DM5;TRU600..T4..CBU |
4 | ||
| 48252-37521 |
TRC600..DM5;TRU600..T4..CBU |
4 | ||
| 48252-37670 |
XZU675..20T;XZU60#..DM3,T4,T5;BZU600,TRC600,TRU600,XZC60#,645,675,XZU620,645..DM5,T4 |
4 | ||
| 48252-37670 |
XZU675..20T;XZU60#..DM3,T4,T5;BZU600,TRC600,TRU600,XZC60#,645,675,XZU620,645..DM5,T4 |
4 | ||
| 48252C - SILENCER, REAR SPRING, NO.2 | ||||
| 48252-37890 |
TRC600..DM5;TRU600..T4..CBU |
4 | ||
| 48252-37890 |
TRC600..DM5;TRU600..T4..CBU |
4 | ||
| 48252C - SILENCER, REAR SPRING, NO.2 | ||||
| 48252-37890 |
TRC600..DM5;TRU600..T4..CBU |
4 | ||
| 48252-37890 |
TRC600..DM5;TRU600..T4..CBU |
4 | ||
| 48252F - SILENCER, REAR SPRING, NO.3 | ||||
| 48252-37380 |
XZU675..20T;XZU60#..DM3,T4,T5;BZU600,TRC600,TRU600,XZC60#,645,675,XZU620,645..DM5,T4 NO.2 |
8 | ||
| 48252-37380 |
XZU675..20T;XZU60#..DM3,T4,T5;BZU600,TRC600,TRU600,XZC60#,645,675,XZU620,645..DM5,T4 NO.2 |
8 | ||
| 48252-37630 |
XZU675..20T;TRU600,XZC675..DM5,T4;BZU600,XZU605..T4..30T;TRC600,XZU60#,620..DM3,DM5,T5 NO.1 |
4 | ||
| 48252-37630 |
XZU675..20T;TRU600,XZC675..DM5,T4;BZU600,XZU605..T4..30T;TRC600,XZU60#,620..DM3,DM5,T5 NO.1 |
4 | ||
| 48252F - SILENCER, REAR SPRING, NO.3 | ||||
| 48252-37380 |
XZU675..20T;XZU60#..DM3,T4,T5;BZU600,TRC600,TRU600,XZC60#,645,675,XZU620,645..DM5,T4 NO.2 |
8 | ||
| 48252-37380 |
XZU675..20T;XZU60#..DM3,T4,T5;BZU600,TRC600,TRU600,XZC60#,645,675,XZU620,645..DM5,T4 NO.2 |
8 | ||
| 48252-37630 |
XZU675..20T;TRU600,XZC675..DM5,T4;BZU600,XZU605..T4..30T;TRC600,XZU60#,620..DM3,DM5,T5 NO.1 |
4 | ||
| 48252-37630 |
XZU675..20T;TRU600,XZC675..DM5,T4;BZU600,XZU605..T4..30T;TRC600,XZU60#,620..DM3,DM5,T5 NO.1 |
4 | ||
| 48252F - SILENCER, REAR SPRING, NO.3 | ||||
| 48252-37380 |
XZU675..20T;XZU60#..DM3,T4,T5;BZU600,TRC600,TRU600,XZC60#,645,675,XZU620,645..DM5,T4 NO.2 |
8 | ||
| 48252-37380 |
XZU675..20T;XZU60#..DM3,T4,T5;BZU600,TRC600,TRU600,XZC60#,645,675,XZU620,645..DM5,T4 NO.2 |
8 | ||
| 48252-37630 |
XZU675..20T;TRU600,XZC675..DM5,T4;BZU600,XZU605..T4..30T;TRC600,XZU60#,620..DM3,DM5,T5 NO.1 |
4 | ||
| 48252-37630 |
XZU675..20T;TRU600,XZC675..DM5,T4;BZU600,XZU605..T4..30T;TRC600,XZU60#,620..DM3,DM5,T5 NO.1 |
4 | ||
| 48252F - SILENCER, REAR SPRING, NO.3 | ||||
| 48252-37380 |
XZU675..20T;XZU60#..DM3,T4,T5;BZU600,TRC600,TRU600,XZC60#,645,675,XZU620,645..DM5,T4 NO.2 |
8 | ||
| 48252-37380 |
XZU675..20T;XZU60#..DM3,T4,T5;BZU600,TRC600,TRU600,XZC60#,645,675,XZU620,645..DM5,T4 NO.2 |
8 | ||
| 48252-37630 |
XZU675..20T;TRU600,XZC675..DM5,T4;BZU600,XZU605..T4..30T;TRC600,XZU60#,620..DM3,DM5,T5 NO.1 |
4 | ||
| 48252-37630 |
XZU675..20T;TRU600,XZC675..DM5,T4;BZU600,XZU605..T4..30T;TRC600,XZU60#,620..DM3,DM5,T5 NO.1 |
4 | ||
| 48256 - BOLT, HEXAGON(FOR REAR SPRING CLIP SET) | ||||
| 48256-3B770 |
XZU675..20T;XZU60#..DM3,T4,T5;BZU600,TRC600,TRU600,XZC60#,645,675,XZU620,645..DM5,T4 |
2 | ||
| 48256-3B770 |
XZU675..20T;XZU60#..DM3,T4,T5;BZU600,TRC600,TRU600,XZC60#,645,675,XZU620,645..DM5,T4 |
2 | ||
| 48256-37521 |
TRC600..DM5;TRU600..T4..CBU |
2 | ||
| 48256-37521 |
TRC600..DM5;TRU600..T4..CBU |
2 | ||
| 48284 - NUT, REAR SPRING CENTER BOLT | ||||
| 48299-27620 |
XZU675..20T;XZU60#..DM3,T4,T5;BZU600,TRC600,TRU600,XZC60#,645,675,XZU620,645..DM5,T4 |
2 | ||
| 48299-27620 |
XZU675..20T;XZU60#..DM3,T4,T5;BZU600,TRC600,TRU600,XZC60#,645,675,XZU620,645..DM5,T4 |
2 | ||
| 48284-0W060 |
TRC600..DM5;TRU600..T4..CBU |
2 | ||
| 48284-0W060 |
TRC600..DM5;TRU600..T4..CBU |
2 | ||
| 48284A - NUT, REAR SPRING CLIP | ||||
| 48284-37521 |
TRC600..DM5;TRU600..T4..CBU |
2 | ||
| 48284-37521 |
TRC600..DM5;TRU600..T4..CBU |
2 | ||
| 94130-00802 |
XZU675..20T;XZU60#..DM3,T4,T5;BZU600,TRC600,TRU600,XZC60#,645,675,XZU620,645..DM5,T4 |
2 | ||
| 94130-00802 |
XZU675..20T;XZU60#..DM3,T4,T5;BZU600,TRC600,TRU600,XZC60#,645,675,XZU620,645..DM5,T4 |
2 | ||
| Common parts | ||||
| 94184-61000 | ||||
ILLUST NO. 2 OF 2(1503- )TRC600..DM5 ; (1503- )T5..5F..30T; (1503- )DM3..DCRTJ..CBU ; (150
6-LEAF
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-37640 |
TRC600..DM5 6枚ﾘｰﾌ |
1 | ||
| 48210-37640 |
TRC600..DM5 6枚ﾘｰﾌ |
1 | ||
| 48210-37640 |
TRC600..DM5 6枚ﾘｰﾌ |
1 | ||
| 48210-37641 |
TRC600..DM5;TRU600..T4..CBU 6枚ﾘｰﾌ |
1 | ||
| 48210-37641 |
TRC600..DM5;TRU600..T4..CBU 6枚ﾘｰﾌ |
1 | ||
| 48210-37641 |
TRC600..DM5;TRU600..T4..CBU 6枚ﾘｰﾌ |
1 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16024 |
TRC600..DM5;TRU600..T4..CBU;XZC600..6FC..ST ﾌﾛﾝﾄ |
4 | ||
| 90389-16024 |
TRC600..DM5;TRU600..T4..CBU;XZC600..6FC..ST ﾌﾛﾝﾄ |
4 | ||
| 90389-16024 |
TRC600..DM5;TRU600..T4..CBU;XZC600..6FC..ST ﾌﾛﾝﾄ |
4 | ||
| 90389-16026 |
TRC600..DM5;TRU600..T4..CBU;XZC600..6FC..ST ﾘﾔ |
4 | ||
| 90389-16026 |
TRC600..DM5;TRU600..T4..CBU;XZC600..6FC..ST ﾘﾔ |
4 | ||
| 90389-16026 |
TRC600..DM5;TRU600..T4..CBU;XZC600..6FC..ST ﾘﾔ |
4 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16024 |
TRC600..DM5;TRU600..T4..CBU;XZC600..6FC..ST ﾌﾛﾝﾄ |
4 | ||
| 90389-16024 |
TRC600..DM5;TRU600..T4..CBU;XZC600..6FC..ST ﾌﾛﾝﾄ |
4 | ||
| 90389-16024 |
TRC600..DM5;TRU600..T4..CBU;XZC600..6FC..ST ﾌﾛﾝﾄ |
4 | ||
| 90389-16026 |
TRC600..DM5;TRU600..T4..CBU;XZC600..6FC..ST ﾘﾔ |
4 | ||
| 90389-16026 |
TRC600..DM5;TRU600..T4..CBU;XZC600..6FC..ST ﾘﾔ |
4 | ||
| 90389-16026 |
TRC600..DM5;TRU600..T4..CBU;XZC600..6FC..ST ﾘﾔ |
4 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16024 |
TRC600..DM5;TRU600..T4..CBU;XZC600..6FC..ST ﾌﾛﾝﾄ |
4 | ||
| 90389-16024 |
TRC600..DM5;TRU600..T4..CBU;XZC600..6FC..ST ﾌﾛﾝﾄ |
4 | ||
| 90389-16024 |
TRC600..DM5;TRU600..T4..CBU;XZC600..6FC..ST ﾌﾛﾝﾄ |
4 | ||
| 90389-16026 |
TRC600..DM5;TRU600..T4..CBU;XZC600..6FC..ST ﾘﾔ |
4 | ||
| 90389-16026 |
TRC600..DM5;TRU600..T4..CBU;XZC600..6FC..ST ﾘﾔ |
4 | ||
| 90389-16026 |
TRC600..DM5;TRU600..T4..CBU;XZC600..6FC..ST ﾘﾔ |
4 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16024 |
TRC600..DM5;TRU600..T4..CBU;XZC600..6FC..ST ﾌﾛﾝﾄ |
4 | ||
| 90389-16024 |
TRC600..DM5;TRU600..T4..CBU;XZC600..6FC..ST ﾌﾛﾝﾄ |
4 | ||
| 90389-16024 |
TRC600..DM5;TRU600..T4..CBU;XZC600..6FC..ST ﾌﾛﾝﾄ |
4 | ||
| 90389-16026 |
TRC600..DM5;TRU600..T4..CBU;XZC600..6FC..ST ﾘﾔ |
4 | ||
| 90389-16026 |
TRC600..DM5;TRU600..T4..CBU;XZC600..6FC..ST ﾘﾔ |
4 | ||
| 90389-16026 |
TRC600..DM5;TRU600..T4..CBU;XZC600..6FC..ST ﾘﾔ |
4 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48201-37640 |
TRC600,XZU600..DM3,DM5;BZU600,TRU600,XZU605..T4..30T |
2 | ||
| 48201-37640 |
TRC600,XZU600..DM3,DM5;BZU600,TRU600,XZU605..T4..30T |
2 | ||
| 48201-37640 |
TRC600,XZU600..DM3,DM5;BZU600,TRU600,XZU605..T4..30T |
2 | ||
| 48201-37641 |
TRC600..DM5;TRU600..T4..CBU |
2 | ||
| 48201-37641 |
TRC600..DM5;TRU600..T4..CBU |
2 | ||
| 48201-37641 |
TRC600..DM5;TRU600..T4..CBU |
2 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48212-37640 |
TRC600,XZU600..DM3,DM5;BZU600,TRU600,XZU605..T4..30T |
2 | ||
| 48212-37640 |
TRC600,XZU600..DM3,DM5;BZU600,TRU600,XZU605..T4..30T |
2 | ||
| 48212-37640 |
TRC600,XZU600..DM3,DM5;BZU600,TRU600,XZU605..T4..30T |
2 | ||
| 48212-37641 |
TRC600..DM5;TRU600..T4..CBU |
2 | ||
| 48212-37641 |
TRC600..DM5;TRU600..T4..CBU |
2 | ||
| 48212-37641 |
TRC600..DM5;TRU600..T4..CBU |
2 | ||
| 48213 - LEAF, REAR SPRING, NO.3 | ||||
| 48213-37640 |
TRC600,XZU600..DM3,DM5;BZU600,TRU600,XZU605..T4..30T |
2 | ||
| 48213-37640 |
TRC600,XZU600..DM3,DM5;BZU600,TRU600,XZU605..T4..30T |
2 | ||
| 48213-37640 |
TRC600,XZU600..DM3,DM5;BZU600,TRU600,XZU605..T4..30T |
2 | ||
| 48213-37641 |
TRC600..DM5;TRU600..T4..CBU |
2 | ||
| 48213-37641 |
TRC600..DM5;TRU600..T4..CBU |
2 | ||
| 48213-37641 |
TRC600..DM5;TRU600..T4..CBU |
2 | ||
| 48214 - LEAF, REAR SPRING, NO.4 | ||||
| 48214-37640 |
TRC600,XZU600..DM3,DM5;BZU600,TRU600,XZU605..T4..30T |
2 | ||
| 48214-37640 |
TRC600,XZU600..DM3,DM5;BZU600,TRU600,XZU605..T4..30T |
2 | ||
| 48214-37640 |
TRC600,XZU600..DM3,DM5;BZU600,TRU600,XZU605..T4..30T |
2 | ||
| 48214-37641 |
TRC600..DM5;TRU600..T4..CBU |
2 | ||
| 48214-37641 |
TRC600..DM5;TRU600..T4..CBU |
2 | ||
| 48214-37641 |
TRC600..DM5;TRU600..T4..CBU |
2 | ||
| 48215 - LEAF, REAR SPRING, NO.5 | ||||
| 48202-37640 |
TRC600,XZU600..DM3,DM5;BZU600,TRU600,XZU605..T4..30T |
2 | ||
| 48202-37640 |
TRC600,XZU600..DM3,DM5;BZU600,TRU600,XZU605..T4..30T |
2 | ||
| 48202-37640 |
TRC600,XZU600..DM3,DM5;BZU600,TRU600,XZU605..T4..30T |
2 | ||
| 48202-37641 |
TRC600..DM5;TRU600..T4..CBU |
2 | ||
| 48202-37641 |
TRC600..DM5;TRU600..T4..CBU |
2 | ||
| 48202-37641 |
TRC600..DM5;TRU600..T4..CBU |
2 | ||
| 48216 - LEAF, REAR SPRING, NO.6 | ||||
| 48203-37641 |
TRC600..DM5;TRU600..T4..CBU |
2 | ||
| 48203-37641 |
TRC600..DM5;TRU600..T4..CBU |
2 | ||
| 48203-37641 |
TRC600..DM5;TRU600..T4..CBU |
2 | ||
| 48203-37640 |
TRC600,XZU600..DM3,DM5;BZU600,TRU600,XZU605..T4..30T |
2 | ||
| 48203-37640 |
TRC600,XZU600..DM3,DM5;BZU600,TRU600,XZU605..T4..30T |
2 | ||
| 48203-37640 |
TRC600,XZU600..DM3,DM5;BZU600,TRU600,XZU605..T4..30T |
2 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-37640 |
TRC600..DM5 6枚ﾘｰﾌ |
1 | ||
| 48210-37640 |
TRC600..DM5 6枚ﾘｰﾌ |
1 | ||
| 48210-37640 |
TRC600..DM5 6枚ﾘｰﾌ |
1 | ||
| 48210-37641 |
TRC600..DM5;TRU600..T4..CBU 6枚ﾘｰﾌ |
1 | ||
| 48210-37641 |
TRC600..DM5;TRU600..T4..CBU 6枚ﾘｰﾌ |
1 | ||
| 48210-37641 |
TRC600..DM5;TRU600..T4..CBU 6枚ﾘｰﾌ |
1 | ||
| 48246 - CASE, REAR SPRING CLIP BOLT | ||||
| 48246-36052 |
XZU675..20T;XZU60#..DM3,T4,T5;BZU600,TRC600,TRU600,XZC60#,645,675,XZU620,645..DM5,T4 |
2 | ||
| 48246-36052 |
XZU675..20T;XZU60#..DM3,T4,T5;BZU600,TRC600,TRU600,XZC60#,645,675,XZU620,645..DM5,T4 |
2 | ||
| 48246-36052 |
XZU675..20T;XZU60#..DM3,T4,T5;BZU600,TRC600,TRU600,XZC60#,645,675,XZU620,645..DM5,T4 |
2 | ||
| 48246-0W060 |
TRC600..DM5;TRU600..T4..CBU |
2 | ||
| 48246-0W060 |
TRC600..DM5;TRU600..T4..CBU |
2 | ||
| 48246-0W060 |
TRC600..DM5;TRU600..T4..CBU |
2 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-37641 |
TRC600..DM5;TRU600..T4..CBU |
2 | ||
| 48247-37641 |
TRC600..DM5;TRU600..T4..CBU |
2 | ||
| 48247-37641 |
TRC600..DM5;TRU600..T4..CBU |
2 | ||
| 48247-37640 |
TRC600,XZU600..DM3,DM5;BZU600,TRU600,XZU605..(T4,T5)..30T |
2 | ||
| 48247-37640 |
TRC600,XZU600..DM3,DM5;BZU600,TRU600,XZU605..(T4,T5)..30T |
2 | ||
| 48247-37640 |
TRC600,XZU600..DM3,DM5;BZU600,TRU600,XZU605..(T4,T5)..30T |
2 | ||
| 48251 - SPACER, REAR SPRING LEAF | ||||
| 48251-36530 |
TRC600,XZU600,620..DM3,DM5;BZU600,TRU600,XZU605..(T4,T5)..30T |
2 | ||
| 48251-36530 |
TRC600,XZU600,620..DM3,DM5;BZU600,TRU600,XZU605..(T4,T5)..30T |
2 | ||
| 48251-36530 |
TRC600,XZU600,620..DM3,DM5;BZU600,TRU600,XZU605..(T4,T5)..30T |
2 | ||
| 48282-37521 |
TRC600..DM5;TRU600..T4..CBU |
2 | ||
| 48282-37521 |
TRC600..DM5;TRU600..T4..CBU |
2 | ||
| 48282-37521 |
TRC600..DM5;TRU600..T4..CBU |
2 | ||
| 48252B - SILENCER, REAR SPRING, NO.1 | ||||
| 48252-37521 |
TRC600..DM5;TRU600..T4..CBU |
4 | ||
| 48252-37521 |
TRC600..DM5;TRU600..T4..CBU |
4 | ||
| 48252-37521 |
TRC600..DM5;TRU600..T4..CBU |
4 | ||
| 48252-37670 |
XZU675..20T;XZU60#..DM3,T4,T5;BZU600,TRC600,TRU600,XZC60#,645,675,XZU620,645..DM5,T4 |
4 | ||
| 48252-37670 |
XZU675..20T;XZU60#..DM3,T4,T5;BZU600,TRC600,TRU600,XZC60#,645,675,XZU620,645..DM5,T4 |
4 | ||
| 48252-37670 |
XZU675..20T;XZU60#..DM3,T4,T5;BZU600,TRC600,TRU600,XZC60#,645,675,XZU620,645..DM5,T4 |
4 | ||
| 48252B - SILENCER, REAR SPRING, NO.1 | ||||
| 48252-37521 |
TRC600..DM5;TRU600..T4..CBU |
4 | ||
| 48252-37521 |
TRC600..DM5;TRU600..T4..CBU |
4 | ||
| 48252-37521 |
TRC600..DM5;TRU600..T4..CBU |
4 | ||
| 48252-37670 |
XZU675..20T;XZU60#..DM3,T4,T5;BZU600,TRC600,TRU600,XZC60#,645,675,XZU620,645..DM5,T4 |
4 | ||
| 48252-37670 |
XZU675..20T;XZU60#..DM3,T4,T5;BZU600,TRC600,TRU600,XZC60#,645,675,XZU620,645..DM5,T4 |
4 | ||
| 48252-37670 |
XZU675..20T;XZU60#..DM3,T4,T5;BZU600,TRC600,TRU600,XZC60#,645,675,XZU620,645..DM5,T4 |
4 | ||
| 48252C - SILENCER, REAR SPRING, NO.2 | ||||
| 48252-37890 |
TRC600..DM5;TRU600..T4..CBU |
4 | ||
| 48252-37890 |
TRC600..DM5;TRU600..T4..CBU |
4 | ||
| 48252-37890 |
TRC600..DM5;TRU600..T4..CBU |
4 | ||
| 48252C - SILENCER, REAR SPRING, NO.2 | ||||
| 48252-37890 |
TRC600..DM5;TRU600..T4..CBU |
4 | ||
| 48252-37890 |
TRC600..DM5;TRU600..T4..CBU |
4 | ||
| 48252-37890 |
TRC600..DM5;TRU600..T4..CBU |
4 | ||
| 48256 - BOLT, HEXAGON(FOR REAR SPRING CLIP SET) | ||||
| 48256-3B770 |
XZU675..20T;XZU60#..DM3,T4,T5;BZU600,TRC600,TRU600,XZC60#,645,675,XZU620,645..DM5,T4 |
2 | ||
| 48256-3B770 |
XZU675..20T;XZU60#..DM3,T4,T5;BZU600,TRC600,TRU600,XZC60#,645,675,XZU620,645..DM5,T4 |
2 | ||
| 48256-3B770 |
XZU675..20T;XZU60#..DM3,T4,T5;BZU600,TRC600,TRU600,XZC60#,645,675,XZU620,645..DM5,T4 |
2 | ||
| 48256-37521 |
TRC600..DM5;TRU600..T4..CBU |
2 | ||
| 48256-37521 |
TRC600..DM5;TRU600..T4..CBU |
2 | ||
| 48256-37521 |
TRC600..DM5;TRU600..T4..CBU |
2 | ||
| 48284 - NUT, REAR SPRING CENTER BOLT | ||||
| 48299-27620 |
XZU675..20T;XZU60#..DM3,T4,T5;BZU600,TRC600,TRU600,XZC60#,645,675,XZU620,645..DM5,T4 |
2 | ||
| 48299-27620 |
XZU675..20T;XZU60#..DM3,T4,T5;BZU600,TRC600,TRU600,XZC60#,645,675,XZU620,645..DM5,T4 |
2 | ||
| 48299-27620 |
XZU675..20T;XZU60#..DM3,T4,T5;BZU600,TRC600,TRU600,XZC60#,645,675,XZU620,645..DM5,T4 |
2 | ||
| 48284-0W060 |
TRC600..DM5;TRU600..T4..CBU |
2 | ||
| 48284-0W060 |
TRC600..DM5;TRU600..T4..CBU |
2 | ||
| 48284-0W060 |
TRC600..DM5;TRU600..T4..CBU |
2 | ||
| 48284A - NUT, REAR SPRING CLIP | ||||
| 48284-37521 |
TRC600..DM5;TRU600..T4..CBU |
2 | ||
| 48284-37521 |
TRC600..DM5;TRU600..T4..CBU |
2 | ||
| 48284-37521 |
TRC600..DM5;TRU600..T4..CBU |
2 | ||
| 94130-00802 |
XZU675..20T;XZU60#..DM3,T4,T5;BZU600,TRC600,TRU600,XZC60#,645,675,XZU620,645..DM5,T4 |
2 | ||
| 94130-00802 |
XZU675..20T;XZU60#..DM3,T4,T5;BZU600,TRC600,TRU600,XZC60#,645,675,XZU620,645..DM5,T4 |
2 | ||
| 94130-00802 |
XZU675..20T;XZU60#..DM3,T4,T5;BZU600,TRC600,TRU600,XZC60#,645,675,XZU620,645..DM5,T4 |
2 | ||
| Common parts | ||||
| 48284-0W060 | ||||
ILLUST NO. 2 OF 2(1503- )XZC605..T4..6FC..DCRTJ..IV3 ; (1503-)XZU605..T4..30T..DCRTJ..CBU ; (
6-LEAF
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-37640 |
TRC600..DM5 6枚ﾘｰﾌ |
1 | ||
| 48210-37640 |
TRC600..DM5 6枚ﾘｰﾌ |
1 | ||
| 48210-37640 |
TRC600..DM5 6枚ﾘｰﾌ |
1 | ||
| 48210-37641 |
TRC600..DM5;TRU600..T4..CBU 6枚ﾘｰﾌ |
1 | ||
| 48210-37641 |
TRC600..DM5;TRU600..T4..CBU 6枚ﾘｰﾌ |
1 | ||
| 48210-37641 |
TRC600..DM5;TRU600..T4..CBU 6枚ﾘｰﾌ |
1 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16024 |
TRC600..DM5;TRU600..T4..CBU;XZC600..6FC..ST ﾌﾛﾝﾄ |
4 | ||
| 90389-16024 |
TRC600..DM5;TRU600..T4..CBU;XZC600..6FC..ST ﾌﾛﾝﾄ |
4 | ||
| 90389-16024 |
TRC600..DM5;TRU600..T4..CBU;XZC600..6FC..ST ﾌﾛﾝﾄ |
4 | ||
| 90389-16026 |
TRC600..DM5;TRU600..T4..CBU;XZC600..6FC..ST ﾘﾔ |
4 | ||
| 90389-16026 |
TRC600..DM5;TRU600..T4..CBU;XZC600..6FC..ST ﾘﾔ |
4 | ||
| 90389-16026 |
TRC600..DM5;TRU600..T4..CBU;XZC600..6FC..ST ﾘﾔ |
4 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16024 |
TRC600..DM5;TRU600..T4..CBU;XZC600..6FC..ST ﾌﾛﾝﾄ |
4 | ||
| 90389-16024 |
TRC600..DM5;TRU600..T4..CBU;XZC600..6FC..ST ﾌﾛﾝﾄ |
4 | ||
| 90389-16024 |
TRC600..DM5;TRU600..T4..CBU;XZC600..6FC..ST ﾌﾛﾝﾄ |
4 | ||
| 90389-16026 |
TRC600..DM5;TRU600..T4..CBU;XZC600..6FC..ST ﾘﾔ |
4 | ||
| 90389-16026 |
TRC600..DM5;TRU600..T4..CBU;XZC600..6FC..ST ﾘﾔ |
4 | ||
| 90389-16026 |
TRC600..DM5;TRU600..T4..CBU;XZC600..6FC..ST ﾘﾔ |
4 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16024 |
TRC600..DM5;TRU600..T4..CBU;XZC600..6FC..ST ﾌﾛﾝﾄ |
4 | ||
| 90389-16024 |
TRC600..DM5;TRU600..T4..CBU;XZC600..6FC..ST ﾌﾛﾝﾄ |
4 | ||
| 90389-16024 |
TRC600..DM5;TRU600..T4..CBU;XZC600..6FC..ST ﾌﾛﾝﾄ |
4 | ||
| 90389-16026 |
TRC600..DM5;TRU600..T4..CBU;XZC600..6FC..ST ﾘﾔ |
4 | ||
| 90389-16026 |
TRC600..DM5;TRU600..T4..CBU;XZC600..6FC..ST ﾘﾔ |
4 | ||
| 90389-16026 |
TRC600..DM5;TRU600..T4..CBU;XZC600..6FC..ST ﾘﾔ |
4 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16024 |
TRC600..DM5;TRU600..T4..CBU;XZC600..6FC..ST ﾌﾛﾝﾄ |
4 | ||
| 90389-16024 |
TRC600..DM5;TRU600..T4..CBU;XZC600..6FC..ST ﾌﾛﾝﾄ |
4 | ||
| 90389-16024 |
TRC600..DM5;TRU600..T4..CBU;XZC600..6FC..ST ﾌﾛﾝﾄ |
4 | ||
| 90389-16026 |
TRC600..DM5;TRU600..T4..CBU;XZC600..6FC..ST ﾘﾔ |
4 | ||
| 90389-16026 |
TRC600..DM5;TRU600..T4..CBU;XZC600..6FC..ST ﾘﾔ |
4 | ||
| 90389-16026 |
TRC600..DM5;TRU600..T4..CBU;XZC600..6FC..ST ﾘﾔ |
4 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48201-37640 |
TRC600,XZU600..DM3,DM5;BZU600,TRU600,XZU605..T4..30T |
2 | ||
| 48201-37640 |
TRC600,XZU600..DM3,DM5;BZU600,TRU600,XZU605..T4..30T |
2 | ||
| 48201-37640 |
TRC600,XZU600..DM3,DM5;BZU600,TRU600,XZU605..T4..30T |
2 | ||
| 48201-37641 |
TRC600..DM5;TRU600..T4..CBU |
2 | ||
| 48201-37641 |
TRC600..DM5;TRU600..T4..CBU |
2 | ||
| 48201-37641 |
TRC600..DM5;TRU600..T4..CBU |
2 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48212-37640 |
TRC600,XZU600..DM3,DM5;BZU600,TRU600,XZU605..T4..30T |
2 | ||
| 48212-37640 |
TRC600,XZU600..DM3,DM5;BZU600,TRU600,XZU605..T4..30T |
2 | ||
| 48212-37640 |
TRC600,XZU600..DM3,DM5;BZU600,TRU600,XZU605..T4..30T |
2 | ||
| 48212-37641 |
TRC600..DM5;TRU600..T4..CBU |
2 | ||
| 48212-37641 |
TRC600..DM5;TRU600..T4..CBU |
2 | ||
| 48212-37641 |
TRC600..DM5;TRU600..T4..CBU |
2 | ||
| 48213 - LEAF, REAR SPRING, NO.3 | ||||
| 48213-37640 |
TRC600,XZU600..DM3,DM5;BZU600,TRU600,XZU605..T4..30T |
2 | ||
| 48213-37640 |
TRC600,XZU600..DM3,DM5;BZU600,TRU600,XZU605..T4..30T |
2 | ||
| 48213-37640 |
TRC600,XZU600..DM3,DM5;BZU600,TRU600,XZU605..T4..30T |
2 | ||
| 48213-37641 |
TRC600..DM5;TRU600..T4..CBU |
2 | ||
| 48213-37641 |
TRC600..DM5;TRU600..T4..CBU |
2 | ||
| 48213-37641 |
TRC600..DM5;TRU600..T4..CBU |
2 | ||
| 48214 - LEAF, REAR SPRING, NO.4 | ||||
| 48214-37640 |
TRC600,XZU600..DM3,DM5;BZU600,TRU600,XZU605..T4..30T |
2 | ||
| 48214-37640 |
TRC600,XZU600..DM3,DM5;BZU600,TRU600,XZU605..T4..30T |
2 | ||
| 48214-37640 |
TRC600,XZU600..DM3,DM5;BZU600,TRU600,XZU605..T4..30T |
2 | ||
| 48214-37641 |
TRC600..DM5;TRU600..T4..CBU |
2 | ||
| 48214-37641 |
TRC600..DM5;TRU600..T4..CBU |
2 | ||
| 48214-37641 |
TRC600..DM5;TRU600..T4..CBU |
2 | ||
| 48215 - LEAF, REAR SPRING, NO.5 | ||||
| 48202-37640 |
TRC600,XZU600..DM3,DM5;BZU600,TRU600,XZU605..T4..30T |
2 | ||
| 48202-37640 |
TRC600,XZU600..DM3,DM5;BZU600,TRU600,XZU605..T4..30T |
2 | ||
| 48202-37640 |
TRC600,XZU600..DM3,DM5;BZU600,TRU600,XZU605..T4..30T |
2 | ||
| 48202-37641 |
TRC600..DM5;TRU600..T4..CBU |
2 | ||
| 48202-37641 |
TRC600..DM5;TRU600..T4..CBU |
2 | ||
| 48202-37641 |
TRC600..DM5;TRU600..T4..CBU |
2 | ||
| 48216 - LEAF, REAR SPRING, NO.6 | ||||
| 48203-37641 |
TRC600..DM5;TRU600..T4..CBU |
2 | ||
| 48203-37641 |
TRC600..DM5;TRU600..T4..CBU |
2 | ||
| 48203-37641 |
TRC600..DM5;TRU600..T4..CBU |
2 | ||
| 48203-37640 |
TRC600,XZU600..DM3,DM5;BZU600,TRU600,XZU605..T4..30T |
2 | ||
| 48203-37640 |
TRC600,XZU600..DM3,DM5;BZU600,TRU600,XZU605..T4..30T |
2 | ||
| 48203-37640 |
TRC600,XZU600..DM3,DM5;BZU600,TRU600,XZU605..T4..30T |
2 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-37640 |
TRC600..DM5 6枚ﾘｰﾌ |
1 | ||
| 48210-37640 |
TRC600..DM5 6枚ﾘｰﾌ |
1 | ||
| 48210-37640 |
TRC600..DM5 6枚ﾘｰﾌ |
1 | ||
| 48210-37641 |
TRC600..DM5;TRU600..T4..CBU 6枚ﾘｰﾌ |
1 | ||
| 48210-37641 |
TRC600..DM5;TRU600..T4..CBU 6枚ﾘｰﾌ |
1 | ||
| 48210-37641 |
TRC600..DM5;TRU600..T4..CBU 6枚ﾘｰﾌ |
1 | ||
| 48246 - CASE, REAR SPRING CLIP BOLT | ||||
| 48246-36052 |
XZU675..20T;XZU60#..DM3,T4,T5;BZU600,TRC600,TRU600,XZC60#,645,675,XZU620,645..DM5,T4 |
2 | ||
| 48246-36052 |
XZU675..20T;XZU60#..DM3,T4,T5;BZU600,TRC600,TRU600,XZC60#,645,675,XZU620,645..DM5,T4 |
2 | ||
| 48246-36052 |
XZU675..20T;XZU60#..DM3,T4,T5;BZU600,TRC600,TRU600,XZC60#,645,675,XZU620,645..DM5,T4 |
2 | ||
| 48246-0W060 |
TRC600..DM5;TRU600..T4..CBU |
2 | ||
| 48246-0W060 |
TRC600..DM5;TRU600..T4..CBU |
2 | ||
| 48246-0W060 |
TRC600..DM5;TRU600..T4..CBU |
2 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-37641 |
TRC600..DM5;TRU600..T4..CBU |
2 | ||
| 48247-37641 |
TRC600..DM5;TRU600..T4..CBU |
2 | ||
| 48247-37641 |
TRC600..DM5;TRU600..T4..CBU |
2 | ||
| 48247-37640 |
TRC600,XZU600..DM3,DM5;BZU600,TRU600,XZU605..(T4,T5)..30T |
2 | ||
| 48247-37640 |
TRC600,XZU600..DM3,DM5;BZU600,TRU600,XZU605..(T4,T5)..30T |
2 | ||
| 48247-37640 |
TRC600,XZU600..DM3,DM5;BZU600,TRU600,XZU605..(T4,T5)..30T |
2 | ||
| 48251 - SPACER, REAR SPRING LEAF | ||||
| 48251-36530 |
TRC600,XZU600,620..DM3,DM5;BZU600,TRU600,XZU605..(T4,T5)..30T |
2 | ||
| 48251-36530 |
TRC600,XZU600,620..DM3,DM5;BZU600,TRU600,XZU605..(T4,T5)..30T |
2 | ||
| 48251-36530 |
TRC600,XZU600,620..DM3,DM5;BZU600,TRU600,XZU605..(T4,T5)..30T |
2 | ||
| 48282-37521 |
TRC600..DM5;TRU600..T4..CBU |
2 | ||
| 48282-37521 |
TRC600..DM5;TRU600..T4..CBU |
2 | ||
| 48282-37521 |
TRC600..DM5;TRU600..T4..CBU |
2 | ||
| 48252B - SILENCER, REAR SPRING, NO.1 | ||||
| 48252-37521 |
TRC600..DM5;TRU600..T4..CBU |
4 | ||
| 48252-37521 |
TRC600..DM5;TRU600..T4..CBU |
4 | ||
| 48252-37521 |
TRC600..DM5;TRU600..T4..CBU |
4 | ||
| 48252-37670 |
XZU675..20T;XZU60#..DM3,T4,T5;BZU600,TRC600,TRU600,XZC60#,645,675,XZU620,645..DM5,T4 |
4 | ||
| 48252-37670 |
XZU675..20T;XZU60#..DM3,T4,T5;BZU600,TRC600,TRU600,XZC60#,645,675,XZU620,645..DM5,T4 |
4 | ||
| 48252-37670 |
XZU675..20T;XZU60#..DM3,T4,T5;BZU600,TRC600,TRU600,XZC60#,645,675,XZU620,645..DM5,T4 |
4 | ||
| 48252B - SILENCER, REAR SPRING, NO.1 | ||||
| 48252-37521 |
TRC600..DM5;TRU600..T4..CBU |
4 | ||
| 48252-37521 |
TRC600..DM5;TRU600..T4..CBU |
4 | ||
| 48252-37521 |
TRC600..DM5;TRU600..T4..CBU |
4 | ||
| 48252-37670 |
XZU675..20T;XZU60#..DM3,T4,T5;BZU600,TRC600,TRU600,XZC60#,645,675,XZU620,645..DM5,T4 |
4 | ||
| 48252-37670 |
XZU675..20T;XZU60#..DM3,T4,T5;BZU600,TRC600,TRU600,XZC60#,645,675,XZU620,645..DM5,T4 |
4 | ||
| 48252-37670 |
XZU675..20T;XZU60#..DM3,T4,T5;BZU600,TRC600,TRU600,XZC60#,645,675,XZU620,645..DM5,T4 |
4 | ||
| 48252C - SILENCER, REAR SPRING, NO.2 | ||||
| 48252-37890 |
TRC600..DM5;TRU600..T4..CBU |
4 | ||
| 48252-37890 |
TRC600..DM5;TRU600..T4..CBU |
4 | ||
| 48252-37890 |
TRC600..DM5;TRU600..T4..CBU |
4 | ||
| 48252C - SILENCER, REAR SPRING, NO.2 | ||||
| 48252-37890 |
TRC600..DM5;TRU600..T4..CBU |
4 | ||
| 48252-37890 |
TRC600..DM5;TRU600..T4..CBU |
4 | ||
| 48252-37890 |
TRC600..DM5;TRU600..T4..CBU |
4 | ||
| 48256 - BOLT, HEXAGON(FOR REAR SPRING CLIP SET) | ||||
| 48256-3B770 |
XZU675..20T;XZU60#..DM3,T4,T5;BZU600,TRC600,TRU600,XZC60#,645,675,XZU620,645..DM5,T4 |
2 | ||
| 48256-3B770 |
XZU675..20T;XZU60#..DM3,T4,T5;BZU600,TRC600,TRU600,XZC60#,645,675,XZU620,645..DM5,T4 |
2 | ||
| 48256-3B770 |
XZU675..20T;XZU60#..DM3,T4,T5;BZU600,TRC600,TRU600,XZC60#,645,675,XZU620,645..DM5,T4 |
2 | ||
| 48256-37521 |
TRC600..DM5;TRU600..T4..CBU |
2 | ||
| 48256-37521 |
TRC600..DM5;TRU600..T4..CBU |
2 | ||
| 48256-37521 |
TRC600..DM5;TRU600..T4..CBU |
2 | ||
| 48284 - NUT, REAR SPRING CENTER BOLT | ||||
| 48299-27620 |
XZU675..20T;XZU60#..DM3,T4,T5;BZU600,TRC600,TRU600,XZC60#,645,675,XZU620,645..DM5,T4 |
2 | ||
| 48299-27620 |
XZU675..20T;XZU60#..DM3,T4,T5;BZU600,TRC600,TRU600,XZC60#,645,675,XZU620,645..DM5,T4 |
2 | ||
| 48299-27620 |
XZU675..20T;XZU60#..DM3,T4,T5;BZU600,TRC600,TRU600,XZC60#,645,675,XZU620,645..DM5,T4 |
2 | ||
| 48284-0W060 |
TRC600..DM5;TRU600..T4..CBU |
2 | ||
| 48284-0W060 |
TRC600..DM5;TRU600..T4..CBU |
2 | ||
| 48284-0W060 |
TRC600..DM5;TRU600..T4..CBU |
2 | ||
| 48284A - NUT, REAR SPRING CLIP | ||||
| 48284-37521 |
TRC600..DM5;TRU600..T4..CBU |
2 | ||
| 48284-37521 |
TRC600..DM5;TRU600..T4..CBU |
2 | ||
| 48284-37521 |
TRC600..DM5;TRU600..T4..CBU |
2 | ||
| 94130-00802 |
XZU675..20T;XZU60#..DM3,T4,T5;BZU600,TRC600,TRU600,XZC60#,645,675,XZU620,645..DM5,T4 |
2 | ||
| 94130-00802 |
XZU675..20T;XZU60#..DM3,T4,T5;BZU600,TRC600,TRU600,XZC60#,645,675,XZU620,645..DM5,T4 |
2 | ||
| 94130-00802 |
XZU675..20T;XZU60#..DM3,T4,T5;BZU600,TRC600,TRU600,XZC60#,645,675,XZU620,645..DM5,T4 |
2 | ||
| Common parts | ||||
| 48284-0W060 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
