TRC600A-TWMMK3 (2011)
Toyota Dyna/Toyoace
ILLUST NO. 1 OF 2(1107- )BZU600,TRC600,TRU600,XZC600,610,630,XZU600,602,610,620,630,640,642,650,6
ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48042A - SHACKLE SUB-ASSY, FRONT SPRING, NO.2 | ||||
| 48042-37020 |
XZC600..6FC..ST;XZU650..T4..30T;XZU640..T4..6FC..IV3;XZU650..T3..30T..IV3;XZU650..T3..30T..DCRTK..CBU;TRU600,XZU640..(DCRTJ,EFI)..CBU;TRU600,XZU640..T3..5F..(DCRTJ,EFI)..IV3;TRC600,XZU600..(DM5,T3)..(5F,6FC)..(20T,40T) |
2 | ||
| 48191 - WEDGE, CASTER(FOR FRONT LEAF SPRING) | ||||
| 48191-37060 |
TRC600..DM5;XZC600..6FC..ST;XZU650..T4..30T;XZU640..T4..6FC..IV3;XZU650..T3..30T..IV3;XZU650..T3..30T..DCRTK..CBU;TRU600,XZU640..(DCRTJ,EFI)..CBU;TRU600,XZU640..T3..5F..(DCRTJ,EFI)..IV3 |
2 | ||
| 48304 - BUMPER SUB-ASSY, FRONT SPRING, NO.1 | ||||
| 48304-37040 |
XZC600..6FC..ST;XZU650..T4..30T;XZU640..T4..6FC..IV3;XZU650..T3..30T..IV3;XZU650..T3..30T..DCRTK..CBU;TRU600,XZU640..(DCRTJ,EFI)..CBU;TRU600,XZU640..T3..5F..(DCRTJ,EFI)..IV3;TRC600,XZU600..(DM5,T3)..(5F,6FC)..(20T,40T) |
2 | ||
| 48422 - SUPPORT, FRONT SPRING PIN | ||||
| 48422-37010 |
XZC600..6FC..ST;XZU650..T4..30T;XZU640..T4..6FC..IV3;XZU650..T3..30T..IV3;XZU650..T3..30T..DCRTK..CBU;TRU600,XZU640..(DCRTJ,EFI)..CBU;TRU600,XZU640..T3..5F..(DCRTJ,EFI)..IV3;TRC600,XZU600..(DM5,T3)..(5F,6FC)..(20T,40T) |
2 | ||
| 48475 - PLATE, DISTANCE(FOR FRONT) | ||||
| 48475-36070 |
XZC600..6FC..ST;XZU650..T4..30T;XZU640..T4..6FC..IV3;XZU650..T3..30T..IV3;XZU650..T3..30T..DCRTK..CBU;TRU600,XZU640..(DCRTJ,EFI)..CBU;TRU600,XZU640..T3..5F..(DCRTJ,EFI)..IV3;TRC600,XZU600..(DM5,T3)..(5F,6FC)..(20T,40T) |
1 | ||
| 48505A - BOLT, U(FOR FRONT SPRING) | ||||
| 90117-16080 |
TRC600..DM5;XZC600..6FC..ST 長さ=130 |
4 | ||
| 48505A - BOLT, U(FOR FRONT SPRING) | ||||
| 90117-16080 |
TRC600..DM5;XZC600..6FC..ST 長さ=130 |
4 | ||
| 48510 - ABSORBER ASSY, SHOCK, FRONT RH | ||||
| 48511-80121 |
TRC600..DM5;XZU650..T4..30T;XZU640..T4..6FC..IV3;XZU650..T3..30T..IV3;XZU650..T3..30T..DCRTK..CBU;TRU600,XZU640..(DCRTJ,EFI)..CBU;TRU600,XZU640..T3..5F..(DCRTJ,EFI)..IV3 ﾏｰｸ 48511−37250 |
1 | ||
| 48510A - CUSHION, FRONT SHOCK ABSORBER | ||||
| 90948-01071 |
XZC600..6FC..ST;XZU650..T4..30T;XZU640..T4..6FC..IV3;XZU650..T3..30T..IV3;XZU650..T3..30T..DCRTK..CBU;TRU600,XZU640..(DCRTJ,EFI)..CBU;TRU600,XZU640..T3..5F..(DCRTJ,EFI)..IV3;TRC600,XZU600..(DM5,T3)..(5F,6FC)..(20T,40T) |
4 | ||
| 48510A - CUSHION, FRONT SHOCK ABSORBER | ||||
| 90948-01071 |
XZC600..6FC..ST;XZU650..T4..30T;XZU640..T4..6FC..IV3;XZU650..T3..30T..IV3;XZU650..T3..30T..DCRTK..CBU;TRU600,XZU640..(DCRTJ,EFI)..CBU;TRU600,XZU640..T3..5F..(DCRTJ,EFI)..IV3;TRC600,XZU600..(DM5,T3)..(5F,6FC)..(20T,40T) |
4 | ||
| 48510B - RETAINER, CUSHION, NO.1(FOR FRONT SHOCK ABSORBER) | ||||
| 90948-02054 |
XZC600..6FC..ST;XZU650..T4..30T;XZU640..T4..6FC..IV3;XZU650..T3..30T..IV3;XZU650..T3..30T..DCRTK..CBU;TRU600,XZU640..(DCRTJ,EFI)..CBU;TRU600,XZU640..T3..5F..(DCRTJ,EFI)..IV3;TRC600,XZU600..(DM5,T3)..(5F,6FC)..(20T,40T) |
2 | ||
| 48510C - RETAINER, CUSHION, NO.2(FOR FRONT SHOCK ABSORBER) | ||||
| 90948-02009 |
XZC600..6FC..ST;XZU650..T4..30T;XZU640..T4..6FC..IV3;XZU650..T3..30T..IV3;XZU650..T3..30T..DCRTK..CBU;TRU600,XZU640..(DCRTJ,EFI)..CBU;TRU600,XZU640..T3..5F..(DCRTJ,EFI)..IV3;TRC600,XZU600..(DM5,T3)..(5F,6FC)..(20T,40T) |
4 | ||
| 48510C - RETAINER, CUSHION, NO.2(FOR FRONT SHOCK ABSORBER) | ||||
| 90948-02009 |
XZC600..6FC..ST;XZU650..T4..30T;XZU640..T4..6FC..IV3;XZU650..T3..30T..IV3;XZU650..T3..30T..DCRTK..CBU;TRU600,XZU640..(DCRTJ,EFI)..CBU;TRU600,XZU640..T3..5F..(DCRTJ,EFI)..IV3;TRC600,XZU600..(DM5,T3)..(5F,6FC)..(20T,40T) |
4 | ||
| 48510E - WASHER, FRONT SHOCK ABSORBER CUSHION, NO.2 | ||||
| 90948-03011 |
XZC600..6FC..ST;XZU650..T4..30T;XZU640..T4..6FC..IV3;XZU650..T3..30T..IV3;XZU650..T3..30T..DCRTK..CBU;TRU600,XZU640..(DCRTJ,EFI)..CBU;TRU600,XZU640..T3..5F..(DCRTJ,EFI)..IV3;TRC600,XZU600..(DM5,T3)..(5F,6FC)..(20T,40T) |
2 | ||
| 48510N - BUSH(FOR FRONT SHOCK ABSORBER RH) | ||||
| 90385-19011 |
XZC600..6FC..ST;XZU650..T4..30T;XZU640..T4..6FC..IV3;XZU650..T3..30T..IV3;XZU650..T3..30T..DCRTK..CBU;TRU600,XZU640..(DCRTJ,EFI)..CBU;TRU600,XZU640..T3..5F..(DCRTJ,EFI)..IV3;TRC600,XZU600..(DM5,T3)..(5F,6FC)..(20T,40T) |
1 | ||
| 48520 - ABSORBER ASSY, SHOCK, FRONT LH | ||||
| 48511-80121 |
TRC600..DM5;XZU650..T4..30T;XZU640..T4..6FC..IV3;XZU650..T3..30T..IV3;XZU650..T3..30T..DCRTK..CBU;TRU600,XZU640..(DCRTJ,EFI)..CBU;TRU600,XZU640..T3..5F..(DCRTJ,EFI)..IV3 ﾏｰｸ 48511−37250 |
1 | ||
| 48520C - BUSH(FOR FRONT SHOCK ABSORBER LH) | ||||
| 90385-19011 |
XZC600..6FC..ST;XZU650..T4..30T;XZU640..T4..6FC..IV3;XZU650..T3..30T..IV3;XZU650..T3..30T..DCRTK..CBU;TRU600,XZU640..(DCRTJ,EFI)..CBU;TRU600,XZU640..T3..5F..(DCRTJ,EFI)..IV3;TRC600,XZU600..(DM5,T3)..(5F,6FC)..(20T,40T) |
1 | ||
| 48522 - PIN, FRONT SHOCK ABSORBER LOWER PIVOT | ||||
| 48522-37030 |
XZC600..6FC..ST;XZU650..T4..30T;XZU640..T4..6FC..IV3;XZU650..T3..30T..IV3;XZU650..T3..30T..DCRTK..CBU;TRU600,XZU640..(DCRTJ,EFI)..CBU;TRU600,XZU640..T3..5F..(DCRTJ,EFI)..IV3;TRC600,XZU600..(DM5,T3)..(5F,6FC)..(20T,40T) |
2 | ||
| 48609A - SUPPORT SUB-ASSY, FRONT SUSPENSION | ||||
| 48609-37020 |
XZC600..6FC..ST;XZU650..T4..30T;XZU640..T4..6FC..IV3;XZU650..T3..30T..IV3;XZU650..T3..30T..DCRTK..CBU;TRU600,XZU640..(DCRTJ,EFI)..CBU;TRU600,XZU640..T3..5F..(DCRTJ,EFI)..IV3;TRC600,XZU600..(DM5,T3)..(5F,6FC)..(20T,40T) |
4 | ||
| 48609A - SUPPORT SUB-ASSY, FRONT SUSPENSION | ||||
| 48609-37020 |
XZC600..6FC..ST;XZU650..T4..30T;XZU640..T4..6FC..IV3;XZU650..T3..30T..IV3;XZU650..T3..30T..DCRTK..CBU;TRU600,XZU640..(DCRTJ,EFI)..CBU;TRU600,XZU640..T3..5F..(DCRTJ,EFI)..IV3;TRC600,XZU600..(DM5,T3)..(5F,6FC)..(20T,40T) |
4 | ||
| 48802F - LINK SUB-ASSY, FRONT STABILIZER | ||||
| 48802-37111 |
TRC600..DM5;XZC600..6FC..ST |
2 | ||
| 48802-37110 |
BZU600,TRC600,XZC600,XZU600,650..20T..(CBU,IV3) |
2 | ||
| 48811 - BAR, STABILIZER, FRONT | ||||
| 48804-37050 |
XZC600..6FC..ST;XZU650..T4..30T;XZU640..T4..6FC..IV3;XZU650..T3..30T..IV3;XZU650..T3..30T..DCRTK..CBU;TRU600,XZU640..(DCRTJ,EFI)..CBU;TRU600,XZU640..T3..5F..(DCRTJ,EFI)..IV3;TRC600,XZU600..(DM5,T3)..(5F,6FC)..(20T,40T) |
1 | ||
| 48811A - BUSH(FOR FRONT STABILIZER BAR) | ||||
| 90385-13009 |
XZC600..6FC..ST;XZU650..T4..30T;XZU640..T4..6FC..IV3;XZU650..T3..30T..IV3;XZU650..T3..30T..DCRTK..CBU;TRU600,XZU640..(DCRTJ,EFI)..CBU;TRU600,XZU640..T3..5F..(DCRTJ,EFI)..IV3;TRC600,XZU600..(DM5,T3)..(5F,6FC)..(20T,40T) |
2 | ||
| 48815 - BUSH, FRONT STABILIZER BAR, NO.1 | ||||
| 48815-37080 |
XZC600..6FC..ST;XZU650..T4..30T;XZU640..T4..6FC..IV3;XZU650..T3..30T..IV3;XZU650..T3..30T..DCRTK..CBU;TRU600,XZU640..(DCRTJ,EFI)..CBU;TRU600,XZU640..T3..5F..(DCRTJ,EFI)..IV3;TRC600,XZU600..(DM5,T3)..(5F,6FC)..(20T,40T) |
2 | ||
| 48817E - SPACER(FOR STABILIZER BAR) | ||||
| 90560-10044 |
XZC600..6FC..ST;XZU650..T4..30T;XZU640..T4..6FC..IV3;XZU650..T3..30T..IV3;XZU650..T3..30T..DCRTK..CBU;TRU600,XZU640..(DCRTJ,EFI)..CBU;TRU600,XZU640..T3..5F..(DCRTJ,EFI)..IV3;TRC600,XZU600..(DM5,T3)..(5F,6FC)..(20T,40T) |
2 | ||
| 48824A - BRACKET, FRONT STABILIZER, NO.1 RH | ||||
| 48824-37061 |
XZC600..6FC..ST;XZU650..T4..30T;XZU640..T4..6FC..IV3;XZU650..T3..30T..IV3;XZU650..T3..30T..DCRTK..CBU;TRU600,XZU640..(DCRTJ,EFI)..CBU;TRU600,XZU640..T3..5F..(DCRTJ,EFI)..IV3;TRC600,XZU600..(DM5,T3)..(5F,6FC)..(20T,40T) |
1 | ||
| 48824-37060 |
XZC605,645,655,XZU605,645,655..IV3,IV6;BZU600,TRC600,TRU600,XZC600,XZU600,640,650..CBU,IV3,IV5,IV6,IV7 |
1 | ||
| 48825 - BRACKET, STABILIZER, NO.2 | ||||
| 48825-37060 |
XZC600..6FC..ST;XZU650..T4..30T;XZU640..T4..6FC..IV3;XZU650..T3..30T..IV3;XZU650..T3..30T..DCRTK..CBU;TRU600,XZU640..(DCRTJ,EFI)..CBU;TRU600,XZU640..T3..5F..(DCRTJ,EFI)..IV3;TRC600,XZU600..(DM5,T3)..(5F,6FC)..(20T,40T) |
2 | ||
| 48829A - BRACKET, FRONT STABILIZER, NO.1 LH | ||||
| 48824-37060 |
XZC605,645,655,XZU605,645,655..IV3,IV6;BZU600,TRC600,TRU600,XZC600,XZU600,640,650..CBU,IV3,IV5,IV6,IV7 |
1 | ||
| 48824-37061 |
XZC600..6FC..ST;XZU650..T4..30T;XZU640..T4..6FC..IV3;XZU650..T3..30T..IV3;XZU650..T3..30T..DCRTK..CBU;TRU600,XZU640..(DCRTJ,EFI)..CBU;TRU600,XZU640..T3..5F..(DCRTJ,EFI)..IV3;TRC600,XZU600..(DM5,T3)..(5F,6FC)..(20T,40T) |
1 | ||
| Common parts | ||||
| 90105-16067 | ||||
| 90119-12088 | ||||
| 90177-14005 | ||||
| 90178-16004 | ||||
| 90178-16007 | ||||
| 90179-12016 | ||||
| 90201-16035 | ||||
| 91112-81045 | ||||
| 91651-B0820 | ||||
| 94184-01001 | ||||
ILLUST NO. 1 OF 2(1107- )BZU600,TRC600,TRU600,XZC600,610,630,XZU600,602,610,620,630,640,642,650,6
ﾅｼ(ｽﾀﾋﾞﾗｲｻﾞ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48042A - SHACKLE SUB-ASSY, FRONT SPRING, NO.2 | ||||
| 48042-37020 |
XZC600..6FC..ST;XZU650..T4..30T;XZU640..T4..6FC..IV3;XZU650..T3..30T..IV3;XZU650..T3..30T..DCRTK..CBU;TRU600,XZU640..(DCRTJ,EFI)..CBU;TRU600,XZU640..T3..5F..(DCRTJ,EFI)..IV3;TRC600,XZU600..(DM5,T3)..(5F,6FC)..(20T,40T) |
2 | ||
| 48191 - WEDGE, CASTER(FOR FRONT LEAF SPRING) | ||||
| 48191-37060 |
TRC600..DM5;XZC600..6FC..ST;XZU650..T4..30T;XZU640..T4..6FC..IV3;XZU650..T3..30T..IV3;XZU650..T3..30T..DCRTK..CBU;TRU600,XZU640..(DCRTJ,EFI)..CBU;TRU600,XZU640..T3..5F..(DCRTJ,EFI)..IV3 |
2 | ||
| 48304 - BUMPER SUB-ASSY, FRONT SPRING, NO.1 | ||||
| 48304-37040 |
XZC600..6FC..ST;XZU650..T4..30T;XZU640..T4..6FC..IV3;XZU650..T3..30T..IV3;XZU650..T3..30T..DCRTK..CBU;TRU600,XZU640..(DCRTJ,EFI)..CBU;TRU600,XZU640..T3..5F..(DCRTJ,EFI)..IV3;TRC600,XZU600..(DM5,T3)..(5F,6FC)..(20T,40T) |
2 | ||
| 48422 - SUPPORT, FRONT SPRING PIN | ||||
| 48422-37010 |
XZC600..6FC..ST;XZU650..T4..30T;XZU640..T4..6FC..IV3;XZU650..T3..30T..IV3;XZU650..T3..30T..DCRTK..CBU;TRU600,XZU640..(DCRTJ,EFI)..CBU;TRU600,XZU640..T3..5F..(DCRTJ,EFI)..IV3;TRC600,XZU600..(DM5,T3)..(5F,6FC)..(20T,40T) |
2 | ||
| 48475 - PLATE, DISTANCE(FOR FRONT) | ||||
| 48475-36070 |
XZC600..6FC..ST;XZU650..T4..30T;XZU640..T4..6FC..IV3;XZU650..T3..30T..IV3;XZU650..T3..30T..DCRTK..CBU;TRU600,XZU640..(DCRTJ,EFI)..CBU;TRU600,XZU640..T3..5F..(DCRTJ,EFI)..IV3;TRC600,XZU600..(DM5,T3)..(5F,6FC)..(20T,40T) |
1 | ||
| 48505A - BOLT, U(FOR FRONT SPRING) | ||||
| 90117-16080 |
TRC600..DM5;XZC600..6FC..ST 長さ=130 |
4 | ||
| 48505A - BOLT, U(FOR FRONT SPRING) | ||||
| 90117-16080 |
TRC600..DM5;XZC600..6FC..ST 長さ=130 |
4 | ||
| 48510 - ABSORBER ASSY, SHOCK, FRONT RH | ||||
| 48511-80121 |
TRC600..DM5;XZU650..T4..30T;XZU640..T4..6FC..IV3;XZU650..T3..30T..IV3;XZU650..T3..30T..DCRTK..CBU;TRU600,XZU640..(DCRTJ,EFI)..CBU;TRU600,XZU640..T3..5F..(DCRTJ,EFI)..IV3 ﾏｰｸ 48511−37250 |
1 | ||
| 48510A - CUSHION, FRONT SHOCK ABSORBER | ||||
| 90948-01071 |
XZC600..6FC..ST;XZU650..T4..30T;XZU640..T4..6FC..IV3;XZU650..T3..30T..IV3;XZU650..T3..30T..DCRTK..CBU;TRU600,XZU640..(DCRTJ,EFI)..CBU;TRU600,XZU640..T3..5F..(DCRTJ,EFI)..IV3;TRC600,XZU600..(DM5,T3)..(5F,6FC)..(20T,40T) |
4 | ||
| 48510A - CUSHION, FRONT SHOCK ABSORBER | ||||
| 90948-01071 |
XZC600..6FC..ST;XZU650..T4..30T;XZU640..T4..6FC..IV3;XZU650..T3..30T..IV3;XZU650..T3..30T..DCRTK..CBU;TRU600,XZU640..(DCRTJ,EFI)..CBU;TRU600,XZU640..T3..5F..(DCRTJ,EFI)..IV3;TRC600,XZU600..(DM5,T3)..(5F,6FC)..(20T,40T) |
4 | ||
| 48510B - RETAINER, CUSHION, NO.1(FOR FRONT SHOCK ABSORBER) | ||||
| 90948-02054 |
XZC600..6FC..ST;XZU650..T4..30T;XZU640..T4..6FC..IV3;XZU650..T3..30T..IV3;XZU650..T3..30T..DCRTK..CBU;TRU600,XZU640..(DCRTJ,EFI)..CBU;TRU600,XZU640..T3..5F..(DCRTJ,EFI)..IV3;TRC600,XZU600..(DM5,T3)..(5F,6FC)..(20T,40T) |
2 | ||
| 48510C - RETAINER, CUSHION, NO.2(FOR FRONT SHOCK ABSORBER) | ||||
| 90948-02009 |
XZC600..6FC..ST;XZU650..T4..30T;XZU640..T4..6FC..IV3;XZU650..T3..30T..IV3;XZU650..T3..30T..DCRTK..CBU;TRU600,XZU640..(DCRTJ,EFI)..CBU;TRU600,XZU640..T3..5F..(DCRTJ,EFI)..IV3;TRC600,XZU600..(DM5,T3)..(5F,6FC)..(20T,40T) |
4 | ||
| 48510C - RETAINER, CUSHION, NO.2(FOR FRONT SHOCK ABSORBER) | ||||
| 90948-02009 |
XZC600..6FC..ST;XZU650..T4..30T;XZU640..T4..6FC..IV3;XZU650..T3..30T..IV3;XZU650..T3..30T..DCRTK..CBU;TRU600,XZU640..(DCRTJ,EFI)..CBU;TRU600,XZU640..T3..5F..(DCRTJ,EFI)..IV3;TRC600,XZU600..(DM5,T3)..(5F,6FC)..(20T,40T) |
4 | ||
| 48510E - WASHER, FRONT SHOCK ABSORBER CUSHION, NO.2 | ||||
| 90948-03011 |
XZC600..6FC..ST;XZU650..T4..30T;XZU640..T4..6FC..IV3;XZU650..T3..30T..IV3;XZU650..T3..30T..DCRTK..CBU;TRU600,XZU640..(DCRTJ,EFI)..CBU;TRU600,XZU640..T3..5F..(DCRTJ,EFI)..IV3;TRC600,XZU600..(DM5,T3)..(5F,6FC)..(20T,40T) |
2 | ||
| 48510N - BUSH(FOR FRONT SHOCK ABSORBER RH) | ||||
| 90385-19011 |
XZC600..6FC..ST;XZU650..T4..30T;XZU640..T4..6FC..IV3;XZU650..T3..30T..IV3;XZU650..T3..30T..DCRTK..CBU;TRU600,XZU640..(DCRTJ,EFI)..CBU;TRU600,XZU640..T3..5F..(DCRTJ,EFI)..IV3;TRC600,XZU600..(DM5,T3)..(5F,6FC)..(20T,40T) |
1 | ||
| 48520 - ABSORBER ASSY, SHOCK, FRONT LH | ||||
| 48511-80121 |
TRC600..DM5;XZU650..T4..30T;XZU640..T4..6FC..IV3;XZU650..T3..30T..IV3;XZU650..T3..30T..DCRTK..CBU;TRU600,XZU640..(DCRTJ,EFI)..CBU;TRU600,XZU640..T3..5F..(DCRTJ,EFI)..IV3 ﾏｰｸ 48511−37250 |
1 | ||
| 48520C - BUSH(FOR FRONT SHOCK ABSORBER LH) | ||||
| 90385-19011 |
XZC600..6FC..ST;XZU650..T4..30T;XZU640..T4..6FC..IV3;XZU650..T3..30T..IV3;XZU650..T3..30T..DCRTK..CBU;TRU600,XZU640..(DCRTJ,EFI)..CBU;TRU600,XZU640..T3..5F..(DCRTJ,EFI)..IV3;TRC600,XZU600..(DM5,T3)..(5F,6FC)..(20T,40T) |
1 | ||
| 48522 - PIN, FRONT SHOCK ABSORBER LOWER PIVOT | ||||
| 48522-37030 |
XZC600..6FC..ST;XZU650..T4..30T;XZU640..T4..6FC..IV3;XZU650..T3..30T..IV3;XZU650..T3..30T..DCRTK..CBU;TRU600,XZU640..(DCRTJ,EFI)..CBU;TRU600,XZU640..T3..5F..(DCRTJ,EFI)..IV3;TRC600,XZU600..(DM5,T3)..(5F,6FC)..(20T,40T) |
2 | ||
| Common parts | ||||
| 90105-16067 | ||||
| 90119-12088 | ||||
| 90178-16004 | ||||
| 90178-16007 | ||||
| 90179-12016 | ||||
| 90201-16035 | ||||
| 91651-B0820 | ||||

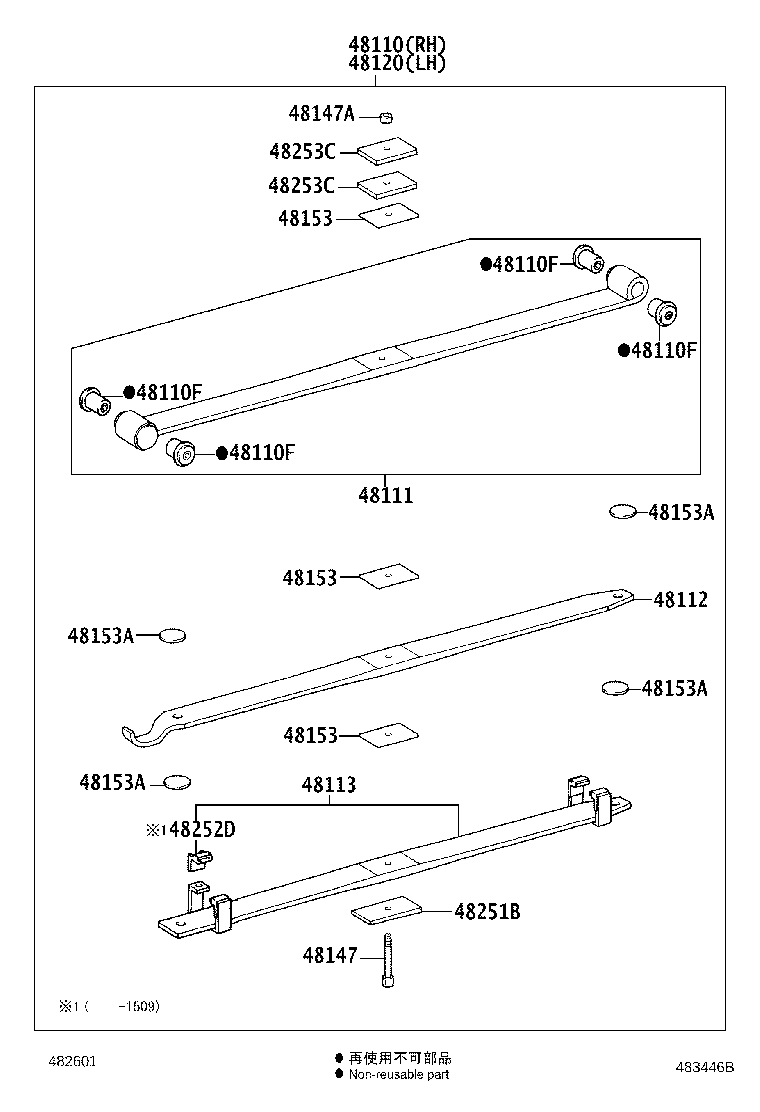

ILLUST NO. 2 OF 2(1107- )TRC600..SCB
3-LEAF
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48110 - SPRING ASSY, FRONT, RH | ||||
| 48110-3V330 |
TRC600..DM5 3枚ﾘｰﾌ |
1 | ||
| 48110F - BIMETAL FORMED BUSH(FOR FRONT SPRING) | ||||
| 90389-16026 |
TRC600..DM5;XZC600..6FC..ST |
8 | ||
| 48110F - BIMETAL FORMED BUSH(FOR FRONT SPRING) | ||||
| 90389-16026 |
TRC600..DM5;XZC600..6FC..ST |
8 | ||
| 48110F - BIMETAL FORMED BUSH(FOR FRONT SPRING) | ||||
| 90389-16026 |
TRC600..DM5;XZC600..6FC..ST |
8 | ||
| 48110F - BIMETAL FORMED BUSH(FOR FRONT SPRING) | ||||
| 90389-16026 |
TRC600..DM5;XZC600..6FC..ST |
8 | ||
| 48111 - LEAF, FRONT SPRING, NO.1 | ||||
| 48101-3V330 |
TRC600..DM5 運転席側 |
1 | ||
| 48101-3V340 |
TRC600..DM5 助手席側 |
1 | ||
| 48112 - LEAF, FRONT SPRING, NO.2 | ||||
| 48112-3V340 |
TRC600..DM5 助手席側 |
1 | ||
| 48112-3V330 |
TRC600..DM5 運転席側 |
1 | ||
| 48113 - LEAF, FRONT SPRING, NO.3 | ||||
| 48102-3V330 |
TRC600..DM5 運転席側 |
1 | ||
| 48102-3V340 |
TRC600..DM5 助手席側 |
1 | ||
| 48120 - SPRING ASSY, FRONT, LH | ||||
| 48110-3V340 |
TRC600..DM5 3枚ﾘｰﾌ |
1 | ||
| 48147 - BOLT, FRONT SPRING, CENTER | ||||
| 48147-37300 |
TRC600..DM5 |
2 | ||
| 48147A - NUT, FRONT SPRING CENTER BOLT | ||||
| 48284-37130 |
TRC600..DM5;XZC600..6FC..ST;XZU650..T4..30T;XZU640..T4..6FC..IV3;XZU650..T3..30T..IV3;XZU650..T3..30T..DCRTK..CBU;TRU600,XZU640..(DCRTJ,EFI)..CBU;TRU600,XZU640..T3..5F..(DCRTJ,EFI)..IV3 |
2 | ||
| 48153 - SPACER, FRONT LEAF SPRING, NO.1 | ||||
| 48253-3B440 |
TRC600..DM5;XZC600..6FC..ST;XZU650..T4..30T;XZU640..T4..6FC..IV3;XZU650..T3..30T..IV3;XZU650..T3..30T..DCRTK..CBU;TRU600,XZU640..(DCRTJ,EFI)..CBU;TRU600,XZU640..T3..5F..(DCRTJ,EFI)..IV3 |
6 | ||
| 48153 - SPACER, FRONT LEAF SPRING, NO.1 | ||||
| 48253-3B440 |
TRC600..DM5;XZC600..6FC..ST;XZU650..T4..30T;XZU640..T4..6FC..IV3;XZU650..T3..30T..IV3;XZU650..T3..30T..DCRTK..CBU;TRU600,XZU640..(DCRTJ,EFI)..CBU;TRU600,XZU640..T3..5F..(DCRTJ,EFI)..IV3 |
6 | ||
| 48153 - SPACER, FRONT LEAF SPRING, NO.1 | ||||
| 48253-3B440 |
TRC600..DM5;XZC600..6FC..ST;XZU650..T4..30T;XZU640..T4..6FC..IV3;XZU650..T3..30T..IV3;XZU650..T3..30T..DCRTK..CBU;TRU600,XZU640..(DCRTJ,EFI)..CBU;TRU600,XZU640..T3..5F..(DCRTJ,EFI)..IV3 |
6 | ||
| 48153A - SILENCER, FRONT SPRING, NO.1 | ||||
| 48252-37670 |
TRC600..DM5;XZU650..T4..30T;XZU640..T4..6FC..IV3;XZU650..T3..30T..IV3;XZU650..T3..30T..DCRTK..CBU;TRU600,XZU640..(DCRTJ,EFI)..CBU;TRU600,XZU640..T3..5F..(DCRTJ,EFI)..IV3 |
8 | ||
| 48153A - SILENCER, FRONT SPRING, NO.1 | ||||
| 48252-37670 |
TRC600..DM5;XZU650..T4..30T;XZU640..T4..6FC..IV3;XZU650..T3..30T..IV3;XZU650..T3..30T..DCRTK..CBU;TRU600,XZU640..(DCRTJ,EFI)..CBU;TRU600,XZU640..T3..5F..(DCRTJ,EFI)..IV3 |
8 | ||
| 48153A - SILENCER, FRONT SPRING, NO.1 | ||||
| 48252-37670 |
TRC600..DM5;XZU650..T4..30T;XZU640..T4..6FC..IV3;XZU650..T3..30T..IV3;XZU650..T3..30T..DCRTK..CBU;TRU600,XZU640..(DCRTJ,EFI)..CBU;TRU600,XZU640..T3..5F..(DCRTJ,EFI)..IV3 |
8 | ||
| 48153A - SILENCER, FRONT SPRING, NO.1 | ||||
| 48252-37670 |
TRC600..DM5;XZU650..T4..30T;XZU640..T4..6FC..IV3;XZU650..T3..30T..IV3;XZU650..T3..30T..DCRTK..CBU;TRU600,XZU640..(DCRTJ,EFI)..CBU;TRU600,XZU640..T3..5F..(DCRTJ,EFI)..IV3 |
8 | ||
| 48251B - SPACER(FOR FRONT SPRING) | ||||
| 48114-3B060 |
TRC600..DM5 |
2 | ||
| 48252D - SILENCER | ||||
| 48252-37380 |
TRC600..DM5;XZC600..6FC..ST;XZU650..T4..30T;XZU640..T4..6FC..IV3;XZU650..T3..30T..IV3;XZU650..T3..30T..DCRTK..CBU;TRU600,XZU640..(DCRTJ,EFI)..CBU;TRU600,XZU640..T3..5F..(DCRTJ,EFI)..IV3 |
8 | ||
| 48253C - SPACER, FRONT LEAF SPRING, NO.2 | ||||
| 48253-3B770 |
TRC600..DM5;XZC600..6FC..ST |
4 | ||
| 48253C - SPACER, FRONT LEAF SPRING, NO.2 | ||||
| 48253-3B770 |
TRC600..DM5;XZC600..6FC..ST |
4 | ||
