TRC600A-TWMMK3 (2011)
Toyota Dyna/Toyoace
(1107- )ST ; (1107- )BZU600,TRC600,TRU600,XZU600,610,620,630,640,650..20T,30T

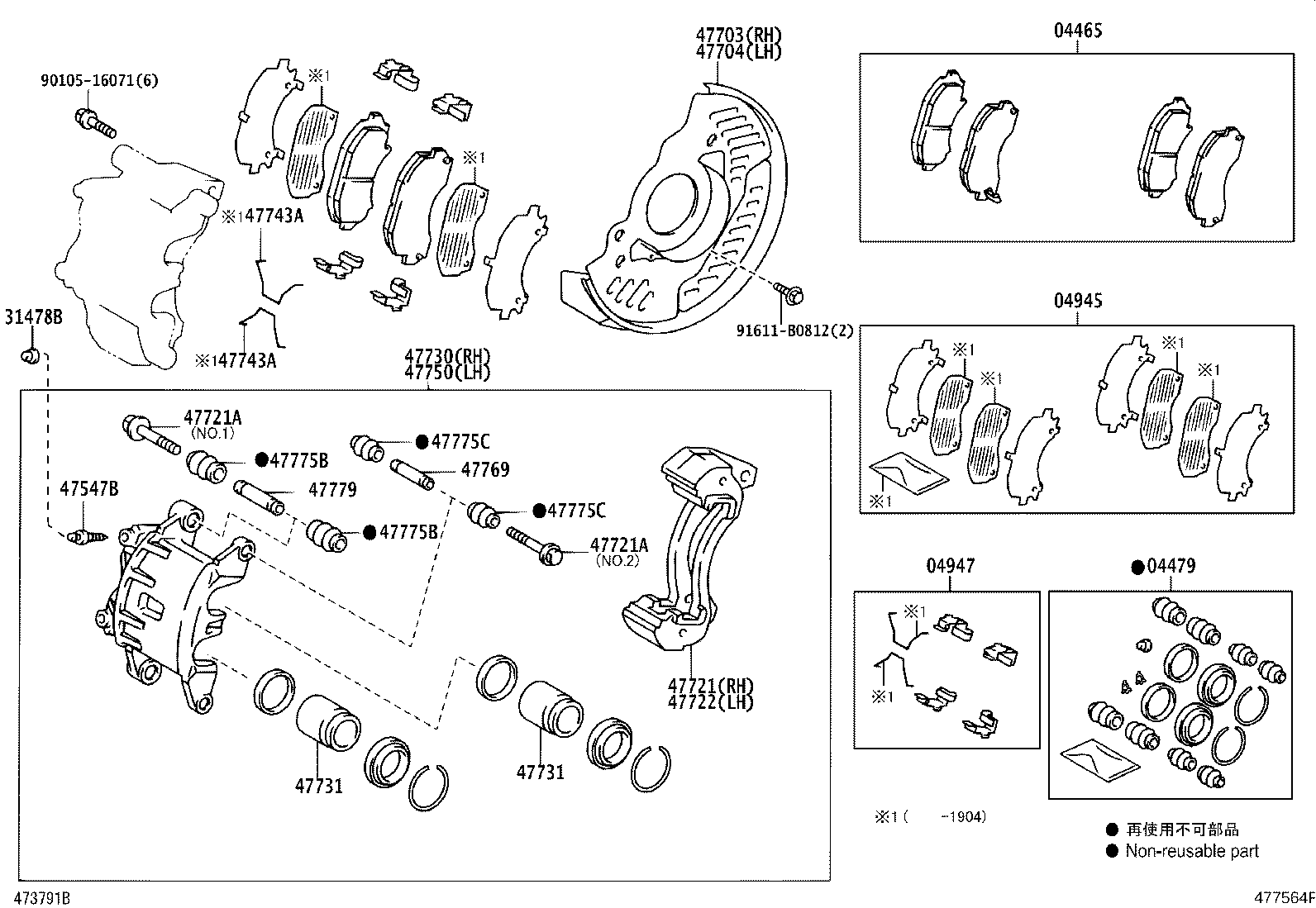

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04465 - PAD KIT, DISC BRAKE, FRONT | ||||
| 04465-37240 |
TRC600..DM5 ﾏｰｸ AK NS265 |
1 | ||
| 04479 - CYLINDER KIT, DISC BRAKE, FRONT | ||||
| 0447B-37021 |
TRC600..DM5;XZC600..6FC..ST;XZU650..T4..30T;XZU640..T4..6FC..IV3;XZU650..T3..30T..IV3;XZU650..T3..30T..DCRTK..CBU;TRU600,XZU640..(DCRTJ,EFI)..CBU;TRU600,XZU640..T3..5F..(DCRTJ,EFI)..IV3 |
2 | ||
| 04945 - SHIM KIT, ANTI SQUEAL, FRONT | ||||
| 04945-37020 |
BZU600,TRC600,XZU600,605,610,645,650,655..(DM5,T4)..20T |
1 | ||
| 04947 - FITTING KIT, DISC BRAKE, FRONT | ||||
| 0494A-37020 |
XZC600..ST;BZU600,TRC600,TRU600,XZC675,XZU600,605,610,620,630,640,645,650,655,675,685,695..20T,30T |
2 | ||
| 31478B - CAP, BLEEDER PLUG(FOR FRONT DISC BRAKE) | ||||
| 31478-30010 |
BZU600,TRC600,TRU600;XZC60#,610,630,645,655,675,XZU600,605,610,620,630,640,645,650,655,675,685,695..(20T,30T)..(DCRTH,DCRTJ,DCRTK) |
2 | ||
| 47547B - PLUG, BLEEDER(FOR FRONT DISC BRAKE) | ||||
| 47547-12010 |
BZU600;XZC600..ST;TRC600,TRU600,XZC675,XZU600,605,610,620,630,640,645,650,655,675,685,695..(20T,30T)..(DCRTH,DCRTJ,DCRTK,EFI) |
2 | ||
| 47703 - COVER SUB-ASSY, DISC BRAKE DUST, FRONT RH | ||||
| 47703-37030 |
BZU600,TRC600,TRU600,XZC600,610,630,XZU600,610,620,630,640,650..(20T,30T)..(DCRTH,DCRTJ,DCRTK,EFI,LPG) |
1 | ||
| 47704 - COVER SUB-ASSY, DISC BRAKE DUST, FRONT LH | ||||
| 47704-37030 |
BZU600,TRC600,TRU600,XZC600,610,630,XZU600,610,620,630,640,650..(20T,30T)..(DCRTH,DCRTJ,DCRTK,EFI,LPG) |
1 | ||
| 47721 - MOUNTING, FRONT DISC BRAKE CYLINDER, RH | ||||
| 47721-37020 |
BZU600,TRC600,XZU600,610,650..(DM5,T4)..20T..(DCRTJ,DCRTK,EFI,LPG) |
1 | ||
| 47721A - BOLT(FOR FRONT DISC BRAKE CYLINDER MOUNTING) | ||||
| 90119-12256 |
BZU600;XZC600..ST;TRC600,TRU600,XZC675,XZU600,605,610,620,630,640,645,650,655,675,685,695..(20T,30T)..(DCRTH,DCRTJ,DCRTK,EFI) *12−1.25PX75−30,NO.1 |
4 | ||
| 90119-08B87 |
BZU600;XZC600..ST;TRC600,TRU600,XZC675,XZU600,605,610,620,630,640,645,650,655,675,685,695..(20T,30T)..(DCRTH,DCRTJ,DCRTK,EFI) *8−1.25PX59−27,NO.2 |
4 | ||
| 47721A - BOLT(FOR FRONT DISC BRAKE CYLINDER MOUNTING) | ||||
| 90119-12256 |
BZU600;XZC600..ST;TRC600,TRU600,XZC675,XZU600,605,610,620,630,640,645,650,655,675,685,695..(20T,30T)..(DCRTH,DCRTJ,DCRTK,EFI) *12−1.25PX75−30,NO.1 |
4 | ||
| 90119-08B87 |
BZU600;XZC600..ST;TRC600,TRU600,XZC675,XZU600,605,610,620,630,640,645,650,655,675,685,695..(20T,30T)..(DCRTH,DCRTJ,DCRTK,EFI) *8−1.25PX59−27,NO.2 |
4 | ||
| 47722 - MOUNTING, FRONT DISC BRAKE CYLINDER, LH | ||||
| 47722-37010 |
BZU600,TRC600,XZU600,610,650..(DM5,T4)..20T..(DCRTJ,DCRTK,EFI,LPG) |
1 | ||
| 47730 - CYLINDER ASSY, FRONT DISC BRAKE, RH | ||||
| 47730-37020 |
BZU600,TRC600,XZU600,610,650..(DM5,T4)..20T..(DCRTJ,DCRTK,EFI,LPG) |
1 | ||
| 47731 - PISTON, FRONT DISC BRAKE | ||||
| 47731-37010 |
BZU600;XZC600..ST;TRC600,TRU600,XZC675,XZU600,605,610,620,630,640,645,650,655,675,685,695..(20T,30T)..(DCRTH,DCRTJ,DCRTK,EFI) |
4 | ||
| 47731 - PISTON, FRONT DISC BRAKE | ||||
| 47731-37010 |
BZU600;XZC600..ST;TRC600,TRU600,XZC675,XZU600,605,610,620,630,640,645,650,655,675,685,695..(20T,30T)..(DCRTH,DCRTJ,DCRTK,EFI) |
4 | ||
| 47743A - SPRING, ANTI-SQUEAL(FOR FRONT DISC BRAKE) | ||||
| 47743-36020 |
XZC600..ST;BZU600,TRC600,TRU600,XZC675,XZU600,605,610,620,630,640,645,650,655,675,685,695..20T,30T |
4 | ||
| 47743A - SPRING, ANTI-SQUEAL(FOR FRONT DISC BRAKE) | ||||
| 47743-36020 |
XZC600..ST;BZU600,TRC600,TRU600,XZC675,XZU600,605,610,620,630,640,645,650,655,675,685,695..20T,30T |
4 | ||
| 47750 - CYLINDER ASSY, DISC BRAKE, LH | ||||
| 47750-37020 |
BZU600,TRC600,XZU600,610,650..(DM5,T4)..20T..(DCRTJ,DCRTK,EFI,LPG) |
1 | ||
| 47769 - BUSH, CYLINDER SLIDE, NO.1(FOR FRONT DISC BRAKE) | ||||
| 47769-36030 |
BZU600;XZC600..ST;TRC600,TRU600,XZC675,XZU600,605,610,620,630,640,645,650,655,675,685,695..(20T,30T)..(DCRTH,DCRTJ,DCRTK,EFI) |
4 | ||
| 47775B - BOOT, BUSH DUST, NO.1 | ||||
| 47775-36050 |
BZU600;XZC600..ST;TRC600,TRU600,XZC675,XZU600,605,610,620,630,640,645,650,655,675,685,695..(20T,30T)..(DCRTH,DCRTJ,DCRTK,EFI) |
8 | ||
| 47775B - BOOT, BUSH DUST, NO.1 | ||||
| 47775-36050 |
BZU600;XZC600..ST;TRC600,TRU600,XZC675,XZU600,605,610,620,630,640,645,650,655,675,685,695..(20T,30T)..(DCRTH,DCRTJ,DCRTK,EFI) |
8 | ||
| 47775C - BOOT, BUSH DUST, NO.2 | ||||
| 47775-36040 |
BZU600;XZC600..ST;TRC600,TRU600,XZC675,XZU600,605,610,620,630,640,645,650,655,675,685,695..(20T,30T)..(DCRTH,DCRTJ,DCRTK,EFI) |
8 | ||
| 47775C - BOOT, BUSH DUST, NO.2 | ||||
| 47775-36040 |
BZU600;XZC600..ST;TRC600,TRU600,XZC675,XZU600,605,610,620,630,640,645,650,655,675,685,695..(20T,30T)..(DCRTH,DCRTJ,DCRTK,EFI) |
8 | ||
| 47779 - BUSH, CYLINDER SLIDE, NO.2(FOR FRONT DISC BRAKE) | ||||
| 47779-36010 |
BZU600;XZC600..ST;TRC600,TRU600,XZC675,XZU600,605,610,620,630,640,645,650,655,675,685,695..(20T,30T)..(DCRTH,DCRTJ,DCRTK,EFI) |
4 | ||
| Common parts | ||||
| 90105-16071 | ||||
| 91611-B0812 | ||||
(1107- )BZU600,TRC600,XZU600,605,610,650..DM5,T4..20T..DCRTJ,DCRTK,EFI,LPG
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04465 - PAD KIT, DISC BRAKE, FRONT | ||||
| 04465-37240 |
TRC600..DM5 ﾏｰｸ AK NS265 |
1 | ||
| 04465-37240 |
TRC600..DM5 ﾏｰｸ AK NS265 |
1 | ||
| 04479 - CYLINDER KIT, DISC BRAKE, FRONT | ||||
| 0447B-37021 |
TRC600..DM5;XZC600..6FC..ST;XZU650..T4..30T;XZU640..T4..6FC..IV3;XZU650..T3..30T..IV3;XZU650..T3..30T..DCRTK..CBU;TRU600,XZU640..(DCRTJ,EFI)..CBU;TRU600,XZU640..T3..5F..(DCRTJ,EFI)..IV3 |
2 | ||
| 0447B-37021 |
TRC600..DM5;XZC600..6FC..ST;XZU650..T4..30T;XZU640..T4..6FC..IV3;XZU650..T3..30T..IV3;XZU650..T3..30T..DCRTK..CBU;TRU600,XZU640..(DCRTJ,EFI)..CBU;TRU600,XZU640..T3..5F..(DCRTJ,EFI)..IV3 |
2 | ||
| 04945 - SHIM KIT, ANTI SQUEAL, FRONT | ||||
| 04945-37020 |
BZU600,TRC600,XZU600,605,610,645,650,655..(DM5,T4)..20T |
1 | ||
| 04945-37020 |
BZU600,TRC600,XZU600,605,610,645,650,655..(DM5,T4)..20T |
1 | ||
| 04947 - FITTING KIT, DISC BRAKE, FRONT | ||||
| 0494A-37020 |
XZC600..ST;BZU600,TRC600,TRU600,XZC675,XZU600,605,610,620,630,640,645,650,655,675,685,695..20T,30T |
2 | ||
| 0494A-37020 |
XZC600..ST;BZU600,TRC600,TRU600,XZC675,XZU600,605,610,620,630,640,645,650,655,675,685,695..20T,30T |
2 | ||
| 31478B - CAP, BLEEDER PLUG(FOR FRONT DISC BRAKE) | ||||
| 31478-30010 |
BZU600,TRC600,TRU600;XZC60#,610,630,645,655,675,XZU600,605,610,620,630,640,645,650,655,675,685,695..(20T,30T)..(DCRTH,DCRTJ,DCRTK) |
2 | ||
| 31478-30010 |
BZU600,TRC600,TRU600;XZC60#,610,630,645,655,675,XZU600,605,610,620,630,640,645,650,655,675,685,695..(20T,30T)..(DCRTH,DCRTJ,DCRTK) |
2 | ||
| 47547B - PLUG, BLEEDER(FOR FRONT DISC BRAKE) | ||||
| 47547-12010 |
BZU600;XZC600..ST;TRC600,TRU600,XZC675,XZU600,605,610,620,630,640,645,650,655,675,685,695..(20T,30T)..(DCRTH,DCRTJ,DCRTK,EFI) |
2 | ||
| 47547-12010 |
BZU600;XZC600..ST;TRC600,TRU600,XZC675,XZU600,605,610,620,630,640,645,650,655,675,685,695..(20T,30T)..(DCRTH,DCRTJ,DCRTK,EFI) |
2 | ||
| 47703 - COVER SUB-ASSY, DISC BRAKE DUST, FRONT RH | ||||
| 47703-37030 |
BZU600,TRC600,TRU600,XZC600,610,630,XZU600,610,620,630,640,650..(20T,30T)..(DCRTH,DCRTJ,DCRTK,EFI,LPG) |
1 | ||
| 47703-37030 |
BZU600,TRC600,TRU600,XZC600,610,630,XZU600,610,620,630,640,650..(20T,30T)..(DCRTH,DCRTJ,DCRTK,EFI,LPG) |
1 | ||
| 47704 - COVER SUB-ASSY, DISC BRAKE DUST, FRONT LH | ||||
| 47704-37030 |
BZU600,TRC600,TRU600,XZC600,610,630,XZU600,610,620,630,640,650..(20T,30T)..(DCRTH,DCRTJ,DCRTK,EFI,LPG) |
1 | ||
| 47704-37030 |
BZU600,TRC600,TRU600,XZC600,610,630,XZU600,610,620,630,640,650..(20T,30T)..(DCRTH,DCRTJ,DCRTK,EFI,LPG) |
1 | ||
| 47721 - MOUNTING, FRONT DISC BRAKE CYLINDER, RH | ||||
| 47721-37020 |
BZU600,TRC600,XZU600,610,650..(DM5,T4)..20T..(DCRTJ,DCRTK,EFI,LPG) |
1 | ||
| 47721-37020 |
BZU600,TRC600,XZU600,610,650..(DM5,T4)..20T..(DCRTJ,DCRTK,EFI,LPG) |
1 | ||
| 47721A - BOLT(FOR FRONT DISC BRAKE CYLINDER MOUNTING) | ||||
| 90119-12256 |
BZU600;XZC600..ST;TRC600,TRU600,XZC675,XZU600,605,610,620,630,640,645,650,655,675,685,695..(20T,30T)..(DCRTH,DCRTJ,DCRTK,EFI) *12−1.25PX75−30,NO.1 |
4 | ||
| 90119-12256 |
BZU600;XZC600..ST;TRC600,TRU600,XZC675,XZU600,605,610,620,630,640,645,650,655,675,685,695..(20T,30T)..(DCRTH,DCRTJ,DCRTK,EFI) *12−1.25PX75−30,NO.1 |
4 | ||
| 90119-08B87 |
BZU600;XZC600..ST;TRC600,TRU600,XZC675,XZU600,605,610,620,630,640,645,650,655,675,685,695..(20T,30T)..(DCRTH,DCRTJ,DCRTK,EFI) *8−1.25PX59−27,NO.2 |
4 | ||
| 90119-08B87 |
BZU600;XZC600..ST;TRC600,TRU600,XZC675,XZU600,605,610,620,630,640,645,650,655,675,685,695..(20T,30T)..(DCRTH,DCRTJ,DCRTK,EFI) *8−1.25PX59−27,NO.2 |
4 | ||
| 47721A - BOLT(FOR FRONT DISC BRAKE CYLINDER MOUNTING) | ||||
| 90119-12256 |
BZU600;XZC600..ST;TRC600,TRU600,XZC675,XZU600,605,610,620,630,640,645,650,655,675,685,695..(20T,30T)..(DCRTH,DCRTJ,DCRTK,EFI) *12−1.25PX75−30,NO.1 |
4 | ||
| 90119-12256 |
BZU600;XZC600..ST;TRC600,TRU600,XZC675,XZU600,605,610,620,630,640,645,650,655,675,685,695..(20T,30T)..(DCRTH,DCRTJ,DCRTK,EFI) *12−1.25PX75−30,NO.1 |
4 | ||
| 90119-08B87 |
BZU600;XZC600..ST;TRC600,TRU600,XZC675,XZU600,605,610,620,630,640,645,650,655,675,685,695..(20T,30T)..(DCRTH,DCRTJ,DCRTK,EFI) *8−1.25PX59−27,NO.2 |
4 | ||
| 90119-08B87 |
BZU600;XZC600..ST;TRC600,TRU600,XZC675,XZU600,605,610,620,630,640,645,650,655,675,685,695..(20T,30T)..(DCRTH,DCRTJ,DCRTK,EFI) *8−1.25PX59−27,NO.2 |
4 | ||
| 47722 - MOUNTING, FRONT DISC BRAKE CYLINDER, LH | ||||
| 47722-37010 |
BZU600,TRC600,XZU600,610,650..(DM5,T4)..20T..(DCRTJ,DCRTK,EFI,LPG) |
1 | ||
| 47722-37010 |
BZU600,TRC600,XZU600,610,650..(DM5,T4)..20T..(DCRTJ,DCRTK,EFI,LPG) |
1 | ||
| 47730 - CYLINDER ASSY, FRONT DISC BRAKE, RH | ||||
| 47730-37020 |
BZU600,TRC600,XZU600,610,650..(DM5,T4)..20T..(DCRTJ,DCRTK,EFI,LPG) |
1 | ||
| 47730-37020 |
BZU600,TRC600,XZU600,610,650..(DM5,T4)..20T..(DCRTJ,DCRTK,EFI,LPG) |
1 | ||
| 47731 - PISTON, FRONT DISC BRAKE | ||||
| 47731-37010 |
BZU600;XZC600..ST;TRC600,TRU600,XZC675,XZU600,605,610,620,630,640,645,650,655,675,685,695..(20T,30T)..(DCRTH,DCRTJ,DCRTK,EFI) |
4 | ||
| 47731-37010 |
BZU600;XZC600..ST;TRC600,TRU600,XZC675,XZU600,605,610,620,630,640,645,650,655,675,685,695..(20T,30T)..(DCRTH,DCRTJ,DCRTK,EFI) |
4 | ||
| 47731 - PISTON, FRONT DISC BRAKE | ||||
| 47731-37010 |
BZU600;XZC600..ST;TRC600,TRU600,XZC675,XZU600,605,610,620,630,640,645,650,655,675,685,695..(20T,30T)..(DCRTH,DCRTJ,DCRTK,EFI) |
4 | ||
| 47731-37010 |
BZU600;XZC600..ST;TRC600,TRU600,XZC675,XZU600,605,610,620,630,640,645,650,655,675,685,695..(20T,30T)..(DCRTH,DCRTJ,DCRTK,EFI) |
4 | ||
| 47743A - SPRING, ANTI-SQUEAL(FOR FRONT DISC BRAKE) | ||||
| 47743-36020 |
XZC600..ST;BZU600,TRC600,TRU600,XZC675,XZU600,605,610,620,630,640,645,650,655,675,685,695..20T,30T |
4 | ||
| 47743-36020 |
XZC600..ST;BZU600,TRC600,TRU600,XZC675,XZU600,605,610,620,630,640,645,650,655,675,685,695..20T,30T |
4 | ||
| 47743A - SPRING, ANTI-SQUEAL(FOR FRONT DISC BRAKE) | ||||
| 47743-36020 |
XZC600..ST;BZU600,TRC600,TRU600,XZC675,XZU600,605,610,620,630,640,645,650,655,675,685,695..20T,30T |
4 | ||
| 47743-36020 |
XZC600..ST;BZU600,TRC600,TRU600,XZC675,XZU600,605,610,620,630,640,645,650,655,675,685,695..20T,30T |
4 | ||
| 47750 - CYLINDER ASSY, DISC BRAKE, LH | ||||
| 47750-37020 |
BZU600,TRC600,XZU600,610,650..(DM5,T4)..20T..(DCRTJ,DCRTK,EFI,LPG) |
1 | ||
| 47750-37020 |
BZU600,TRC600,XZU600,610,650..(DM5,T4)..20T..(DCRTJ,DCRTK,EFI,LPG) |
1 | ||
| 47769 - BUSH, CYLINDER SLIDE, NO.1(FOR FRONT DISC BRAKE) | ||||
| 47769-36030 |
BZU600;XZC600..ST;TRC600,TRU600,XZC675,XZU600,605,610,620,630,640,645,650,655,675,685,695..(20T,30T)..(DCRTH,DCRTJ,DCRTK,EFI) |
4 | ||
| 47769-36030 |
BZU600;XZC600..ST;TRC600,TRU600,XZC675,XZU600,605,610,620,630,640,645,650,655,675,685,695..(20T,30T)..(DCRTH,DCRTJ,DCRTK,EFI) |
4 | ||
| 47775B - BOOT, BUSH DUST, NO.1 | ||||
| 47775-36050 |
BZU600;XZC600..ST;TRC600,TRU600,XZC675,XZU600,605,610,620,630,640,645,650,655,675,685,695..(20T,30T)..(DCRTH,DCRTJ,DCRTK,EFI) |
8 | ||
| 47775-36050 |
BZU600;XZC600..ST;TRC600,TRU600,XZC675,XZU600,605,610,620,630,640,645,650,655,675,685,695..(20T,30T)..(DCRTH,DCRTJ,DCRTK,EFI) |
8 | ||
| 47775B - BOOT, BUSH DUST, NO.1 | ||||
| 47775-36050 |
BZU600;XZC600..ST;TRC600,TRU600,XZC675,XZU600,605,610,620,630,640,645,650,655,675,685,695..(20T,30T)..(DCRTH,DCRTJ,DCRTK,EFI) |
8 | ||
| 47775-36050 |
BZU600;XZC600..ST;TRC600,TRU600,XZC675,XZU600,605,610,620,630,640,645,650,655,675,685,695..(20T,30T)..(DCRTH,DCRTJ,DCRTK,EFI) |
8 | ||
| 47775C - BOOT, BUSH DUST, NO.2 | ||||
| 47775-36040 |
BZU600;XZC600..ST;TRC600,TRU600,XZC675,XZU600,605,610,620,630,640,645,650,655,675,685,695..(20T,30T)..(DCRTH,DCRTJ,DCRTK,EFI) |
8 | ||
| 47775-36040 |
BZU600;XZC600..ST;TRC600,TRU600,XZC675,XZU600,605,610,620,630,640,645,650,655,675,685,695..(20T,30T)..(DCRTH,DCRTJ,DCRTK,EFI) |
8 | ||
| 47775C - BOOT, BUSH DUST, NO.2 | ||||
| 47775-36040 |
BZU600;XZC600..ST;TRC600,TRU600,XZC675,XZU600,605,610,620,630,640,645,650,655,675,685,695..(20T,30T)..(DCRTH,DCRTJ,DCRTK,EFI) |
8 | ||
| 47775-36040 |
BZU600;XZC600..ST;TRC600,TRU600,XZC675,XZU600,605,610,620,630,640,645,650,655,675,685,695..(20T,30T)..(DCRTH,DCRTJ,DCRTK,EFI) |
8 | ||
| 47779 - BUSH, CYLINDER SLIDE, NO.2(FOR FRONT DISC BRAKE) | ||||
| 47779-36010 |
BZU600;XZC600..ST;TRC600,TRU600,XZC675,XZU600,605,610,620,630,640,645,650,655,675,685,695..(20T,30T)..(DCRTH,DCRTJ,DCRTK,EFI) |
4 | ||
| 47779-36010 |
BZU600;XZC600..ST;TRC600,TRU600,XZC675,XZU600,605,610,620,630,640,645,650,655,675,685,695..(20T,30T)..(DCRTH,DCRTJ,DCRTK,EFI) |
4 | ||
| Common parts | ||||
| 90105-16072 | ||||
| 90105-16073 | ||||
| 91611-B0812 | ||||
(1107- )XZC675,XZU675,685,695 ; (1107- )XZU655..T2,T3..20T..DCRTJ ; (1107-
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04465 - PAD KIT, DISC BRAKE, FRONT | ||||
| 04465-37240 |
TRC600..DM5 ﾏｰｸ AK NS265 |
1 | ||
| 04465-37240 |
TRC600..DM5 ﾏｰｸ AK NS265 |
1 | ||
| 04479 - CYLINDER KIT, DISC BRAKE, FRONT | ||||
| 0447B-37021 |
TRC600..DM5;XZC600..6FC..ST;XZU650..T4..30T;XZU640..T4..6FC..IV3;XZU650..T3..30T..IV3;XZU650..T3..30T..DCRTK..CBU;TRU600,XZU640..(DCRTJ,EFI)..CBU;TRU600,XZU640..T3..5F..(DCRTJ,EFI)..IV3 |
2 | ||
| 0447B-37021 |
TRC600..DM5;XZC600..6FC..ST;XZU650..T4..30T;XZU640..T4..6FC..IV3;XZU650..T3..30T..IV3;XZU650..T3..30T..DCRTK..CBU;TRU600,XZU640..(DCRTJ,EFI)..CBU;TRU600,XZU640..T3..5F..(DCRTJ,EFI)..IV3 |
2 | ||
| 04945 - SHIM KIT, ANTI SQUEAL, FRONT | ||||
| 04945-37020 |
BZU600,TRC600,XZU600,605,610,645,650,655..(DM5,T4)..20T |
1 | ||
| 04945-37020 |
BZU600,TRC600,XZU600,605,610,645,650,655..(DM5,T4)..20T |
1 | ||
| 04947 - FITTING KIT, DISC BRAKE, FRONT | ||||
| 0494A-37020 |
XZC600..ST;BZU600,TRC600,TRU600,XZC675,XZU600,605,610,620,630,640,645,650,655,675,685,695..20T,30T |
2 | ||
| 0494A-37020 |
XZC600..ST;BZU600,TRC600,TRU600,XZC675,XZU600,605,610,620,630,640,645,650,655,675,685,695..20T,30T |
2 | ||
| 31478B - CAP, BLEEDER PLUG(FOR FRONT DISC BRAKE) | ||||
| 31478-30010 |
BZU600,TRC600,TRU600;XZC60#,610,630,645,655,675,XZU600,605,610,620,630,640,645,650,655,675,685,695..(20T,30T)..(DCRTH,DCRTJ,DCRTK) |
2 | ||
| 31478-30010 |
BZU600,TRC600,TRU600;XZC60#,610,630,645,655,675,XZU600,605,610,620,630,640,645,650,655,675,685,695..(20T,30T)..(DCRTH,DCRTJ,DCRTK) |
2 | ||
| 47547B - PLUG, BLEEDER(FOR FRONT DISC BRAKE) | ||||
| 47547-12010 |
BZU600;XZC600..ST;TRC600,TRU600,XZC675,XZU600,605,610,620,630,640,645,650,655,675,685,695..(20T,30T)..(DCRTH,DCRTJ,DCRTK,EFI) |
2 | ||
| 47547-12010 |
BZU600;XZC600..ST;TRC600,TRU600,XZC675,XZU600,605,610,620,630,640,645,650,655,675,685,695..(20T,30T)..(DCRTH,DCRTJ,DCRTK,EFI) |
2 | ||
| 47703 - COVER SUB-ASSY, DISC BRAKE DUST, FRONT RH | ||||
| 47703-37030 |
BZU600,TRC600,TRU600,XZC600,610,630,XZU600,610,620,630,640,650..(20T,30T)..(DCRTH,DCRTJ,DCRTK,EFI,LPG) |
1 | ||
| 47703-37030 |
BZU600,TRC600,TRU600,XZC600,610,630,XZU600,610,620,630,640,650..(20T,30T)..(DCRTH,DCRTJ,DCRTK,EFI,LPG) |
1 | ||
| 47704 - COVER SUB-ASSY, DISC BRAKE DUST, FRONT LH | ||||
| 47704-37030 |
BZU600,TRC600,TRU600,XZC600,610,630,XZU600,610,620,630,640,650..(20T,30T)..(DCRTH,DCRTJ,DCRTK,EFI,LPG) |
1 | ||
| 47704-37030 |
BZU600,TRC600,TRU600,XZC600,610,630,XZU600,610,620,630,640,650..(20T,30T)..(DCRTH,DCRTJ,DCRTK,EFI,LPG) |
1 | ||
| 47721 - MOUNTING, FRONT DISC BRAKE CYLINDER, RH | ||||
| 47721-37020 |
BZU600,TRC600,XZU600,610,650..(DM5,T4)..20T..(DCRTJ,DCRTK,EFI,LPG) |
1 | ||
| 47721-37020 |
BZU600,TRC600,XZU600,610,650..(DM5,T4)..20T..(DCRTJ,DCRTK,EFI,LPG) |
1 | ||
| 47721A - BOLT(FOR FRONT DISC BRAKE CYLINDER MOUNTING) | ||||
| 90119-12256 |
BZU600;XZC600..ST;TRC600,TRU600,XZC675,XZU600,605,610,620,630,640,645,650,655,675,685,695..(20T,30T)..(DCRTH,DCRTJ,DCRTK,EFI) *12−1.25PX75−30,NO.1 |
4 | ||
| 90119-12256 |
BZU600;XZC600..ST;TRC600,TRU600,XZC675,XZU600,605,610,620,630,640,645,650,655,675,685,695..(20T,30T)..(DCRTH,DCRTJ,DCRTK,EFI) *12−1.25PX75−30,NO.1 |
4 | ||
| 90119-08B87 |
BZU600;XZC600..ST;TRC600,TRU600,XZC675,XZU600,605,610,620,630,640,645,650,655,675,685,695..(20T,30T)..(DCRTH,DCRTJ,DCRTK,EFI) *8−1.25PX59−27,NO.2 |
4 | ||
| 90119-08B87 |
BZU600;XZC600..ST;TRC600,TRU600,XZC675,XZU600,605,610,620,630,640,645,650,655,675,685,695..(20T,30T)..(DCRTH,DCRTJ,DCRTK,EFI) *8−1.25PX59−27,NO.2 |
4 | ||
| 47721A - BOLT(FOR FRONT DISC BRAKE CYLINDER MOUNTING) | ||||
| 90119-12256 |
BZU600;XZC600..ST;TRC600,TRU600,XZC675,XZU600,605,610,620,630,640,645,650,655,675,685,695..(20T,30T)..(DCRTH,DCRTJ,DCRTK,EFI) *12−1.25PX75−30,NO.1 |
4 | ||
| 90119-12256 |
BZU600;XZC600..ST;TRC600,TRU600,XZC675,XZU600,605,610,620,630,640,645,650,655,675,685,695..(20T,30T)..(DCRTH,DCRTJ,DCRTK,EFI) *12−1.25PX75−30,NO.1 |
4 | ||
| 90119-08B87 |
BZU600;XZC600..ST;TRC600,TRU600,XZC675,XZU600,605,610,620,630,640,645,650,655,675,685,695..(20T,30T)..(DCRTH,DCRTJ,DCRTK,EFI) *8−1.25PX59−27,NO.2 |
4 | ||
| 90119-08B87 |
BZU600;XZC600..ST;TRC600,TRU600,XZC675,XZU600,605,610,620,630,640,645,650,655,675,685,695..(20T,30T)..(DCRTH,DCRTJ,DCRTK,EFI) *8−1.25PX59−27,NO.2 |
4 | ||
| 47722 - MOUNTING, FRONT DISC BRAKE CYLINDER, LH | ||||
| 47722-37010 |
BZU600,TRC600,XZU600,610,650..(DM5,T4)..20T..(DCRTJ,DCRTK,EFI,LPG) |
1 | ||
| 47722-37010 |
BZU600,TRC600,XZU600,610,650..(DM5,T4)..20T..(DCRTJ,DCRTK,EFI,LPG) |
1 | ||
| 47730 - CYLINDER ASSY, FRONT DISC BRAKE, RH | ||||
| 47730-37020 |
BZU600,TRC600,XZU600,610,650..(DM5,T4)..20T..(DCRTJ,DCRTK,EFI,LPG) |
1 | ||
| 47730-37020 |
BZU600,TRC600,XZU600,610,650..(DM5,T4)..20T..(DCRTJ,DCRTK,EFI,LPG) |
1 | ||
| 47731 - PISTON, FRONT DISC BRAKE | ||||
| 47731-37010 |
BZU600;XZC600..ST;TRC600,TRU600,XZC675,XZU600,605,610,620,630,640,645,650,655,675,685,695..(20T,30T)..(DCRTH,DCRTJ,DCRTK,EFI) |
4 | ||
| 47731-37010 |
BZU600;XZC600..ST;TRC600,TRU600,XZC675,XZU600,605,610,620,630,640,645,650,655,675,685,695..(20T,30T)..(DCRTH,DCRTJ,DCRTK,EFI) |
4 | ||
| 47731 - PISTON, FRONT DISC BRAKE | ||||
| 47731-37010 |
BZU600;XZC600..ST;TRC600,TRU600,XZC675,XZU600,605,610,620,630,640,645,650,655,675,685,695..(20T,30T)..(DCRTH,DCRTJ,DCRTK,EFI) |
4 | ||
| 47731-37010 |
BZU600;XZC600..ST;TRC600,TRU600,XZC675,XZU600,605,610,620,630,640,645,650,655,675,685,695..(20T,30T)..(DCRTH,DCRTJ,DCRTK,EFI) |
4 | ||
| 47743A - SPRING, ANTI-SQUEAL(FOR FRONT DISC BRAKE) | ||||
| 47743-36020 |
XZC600..ST;BZU600,TRC600,TRU600,XZC675,XZU600,605,610,620,630,640,645,650,655,675,685,695..20T,30T |
4 | ||
| 47743-36020 |
XZC600..ST;BZU600,TRC600,TRU600,XZC675,XZU600,605,610,620,630,640,645,650,655,675,685,695..20T,30T |
4 | ||
| 47743A - SPRING, ANTI-SQUEAL(FOR FRONT DISC BRAKE) | ||||
| 47743-36020 |
XZC600..ST;BZU600,TRC600,TRU600,XZC675,XZU600,605,610,620,630,640,645,650,655,675,685,695..20T,30T |
4 | ||
| 47743-36020 |
XZC600..ST;BZU600,TRC600,TRU600,XZC675,XZU600,605,610,620,630,640,645,650,655,675,685,695..20T,30T |
4 | ||
| 47750 - CYLINDER ASSY, DISC BRAKE, LH | ||||
| 47750-37020 |
BZU600,TRC600,XZU600,610,650..(DM5,T4)..20T..(DCRTJ,DCRTK,EFI,LPG) |
1 | ||
| 47750-37020 |
BZU600,TRC600,XZU600,610,650..(DM5,T4)..20T..(DCRTJ,DCRTK,EFI,LPG) |
1 | ||
| 47769 - BUSH, CYLINDER SLIDE, NO.1(FOR FRONT DISC BRAKE) | ||||
| 47769-36030 |
BZU600;XZC600..ST;TRC600,TRU600,XZC675,XZU600,605,610,620,630,640,645,650,655,675,685,695..(20T,30T)..(DCRTH,DCRTJ,DCRTK,EFI) |
4 | ||
| 47769-36030 |
BZU600;XZC600..ST;TRC600,TRU600,XZC675,XZU600,605,610,620,630,640,645,650,655,675,685,695..(20T,30T)..(DCRTH,DCRTJ,DCRTK,EFI) |
4 | ||
| 47775B - BOOT, BUSH DUST, NO.1 | ||||
| 47775-36050 |
BZU600;XZC600..ST;TRC600,TRU600,XZC675,XZU600,605,610,620,630,640,645,650,655,675,685,695..(20T,30T)..(DCRTH,DCRTJ,DCRTK,EFI) |
8 | ||
| 47775-36050 |
BZU600;XZC600..ST;TRC600,TRU600,XZC675,XZU600,605,610,620,630,640,645,650,655,675,685,695..(20T,30T)..(DCRTH,DCRTJ,DCRTK,EFI) |
8 | ||
| 47775B - BOOT, BUSH DUST, NO.1 | ||||
| 47775-36050 |
BZU600;XZC600..ST;TRC600,TRU600,XZC675,XZU600,605,610,620,630,640,645,650,655,675,685,695..(20T,30T)..(DCRTH,DCRTJ,DCRTK,EFI) |
8 | ||
| 47775-36050 |
BZU600;XZC600..ST;TRC600,TRU600,XZC675,XZU600,605,610,620,630,640,645,650,655,675,685,695..(20T,30T)..(DCRTH,DCRTJ,DCRTK,EFI) |
8 | ||
| 47775C - BOOT, BUSH DUST, NO.2 | ||||
| 47775-36040 |
BZU600;XZC600..ST;TRC600,TRU600,XZC675,XZU600,605,610,620,630,640,645,650,655,675,685,695..(20T,30T)..(DCRTH,DCRTJ,DCRTK,EFI) |
8 | ||
| 47775-36040 |
BZU600;XZC600..ST;TRC600,TRU600,XZC675,XZU600,605,610,620,630,640,645,650,655,675,685,695..(20T,30T)..(DCRTH,DCRTJ,DCRTK,EFI) |
8 | ||
| 47775C - BOOT, BUSH DUST, NO.2 | ||||
| 47775-36040 |
BZU600;XZC600..ST;TRC600,TRU600,XZC675,XZU600,605,610,620,630,640,645,650,655,675,685,695..(20T,30T)..(DCRTH,DCRTJ,DCRTK,EFI) |
8 | ||
| 47775-36040 |
BZU600;XZC600..ST;TRC600,TRU600,XZC675,XZU600,605,610,620,630,640,645,650,655,675,685,695..(20T,30T)..(DCRTH,DCRTJ,DCRTK,EFI) |
8 | ||
| 47779 - BUSH, CYLINDER SLIDE, NO.2(FOR FRONT DISC BRAKE) | ||||
| 47779-36010 |
BZU600;XZC600..ST;TRC600,TRU600,XZC675,XZU600,605,610,620,630,640,645,650,655,675,685,695..(20T,30T)..(DCRTH,DCRTJ,DCRTK,EFI) |
4 | ||
| 47779-36010 |
BZU600;XZC600..ST;TRC600,TRU600,XZC675,XZU600,605,610,620,630,640,645,650,655,675,685,695..(20T,30T)..(DCRTH,DCRTJ,DCRTK,EFI) |
4 | ||
| Common parts | ||||
| 90105-16073 | ||||
| 91611-B0812 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
