TRC600A-TWMMK3 (2011)
Toyota Dyna/Toyoace
ILLUST NO. 2 OF 2(1107- )BZU600,TRC600,TRU600,XZC60#,645,655,XZU600,605,640,645,650,655..20T,30T.
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 46501 - DRUM SUB-ASSY, PARKING BRAKE | ||||
| 46501-37060 |
TRC600..DM5;XZU650..T4..5F..30T;XZU650..T3..5F..30T..IV3;XZU650..T3..5F..DCRTK..CBU;TRU600,XZU640..5F..(DCRTJ,EFI)..CBU;TRU600,XZU640..T3..5F..(DCRTJ,EFI)..IV3 |
1 | ||
| 46501-37060 |
TRC600..DM5;XZU650..T4..5F..30T;XZU650..T3..5F..30T..IV3;XZU650..T3..5F..DCRTK..CBU;TRU600,XZU640..5F..(DCRTJ,EFI)..CBU;TRU600,XZU640..T3..5F..(DCRTJ,EFI)..IV3 |
1 | ||
| 46501-37060 |
TRC600..DM5;XZU650..T4..5F..30T;XZU650..T3..5F..30T..IV3;XZU650..T3..5F..DCRTK..CBU;TRU600,XZU640..5F..(DCRTJ,EFI)..CBU;TRU600,XZU640..T3..5F..(DCRTJ,EFI)..IV3 |
1 | ||
| 46501A - BOLT, SERRATION(FOR PARKING BRAKE DRUM) | ||||
| 90031-01170 |
XZC600..6FC..ST;XZU650..T4..30T;XZU640..T4..6FC..IV3;XZU650..T3..30T..IV3;XZU650..T3..30T..DCRTK..CBU;TRU600,XZU640..(DCRTJ,EFI)..CBU;TRU600,XZU640..T3..5F..(DCRTJ,EFI)..IV3;TRC600,XZU600..(DM5,T3)..(5F,6FC)..(20T,40T) |
4 | ||
| 90031-01170 |
XZC600..6FC..ST;XZU650..T4..30T;XZU640..T4..6FC..IV3;XZU650..T3..30T..IV3;XZU650..T3..30T..DCRTK..CBU;TRU600,XZU640..(DCRTJ,EFI)..CBU;TRU600,XZU640..T3..5F..(DCRTJ,EFI)..IV3;TRC600,XZU600..(DM5,T3)..(5F,6FC)..(20T,40T) |
4 | ||
| 90031-01170 |
XZC600..6FC..ST;XZU650..T4..30T;XZU640..T4..6FC..IV3;XZU650..T3..30T..IV3;XZU650..T3..30T..DCRTK..CBU;TRU600,XZU640..(DCRTJ,EFI)..CBU;TRU600,XZU640..T3..5F..(DCRTJ,EFI)..IV3;TRC600,XZU600..(DM5,T3)..(5F,6FC)..(20T,40T) |
4 | ||
| 46503C - PLATE SUB-ASSY, PARKING BRAKE | ||||
| 46503-37061 |
TRC600..DM5;TRU600..CBU;TRU600..T3..IV3 |
1 | ||
| 46503-37061 |
TRC600..DM5;TRU600..CBU;TRU600..T3..IV3 |
1 | ||
| 46503-37061 |
TRC600..DM5;TRU600..CBU;TRU600..T3..IV3 |
1 | ||
| 46506A - ADJUSTER SUB-ASSY, PARKING BRAKE SHOE | ||||
| 46506-36010 |
TRC600..DM5;XZC600..6FC..ST;XZU650..T4..30T;XZU640..T4..6FC..IV3;XZU650..T3..30T..IV3;XZU600..6FC..30T..IV6;XZU650..T3..30T..DCRTK..CBU;TRU600,XZU640..(DCRTJ,EFI)..CBU;TRU600,XZU640..T3..5F..(DCRTJ,EFI)..IV3 |
1 | ||
| 46506-36010 |
TRC600..DM5;XZC600..6FC..ST;XZU650..T4..30T;XZU640..T4..6FC..IV3;XZU650..T3..30T..IV3;XZU600..6FC..30T..IV6;XZU650..T3..30T..DCRTK..CBU;TRU600,XZU640..(DCRTJ,EFI)..CBU;TRU600,XZU640..T3..5F..(DCRTJ,EFI)..IV3 |
1 | ||
| 46506-36010 |
TRC600..DM5;XZC600..6FC..ST;XZU650..T4..30T;XZU640..T4..6FC..IV3;XZU650..T3..30T..IV3;XZU600..6FC..30T..IV6;XZU650..T3..30T..DCRTK..CBU;TRU600,XZU640..(DCRTJ,EFI)..CBU;TRU600,XZU640..T3..5F..(DCRTJ,EFI)..IV3 |
1 | ||
| 46540 - SHOE ASSY, PARKING BRAKE, RH OR CENTER NO.1 | ||||
| 46530-37030 |
TRC600..DM5;XZC600..6FC..ST;XZU650..T4..30T;XZU640..T4..6FC..IV3;XZU650..T3..30T..IV3;XZU600..6FC..30T..IV6;XZU650..T3..30T..DCRTK..CBU;TRU600,XZU640..(DCRTJ,EFI)..CBU;TRU600,XZU640..T3..5F..(DCRTJ,EFI)..IV3 |
1 | ||
| 46530-37030 |
TRC600..DM5;XZC600..6FC..ST;XZU650..T4..30T;XZU640..T4..6FC..IV3;XZU650..T3..30T..IV3;XZU600..6FC..30T..IV6;XZU650..T3..30T..DCRTK..CBU;TRU600,XZU640..(DCRTJ,EFI)..CBU;TRU600,XZU640..T3..5F..(DCRTJ,EFI)..IV3 |
1 | ||
| 46530-37030 |
TRC600..DM5;XZC600..6FC..ST;XZU650..T4..30T;XZU640..T4..6FC..IV3;XZU650..T3..30T..IV3;XZU600..6FC..30T..IV6;XZU650..T3..30T..DCRTK..CBU;TRU600,XZU640..(DCRTJ,EFI)..CBU;TRU600,XZU640..T3..5F..(DCRTJ,EFI)..IV3 |
1 | ||
| 46550 - SHOE ASSY, PARKING BRAKE, RH OR CENTER NO.2 | ||||
| 46530-37030 |
TRC600..DM5;XZC600..6FC..ST;XZU650..T4..30T;XZU640..T4..6FC..IV3;XZU650..T3..30T..IV3;XZU600..6FC..30T..IV6;XZU650..T3..30T..DCRTK..CBU;TRU600,XZU640..(DCRTJ,EFI)..CBU;TRU600,XZU640..T3..5F..(DCRTJ,EFI)..IV3 |
1 | ||
| 46530-37030 |
TRC600..DM5;XZC600..6FC..ST;XZU650..T4..30T;XZU640..T4..6FC..IV3;XZU650..T3..30T..IV3;XZU600..6FC..30T..IV6;XZU650..T3..30T..DCRTK..CBU;TRU600,XZU640..(DCRTJ,EFI)..CBU;TRU600,XZU640..T3..5F..(DCRTJ,EFI)..IV3 |
1 | ||
| 46530-37030 |
TRC600..DM5;XZC600..6FC..ST;XZU650..T4..30T;XZU640..T4..6FC..IV3;XZU650..T3..30T..IV3;XZU600..6FC..30T..IV6;XZU650..T3..30T..DCRTK..CBU;TRU600,XZU640..(DCRTJ,EFI)..CBU;TRU600,XZU640..T3..5F..(DCRTJ,EFI)..IV3 |
1 | ||
| 46550A - SPRING, TENSION, NO.1(FOR PARKING BRAKE SHOE RETURN) | ||||
| 90506-18001 |
TRC600..DM5;XZC600..6FC..ST;XZU650..T4..30T;XZU640..T4..6FC..IV3;XZU650..T3..30T..IV3;XZU600..6FC..30T..IV6;XZU650..T3..30T..DCRTK..CBU;TRU600,XZU640..(DCRTJ,EFI)..CBU;TRU600,XZU640..T3..5F..(DCRTJ,EFI)..IV3 |
2 | ||
| 90506-18001 |
TRC600..DM5;XZC600..6FC..ST;XZU650..T4..30T;XZU640..T4..6FC..IV3;XZU650..T3..30T..IV3;XZU600..6FC..30T..IV6;XZU650..T3..30T..DCRTK..CBU;TRU600,XZU640..(DCRTJ,EFI)..CBU;TRU600,XZU640..T3..5F..(DCRTJ,EFI)..IV3 |
2 | ||
| 90506-18001 |
TRC600..DM5;XZC600..6FC..ST;XZU650..T4..30T;XZU640..T4..6FC..IV3;XZU650..T3..30T..IV3;XZU600..6FC..30T..IV6;XZU650..T3..30T..DCRTK..CBU;TRU600,XZU640..(DCRTJ,EFI)..CBU;TRU600,XZU640..T3..5F..(DCRTJ,EFI)..IV3 |
2 | ||
| 46550A - SPRING, TENSION, NO.1(FOR PARKING BRAKE SHOE RETURN) | ||||
| 90506-18001 |
TRC600..DM5;XZC600..6FC..ST;XZU650..T4..30T;XZU640..T4..6FC..IV3;XZU650..T3..30T..IV3;XZU600..6FC..30T..IV6;XZU650..T3..30T..DCRTK..CBU;TRU600,XZU640..(DCRTJ,EFI)..CBU;TRU600,XZU640..T3..5F..(DCRTJ,EFI)..IV3 |
2 | ||
| 90506-18001 |
TRC600..DM5;XZC600..6FC..ST;XZU650..T4..30T;XZU640..T4..6FC..IV3;XZU650..T3..30T..IV3;XZU600..6FC..30T..IV6;XZU650..T3..30T..DCRTK..CBU;TRU600,XZU640..(DCRTJ,EFI)..CBU;TRU600,XZU640..T3..5F..(DCRTJ,EFI)..IV3 |
2 | ||
| 90506-18001 |
TRC600..DM5;XZC600..6FC..ST;XZU650..T4..30T;XZU640..T4..6FC..IV3;XZU650..T3..30T..IV3;XZU600..6FC..30T..IV6;XZU650..T3..30T..DCRTK..CBU;TRU600,XZU640..(DCRTJ,EFI)..CBU;TRU600,XZU640..T3..5F..(DCRTJ,EFI)..IV3 |
2 | ||
| 46550C - WASHER, TYPE C(FOR PARKING BRAKE SHOE) | ||||
| 90213-06003 |
XZC600..6FC..ST;XZU650..T4..30T;XZU640..T4..6FC..IV3;XZU650..T3..30T..IV3;XZU650..T3..30T..DCRTK..CBU;TRU600,XZU640..(DCRTJ,EFI)..CBU;TRU600,XZU640..T3..5F..(DCRTJ,EFI)..IV3;TRC600,XZU600..(DM5,T3)..(5F,6FC)..(20T,40T) |
1 | ||
| 90213-06003 |
XZC600..6FC..ST;XZU650..T4..30T;XZU640..T4..6FC..IV3;XZU650..T3..30T..IV3;XZU650..T3..30T..DCRTK..CBU;TRU600,XZU640..(DCRTJ,EFI)..CBU;TRU600,XZU640..T3..5F..(DCRTJ,EFI)..IV3;TRC600,XZU600..(DM5,T3)..(5F,6FC)..(20T,40T) |
1 | ||
| 90213-06003 |
XZC600..6FC..ST;XZU650..T4..30T;XZU640..T4..6FC..IV3;XZU650..T3..30T..IV3;XZU650..T3..30T..DCRTK..CBU;TRU600,XZU640..(DCRTJ,EFI)..CBU;TRU600,XZU640..T3..5F..(DCRTJ,EFI)..IV3;TRC600,XZU600..(DM5,T3)..(5F,6FC)..(20T,40T) |
1 | ||
| 46550E - SPRING, TENSION, NO.2(FOR PARKING BRAKE SHOE RETURN) | ||||
| 90506-14012 |
TRC600..DM5;XZC600..6FC..ST;XZU650..T4..30T;XZU640..T4..6FC..IV3;XZU650..T3..30T..IV3;XZU600..6FC..30T..IV6;XZU650..T3..30T..DCRTK..CBU;TRU600,XZU640..(DCRTJ,EFI)..CBU;TRU600,XZU640..T3..5F..(DCRTJ,EFI)..IV3 |
1 | ||
| 90506-14012 |
TRC600..DM5;XZC600..6FC..ST;XZU650..T4..30T;XZU640..T4..6FC..IV3;XZU650..T3..30T..IV3;XZU600..6FC..30T..IV6;XZU650..T3..30T..DCRTK..CBU;TRU600,XZU640..(DCRTJ,EFI)..CBU;TRU600,XZU640..T3..5F..(DCRTJ,EFI)..IV3 |
1 | ||
| 90506-14012 |
TRC600..DM5;XZC600..6FC..ST;XZU650..T4..30T;XZU640..T4..6FC..IV3;XZU650..T3..30T..IV3;XZU600..6FC..30T..IV6;XZU650..T3..30T..DCRTK..CBU;TRU600,XZU640..(DCRTJ,EFI)..CBU;TRU600,XZU640..T3..5F..(DCRTJ,EFI)..IV3 |
1 | ||
| 46555 - SPRING, BRAKE SHOE HOLD DOWN | ||||
| 90501-16025 |
TRC600..DM5;XZC600..6FC..ST;XZU650..T4..30T;XZU640..T4..6FC..IV3;XZU650..T3..30T..IV3;XZU600..6FC..30T..IV6;XZU650..T3..30T..DCRTK..CBU;TRU600,XZU640..(DCRTJ,EFI)..CBU;TRU600,XZU640..T3..5F..(DCRTJ,EFI)..IV3 |
2 | ||
| 90501-16025 |
TRC600..DM5;XZC600..6FC..ST;XZU650..T4..30T;XZU640..T4..6FC..IV3;XZU650..T3..30T..IV3;XZU600..6FC..30T..IV6;XZU650..T3..30T..DCRTK..CBU;TRU600,XZU640..(DCRTJ,EFI)..CBU;TRU600,XZU640..T3..5F..(DCRTJ,EFI)..IV3 |
2 | ||
| 90501-16025 |
TRC600..DM5;XZC600..6FC..ST;XZU650..T4..30T;XZU640..T4..6FC..IV3;XZU650..T3..30T..IV3;XZU600..6FC..30T..IV6;XZU650..T3..30T..DCRTK..CBU;TRU600,XZU640..(DCRTJ,EFI)..CBU;TRU600,XZU640..T3..5F..(DCRTJ,EFI)..IV3 |
2 | ||
| 46556 - PIN, SHOE HOLD DOWN SPRING | ||||
| 47447-22010 |
TRC600..DM5;XZC600..6FC..ST;XZU650..T4..30T;XZU640..T4..6FC..IV3;XZU650..T3..30T..IV3;XZU600..6FC..30T..IV6;XZU650..T3..30T..DCRTK..CBU;TRU600,XZU640..(DCRTJ,EFI)..CBU;TRU600,XZU640..T3..5F..(DCRTJ,EFI)..IV3 |
2 | ||
| 47447-22010 |
TRC600..DM5;XZC600..6FC..ST;XZU650..T4..30T;XZU640..T4..6FC..IV3;XZU650..T3..30T..IV3;XZU600..6FC..30T..IV6;XZU650..T3..30T..DCRTK..CBU;TRU600,XZU640..(DCRTJ,EFI)..CBU;TRU600,XZU640..T3..5F..(DCRTJ,EFI)..IV3 |
2 | ||
| 47447-22010 |
TRC600..DM5;XZC600..6FC..ST;XZU650..T4..30T;XZU640..T4..6FC..IV3;XZU650..T3..30T..IV3;XZU600..6FC..30T..IV6;XZU650..T3..30T..DCRTK..CBU;TRU600,XZU640..(DCRTJ,EFI)..CBU;TRU600,XZU640..T3..5F..(DCRTJ,EFI)..IV3 |
2 | ||
| 46557 - CUP, BRAKE SHOE HOLD DOWN | ||||
| 47449-20011 |
XZC600..6FC..ST;XZU650..T4..30T;XZU640..T4..6FC..IV3;XZU650..T3..30T..IV3;XZU650..T3..30T..DCRTK..CBU;TRU600,XZU640..(DCRTJ,EFI)..CBU;TRU600,XZU640..T3..5F..(DCRTJ,EFI)..IV3;TRC600,XZU600..(DM5,T3)..(5F,6FC)..(20T,40T) |
4 | ||
| 47449-20011 |
XZC600..6FC..ST;XZU650..T4..30T;XZU640..T4..6FC..IV3;XZU650..T3..30T..IV3;XZU650..T3..30T..DCRTK..CBU;TRU600,XZU640..(DCRTJ,EFI)..CBU;TRU600,XZU640..T3..5F..(DCRTJ,EFI)..IV3;TRC600,XZU600..(DM5,T3)..(5F,6FC)..(20T,40T) |
4 | ||
| 47449-20011 |
XZC600..6FC..ST;XZU650..T4..30T;XZU640..T4..6FC..IV3;XZU650..T3..30T..IV3;XZU650..T3..30T..DCRTK..CBU;TRU600,XZU640..(DCRTJ,EFI)..CBU;TRU600,XZU640..T3..5F..(DCRTJ,EFI)..IV3;TRC600,XZU600..(DM5,T3)..(5F,6FC)..(20T,40T) |
4 | ||
| 46557 - CUP, BRAKE SHOE HOLD DOWN | ||||
| 47449-20011 |
XZC600..6FC..ST;XZU650..T4..30T;XZU640..T4..6FC..IV3;XZU650..T3..30T..IV3;XZU650..T3..30T..DCRTK..CBU;TRU600,XZU640..(DCRTJ,EFI)..CBU;TRU600,XZU640..T3..5F..(DCRTJ,EFI)..IV3;TRC600,XZU600..(DM5,T3)..(5F,6FC)..(20T,40T) |
4 | ||
| 47449-20011 |
XZC600..6FC..ST;XZU650..T4..30T;XZU640..T4..6FC..IV3;XZU650..T3..30T..IV3;XZU650..T3..30T..DCRTK..CBU;TRU600,XZU640..(DCRTJ,EFI)..CBU;TRU600,XZU640..T3..5F..(DCRTJ,EFI)..IV3;TRC600,XZU600..(DM5,T3)..(5F,6FC)..(20T,40T) |
4 | ||
| 47449-20011 |
XZC600..6FC..ST;XZU650..T4..30T;XZU640..T4..6FC..IV3;XZU650..T3..30T..IV3;XZU650..T3..30T..DCRTK..CBU;TRU600,XZU640..(DCRTJ,EFI)..CBU;TRU600,XZU640..T3..5F..(DCRTJ,EFI)..IV3;TRC600,XZU600..(DM5,T3)..(5F,6FC)..(20T,40T) |
4 | ||
| 46577 - COVER, ADJUSTING CAM HOLE | ||||
| 46577-36010 |
TRC600..DM5;XZC600..6FC..ST;XZU650..T4..30T;XZU640..T4..6FC..IV3;XZU650..T3..30T..IV3;XZU600..6FC..30T..IV6;XZU650..T3..30T..DCRTK..CBU;TRU600,XZU640..(DCRTJ,EFI)..CBU;TRU600,XZU640..T3..5F..(DCRTJ,EFI)..IV3 |
1 | ||
| 46577-36010 |
TRC600..DM5;XZC600..6FC..ST;XZU650..T4..30T;XZU640..T4..6FC..IV3;XZU650..T3..30T..IV3;XZU600..6FC..30T..IV6;XZU650..T3..30T..DCRTK..CBU;TRU600,XZU640..(DCRTJ,EFI)..CBU;TRU600,XZU640..T3..5F..(DCRTJ,EFI)..IV3 |
1 | ||
| 46577-36010 |
TRC600..DM5;XZC600..6FC..ST;XZU650..T4..30T;XZU640..T4..6FC..IV3;XZU650..T3..30T..IV3;XZU600..6FC..30T..IV6;XZU650..T3..30T..DCRTK..CBU;TRU600,XZU640..(DCRTJ,EFI)..CBU;TRU600,XZU640..T3..5F..(DCRTJ,EFI)..IV3 |
1 | ||
| 46601 - LEVER SUB-ASSY, PARKING BRAKE SHOE | ||||
| 46601-37680 |
TRC600..DM5;XZC600..6FC..ST;XZU650..T4..30T;XZU640..T4..6FC..IV3;XZU650..T3..30T..IV3;XZU600..6FC..30T..IV6;XZU650..T3..30T..DCRTK..CBU;TRU600,XZU640..(DCRTJ,EFI)..CBU;TRU600,XZU640..T3..5F..(DCRTJ,EFI)..IV3 |
1 | ||
| 46601-37680 |
TRC600..DM5;XZC600..6FC..ST;XZU650..T4..30T;XZU640..T4..6FC..IV3;XZU650..T3..30T..IV3;XZU600..6FC..30T..IV6;XZU650..T3..30T..DCRTK..CBU;TRU600,XZU640..(DCRTJ,EFI)..CBU;TRU600,XZU640..T3..5F..(DCRTJ,EFI)..IV3 |
1 | ||
| 46601-37680 |
TRC600..DM5;XZC600..6FC..ST;XZU650..T4..30T;XZU640..T4..6FC..IV3;XZU650..T3..30T..IV3;XZU600..6FC..30T..IV6;XZU650..T3..30T..DCRTK..CBU;TRU600,XZU640..(DCRTJ,EFI)..CBU;TRU600,XZU640..T3..5F..(DCRTJ,EFI)..IV3 |
1 | ||
| 46612 - STRUT, PARKING BRAKE SHOE LEVER | ||||
| 46612-36010 |
TRC600..DM5;XZC600..6FC..ST;XZU650..T4..30T;XZU640..T4..6FC..IV3;XZU650..T3..30T..IV3;XZU600..6FC..30T..IV6;XZU650..T3..30T..DCRTK..CBU;TRU600,XZU640..(DCRTJ,EFI)..CBU;TRU600,XZU640..T3..5F..(DCRTJ,EFI)..IV3 |
1 | ||
| 46612-36010 |
TRC600..DM5;XZC600..6FC..ST;XZU650..T4..30T;XZU640..T4..6FC..IV3;XZU650..T3..30T..IV3;XZU600..6FC..30T..IV6;XZU650..T3..30T..DCRTK..CBU;TRU600,XZU640..(DCRTJ,EFI)..CBU;TRU600,XZU640..T3..5F..(DCRTJ,EFI)..IV3 |
1 | ||
| 46612-36010 |
TRC600..DM5;XZC600..6FC..ST;XZU650..T4..30T;XZU640..T4..6FC..IV3;XZU650..T3..30T..IV3;XZU600..6FC..30T..IV6;XZU650..T3..30T..DCRTK..CBU;TRU600,XZU640..(DCRTJ,EFI)..CBU;TRU600,XZU640..T3..5F..(DCRTJ,EFI)..IV3 |
1 | ||
| 46612B - SPRING, COMPRESSION(FOR PARKING BRAKE SHOE STRUT) | ||||
| 90504-10001 |
TRC600..DM5;XZC600..6FC..ST;XZU650..T4..30T;XZU640..T4..6FC..IV3;XZU650..T3..30T..IV3;XZU600..6FC..30T..IV6;XZU650..T3..30T..DCRTK..CBU;TRU600,XZU640..(DCRTJ,EFI)..CBU;TRU600,XZU640..T3..5F..(DCRTJ,EFI)..IV3 |
1 | ||
| 90504-10001 |
TRC600..DM5;XZC600..6FC..ST;XZU650..T4..30T;XZU640..T4..6FC..IV3;XZU650..T3..30T..IV3;XZU600..6FC..30T..IV6;XZU650..T3..30T..DCRTK..CBU;TRU600,XZU640..(DCRTJ,EFI)..CBU;TRU600,XZU640..T3..5F..(DCRTJ,EFI)..IV3 |
1 | ||
| 90504-10001 |
TRC600..DM5;XZC600..6FC..ST;XZU650..T4..30T;XZU640..T4..6FC..IV3;XZU650..T3..30T..IV3;XZU600..6FC..30T..IV6;XZU650..T3..30T..DCRTK..CBU;TRU600,XZU640..(DCRTJ,EFI)..CBU;TRU600,XZU640..T3..5F..(DCRTJ,EFI)..IV3 |
1 | ||
| Common parts | ||||
| 90119-10339 | ||||
| 90119-12211 | ||||
| 94613-11200 | ||||

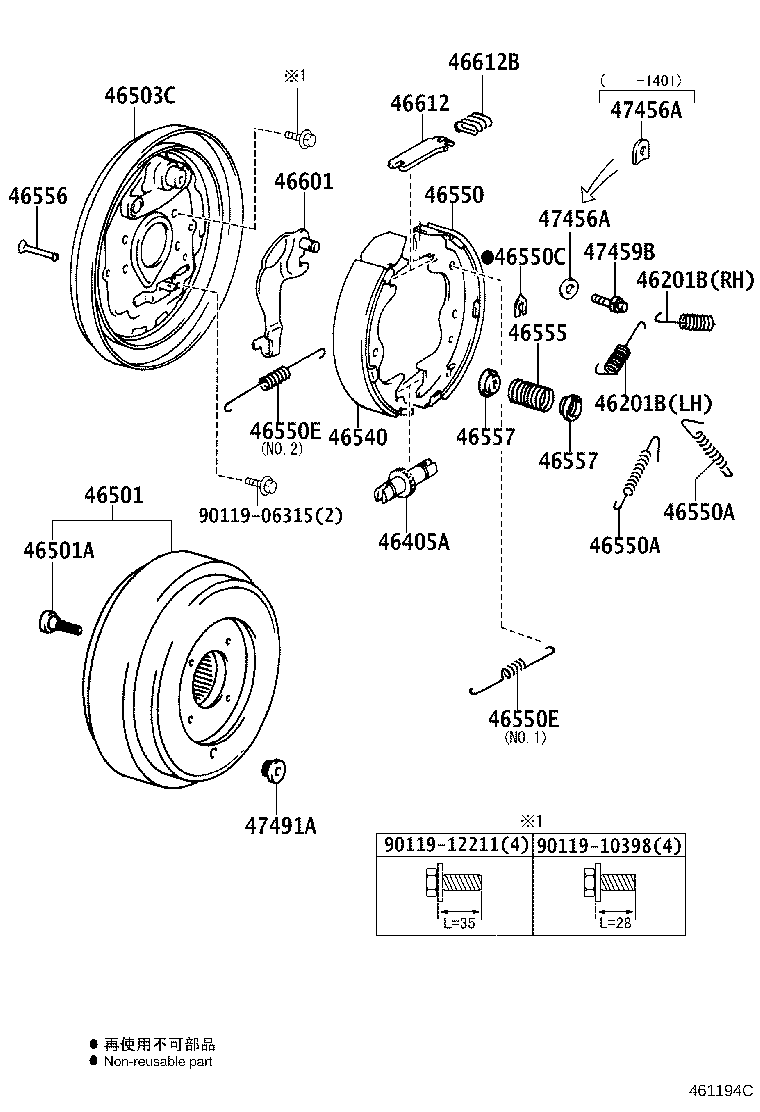

ILLUST NO. 2 OF 2(1107- )BZU600,XZU600,642..5F,6FC..20T,40T..DCRTJ,DCRTK,DCRVT,LPG..IV5,IV6 ; (15
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 46501 - DRUM SUB-ASSY, PARKING BRAKE | ||||
| 46501-37060 |
TRC600..DM5;XZU650..T4..5F..30T;XZU650..T3..5F..30T..IV3;XZU650..T3..5F..DCRTK..CBU;TRU600,XZU640..5F..(DCRTJ,EFI)..CBU;TRU600,XZU640..T3..5F..(DCRTJ,EFI)..IV3 |
1 | ||
| 46501-37060 |
TRC600..DM5;XZU650..T4..5F..30T;XZU650..T3..5F..30T..IV3;XZU650..T3..5F..DCRTK..CBU;TRU600,XZU640..5F..(DCRTJ,EFI)..CBU;TRU600,XZU640..T3..5F..(DCRTJ,EFI)..IV3 |
1 | ||
| 46501A - BOLT, SERRATION(FOR PARKING BRAKE DRUM) | ||||
| 90031-01170 |
XZC600..6FC..ST;XZU650..T4..30T;XZU640..T4..6FC..IV3;XZU650..T3..30T..IV3;XZU650..T3..30T..DCRTK..CBU;TRU600,XZU640..(DCRTJ,EFI)..CBU;TRU600,XZU640..T3..5F..(DCRTJ,EFI)..IV3;TRC600,XZU600..(DM5,T3)..(5F,6FC)..(20T,40T) |
4 | ||
| 90031-01170 |
XZC600..6FC..ST;XZU650..T4..30T;XZU640..T4..6FC..IV3;XZU650..T3..30T..IV3;XZU650..T3..30T..DCRTK..CBU;TRU600,XZU640..(DCRTJ,EFI)..CBU;TRU600,XZU640..T3..5F..(DCRTJ,EFI)..IV3;TRC600,XZU600..(DM5,T3)..(5F,6FC)..(20T,40T) |
4 | ||
| 46503C - PLATE SUB-ASSY, PARKING BRAKE | ||||
| 46503-37061 |
TRC600..DM5;TRU600..CBU;TRU600..T3..IV3 |
1 | ||
| 46503-37061 |
TRC600..DM5;TRU600..CBU;TRU600..T3..IV3 |
1 | ||
| 46540 - SHOE ASSY, PARKING BRAKE, RH OR CENTER NO.1 | ||||
| 46530-37030 |
TRC600..DM5;XZC600..6FC..ST;XZU650..T4..30T;XZU640..T4..6FC..IV3;XZU650..T3..30T..IV3;XZU600..6FC..30T..IV6;XZU650..T3..30T..DCRTK..CBU;TRU600,XZU640..(DCRTJ,EFI)..CBU;TRU600,XZU640..T3..5F..(DCRTJ,EFI)..IV3 |
1 | ||
| 46530-37030 |
TRC600..DM5;XZC600..6FC..ST;XZU650..T4..30T;XZU640..T4..6FC..IV3;XZU650..T3..30T..IV3;XZU600..6FC..30T..IV6;XZU650..T3..30T..DCRTK..CBU;TRU600,XZU640..(DCRTJ,EFI)..CBU;TRU600,XZU640..T3..5F..(DCRTJ,EFI)..IV3 |
1 | ||
| 46550 - SHOE ASSY, PARKING BRAKE, RH OR CENTER NO.2 | ||||
| 46530-37030 |
TRC600..DM5;XZC600..6FC..ST;XZU650..T4..30T;XZU640..T4..6FC..IV3;XZU650..T3..30T..IV3;XZU600..6FC..30T..IV6;XZU650..T3..30T..DCRTK..CBU;TRU600,XZU640..(DCRTJ,EFI)..CBU;TRU600,XZU640..T3..5F..(DCRTJ,EFI)..IV3 |
1 | ||
| 46530-37030 |
TRC600..DM5;XZC600..6FC..ST;XZU650..T4..30T;XZU640..T4..6FC..IV3;XZU650..T3..30T..IV3;XZU600..6FC..30T..IV6;XZU650..T3..30T..DCRTK..CBU;TRU600,XZU640..(DCRTJ,EFI)..CBU;TRU600,XZU640..T3..5F..(DCRTJ,EFI)..IV3 |
1 | ||
| 46550A - SPRING, TENSION, NO.1(FOR PARKING BRAKE SHOE RETURN) | ||||
| 90506-18001 |
TRC600..DM5;XZC600..6FC..ST;XZU650..T4..30T;XZU640..T4..6FC..IV3;XZU650..T3..30T..IV3;XZU600..6FC..30T..IV6;XZU650..T3..30T..DCRTK..CBU;TRU600,XZU640..(DCRTJ,EFI)..CBU;TRU600,XZU640..T3..5F..(DCRTJ,EFI)..IV3 |
2 | ||
| 90506-18001 |
TRC600..DM5;XZC600..6FC..ST;XZU650..T4..30T;XZU640..T4..6FC..IV3;XZU650..T3..30T..IV3;XZU600..6FC..30T..IV6;XZU650..T3..30T..DCRTK..CBU;TRU600,XZU640..(DCRTJ,EFI)..CBU;TRU600,XZU640..T3..5F..(DCRTJ,EFI)..IV3 |
2 | ||
| 46550A - SPRING, TENSION, NO.1(FOR PARKING BRAKE SHOE RETURN) | ||||
| 90506-18001 |
TRC600..DM5;XZC600..6FC..ST;XZU650..T4..30T;XZU640..T4..6FC..IV3;XZU650..T3..30T..IV3;XZU600..6FC..30T..IV6;XZU650..T3..30T..DCRTK..CBU;TRU600,XZU640..(DCRTJ,EFI)..CBU;TRU600,XZU640..T3..5F..(DCRTJ,EFI)..IV3 |
2 | ||
| 90506-18001 |
TRC600..DM5;XZC600..6FC..ST;XZU650..T4..30T;XZU640..T4..6FC..IV3;XZU650..T3..30T..IV3;XZU600..6FC..30T..IV6;XZU650..T3..30T..DCRTK..CBU;TRU600,XZU640..(DCRTJ,EFI)..CBU;TRU600,XZU640..T3..5F..(DCRTJ,EFI)..IV3 |
2 | ||
| 46550C - WASHER, TYPE C(FOR PARKING BRAKE SHOE) | ||||
| 90213-06003 |
XZC600..6FC..ST;XZU650..T4..30T;XZU640..T4..6FC..IV3;XZU650..T3..30T..IV3;XZU650..T3..30T..DCRTK..CBU;TRU600,XZU640..(DCRTJ,EFI)..CBU;TRU600,XZU640..T3..5F..(DCRTJ,EFI)..IV3;TRC600,XZU600..(DM5,T3)..(5F,6FC)..(20T,40T) |
1 | ||
| 90213-06003 |
XZC600..6FC..ST;XZU650..T4..30T;XZU640..T4..6FC..IV3;XZU650..T3..30T..IV3;XZU650..T3..30T..DCRTK..CBU;TRU600,XZU640..(DCRTJ,EFI)..CBU;TRU600,XZU640..T3..5F..(DCRTJ,EFI)..IV3;TRC600,XZU600..(DM5,T3)..(5F,6FC)..(20T,40T) |
1 | ||
| 46550E - SPRING, TENSION, NO.2(FOR PARKING BRAKE SHOE RETURN) | ||||
| 90506-14012 |
TRC600..DM5;XZC600..6FC..ST;XZU650..T4..30T;XZU640..T4..6FC..IV3;XZU650..T3..30T..IV3;XZU600..6FC..30T..IV6;XZU650..T3..30T..DCRTK..CBU;TRU600,XZU640..(DCRTJ,EFI)..CBU;TRU600,XZU640..T3..5F..(DCRTJ,EFI)..IV3 |
1 | ||
| 90506-14012 |
TRC600..DM5;XZC600..6FC..ST;XZU650..T4..30T;XZU640..T4..6FC..IV3;XZU650..T3..30T..IV3;XZU600..6FC..30T..IV6;XZU650..T3..30T..DCRTK..CBU;TRU600,XZU640..(DCRTJ,EFI)..CBU;TRU600,XZU640..T3..5F..(DCRTJ,EFI)..IV3 |
1 | ||
| 46550E - SPRING, TENSION, NO.2(FOR PARKING BRAKE SHOE RETURN) | ||||
| 90506-14012 |
TRC600..DM5;XZC600..6FC..ST;XZU650..T4..30T;XZU640..T4..6FC..IV3;XZU650..T3..30T..IV3;XZU600..6FC..30T..IV6;XZU650..T3..30T..DCRTK..CBU;TRU600,XZU640..(DCRTJ,EFI)..CBU;TRU600,XZU640..T3..5F..(DCRTJ,EFI)..IV3 |
1 | ||
| 90506-14012 |
TRC600..DM5;XZC600..6FC..ST;XZU650..T4..30T;XZU640..T4..6FC..IV3;XZU650..T3..30T..IV3;XZU600..6FC..30T..IV6;XZU650..T3..30T..DCRTK..CBU;TRU600,XZU640..(DCRTJ,EFI)..CBU;TRU600,XZU640..T3..5F..(DCRTJ,EFI)..IV3 |
1 | ||
| 46555 - SPRING, BRAKE SHOE HOLD DOWN | ||||
| 90501-16025 |
TRC600..DM5;XZC600..6FC..ST;XZU650..T4..30T;XZU640..T4..6FC..IV3;XZU650..T3..30T..IV3;XZU600..6FC..30T..IV6;XZU650..T3..30T..DCRTK..CBU;TRU600,XZU640..(DCRTJ,EFI)..CBU;TRU600,XZU640..T3..5F..(DCRTJ,EFI)..IV3 |
2 | ||
| 90501-16025 |
TRC600..DM5;XZC600..6FC..ST;XZU650..T4..30T;XZU640..T4..6FC..IV3;XZU650..T3..30T..IV3;XZU600..6FC..30T..IV6;XZU650..T3..30T..DCRTK..CBU;TRU600,XZU640..(DCRTJ,EFI)..CBU;TRU600,XZU640..T3..5F..(DCRTJ,EFI)..IV3 |
2 | ||
| 46556 - PIN, SHOE HOLD DOWN SPRING | ||||
| 47447-22010 |
TRC600..DM5;XZC600..6FC..ST;XZU650..T4..30T;XZU640..T4..6FC..IV3;XZU650..T3..30T..IV3;XZU600..6FC..30T..IV6;XZU650..T3..30T..DCRTK..CBU;TRU600,XZU640..(DCRTJ,EFI)..CBU;TRU600,XZU640..T3..5F..(DCRTJ,EFI)..IV3 |
2 | ||
| 47447-22010 |
TRC600..DM5;XZC600..6FC..ST;XZU650..T4..30T;XZU640..T4..6FC..IV3;XZU650..T3..30T..IV3;XZU600..6FC..30T..IV6;XZU650..T3..30T..DCRTK..CBU;TRU600,XZU640..(DCRTJ,EFI)..CBU;TRU600,XZU640..T3..5F..(DCRTJ,EFI)..IV3 |
2 | ||
| 46557 - CUP, BRAKE SHOE HOLD DOWN | ||||
| 47449-20011 |
XZC600..6FC..ST;XZU650..T4..30T;XZU640..T4..6FC..IV3;XZU650..T3..30T..IV3;XZU650..T3..30T..DCRTK..CBU;TRU600,XZU640..(DCRTJ,EFI)..CBU;TRU600,XZU640..T3..5F..(DCRTJ,EFI)..IV3;TRC600,XZU600..(DM5,T3)..(5F,6FC)..(20T,40T) |
4 | ||
| 47449-20011 |
XZC600..6FC..ST;XZU650..T4..30T;XZU640..T4..6FC..IV3;XZU650..T3..30T..IV3;XZU650..T3..30T..DCRTK..CBU;TRU600,XZU640..(DCRTJ,EFI)..CBU;TRU600,XZU640..T3..5F..(DCRTJ,EFI)..IV3;TRC600,XZU600..(DM5,T3)..(5F,6FC)..(20T,40T) |
4 | ||
| 46557 - CUP, BRAKE SHOE HOLD DOWN | ||||
| 47449-20011 |
XZC600..6FC..ST;XZU650..T4..30T;XZU640..T4..6FC..IV3;XZU650..T3..30T..IV3;XZU650..T3..30T..DCRTK..CBU;TRU600,XZU640..(DCRTJ,EFI)..CBU;TRU600,XZU640..T3..5F..(DCRTJ,EFI)..IV3;TRC600,XZU600..(DM5,T3)..(5F,6FC)..(20T,40T) |
4 | ||
| 47449-20011 |
XZC600..6FC..ST;XZU650..T4..30T;XZU640..T4..6FC..IV3;XZU650..T3..30T..IV3;XZU650..T3..30T..DCRTK..CBU;TRU600,XZU640..(DCRTJ,EFI)..CBU;TRU600,XZU640..T3..5F..(DCRTJ,EFI)..IV3;TRC600,XZU600..(DM5,T3)..(5F,6FC)..(20T,40T) |
4 | ||
| 46601 - LEVER SUB-ASSY, PARKING BRAKE SHOE | ||||
| 46601-37680 |
TRC600..DM5;XZC600..6FC..ST;XZU650..T4..30T;XZU640..T4..6FC..IV3;XZU650..T3..30T..IV3;XZU600..6FC..30T..IV6;XZU650..T3..30T..DCRTK..CBU;TRU600,XZU640..(DCRTJ,EFI)..CBU;TRU600,XZU640..T3..5F..(DCRTJ,EFI)..IV3 |
1 | ||
| 46601-37680 |
TRC600..DM5;XZC600..6FC..ST;XZU650..T4..30T;XZU640..T4..6FC..IV3;XZU650..T3..30T..IV3;XZU600..6FC..30T..IV6;XZU650..T3..30T..DCRTK..CBU;TRU600,XZU640..(DCRTJ,EFI)..CBU;TRU600,XZU640..T3..5F..(DCRTJ,EFI)..IV3 |
1 | ||
| 46612 - STRUT, PARKING BRAKE SHOE LEVER | ||||
| 46612-36010 |
TRC600..DM5;XZC600..6FC..ST;XZU650..T4..30T;XZU640..T4..6FC..IV3;XZU650..T3..30T..IV3;XZU600..6FC..30T..IV6;XZU650..T3..30T..DCRTK..CBU;TRU600,XZU640..(DCRTJ,EFI)..CBU;TRU600,XZU640..T3..5F..(DCRTJ,EFI)..IV3 |
1 | ||
| 46612-36010 |
TRC600..DM5;XZC600..6FC..ST;XZU650..T4..30T;XZU640..T4..6FC..IV3;XZU650..T3..30T..IV3;XZU600..6FC..30T..IV6;XZU650..T3..30T..DCRTK..CBU;TRU600,XZU640..(DCRTJ,EFI)..CBU;TRU600,XZU640..T3..5F..(DCRTJ,EFI)..IV3 |
1 | ||
| 46612B - SPRING, COMPRESSION(FOR PARKING BRAKE SHOE STRUT) | ||||
| 90504-10001 |
TRC600..DM5;XZC600..6FC..ST;XZU650..T4..30T;XZU640..T4..6FC..IV3;XZU650..T3..30T..IV3;XZU600..6FC..30T..IV6;XZU650..T3..30T..DCRTK..CBU;TRU600,XZU640..(DCRTJ,EFI)..CBU;TRU600,XZU640..T3..5F..(DCRTJ,EFI)..IV3 |
1 | ||
| 90504-10001 |
TRC600..DM5;XZC600..6FC..ST;XZU650..T4..30T;XZU640..T4..6FC..IV3;XZU650..T3..30T..IV3;XZU600..6FC..30T..IV6;XZU650..T3..30T..DCRTK..CBU;TRU600,XZU640..(DCRTJ,EFI)..CBU;TRU600,XZU640..T3..5F..(DCRTJ,EFI)..IV3 |
1 | ||
| Common parts | ||||
| 90119-06315 | ||||
| 90119-10398 | ||||
| 90119-12211 | ||||
ILLUST NO. 1 OF 2(1107- )DCRTH,DCRTJ,DCRTK,DCRVT,EFI,LPG
ﾅｼ(ﾃﾞﾝﾄﾞｳﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 46210 - LEVER ASSY, PARKING BRAKE | ||||
| 46210-37150C0 |
TRC600..DM5;XZC600..6FC..ST;XZU650..T4..30T;XZU640..T4..6FC..IV3;XZU650..T3..30T..IV3;XZU600..6FC..(IV5,IV6);XZU650..T3..30T..DCRTK..CBU;TRU600,XZU640..(DCRTJ,EFI)..CBU;TRU600,XZU640..T3..5F..(DCRTJ,EFI)..IV3 BLACK,TRIM1# |
1 | ||
| 46210-37130C0 |
TRC600..DM5;XZC600..6FC..ST;XZU650..T4..30T;XZU640..T4..6FC..IV3;XZU650..T3..30T..IV3;XZU650..T3..30T..DCRTK..CBU;TRU600,XZU640..(DCRTJ,EFI)..CBU;TRU600,XZU640..T3..5F..(DCRTJ,EFI)..IV3 ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−固定式ﾚﾊﾞｰ(ﾄﾞﾗﾑ内径178ﾐﾘ),BLACK,TRIM1# |
1 | ||
| 46420 - CABLE ASSY, PARKING BRAKE, NO.2 | ||||
| 46420-37800 |
TRC600..DM5;TRU600..CBU;TRU600..T3..IV3 |
1 | ||
| 46420F - SEAL, DUST(FOR PARKING BRAKE CABLE) | ||||
| 90303-10001 |
TRC600..DM5;XZC600..6FC..ST;XZU650..T4..30T;XZU640..T4..6FC..IV3;XZU650..T3..30T..IV3;XZU600..6FC..30T..IV6;XZU650..T3..30T..DCRTK..CBU;TRU600,XZU640..(DCRTJ,EFI)..CBU;TRU600,XZU640..T3..5F..(DCRTJ,EFI)..IV3 |
1 | ||
| 46420G - SPRING(FOR PARKING CABLE INNER WIRE SET) | ||||
| 90501-14003 |
TRC600..DM5;XZC600..6FC..ST;XZU650..T4..30T;XZU640..T4..6FC..IV3;XZU650..T3..30T..IV3;XZU600..6FC..30T..IV6;XZU650..T3..30T..DCRTK..CBU;TRU600,XZU640..(DCRTJ,EFI)..CBU;TRU600,XZU640..T3..5F..(DCRTJ,EFI)..IV3 |
1 | ||
| 46420P - SPACER, PARKING BRAKE | ||||
| 90560-08002 |
TRC600..DM5;XZC600..6FC..ST;XZU650..T4..30T;XZU640..T4..6FC..IV3;XZU650..T3..30T..IV3;XZU600..6FC..30T..IV6;XZU650..T3..30T..DCRTK..CBU;TRU600,XZU640..(DCRTJ,EFI)..CBU;TRU600,XZU640..T3..5F..(DCRTJ,EFI)..IV3 |
1 | ||
| 46420Q - RING, E(FOR PARKING BRAKE CABLE) | ||||
| 96160-00700 |
TRC600..DM5;XZC600..6FC..ST;XZU650..T4..30T;XZU640..T4..6FC..IV3;XZU650..T3..30T..IV3;XZU600..6FC..30T..IV6;XZU650..T3..30T..DCRTK..CBU;TRU600,XZU640..(DCRTJ,EFI)..CBU;TRU600,XZU640..T3..5F..(DCRTJ,EFI)..IV3 |
1 | ||
| 46430 - CABLE ASSY, PARKING BRAKE, NO.3 | ||||
| 46430-37B40 |
TRC600..DM5;TRU600..CBU;TRU600..T3..IV3 |
1 | ||
| 46453A - BRACKET, CABLE SUPPORT, NO.3 | ||||
| 46453-37190 |
XZU640..T4..6FC..IV3;TRU600,XZU640..(DCRTJ,EFI)..CBU;TRU600,XZU640..T3..5F..(DCRTJ,EFI)..IV3;TRC600,XZU600..(DM5,T3)..(5F,6FC)..(20T,40T) |
1 | ||
| 46453A - BRACKET, CABLE SUPPORT, NO.3 | ||||
| 46453-37190 |
XZU640..T4..6FC..IV3;TRU600,XZU640..(DCRTJ,EFI)..CBU;TRU600,XZU640..T3..5F..(DCRTJ,EFI)..IV3;TRC600,XZU600..(DM5,T3)..(5F,6FC)..(20T,40T) |
1 | ||
| 46453A - BRACKET, CABLE SUPPORT, NO.3 | ||||
| 46453-37190 |
XZU640..T4..6FC..IV3;TRU600,XZU640..(DCRTJ,EFI)..CBU;TRU600,XZU640..T3..5F..(DCRTJ,EFI)..IV3;TRC600,XZU600..(DM5,T3)..(5F,6FC)..(20T,40T) |
1 | ||
| 46453A - BRACKET, CABLE SUPPORT, NO.3 | ||||
| 46453-37190 |
XZU640..T4..6FC..IV3;TRU600,XZU640..(DCRTJ,EFI)..CBU;TRU600,XZU640..T3..5F..(DCRTJ,EFI)..IV3;TRC600,XZU600..(DM5,T3)..(5F,6FC)..(20T,40T) |
1 | ||
| 46453A - BRACKET, CABLE SUPPORT, NO.3 | ||||
| 46453-37190 |
XZU640..T4..6FC..IV3;TRU600,XZU640..(DCRTJ,EFI)..CBU;TRU600,XZU640..T3..5F..(DCRTJ,EFI)..IV3;TRC600,XZU600..(DM5,T3)..(5F,6FC)..(20T,40T) |
1 | ||
| Common parts | ||||
| 33829-37210 | ||||
| 90461-08225 | ||||
| 91551-80816 | ||||
| 91551-80818 | ||||
| 91551-80825 | ||||
| 91551-A0818 | ||||
| 91651-40814 | ||||
| 94151-80800 | ||||
| 96160-01200 | ||||
| Linked diagrams | ||||
| 8401 | ||||
ILLUST NO. 1 OF 2(1305- )DCRTH,DCRTJ,DCRTK,DCRVT,EFI,LPG
ｱﾘ(ﾃﾞﾝﾄﾞｳﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 46420 - CABLE ASSY, PARKING BRAKE, NO.2 | ||||
| 46420-37800 |
TRC600..DM5;TRU600..CBU;TRU600..T3..IV3 |
1 | ||
| 46430 - CABLE ASSY, PARKING BRAKE, NO.3 | ||||
| 46430-37B40 |
TRC600..DM5;TRU600..CBU;TRU600..T3..IV3 |
1 | ||
| 46453A - BRACKET, CABLE SUPPORT, NO.3 | ||||
| 46453-37190 |
XZU640..T4..6FC..IV3;TRU600,XZU640..(DCRTJ,EFI)..CBU;TRU600,XZU640..T3..5F..(DCRTJ,EFI)..IV3;TRC600,XZU600..(DM5,T3)..(5F,6FC)..(20T,40T) |
1 | ||
| 46453A - BRACKET, CABLE SUPPORT, NO.3 | ||||
| 46453-37190 |
XZU640..T4..6FC..IV3;TRU600,XZU640..(DCRTJ,EFI)..CBU;TRU600,XZU640..T3..5F..(DCRTJ,EFI)..IV3;TRC600,XZU600..(DM5,T3)..(5F,6FC)..(20T,40T) |
1 | ||
| 46453A - BRACKET, CABLE SUPPORT, NO.3 | ||||
| 46453-37190 |
XZU640..T4..6FC..IV3;TRU600,XZU640..(DCRTJ,EFI)..CBU;TRU600,XZU640..T3..5F..(DCRTJ,EFI)..IV3;TRC600,XZU600..(DM5,T3)..(5F,6FC)..(20T,40T) |
1 | ||
| 46453A - BRACKET, CABLE SUPPORT, NO.3 | ||||
| 46453-37190 |
XZU640..T4..6FC..IV3;TRU600,XZU640..(DCRTJ,EFI)..CBU;TRU600,XZU640..T3..5F..(DCRTJ,EFI)..IV3;TRC600,XZU600..(DM5,T3)..(5F,6FC)..(20T,40T) |
1 | ||
| 46453A - BRACKET, CABLE SUPPORT, NO.3 | ||||
| 46453-37190 |
XZU640..T4..6FC..IV3;TRU600,XZU640..(DCRTJ,EFI)..CBU;TRU600,XZU640..T3..5F..(DCRTJ,EFI)..IV3;TRC600,XZU600..(DM5,T3)..(5F,6FC)..(20T,40T) |
1 | ||
| Common parts | ||||
| 33829-37210 | ||||
| 90467-08108 | ||||
| 91551-80816 | ||||
| 91551-80818 | ||||
| 91551-80825 | ||||
| 94151-80800 | ||||
| 96160-01200 | ||||
| Linked diagrams | ||||
| 7554 | ||||
| 8401 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
