TRC600A-TWMMK3 (2011)
Toyota Dyna/Toyoace
(1107- )TRC600,TRU600
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44302G - SEAL, OIL, NO.2(FOR VANE PUMP HOUSING) | ||||
| 90311-15012 |
TRC600..DM5;TRU600..CBU;TRU600..T3..IV3 |
1 | ||
| 44303A - SHAFT SUB-ASSY, W/PULLEY | ||||
| 44303-28010 |
TRC600..DM5;TRU600..CBU;TRU600..T3..IV3 |
1 | ||
| 44305 - CAP SUB-ASSY, VANE PUMP OIL RESERVOIR | ||||
| 44305-22060 |
TRC600,TRU600 |
1 | ||
| 44305-22061 |
TRC600..DM5;TRU600..CBU;TRU600..T3..IV3 |
1 | ||
| 44306 - RESERVOIR SUB-ASSY, VANE PUMP OIL | ||||
| 44306-25060 |
TRC600..DM5;TRU600..CBU;TRU600..T3..IV3 |
1 | ||
| 44308 - UNION SUB-ASSY, PRESSURE PORT | ||||
| 44308-36020 |
TRC600..DM5;TRU600..CBU;TRU600..T3..IV3 |
1 | ||
| 44312B - RING, SNAP, NO.1(FOR VANE PUMP SHAFT) | ||||
| 90520-10003 |
TRC600..DM5;TRU600..CBU;TRU600..T3..IV3 |
1 | ||
| 44313 - ROTOR, VANE PUMP | ||||
| 44313-32060 |
TRC600..DM5;TRU600..CBU;TRU600..T3..IV3 ﾏｰｸ無し |
1 | ||
| 44313-32090 |
TRC600..DM5;TRU600..CBU;TRU600..T3..IV3 ﾏｰｸ 3 |
1 | ||
| 44313-32070 |
TRC600..DM5;TRU600..CBU;TRU600..T3..IV3 ﾏｰｸ 1 |
1 | ||
| 44313-32080 |
TRC600..DM5;TRU600..CBU;TRU600..T3..IV3 ﾏｰｸ 2 |
1 | ||
| 44313-32100 |
TRC600..DM5;TRU600..CBU;TRU600..T3..IV3 ﾏｰｸ 4 |
1 | ||
| 44320 - PUMP ASSY, VANE | ||||
| 44310-37250 |
TRC600..DM5;TRU600..CBU;TRU600..T3..IV3 |
1 | ||
| 44324C - RING, O(FOR PUMP HOUSING REAR) | ||||
| 90903-01007 |
TRC600..DM5;TRU600..CBU;TRU600..T3..IV3 |
1 | ||
| 44326 - RING, CAM(FOR VANE PUMP) | ||||
| 44325-28020 |
TRC600..DM5;TRU600..CBU;TRU600..T3..IV3 ﾏｰｸ 1 |
1 | ||
| 44325-28040 |
TRC600..DM5;TRU600..CBU;TRU600..T3..IV3 ﾏｰｸ 3 |
1 | ||
| 44325-28010 |
TRC600..DM5;TRU600..CBU;TRU600..T3..IV3 ﾏｰｸ 0 |
1 | ||
| 44325-28030 |
TRC600..DM5;TRU600..CBU;TRU600..T3..IV3 ﾏｰｸ 2 |
1 | ||
| 44325-28050 |
TRC600..DM5;TRU600..CBU;TRU600..T3..IV3 ﾏｰｸ 4 |
1 | ||
| 44341 - PLATE, VANE PUMP SIDE, FRONT | ||||
| 44341-32031 |
TRC600..DM5;TRU600..CBU;TRU600..T3..IV3 |
1 | ||
| 44341A - RING, O(FOR VANE PUMP FRONT SIDE PLATE) | ||||
| 90301-45003 |
TRC600..DM5;TRU600..CBU;TRU600..T3..IV3 NO.2 |
1 | ||
| 90301-16012 |
TRC600..DM5;TRU600..CBU;TRU600..T3..IV3 NO.1 |
1 | ||
| 44341A - RING, O(FOR VANE PUMP FRONT SIDE PLATE) | ||||
| 90301-45003 |
TRC600..DM5;TRU600..CBU;TRU600..T3..IV3 NO.2 |
1 | ||
| 90301-16012 |
TRC600..DM5;TRU600..CBU;TRU600..T3..IV3 NO.1 |
1 | ||
| 44342A - RING, O(FOR VANE PUMP SIDE PLATE REAR) | ||||
| 90301-18009 |
TRC600..DM5;TRU600..CBU;TRU600..T3..IV3 NO.2 |
1 | ||
| 90301-11020 |
TRC600..DM5;TRU600..CBU;TRU600..T3..IV3 NO.1 |
1 | ||
| 44342A - RING, O(FOR VANE PUMP SIDE PLATE REAR) | ||||
| 90301-18009 |
TRC600..DM5;TRU600..CBU;TRU600..T3..IV3 NO.2 |
1 | ||
| 90301-11020 |
TRC600..DM5;TRU600..CBU;TRU600..T3..IV3 NO.1 |
1 | ||
| 44342B - SPRING, COMPRESSION(FOR VANE PUMP SIDE PLATE REAR) | ||||
| 90501-13069 |
TRC600..DM5;TRU600..CBU;TRU600..T3..IV3 |
1 | ||
| 44345B - PLATE, VANE PUMP | ||||
| 44345-32120 |
TRC600..DM5;TRU600..CBU;TRU600..T3..IV3 ﾛｰﾀ ﾏｰｸ 2 |
10 | ||
| 44345-32110 |
TRC600..DM5;TRU600..CBU;TRU600..T3..IV3 ﾛｰﾀ ﾏｰｸ 1 |
10 | ||
| 44345-32130 |
TRC600..DM5;TRU600..CBU;TRU600..T3..IV3 ﾛｰﾀ ﾏｰｸ 3 |
10 | ||
| 44345-32140 |
TRC600..DM5;TRU600..CBU;TRU600..T3..IV3 ﾛｰﾀ ﾏｰｸ 4 |
10 | ||
| 44345-32100 |
TRC600..DM5;TRU600..CBU;TRU600..T3..IV3 ﾛｰﾀ ﾏｰｸ無し |
10 | ||
| Common parts | ||||
| 90105-08365 | ||||
| 90119-06559 | ||||
| 91673-E1090 | ||||

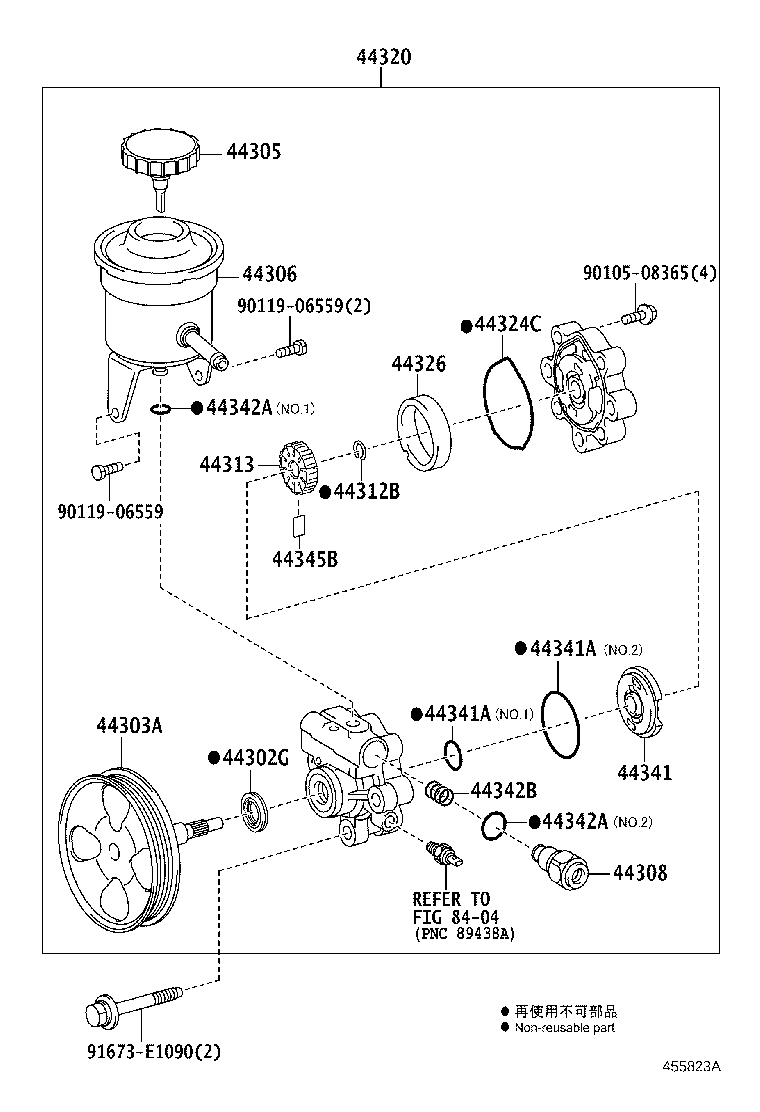

| Linked diagrams | ||||
| 8404 | ||||
