TRC600A-TWMMK3 (2011)
Toyota Dyna/Toyoace

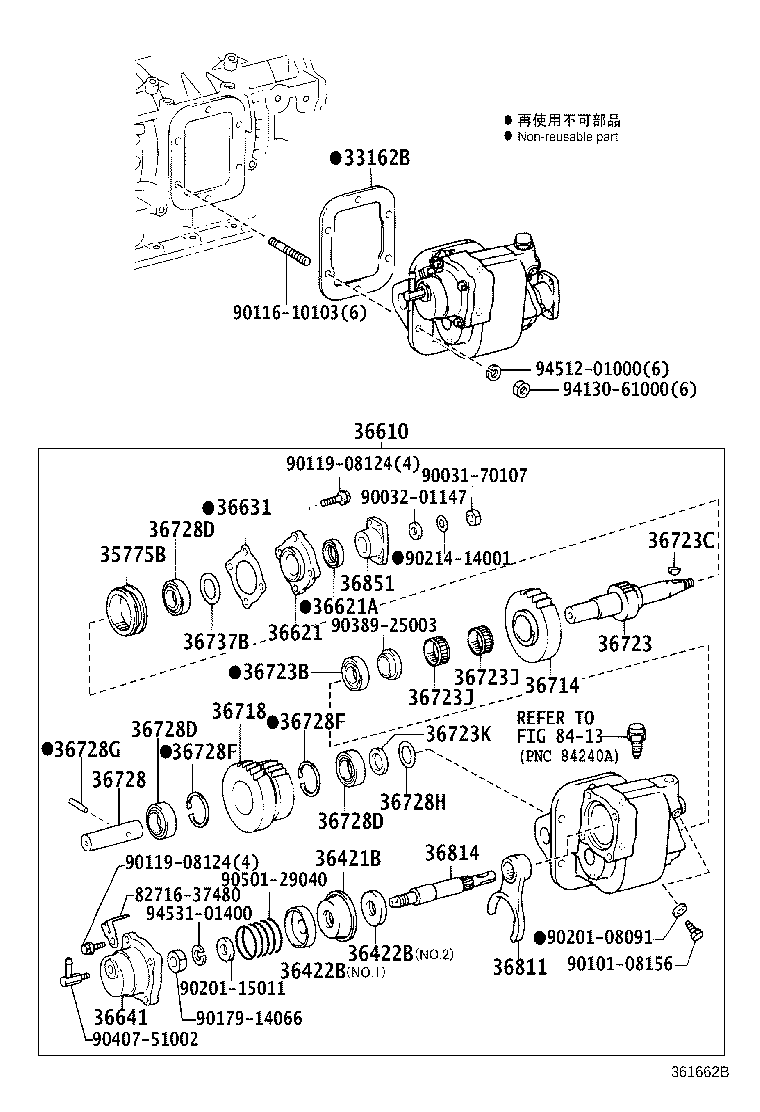

ILLUST NO. 1 OF 2(1107- )TRC600..DM5
ﾊﾞｷｭｰﾑｼｷ 15KG
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33162B - GASKET, POWER TAKE-OFF COVER | ||||
| 33162-37030 |
TRC600..DM5 |
1 | ||
| 35775B - SLEEVE, OUTPUT SHAFT | ||||
| 35775-37010 |
TRC600..DM5 |
1 | ||
| 36421B - DIAPHRAGM (FOR POWER TAKE-OFF) | ||||
| 36421-37010 |
TRC600..DM5 |
1 | ||
| 36422B - PLATE, DIAPHRAGM (FOR POWER TAKE-OFF) | ||||
| 36422-93100 |
TRC600..DM5 NO.1 |
1 | ||
| 36422-93101 |
TRC600..DM5 NO.2 |
1 | ||
| 36422B - PLATE, DIAPHRAGM (FOR POWER TAKE-OFF) | ||||
| 36422-93100 |
TRC600..DM5 NO.1 |
1 | ||
| 36422-93101 |
TRC600..DM5 NO.2 |
1 | ||
| 36610 - POWER TAKE-OFF ASSY | ||||
| 36610-37151 |
TRC600..DM5 |
1 | ||
| 36621 - RETAINER, POWER TAKE-OFF BEARING | ||||
| 36621-93200 |
TRC600..DM5 |
1 | ||
| 36621A - SEAL, OIL (FOR POWER TAKE-OFF BEARING RETAINER) | ||||
| 90311-25110 |
TRC600..DM5 |
1 | ||
| 36631 - GASKET, POWER TAKE-OFF BEARING RETAINER | ||||
| 36632-37030 |
TRC600..DM5 |
1 | ||
| 36641 - CAP, POWER TAKE-OFF SHIFT SHAFT | ||||
| 36641-93100 |
TRC600..DM5 |
1 | ||
| 36714 - GEAR, POWER TAKE-OFF OUTPUT | ||||
| 36714-93108 |
TRC600..DM5 |
1 | ||
| 36718 - GEAR, POWER TAKE-OFF IDLER | ||||
| 36718-93112 |
TRC600..DM5 |
1 | ||
| 36723 - SHAFT, POWER TAKE-OFF OUTPUT, NO.1 | ||||
| 36723-93107 |
TRC600..DM5 |
1 | ||
| 36723B - BEARING (FOR OUTPUT SHAFT REAR) | ||||
| 97100-06205 |
TRC600..DM5 |
1 | ||
| 36723C - KEY, WOODRUFF (FOR POWER TAKE-OFF OUTPUT SHAFT) | ||||
| 90280-07011 |
TRC600..DM5 |
1 | ||
| 36723J - BEARING (FOR POWER TAKE-OFF OUTPUT SHAFT) | ||||
| 90364-28020 |
TRC600..DM5 |
2 | ||
| 36723J - BEARING (FOR POWER TAKE-OFF OUTPUT SHAFT) | ||||
| 90364-28020 |
TRC600..DM5 |
2 | ||
| 36723K - COLLAR (FOR POWER TAKE-OFF OUTPUT SHAFT) | ||||
| 90387-25009 |
TRC600..DM5 |
1 | ||
| 36728 - SHAFT, POWER TAKE-OFF IDLER | ||||
| 36728-93107 |
TRC600..DM5 |
1 | ||
| 36728D - BEARING (FOR POWER TAKE-OFF IDLER SHAFT) | ||||
| 90366-22001 |
TRC600..DM5 |
3 | ||
| 36728D - BEARING (FOR POWER TAKE-OFF IDLER SHAFT) | ||||
| 90366-22001 |
TRC600..DM5 |
3 | ||
| 36728D - BEARING (FOR POWER TAKE-OFF IDLER SHAFT) | ||||
| 90366-22001 |
TRC600..DM5 |
3 | ||
| 36728F - RING, SHAFT SNAP (FOR POWER TAKE-OFF IDLER SHAFT) | ||||
| 90521-56108 |
TRC600..DM5 |
2 | ||
| 36728F - RING, SHAFT SNAP (FOR POWER TAKE-OFF IDLER SHAFT) | ||||
| 90521-56108 |
TRC600..DM5 |
2 | ||
| 36728G - PIN (FOR POWER TAKE-OFF IDLER SHAFT) | ||||
| 90254-04002 |
TRC600..DM5 |
1 | ||
| 36728H - SHIM (FOR POWER TAKE-OFF IDLER SHAFT) | ||||
| 90564-25003 |
TRC600..DM5 厚さ=0.2 |
1 | ||
| 90564-25002 |
TRC600..DM5 厚さ=0.1 |
1 | ||
| 90564-25004 |
TRC600..DM5 厚さ=0.5 |
1 | ||
| 90564-25001 |
TRC600..DM5 厚さ=0.05 |
1 | ||
| 36737B - SHIM (FOR POWER TAKE-OFF CLUTCH OUTPUT SHAFT) | ||||
| 90564-42003 |
TRC600..DM5 厚さ=0.17−0.23 |
1 | ||
| 90564-42001 |
TRC600..DM5 厚さ=0.02−0.08 |
1 | ||
| 90564-42002 |
TRC600..DM5 厚さ=0.07−0.13 |
1 | ||
| 90564-42004 |
TRC600..DM5 厚さ=0.47−0.53 |
1 | ||
| 36811 - FORK, POWR TAKE-OFF SHIFT, NO.1 | ||||
| 36811-93104 |
TRC600..DM5 |
1 | ||
| 36814 - SHAFT, POWR TAKE-OFF FORK, NO.1 | ||||
| 36814-93104 |
TRC600..DM5 |
1 | ||
| 36851 - RETAINER, POWER TAKE-OFF JOINT | ||||
| 36851-37010 |
TRC600..DM5 |
1 | ||
| Common parts | ||||
| 82716-37480 | ||||
| 90031-70107 | ||||
| 90032-01147 | ||||
| 90101-08156 | ||||
| 90116-10103 | ||||
| 90119-08124 | ||||
| 90179-14066 | ||||
| 90201-08091 | ||||
| 90201-15011 | ||||
| 90214-14001 | ||||
| 90389-25003 | ||||
| 90407-51002 | ||||
| 90501-29040 | ||||
| 94130-61000 | ||||
| 94512-01000 | ||||
| 94531-01400 | ||||
| Linked diagrams | ||||
| 8413 | ||||

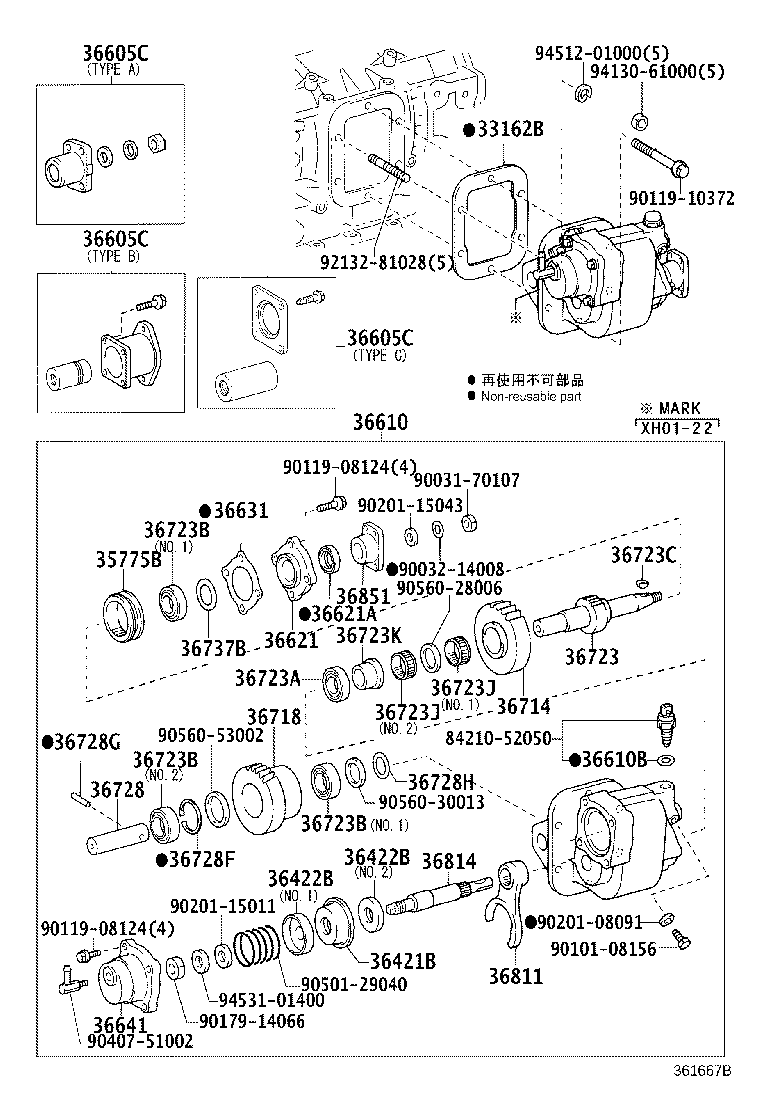

ILLUST NO. 1 OF 2(1107- )XZU640,645..T3..5F..IV3 ; (1107- )XZU605..T5..5F..20T..DCRTJ..IV3 ; (
ﾊﾞｷｭｰﾑｼｷ(ｿﾞｳｿｸｶﾞﾀ) 21.5KG
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33162B - GASKET, POWER TAKE-OFF COVER | ||||
| 33162-37030 |
TRC600..DM5 |
1 | ||
| 35775B - SLEEVE, OUTPUT SHAFT | ||||
| 35775-37010 |
TRC600..DM5 |
1 | ||
| 36421B - DIAPHRAGM (FOR POWER TAKE-OFF) | ||||
| 36421-37010 |
TRC600..DM5 |
1 | ||
| 36422B - PLATE, DIAPHRAGM (FOR POWER TAKE-OFF) | ||||
| 36422-93100 |
TRC600..DM5 NO.1 |
1 | ||
| 36422-93101 |
TRC600..DM5 NO.2 |
1 | ||
| 36422B - PLATE, DIAPHRAGM (FOR POWER TAKE-OFF) | ||||
| 36422-93100 |
TRC600..DM5 NO.1 |
1 | ||
| 36422-93101 |
TRC600..DM5 NO.2 |
1 | ||
| 36610 - POWER TAKE-OFF ASSY | ||||
| 36610-37151 |
TRC600..DM5 |
1 | ||
| 36621 - RETAINER, POWER TAKE-OFF BEARING | ||||
| 36621-93200 |
TRC600..DM5 |
1 | ||
| 36621A - SEAL, OIL (FOR POWER TAKE-OFF BEARING RETAINER) | ||||
| 90311-25110 |
TRC600..DM5 |
1 | ||
| 36631 - GASKET, POWER TAKE-OFF BEARING RETAINER | ||||
| 36632-37030 |
TRC600..DM5 |
1 | ||
| 36641 - CAP, POWER TAKE-OFF SHIFT SHAFT | ||||
| 36641-93100 |
TRC600..DM5 |
1 | ||
| 36714 - GEAR, POWER TAKE-OFF OUTPUT | ||||
| 36714-93108 |
TRC600..DM5 |
1 | ||
| 36718 - GEAR, POWER TAKE-OFF IDLER | ||||
| 36718-93112 |
TRC600..DM5 |
1 | ||
| 36723 - SHAFT, POWER TAKE-OFF OUTPUT, NO.1 | ||||
| 36723-93107 |
TRC600..DM5 |
1 | ||
| 36723B - BEARING (FOR OUTPUT SHAFT REAR) | ||||
| 97100-06205 |
TRC600..DM5 |
1 | ||
| 36723B - BEARING (FOR OUTPUT SHAFT REAR) | ||||
| 97100-06205 |
TRC600..DM5 |
1 | ||
| 36723B - BEARING (FOR OUTPUT SHAFT REAR) | ||||
| 97100-06205 |
TRC600..DM5 |
1 | ||
| 36723C - KEY, WOODRUFF (FOR POWER TAKE-OFF OUTPUT SHAFT) | ||||
| 90280-07011 |
TRC600..DM5 |
1 | ||
| 36723J - BEARING (FOR POWER TAKE-OFF OUTPUT SHAFT) | ||||
| 90364-28020 |
TRC600..DM5 |
2 | ||
| 36723J - BEARING (FOR POWER TAKE-OFF OUTPUT SHAFT) | ||||
| 90364-28020 |
TRC600..DM5 |
2 | ||
| 36723K - COLLAR (FOR POWER TAKE-OFF OUTPUT SHAFT) | ||||
| 90387-25009 |
TRC600..DM5 |
1 | ||
| 36728 - SHAFT, POWER TAKE-OFF IDLER | ||||
| 36728-93107 |
TRC600..DM5 |
1 | ||
| 36728F - RING, SHAFT SNAP (FOR POWER TAKE-OFF IDLER SHAFT) | ||||
| 90521-56108 |
TRC600..DM5 |
2 | ||
| 36728G - PIN (FOR POWER TAKE-OFF IDLER SHAFT) | ||||
| 90254-04002 |
TRC600..DM5 |
1 | ||
| 36728H - SHIM (FOR POWER TAKE-OFF IDLER SHAFT) | ||||
| 90564-25003 |
TRC600..DM5 厚さ=0.2 |
1 | ||
| 90564-25002 |
TRC600..DM5 厚さ=0.1 |
1 | ||
| 90564-25004 |
TRC600..DM5 厚さ=0.5 |
1 | ||
| 90564-25001 |
TRC600..DM5 厚さ=0.05 |
1 | ||
| 36737B - SHIM (FOR POWER TAKE-OFF CLUTCH OUTPUT SHAFT) | ||||
| 90564-42003 |
TRC600..DM5 厚さ=0.17−0.23 |
1 | ||
| 90564-42001 |
TRC600..DM5 厚さ=0.02−0.08 |
1 | ||
| 90564-42002 |
TRC600..DM5 厚さ=0.07−0.13 |
1 | ||
| 90564-42004 |
TRC600..DM5 厚さ=0.47−0.53 |
1 | ||
| 36811 - FORK, POWR TAKE-OFF SHIFT, NO.1 | ||||
| 36811-93104 |
TRC600..DM5 |
1 | ||
| 36814 - SHAFT, POWR TAKE-OFF FORK, NO.1 | ||||
| 36814-93104 |
TRC600..DM5 |
1 | ||
| 36851 - RETAINER, POWER TAKE-OFF JOINT | ||||
| 36851-37010 |
TRC600..DM5 |
1 | ||
| Common parts | ||||
| 84210-52050 | ||||
| 90031-70107 | ||||
| 90032-14008 | ||||
| 90101-08156 | ||||
| 90119-08124 | ||||
| 90119-10372 | ||||
| 90179-14066 | ||||
| 90201-08091 | ||||
| 90201-15011 | ||||
| 90201-15043 | ||||
| 90407-51002 | ||||
| 90501-29040 | ||||
| 90560-28006 | ||||
| 90560-30013 | ||||
| 90560-53002 | ||||
| 92132-81028 | ||||
| 94130-61000 | ||||
| 94512-01000 | ||||
| 94531-01400 | ||||

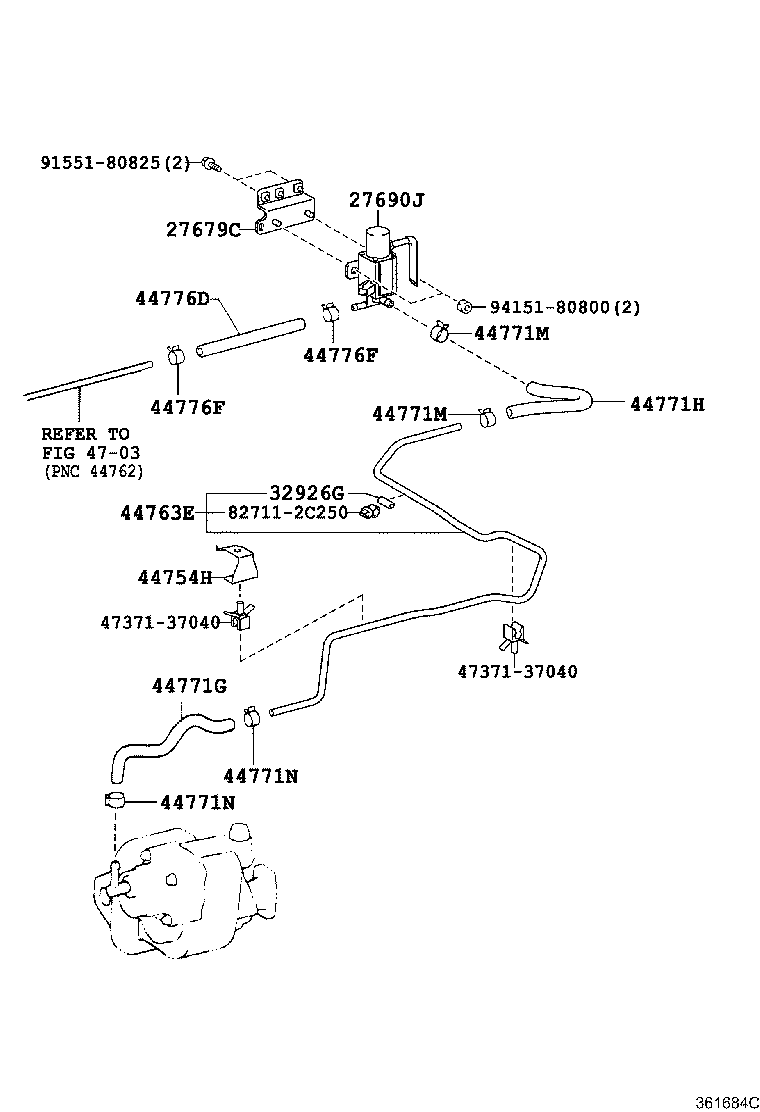

ILLUST NO. 2 OF 2(1107- )TRC600..DM5
ﾊﾞｷｭｰﾑｼｷ 15KG
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 27679C - BRACKET, POWER TAKE-OFF SOLENOID | ||||
| 27679-78041 |
2TRFE..TRC600..DM5 |
1 | ||
| 27690J - SOLENOID ASSY, POWER TAKE-OFF | ||||
| 27690-78072 |
2TRFE..TRC600..DM5 |
1 | ||
| 44730L - VALVE ASSY, POWER TAKE-OFF VACUUM CHECK | ||||
| 44730-24020 |
TRC600..DM5 |
1 | ||
| 44754H - BRACKET, VACUUM TUBE | ||||
| 44754-37110 |
TRC600..DM5 |
1 | ||
| 44763E - TUBE, HOSE TO HOSE, NO.1 | ||||
| 44763-37820 |
TRC600..DM5 NO.2 |
1 | ||
| 44763-37A31 |
TRC600..DM5 NO.1 |
1 | ||
| 44763E - TUBE, HOSE TO HOSE, NO.1 | ||||
| 44763-37820 |
TRC600..DM5 NO.2 |
1 | ||
| 44763-37A31 |
TRC600..DM5 NO.1 |
1 | ||
| 44763H - HOSE, VACUUM BRAKE | ||||
| 95446-09130 |
TRC600..DM5 NO.2 |
1 | ||
| 90445-17044 |
TRC600..DM5 NO.1 |
1 | ||
| 44763H - HOSE, VACUUM BRAKE | ||||
| 95446-09130 |
TRC600..DM5 NO.2 |
1 | ||
| 90445-17044 |
TRC600..DM5 NO.1 |
1 | ||
| 44771G - HOSE, VACUUM TUBE CONNECTOR, NO.1 | ||||
| 44771-37781 |
TRC600..DM5 NO.1 |
1 | ||
| 90445-17044 |
TRC600..DM5 NO.2 |
1 | ||
| 44771G - HOSE, VACUUM TUBE CONNECTOR, NO.1 | ||||
| 44771-37781 |
TRC600..DM5 NO.1 |
1 | ||
| 90445-17044 |
TRC600..DM5 NO.2 |
1 | ||
| 44771H - HOSE, VACUUM TUBE CONNECTOR, NO.2 | ||||
| 95446-09300 |
TRC600..DM5 |
1 | ||
| 47393B - INSULATOR, BRAKE TUBE HEAT | ||||
| 47393-37011 |
TRC600..DM5 |
1 | ||
| Common parts | ||||
| 47371-37040 | ||||
| 82711-2C250 | ||||
| 90467-16022 | ||||
| 91551-80825 | ||||
| 94151-80800 | ||||
| 96133-41500 | ||||
| Linked diagrams | ||||
| 4703 | ||||
ILLUST NO. 2 OF 2(1107- )XZU640,645..T3..5F..IV3 ; (1107- )XZU605..T5..5F..20T..DCRTJ..IV3 ; (
ﾊﾞｷｭｰﾑｼｷ(ｿﾞｳｿｸｶﾞﾀ) 21.5KG
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 27679C - BRACKET, POWER TAKE-OFF SOLENOID | ||||
| 27679-78041 |
2TRFE..TRC600..DM5 |
1 | ||
| 27690J - SOLENOID ASSY, POWER TAKE-OFF | ||||
| 27690-78072 |
2TRFE..TRC600..DM5 |
1 | ||
| 44754H - BRACKET, VACUUM TUBE | ||||
| 44754-37110 |
TRC600..DM5 |
1 | ||
| 44763E - TUBE, HOSE TO HOSE, NO.1 | ||||
| 44763-37820 |
TRC600..DM5 NO.2 |
1 | ||
| 44763-37A31 |
TRC600..DM5 NO.1 |
1 | ||
| 44771G - HOSE, VACUUM TUBE CONNECTOR, NO.1 | ||||
| 44771-37781 |
TRC600..DM5 NO.1 |
1 | ||
| 90445-17044 |
TRC600..DM5 NO.2 |
1 | ||
| 44771H - HOSE, VACUUM TUBE CONNECTOR, NO.2 | ||||
| 95446-09300 |
TRC600..DM5 |
1 | ||
| Common parts | ||||
| 47371-37040 | ||||
| 82711-2C250 | ||||
| 91551-80825 | ||||
| 94151-80800 | ||||
| Linked diagrams | ||||
| 4703 | ||||
