TRC600A-TWMMK3 (2011)
Toyota Dyna/Toyoace

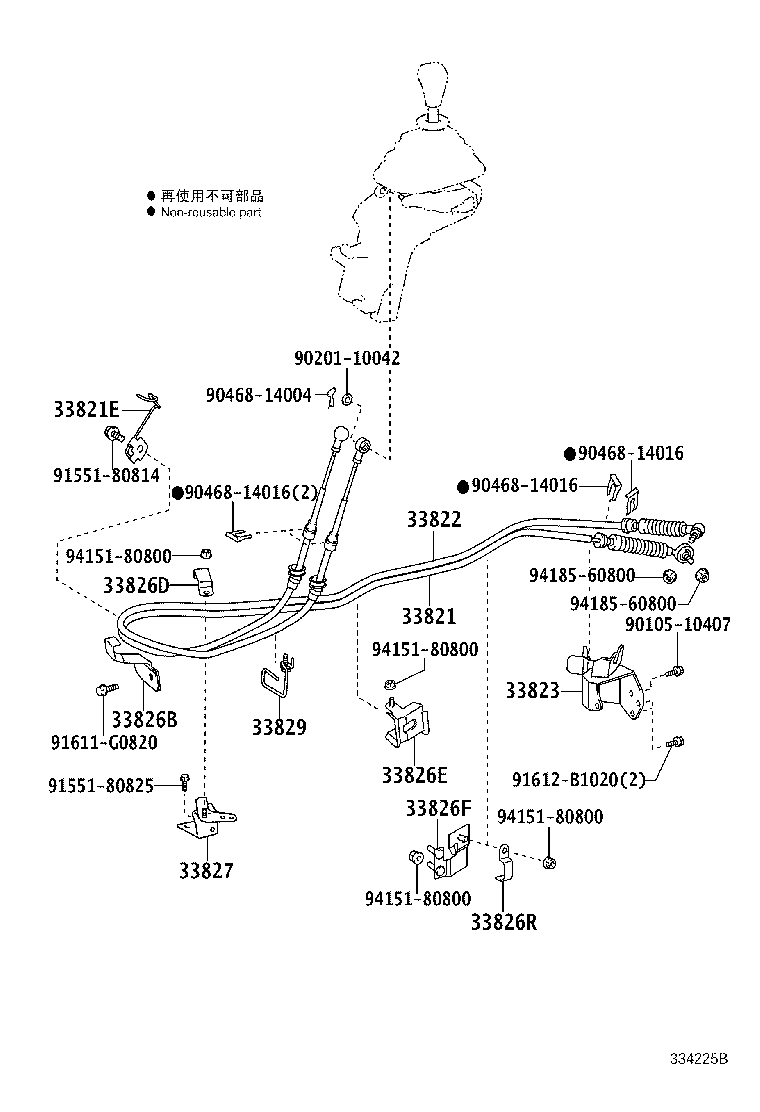

ILLUST NO. 2 OF 2(1107- )TRC600,TRU600
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33821 - CABLE TRANSMISSION CONTROL SHIFT (FOR FLOOR SHIFT) | ||||
| 33820-37L20 |
TRC600..DM5;TRU600..CBU;TRU600..T3..IV3 |
1 | ||
| 33821E - CLAMP, NO.1 (FOR TRANSMISSION CONTROL CABLE) | ||||
| 33829-37300 |
BZU600,TRC600,TRU600,XZC600,610,630,XZU600,610,620,630,640,650..DCRTH,DCRTJ,DCRTK,EFI,LPG |
1 | ||
| 33822 - CABLE TRANSMISSION CONTROL SELECT (FOR FLOOR SHIFT) | ||||
| 33830-37520 |
TRC600..DM5;TRU600..CBU;TRU600..T3..IV3 |
1 | ||
| 33823 - BRACKET, TRANSMISSION CONTROL CABLE, NO.1 | ||||
| 33823-37530 |
TRC600..DM5;TRU600..CBU;TRU600..T3..IV3 |
1 | ||
| 33826B - BRACKET, TRANSMISSION CONTROL CABLE, NO.3 | ||||
| 33826-37210 |
XZC600..6FC..ST;XZU650..T4..30T;XZU640..T4..6FC..IV3;XZU650..T3..30T..IV3;XZU650..T3..30T..DCRTK..CBU;TRU600,XZU640..(DCRTJ,EFI)..CBU;TRU600,XZU640..T3..5F..(DCRTJ,EFI)..IV3;TRC600,XZU600..(DM5,T3)..(5F,6FC)..(20T,40T) |
1 | ||
| 33826D - BRACKET, TRANSMISSION CONTROL CABLE, NO.5 | ||||
| 33826-37580 |
TRC600..DM5;TRU600..CBU;TRU600..T3..IV3 |
1 | ||
| 33826E - BRACKET, TRANSMISSION CONTROL CABLE, NO.6 | ||||
| 33826-37251 |
TRC600..DM5;TRU600..CBU;TRU600..T3..IV3 |
1 | ||
| 33826F - BRACKET, TRANSMISSION CONTROL CABLE, NO.7 | ||||
| 33827-37120 |
TRC600..DM5;TRU600..CBU;TRU600..T3..IV3 |
1 | ||
| 33826R - BRACKET, TRANSMISSION CONTROL CABLE, NO.8 | ||||
| 33826-37580 |
XZC600..6FC..ST;XZU650..T4..30T;XZU640..T4..6FC..IV3;XZU650..T3..30T..IV3;XZU650..T3..30T..DCRTK..CBU;TRU600,XZU640..(DCRTJ,EFI)..CBU;TRU600,XZU640..T3..5F..(DCRTJ,EFI)..IV3;TRC600,XZU600..(DM5,T3)..(5F,6FC)..(20T,40T) |
1 | ||
| 33827 - BRACKET, TRANSMISSION CONTROL CABLE, NO.3 | ||||
| 33827-37141 |
TRU600..CBU;TRU600..T3..IV3;XZU650..30T..DCRTK;XZU640..T3..6FC..CBU;XZU650..T3..6FC..30T..DCRTJ..IV3;XZC600,XZU640,650..(T4,T5)..6FC..DCRTJ;TRC600,XZU600..(DM5,T3)..(5F,6FC)..(20T,40T) |
1 | ||
| 33829 - SUPPORT, TRANSMISSION CONTROL CABLE | ||||
| 33829-37350 |
BZU600;TRC600,TRU600,XZC60#,610,630,645,655,675,XZU600,605,610,620,630,640,645,650,655,675,685,695..DCRTH,DCRTJ,DCRTK,EFI |
1 | ||
| Common parts | ||||
| 90105-10407 | ||||
| 90201-10042 | ||||
| 90468-14004 | ||||
| 90468-14016 | ||||
| 91551-80814 | ||||
| 91551-80825 | ||||
| 91611-G0820 | ||||
| 91612-B1020 | ||||
| 94151-80800 | ||||
| 94185-60800 | ||||

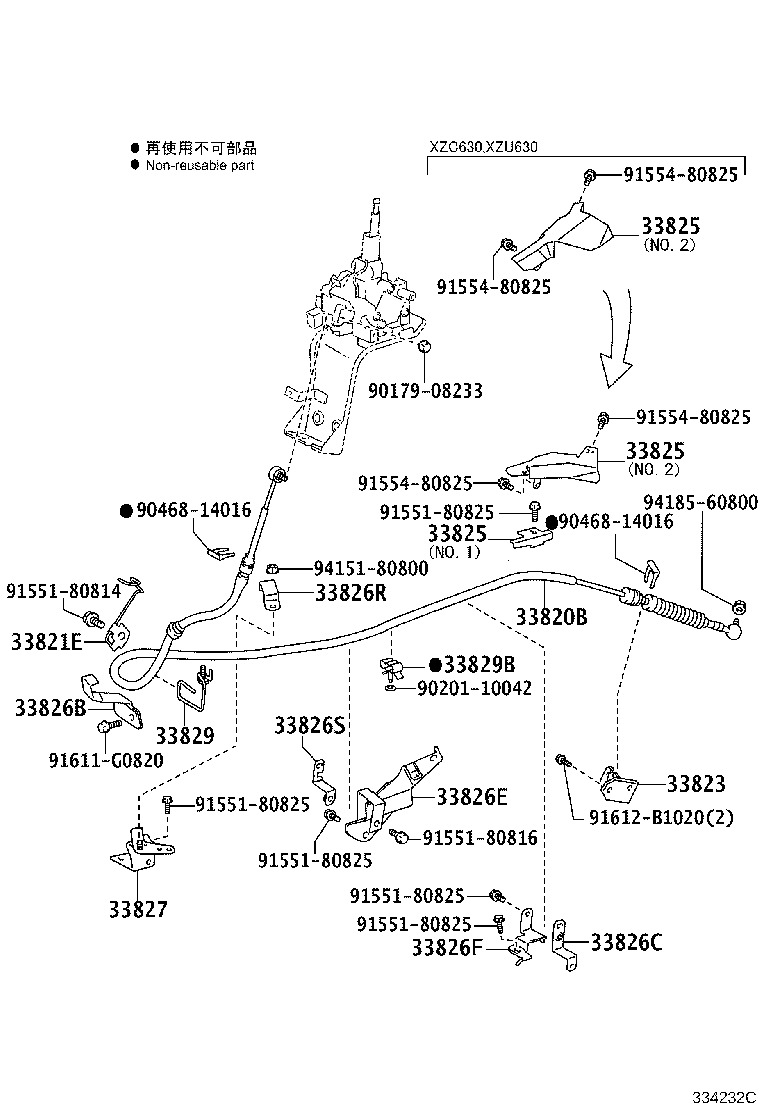

ILLUST NO. 2 OF 2(1107- )XZU600..T4..6FC ; (1107- )XZC60#,610,630,645,655,XZU605,610,620,642,6
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33821E - CLAMP, NO.1 (FOR TRANSMISSION CONTROL CABLE) | ||||
| 33829-37300 |
BZU600,TRC600,TRU600,XZC600,610,630,XZU600,610,620,630,640,650..DCRTH,DCRTJ,DCRTK,EFI,LPG |
1 | ||
| 33823 - BRACKET, TRANSMISSION CONTROL CABLE, NO.1 | ||||
| 33823-37530 |
TRC600..DM5;TRU600..CBU;TRU600..T3..IV3 |
1 | ||
| 33826B - BRACKET, TRANSMISSION CONTROL CABLE, NO.3 | ||||
| 33826-37210 |
XZC600..6FC..ST;XZU650..T4..30T;XZU640..T4..6FC..IV3;XZU650..T3..30T..IV3;XZU650..T3..30T..DCRTK..CBU;TRU600,XZU640..(DCRTJ,EFI)..CBU;TRU600,XZU640..T3..5F..(DCRTJ,EFI)..IV3;TRC600,XZU600..(DM5,T3)..(5F,6FC)..(20T,40T) |
1 | ||
| 33826E - BRACKET, TRANSMISSION CONTROL CABLE, NO.6 | ||||
| 33826-37251 |
TRC600..DM5;TRU600..CBU;TRU600..T3..IV3 |
1 | ||
| 33826F - BRACKET, TRANSMISSION CONTROL CABLE, NO.7 | ||||
| 33827-37120 |
TRC600..DM5;TRU600..CBU;TRU600..T3..IV3 |
1 | ||
| 33826R - BRACKET, TRANSMISSION CONTROL CABLE, NO.8 | ||||
| 33826-37580 |
XZC600..6FC..ST;XZU650..T4..30T;XZU640..T4..6FC..IV3;XZU650..T3..30T..IV3;XZU650..T3..30T..DCRTK..CBU;TRU600,XZU640..(DCRTJ,EFI)..CBU;TRU600,XZU640..T3..5F..(DCRTJ,EFI)..IV3;TRC600,XZU600..(DM5,T3)..(5F,6FC)..(20T,40T) |
1 | ||
| 33827 - BRACKET, TRANSMISSION CONTROL CABLE, NO.3 | ||||
| 33827-37141 |
TRU600..CBU;TRU600..T3..IV3;XZU650..30T..DCRTK;XZU640..T3..6FC..CBU;XZU650..T3..6FC..30T..DCRTJ..IV3;XZC600,XZU640,650..(T4,T5)..6FC..DCRTJ;TRC600,XZU600..(DM5,T3)..(5F,6FC)..(20T,40T) |
1 | ||
| 33829 - SUPPORT, TRANSMISSION CONTROL CABLE | ||||
| 33829-37350 |
BZU600;TRC600,TRU600,XZC60#,610,630,645,655,675,XZU600,605,610,620,630,640,645,650,655,675,685,695..DCRTH,DCRTJ,DCRTK,EFI |
1 | ||
| Common parts | ||||
| 90179-08233 | ||||
| 90201-10042 | ||||
| 90468-14016 | ||||
| 91551-80814 | ||||
| 91551-80816 | ||||
| 91551-80825 | ||||
| 91554-80825 | ||||
| 91611-G0820 | ||||
| 91612-B1020 | ||||
| 94151-80800 | ||||
| 94185-60800 | ||||
ILLUST NO. 1 OF 2(1107- )MTM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33504F - KNOB SUB-ASSY, SHIFT LEVER | ||||
| 33504-36051C0 |
TRC600..DM5;XZU650..T4..5F..30T;XZU650..T3..5F..30T..IV3;XZU650..T3..5F..DCRTK..CBU;TRU600,XZU640..5F..(DCRTJ,EFI)..CBU;TRU600,XZU640..T3..5F..(DCRTJ,EFI)..IV3 BLACK,TRIM1# |
1 | ||
| 33520A - SHAFT ASSY, FLOOR SHIFT CONTROL | ||||
| 33520-37030 |
TRC600..DM5;XZU650..T4..5F..30T;XZU650..T3..5F..30T..IV3;XZU650..T3..5F..DCRTK..CBU;TRU600,XZU640..5F..(DCRTJ,EFI)..CBU;TRU600,XZU640..T3..5F..(DCRTJ,EFI)..IV3 |
1 | ||
| 33550 - FLOOR SHIFT ASSY, TRANSMISSION | ||||
| 33550-37330C0 |
BZU600,TRC600,TRU600,XZC60#,610,630,645,655,675,XZU60#,610,620,630,64#,65#,675,685,695..5F BLACK,TRIM1# |
1 | ||
| 33550-37331C0 |
TRC600..DM5;XZU650..T4..5F..30T;XZU650..T3..5F..30T..IV3;XZU650..T3..5F..DCRTK..CBU;TRU600,XZU640..5F..(DCRTJ,EFI)..CBU;TRU600,XZU640..T3..5F..(DCRTJ,EFI)..IV3 BLACK,TRIM1# |
1 | ||
| 33555 - BOOT, SHIFT LEVER | ||||
| 58808-37030C0 |
TRC600..DM5;XZU650..T4..5F..30T;XZU650..T3..5F..30T..IV3;XZU650..T3..5F..DCRTK..CBU;TRU600,XZU640..5F..(DCRTJ,EFI)..CBU;TRU600,XZU640..T3..5F..(DCRTJ,EFI)..IV3 BLACK,TRIM1# |
1 | ||
| Common parts | ||||
| 90119-08C60 | ||||
| 90179-08249 | ||||
