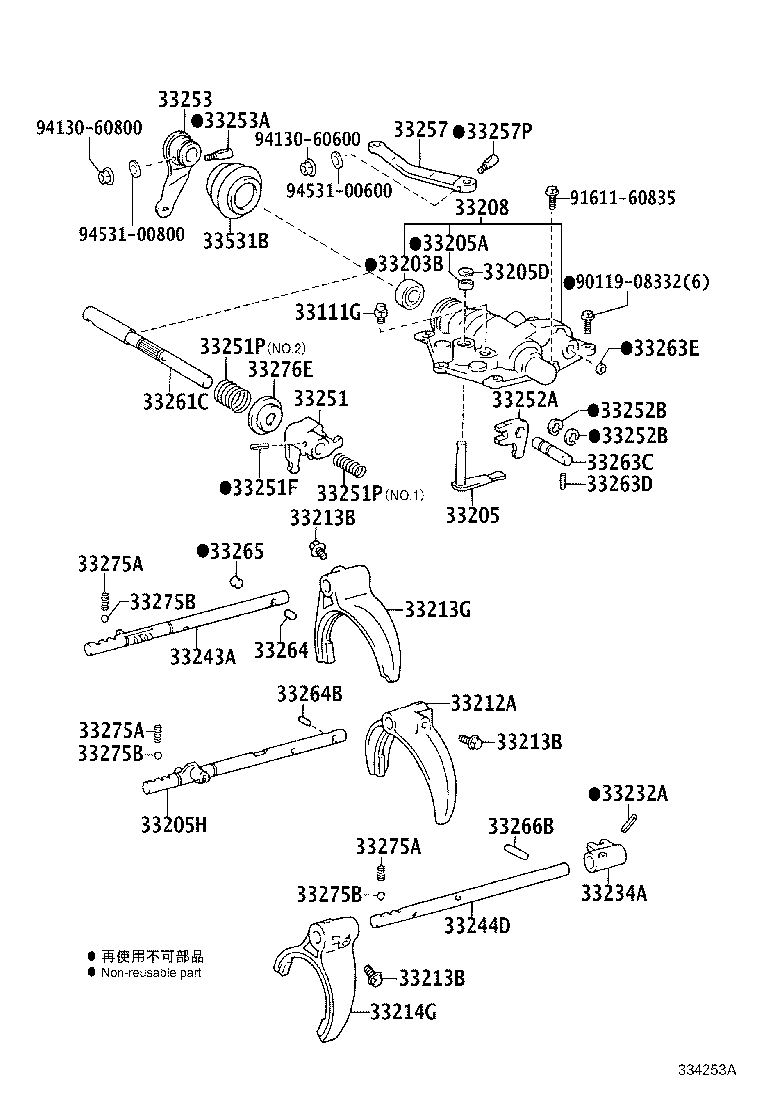

TRC600A-TWMMK3 (2011)
Toyota Dyna/Toyoace
(1107- )TRC600,TRU600
M153
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33111G - PLUG, BREATHER(FOR MANUAL TRANSMISSION) | ||||
| 90930-03090 |
TRC600..DM5;TRU600..CBU;TRU600..T3..IV3 |
1 | ||
| 33203B - SEAL, OIL(FOR SHIFT LEVER SHAFT) | ||||
| 90311-22009 |
TRC600..DM5;TRU600..CBU;TRU600..T3..IV3 |
1 | ||
| 33205 - SHAFT SUB-ASSY, SELECT LEVER | ||||
| 33262-36050 |
TRC600..DM5;TRU600..CBU;TRU600..T3..IV3 |
1 | ||
| 33205A - SEAL, OIL(FOR SHIFT LEVER NO.2 SHAFT) | ||||
| 90311-13001 |
TRC600..DM5;TRU600..CBU;TRU600..T3..IV3 |
1 | ||
| 33205D - WASHER(FOR OUTER LEVER OIL SETTING) | ||||
| 90201-13029 |
TRC600..DM5;XZU650..T4..5F..30T;XZU650..T3..5F..30T..IV3;XZU650..T3..5F..DCRTK..CBU;TRU600,XZU640..5F..(DCRTJ,EFI)..CBU;TRU600,XZU640..T3..5F..(DCRTJ,EFI)..IV3 外径=28 |
1 | ||
| 33205H - SHAFT SUB-ASSY, GEAR SHIFT FORK, NO.1 | ||||
| 33205-37030 |
TRC600..DM5;TRU600..CBU;TRU600..T3..IV3 |
1 | ||
| 33208 - HOUSING SUB-ASSY, SHIFT LEVER SHAFT | ||||
| 33207-36041 |
TRC600..DM5;TRU600..CBU;TRU600..T3..IV3 |
1 | ||
| 33212A - FORK, GEAR SHIFT, NO.1 | ||||
| 33212-36031 |
TRC600..DM5;TRU600..CBU;TRU600..T3..IV3 |
1 | ||
| 33213B - BOLT(FOR SHIFT FORK SET) | ||||
| 90105-07001 |
TRC600..DM5;TRU600..CBU;TRU600..T3..IV3 |
3 | ||
| 33213B - BOLT(FOR SHIFT FORK SET) | ||||
| 90105-07001 |
TRC600..DM5;TRU600..CBU;TRU600..T3..IV3 |
3 | ||
| 33213B - BOLT(FOR SHIFT FORK SET) | ||||
| 90105-07001 |
TRC600..DM5;TRU600..CBU;TRU600..T3..IV3 |
3 | ||
| 33213G - FORK, GEAR SHIFT, NO.2 | ||||
| 33213-36041 |
TRC600..DM5;TRU600..CBU;TRU600..T3..IV3 |
1 | ||
| 33214G - FORK, GEAR SHIFT, NO.3 | ||||
| 33214-36060 |
TRC600..DM5;TRU600..CBU;TRU600..T3..IV3 |
1 | ||
| 33232A - PIN, SLOTTED SPRING (FOR SHIFT HEAD SET) | ||||
| 90254-05016 |
TRC600..DM5;TRU600..CBU;TRU600..T3..IV3 |
1 | ||
| 33234A - HEAD, GEAR SHIFT, NO.3 | ||||
| 33234-36011 |
TRC600..DM5;TRU600..CBU;TRU600..T3..IV3 |
1 | ||
| 33243A - SHAFT, GEAR SHIFT FORK, NO.2 | ||||
| 33243-37010 |
TRC600..DM5;TRU600..CBU;TRU600..T3..IV3 |
1 | ||
| 33244D - SHAFT, GEAR SHIFT FORK, NO.3 | ||||
| 33244-37020 |
TRC600..DM5;TRU600..CBU;TRU600..T3..IV3 |
1 | ||
| 33251 - LEVER, SHIFT & SELECT | ||||
| 33251-36090 |
TRC600..DM5;TRU600..CBU;TRU600..T3..IV3 |
1 | ||
| 33251F - PIN OR BOLT (FOR SHIFT & SELECT LEVER) | ||||
| 90254-05016 |
TRC600..DM5;TRU600..CBU;TRU600..T3..IV3 |
1 | ||
| 33251P - SPRING (FOR SHIFT & SELECT LEVER) | ||||
| 90501-16090 |
TRC600..DM5;TRU600..CBU;TRU600..T3..IV3 NO.1 |
1 | ||
| 90501-18121 |
TRC600..DM5;TRU600..CBU;TRU600..T3..IV3 NO.2 |
1 | ||
| 33251P - SPRING (FOR SHIFT & SELECT LEVER) | ||||
| 90501-16090 |
TRC600..DM5;TRU600..CBU;TRU600..T3..IV3 NO.1 |
1 | ||
| 90501-18121 |
TRC600..DM5;TRU600..CBU;TRU600..T3..IV3 NO.2 |
1 | ||
| 33252A - LEVER, SHIFT, INNER NO.2 | ||||
| 33252-36010 |
TRC600..DM5;TRU600..CBU;TRU600..T3..IV3 |
1 | ||
| 33252B - RING, E (FOR SHIFT INNER LEVER) | ||||
| 90523-12001 |
TRC600..DM5;TRU600..CBU;TRU600..T3..IV3 |
2 | ||
| 33252B - RING, E (FOR SHIFT INNER LEVER) | ||||
| 90523-12001 |
TRC600..DM5;TRU600..CBU;TRU600..T3..IV3 |
2 | ||
| 33253 - LEVER, SHIFT OUTER, NO.1 | ||||
| 33253-37070 |
TRC600..DM5;TRU600..CBU;TRU600..T3..IV3 |
1 | ||
| 33253A - PIN, LEVER LOCK (FOR SHIFT OUTER LEVER) | ||||
| 33282-36030 |
TRC600..DM5;TRU600..CBU;TRU600..T3..IV3 |
1 | ||
| 33257 - LEVER, SELECT OUTER | ||||
| 33257-37060 |
TRC600..DM5;TRU600..CBU;TRU600..T3..IV3 |
1 | ||
| 33257P - PIN, SELECT OUTER LEVER LOCK | ||||
| 33282-35010 |
TRC600..DM5;XZU650..T4..5F..30T;XZU650..T3..5F..30T..IV3;XZU650..T3..5F..DCRTK..CBU;TRU600,XZU640..5F..(DCRTJ,EFI)..CBU;TRU600,XZU640..T3..5F..(DCRTJ,EFI)..IV3 |
1 | ||
| 33261C - SHAFT, SHIFT & SELECT LEVER | ||||
| 33261-36070 |
TRC600..DM5;TRU600..CBU;TRU600..T3..IV3 |
1 | ||
| 33263C - SHAFT, SHIFT LEVER, NO.2 | ||||
| 33263-36010 |
TRC600..DM5;TRU600..CBU;TRU600..T3..IV3 |
1 | ||
| 33263D - PIN (FOR SHIFT LEVER SHAFT) | ||||
| 90250-04060 |
TRC600..DM5;TRU600..CBU;TRU600..T3..IV3 |
1 | ||
| 33263E - PLUG (FOR SHIFT LEVER SHAFT) | ||||
| 90331-14004 |
TRC600..DM5;TRU600..CBU;TRU600..T3..IV3 |
1 | ||
| 33264 - PIN, OR BALL, SHIFT INTER LOCK, NO.1 | ||||
| 90250-10011 |
TRC600..DM5;TRU600..CBU;TRU600..T3..IV3 長さ=13.4,外径=9.53 |
1 | ||
| 33264B - ROLLER, NO.1 (FOR SHIFT INTER LOCK ) | ||||
| 90361-05001 |
TRC600..DM5;TRU600..CBU;TRU600..T3..IV3 長さ=13 |
1 | ||
| 33265 - PIN, SHIFT INTER LOCK, NO.2 | ||||
| 90250-10015 |
TRC600..DM5;TRU600..CBU;TRU600..T3..IV3 長さ=7.5,外径=9.67 |
1 | ||
| 33266B - PIN, SHIFT INTER LOCK, NO.3 | ||||
| 90250-10014 |
TRC600..DM5;TRU600..CBU;TRU600..T3..IV3 |
1 | ||
| 33275A - SPRING, COMPRESSION (FOR SHIFT DETENT BALL LOW SIDE) | ||||
| 90501-16145 |
TRC600..DM5;TRU600..CBU;TRU600..T3..IV3 長さ=28.8 |
3 | ||
| 33275A - SPRING, COMPRESSION (FOR SHIFT DETENT BALL LOW SIDE) | ||||
| 90501-16145 |
TRC600..DM5;TRU600..CBU;TRU600..T3..IV3 長さ=28.8 |
3 | ||
| 33275A - SPRING, COMPRESSION (FOR SHIFT DETENT BALL LOW SIDE) | ||||
| 90501-16145 |
TRC600..DM5;TRU600..CBU;TRU600..T3..IV3 長さ=28.8 |
3 | ||
| 33275B - BALL, SHAFT DETENT | ||||
| 90360-10003 |
TRC600..DM5;TRU600..CBU;TRU600..T3..IV3 |
3 | ||
| 33275B - BALL, SHAFT DETENT | ||||
| 90360-10003 |
TRC600..DM5;TRU600..CBU;TRU600..T3..IV3 |
3 | ||
| 33275B - BALL, SHAFT DETENT | ||||
| 90360-10003 |
TRC600..DM5;TRU600..CBU;TRU600..T3..IV3 |
3 | ||
| 33276E - SEAT, SELECT SPRING, NO.1 | ||||
| 33276-36011 |
TRC600..DM5;TRU600..CBU;TRU600..T3..IV3 |
1 | ||
| 33531B - BOOT, DUST (FOR SHIFT & SELECT LEVER SHAFT) | ||||
| 33531-36060 |
TRC600..DM5;TRU600..CBU;TRU600..T3..IV3 |
1 | ||
| Common parts | ||||
| 90119-08332 | ||||
| 91611-60835 | ||||
| 94130-60600 | ||||
| 94130-60800 | ||||
| 94531-00600 | ||||
| 94531-00800 | ||||
