TRC600A-TWMMK3 (2011)
Toyota Dyna/Toyoace
(1107- )TRC600,TRU600

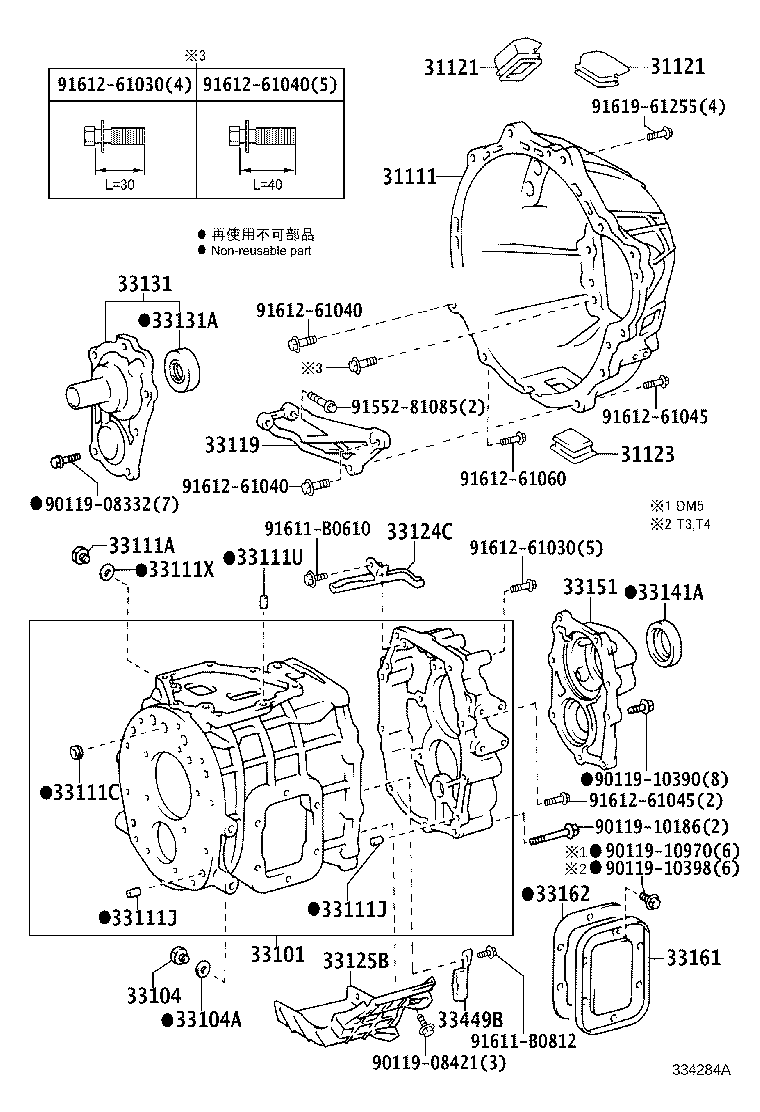

M153
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 31111 - HOUSING, CLUTCH | ||||
| 31111-36331 |
TRC600..DM5;TRU600..CBU;TRU600..T3..IV3 |
1 | ||
| 31121 - COVER, CLUTCH HOUSING, NO.1 | ||||
| 31121-28041 |
TRC600..DM5;TRU600..CBU;TRU600..T3..IV3 |
2 | ||
| 31121 - COVER, CLUTCH HOUSING, NO.1 | ||||
| 31121-28041 |
TRC600..DM5;TRU600..CBU;TRU600..T3..IV3 |
2 | ||
| 31123 - COVER, CLUTCH HOUSING, NO.2 | ||||
| 31121-36110 |
TRC600..DM5;TRU600..CBU;TRU600..T3..IV3 |
1 | ||
| 33101 - CASE SUB-ASSY, MANUAL TRANSMISSION | ||||
| 33101-36084 |
TRC600..DM5;TRU600..CBU;TRU600..T3..IV3 |
1 | ||
| 33104 - PLUG SUB-ASSY, DRAIN(MTM) | ||||
| 90341-18006 |
TRC600..DM5;TRU600..CBU;TRU600..T3..IV3 |
1 | ||
| 33104A - GASKET, DRAIN PLUG(MTM) | ||||
| 90430-18008 |
TRC600..DM5;XZU650..T4..5F..30T;XZU650..T3..5F..30T..IV3;XZU650..T3..5F..DCRTK..CBU;TRU600,XZU640..5F..(DCRTJ,EFI)..CBU;TRU600,XZU640..T3..5F..(DCRTJ,EFI)..IV3 |
1 | ||
| 33111A - PLUG, MANUAL TRANSMISSION CASE | ||||
| 90341-18006 |
TRC600..DM5;TRU600..CBU;TRU600..T3..IV3 |
1 | ||
| 33111C - PLUG(FOR TRANSMISSION CASE) | ||||
| 96411-11600 |
TRC600..DM5;TRU600..CBU;TRU600..T3..IV3 |
3 | ||
| 33111J - PIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE) | ||||
| 90250-12002 |
TRC600..DM5;TRU600..CBU;TRU600..T3..IV3 長さ=16,外径=12 |
4 | ||
| 33111J - PIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE) | ||||
| 90250-12002 |
TRC600..DM5;TRU600..CBU;TRU600..T3..IV3 長さ=16,外径=12 |
4 | ||
| 33111U - PIN, RING(FOR MANUAL TRANSMISSION CASE) | ||||
| 90253-11001 |
TRC600..DM5;TRU600..CBU;TRU600..T3..IV3 長さ=11,外径=11 |
1 | ||
| 90253-13017 |
TRC600..DM5;TRU600..CBU;TRU600..T3..IV3 長さ=12,外径=13 |
2 | ||
| 33111X - GASKET, TRANSMISSION CASE PLUG | ||||
| 90430-18008 |
TRC600..DM5;TRU600..CBU;TRU600..T3..IV3 |
1 | ||
| 33119 - PLATE, STIFFENER, LH(MTM) | ||||
| 33119-37090 |
TRC600..DM5;TRU600..CBU;TRU600..T3..IV3 |
1 | ||
| 33124C - PIPE, OIL RECEIVER, NO.1(MTM) | ||||
| 33124-36030 |
TRC600..DM5;TRU600..CBU;TRU600..T3..IV3 |
1 | ||
| 33125B - RECEIVER, MANUAL TRANSMISSION CASE | ||||
| 33125-36020 |
TRC600..DM5;TRU600..CBU;TRU600..T3..IV3 |
1 | ||
| 33131 - RETAINER, BEARING, FRONT(MTM) | ||||
| 33018-36060 |
TRC600..DM5;TRU600..CBU;TRU600..T3..IV3 |
1 | ||
| 33131A - SEAL, OIL(FOR TRANSMISSION FRONT BEARING RETAINER) | ||||
| 90311-32012 |
TRC600..DM5;TRU600..CBU;TRU600..T3..IV3 |
1 | ||
| 33141A - SEAL, OIL(FOR TRANSMISSION REAR BEARING RETAINER) | ||||
| 90311-48011 |
TRC600,TRU600,XZC60#,645,655,XZU60#,64#,65#..5F |
1 | ||
| 33151 - RETAINER, OUTPUT SHAFT REAR BEARING(MTM) | ||||
| 33151-37040 |
TRC600..DM5;TRU600..CBU;TRU600..T3..IV3 |
1 | ||
| 33161 - COVER, MANUAL TRANSMISSION POWER TAKE-OFF | ||||
| 33161-36010 |
TRC600..DM5;XZU650..T4..5F..30T;XZU640..5F..DCRTJ..CBU;XZU650..T3..5F..30T..IV3;XZU640..T3..5F..DCRTJ..IV3;XZU650..T3..5F..DCRTK..CBU |
1 | ||
| 33162 - GASKET, MANUAL TRANSMISSION POWER TAKE-OFF COVER | ||||
| 33162-36020 |
TRC600..DM5;XZU650..T4..5F..30T;XZU650..T3..5F..30T..IV3;XZU650..T3..5F..DCRTK..CBU;TRU600,XZU640..5F..(DCRTJ,EFI)..CBU;TRU600,XZU640..T3..5F..(DCRTJ,EFI)..IV3 |
1 | ||
| 33449B - MAGNET, TRANSMISSION | ||||
| 33449-36010 |
TRC600..DM5;TRU600..CBU;TRU600..T3..IV3 |
1 | ||
| Common parts | ||||
| 90119-08332 | ||||
| 90119-08421 | ||||
| 90119-10186 | ||||
| 90119-10390 | ||||
| 90119-10398 | ||||
| 90119-10970 | ||||
| 91552-81085 | ||||
| 91611-B0610 | ||||
| 91611-B0812 | ||||
| 91612-61030 | ||||
| 91612-61040 | ||||
| 91612-61045 | ||||
| 91612-61060 | ||||
| 91619-61255 | ||||
