TRC600A-TWMMK3 (2011)

Toyota Dyna/Toyoace

Production Jul 2011 - May 2015
Engine 2TRFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1107- )TRC600,TRU600

Click highlighted areas on diagram

M153

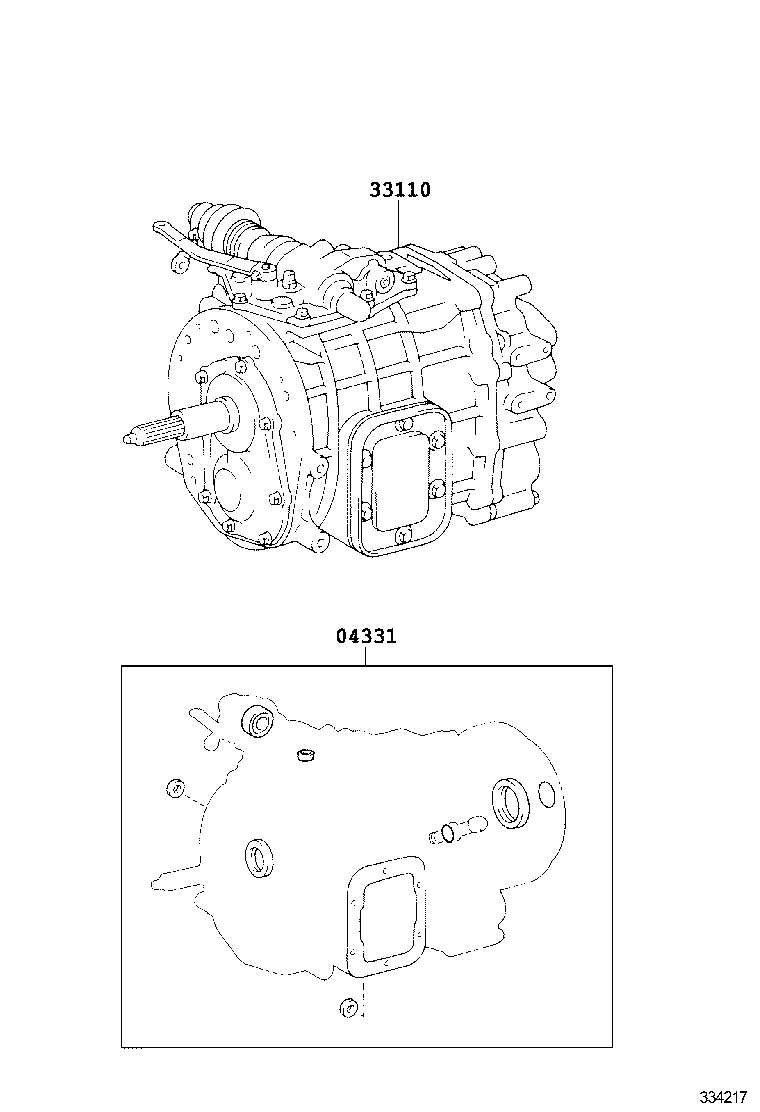

diagram 04331 33110
Part # Description Qty Price
04331 - GASKET KIT, MANUAL TRANSMISSION OVERHAUL
04331-36430

TRC600..DM5;TRU600..CBU;TRU600..T3..IV3

 1
33110 - TRANSMISSION ASSY, MANUAL
33110-37G90

TRC600..DM5

M153

 1

(1107- )XZU600,640,650..6F..DCRTK,DCRVT ; (1107- )XZC610,630,675,XZU602,610,6

Click highlighted areas on diagram

MYY5A,MYY6S

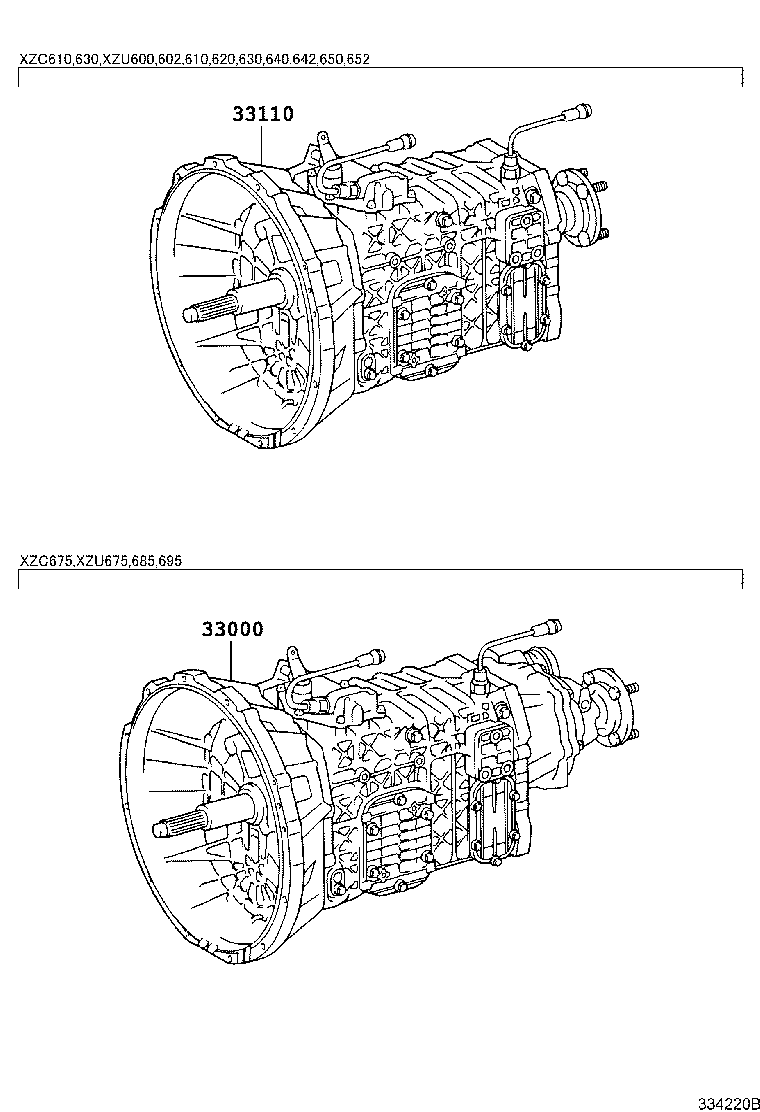

diagram 33000 33110
Part # Description Qty Price
33110 - TRANSMISSION ASSY, MANUAL
33110-37G90

TRC600..DM5

M153

 1
