TRC600A-TWMMK3 (2011)

Toyota Dyna/Toyoace

Production Jul 2011 - May 2015
Engine 2TRFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1107- )TRC600,TRU600

Click highlighted areas on diagram

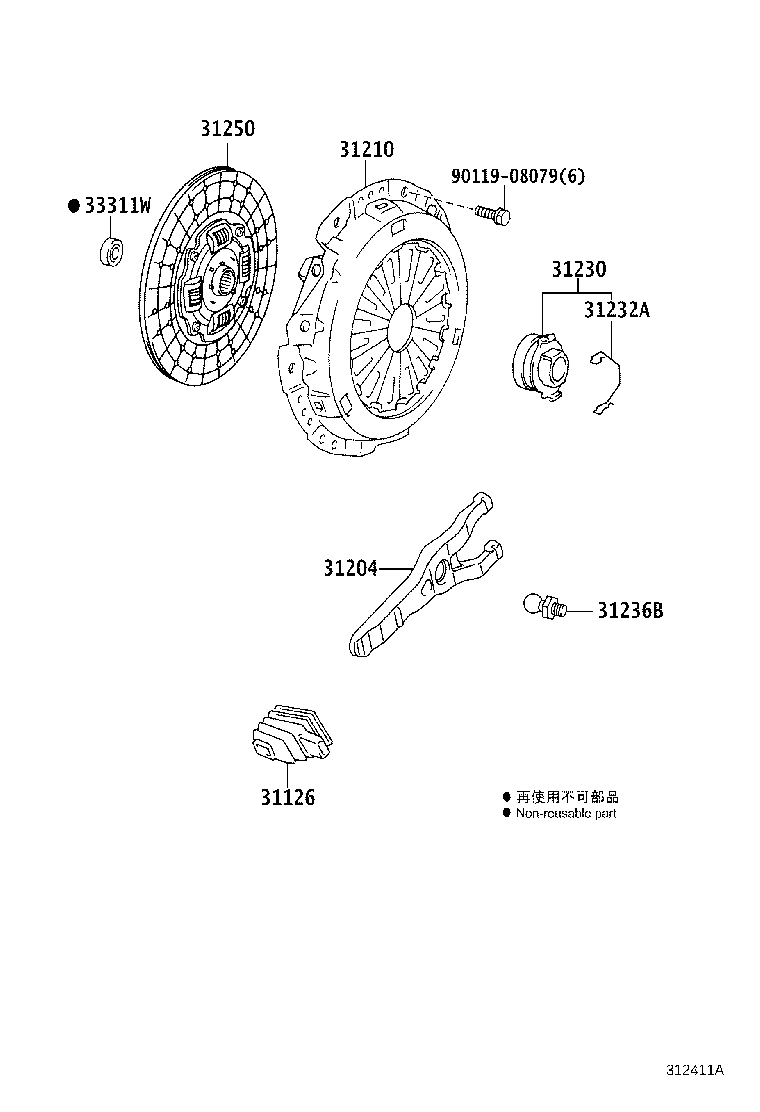

diagram 31126 31204 31210 31230 31232A 31236B 31250 33311W 9011908079
Part # Description Qty Price
31126 - BOOT, CLUTCH RELEASE FORK
31126-36080

TRC600..DM5;TRU600..CBU;TRU600..T3..IV3

 1
31204 - FORK SUB-ASSY, CLUTCH RELEASE
31204-37080

TRC600..DM5;TRU600..CBU;TRU600..T3..IV3

 1
31210 - COVER ASSY, CLUTCH
31210-37170

TRC600,TRU600

 1
31230 - BEARING ASSY, CLUTCH RELEASE
31230-37060

TRC600..DM5;TRU600..CBU;TRU600..T3..IV3

 1
31232A - CLIP, RELEASE BEARING HUB
31232-37030

TRC600..DM5;TRU600..CBU;TRU600..T3..IV3

 1
31236B - SUPPORT, RELEASE FORK
31236-37040

TRC600..DM5;TRU600..CBU;TRU600..T3..IV3

 1
31250 - DISC ASSY, CLUTCH
31250-37200

TRC600,TRU600

 1
33311W - BEARING (FOR INPUT SHAFT)
90363-12020

TRC600..DM5;TRU600..CBU;TRU600..T3..IV3

 1
Common parts
90119-08079

(1107- )DCRTK..IV7 ; (1107- )XZU642..DCRTK,DCRVT ; (1107- )BZU600,XZC60#,6

Click highlighted areas on diagram

diagram 31126 31204 31210 31230 31232A 31236B 31250 33311W 9011910205
Part # Description Qty Price
31126 - BOOT, CLUTCH RELEASE FORK
31126-36080

TRC600..DM5;TRU600..CBU;TRU600..T3..IV3

 1
31126-36080

TRC600..DM5;TRU600..CBU;TRU600..T3..IV3

 1
31204 - FORK SUB-ASSY, CLUTCH RELEASE
31204-37080

TRC600..DM5;TRU600..CBU;TRU600..T3..IV3

 1
31204-37080

TRC600..DM5;TRU600..CBU;TRU600..T3..IV3

 1
31210 - COVER ASSY, CLUTCH
31210-37170

TRC600,TRU600

 1
31210-37170

TRC600,TRU600

 1
31230 - BEARING ASSY, CLUTCH RELEASE
31230-37060

TRC600..DM5;TRU600..CBU;TRU600..T3..IV3

 1
31230-37060

TRC600..DM5;TRU600..CBU;TRU600..T3..IV3

 1
31232A - CLIP, RELEASE BEARING HUB
31232-37030

TRC600..DM5;TRU600..CBU;TRU600..T3..IV3

 1
31232-37030

TRC600..DM5;TRU600..CBU;TRU600..T3..IV3

 1
31236B - SUPPORT, RELEASE FORK
31236-37040

TRC600..DM5;TRU600..CBU;TRU600..T3..IV3

 1
31236-37040

TRC600..DM5;TRU600..CBU;TRU600..T3..IV3

 1
31250 - DISC ASSY, CLUTCH
31250-37200

TRC600,TRU600

 1
31250-37200

TRC600,TRU600

 1
33311W - BEARING (FOR INPUT SHAFT)
90363-12020

TRC600..DM5;TRU600..CBU;TRU600..T3..IV3

 1
90363-12020

TRC600..DM5;TRU600..CBU;TRU600..T3..IV3

 1
Common parts
90119-10205
