TRC600A-TWMMK3 (2011)

Toyota Dyna/Toyoace

Production Jul 2011 - May 2015
Engine 2TRFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1211- )2TRFE

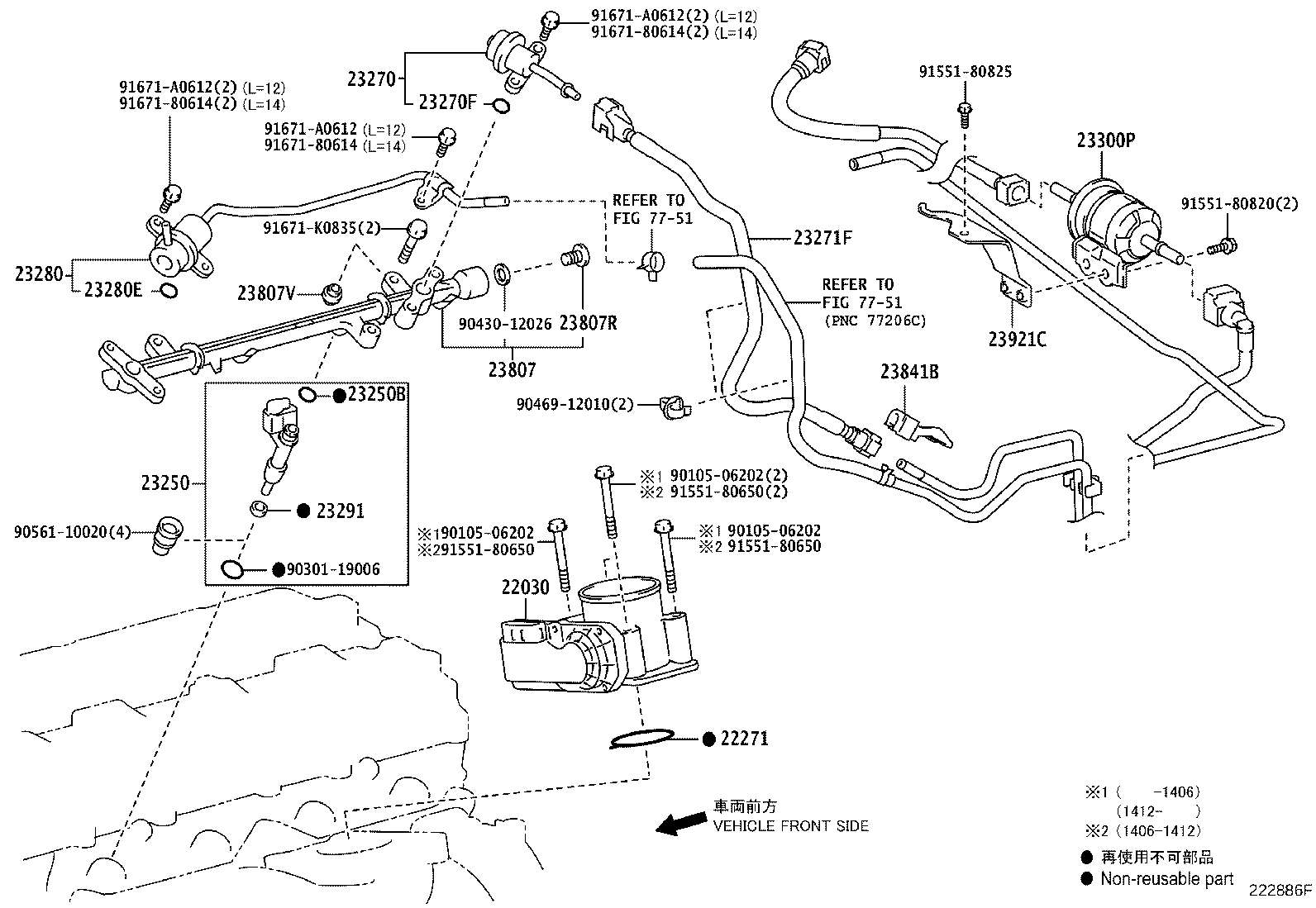

Click highlighted areas on diagram

diagram 22030 22271 23250 23250B 23270 23270F 23271F 23280 23280E 23291 23300P 23807 23807R 23807V 23841B 23921C 7751 7751 9010506202 9010506202 9010506202 9030119006 9043012026 9046912010 9056110020 9155180650 9155180650 9155180650 9155180820 9155180825 9167180614 9167180614 9167180614 91671A0612 91671A0612 91671A0612 91671K0835
Part # Description Qty Price
22030 - BODY ASSY, THROTTLE W/THROTTLE POSITION SENSOR
22030-75020

2TRFE..TRC600,TRU600

 1
22271 - GASKET, THROTTLE BODY
22271-0C021

2TRFE..TRC600,TRU600

 1
23250 - INJECTOR ASSY, FUEL
23209-79155

2TRFE..TRC600,TRU600

 4
23250B - RING, O(FOR FUEL INJECTOR)
90301-07037

2TRFE..TRC600,TRU600

 4
23270 - DAMPER ASSY, FUEL PRESSURE PULSATION
23270-75010

2TRFE..TRC600,TRU600

 1
23270F - RING, O(FOR PULSATION DAMPER)
90301-07037

2TRFE..TRC600,TRU600

 1
23271F - HOSE, FUEL
23271-78410

2TRFE..TRC600,TRU600

 1
23280 - REGULATOR ASSY, FUEL PRESSURE
23280-75040

2TRFE..TRC600,TRU600

 1
23280E - RING, O(FOR FUEL PRESSURE REGULATOR)
90301-07037

2TRFE..TRC600,TRU600

 1
23291 - INSULATOR, INJECTOR VIBRATION
23291-73010

2TRFE..TRC600,TRU600

 4
23300P - FILTER, FUEL(FOR EFI)
23300-75130

2TRFE..TRC600,TRU600

 1
23807 - PIPE SUB-ASSY, FUEL DELIVERY
23807-75050

2TRFE..TRC600,TRU600

 1
23807R - PLUG, FUEL DELIVARY PIPE
90341-12030

2TRFE..TRC600,TRU600

 1
23807V - SPACER, NO.1(FOR DELIVERY PIPE)
90561-08036

2TRFE..TRC600,TRU600

 2
23841B - CLAMP, FUEL PIPE, NO.1(FOR EFI)
23841-21050

2TRFE..TRC600,TRU600

 1
23921C - BRACKET, FUEL FILTER
23921-78580

2TRFE..TRC600,TRU600

 1
Common parts
90105-06202
90301-19006
90430-12026
90469-12010
90561-10020
91551-80650
91551-80820
91551-80825
91671-80614
91671-A0612
91671-K0835
Linked diagrams
7751
