TRC600A-TWMMK3 (2011)

Toyota Dyna/Toyoace

Production Jul 2011 - May 2015
Engine 2TRFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1107- )2TRFE

Click highlighted areas on diagram

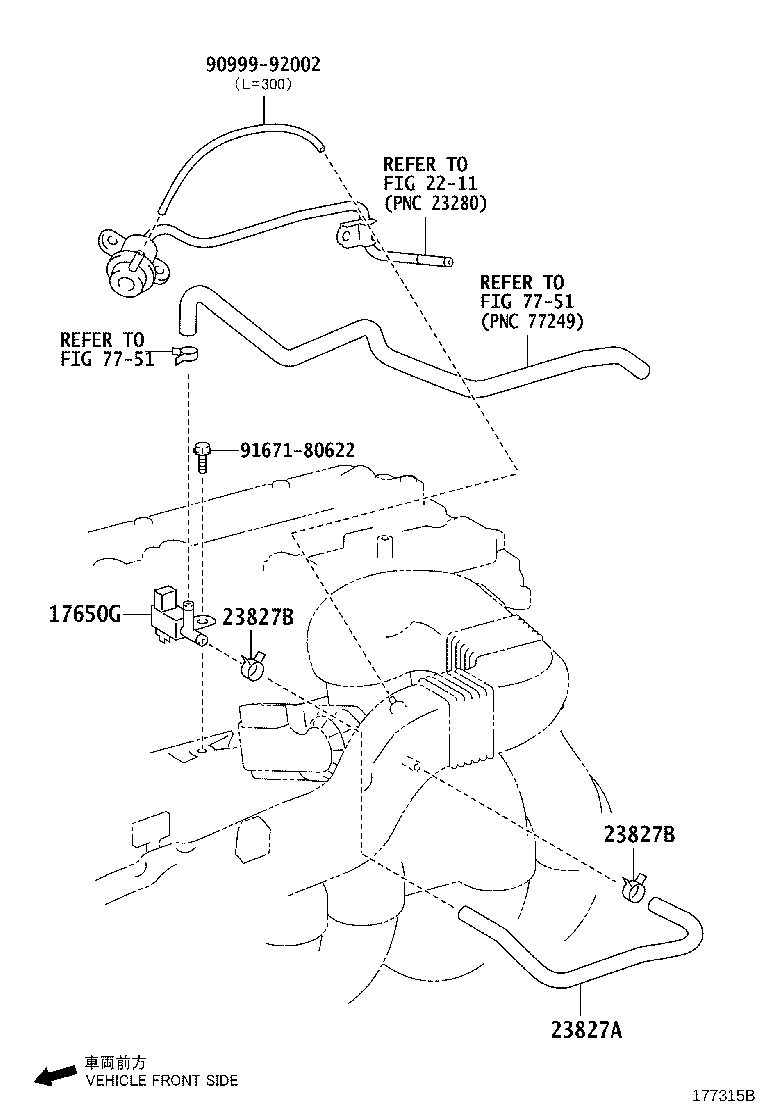

diagram 17650G 2211 23827A 23827B 23827B 7751 7751 9099992002 9167180622
Part # Description Qty Price
17650G - VALVE, DUTY VACUUM SWITCHING
90910-12280

2TRFE..TRC600,TRU600

 1
23827A - HOSE, FUEL VAPOR FEED, NO.2
23827-75280

2TRFE..TRC600,TRU600

 1
23827B - CLIP(FOR FUEL VAPOR FEED HOSE, NO.2)
96132-51300

2TRFE..TRC600,TRU600

 2
23827B - CLIP(FOR FUEL VAPOR FEED HOSE, NO.2)
96132-51300

2TRFE..TRC600,TRU600

 2
Common parts
90999-92002
91671-80622
Linked diagrams
2211
7751
