TRC600A-TWMMK3 (2011)
Toyota Dyna/Toyoace
Production
Jul 2011
-
May 2015
Engine
2TRFE
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(1107- )2TRFE

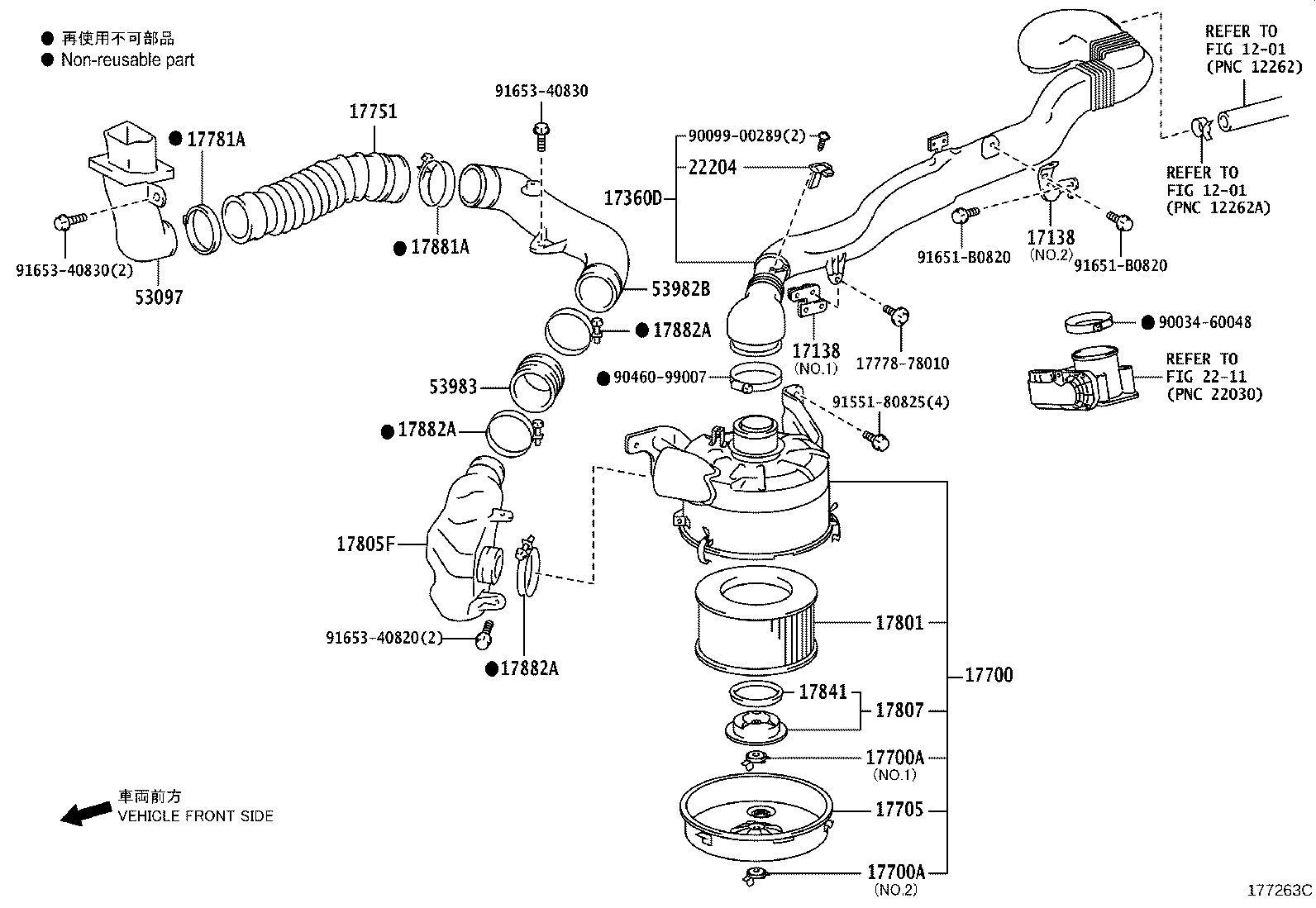

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17138 - STAY, INTAKE PIPE OR HOSE | ||||
| 17138-78010 |
2TRFE..TRC600,TRU600 NO.1 |
1 | ||
| 17138-78210 |
2TRFE..TRC600,TRU600 NO.2 |
1 | ||
| 17138 - STAY, INTAKE PIPE OR HOSE | ||||
| 17138-78010 |
2TRFE..TRC600,TRU600 NO.1 |
1 | ||
| 17138-78210 |
2TRFE..TRC600,TRU600 NO.2 |
1 | ||
| 17360D - PIPE ASSY, AIR | ||||
| 17360-78070 |
2TRFE..TRC600,TRU600 |
1 | ||
| 17700 - CLEANER ASSY, AIR | ||||
| 17700-78351 |
2TRFE..TRC600,TRU600 |
1 | ||
| 17700A - NUT, WING(FOR AIR CLEANER) | ||||
| 90175-06003 |
2TRFE..TRC600,TRU600 NO.2 |
1 | ||
| 90175-08008 |
2TRFE..TRC600,TRU600 NO.1 |
1 | ||
| 17700A - NUT, WING(FOR AIR CLEANER) | ||||
| 90175-06003 |
2TRFE..TRC600,TRU600 NO.2 |
1 | ||
| 90175-08008 |
2TRFE..TRC600,TRU600 NO.1 |
1 | ||
| 17705 - CAP SUB-ASSY, AIR CLEANER | ||||
| 17705-78030 |
2TRFE..TRC600,TRU600 |
1 | ||
| 17751 - INLET, AIR CLEANER, NO.1 | ||||
| 53981-37080 |
2TRFE..TRC600,TRU600 |
1 | ||
| 17781A - CLAMP, HOSE | ||||
| 17781-78050 |
2TRFE..TRC600,TRU600 |
1 | ||
| 17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER | ||||
| 17801-56050 |
2TRFE..TRC600,TRU600 |
1 | ||
| 17805F - RESONATOR SUB-ASSY, INTAKE AIR | ||||
| 17805-78021 |
2TRFE..TRC600,TRU600 |
1 | ||
| 17807 - PLATE SUB-ASSY, AIR CLEANER FILTER SET | ||||
| 17807-56020 |
2TRFE..TRC600,TRU600 |
1 | ||
| 17841 - GASKET, FILTER ELEMENT | ||||
| 17841-44030 |
2TRFE..TRC600,TRU600 |
1 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 96111-10880 |
2TRFE..TRC600,TRU600 |
1 | ||
| 17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2) | ||||
| 96111-10980 |
2TRFE..TRC600,TRU600 |
2 | ||
| 17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2) | ||||
| 96111-10980 |
2TRFE..TRC600,TRU600 |
2 | ||
| 17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2) | ||||
| 96111-10980 |
2TRFE..TRC600,TRU600 |
2 | ||
| 22204 - METER SUB-ASSY, INTAKE AIR FLOW | ||||
| 22204-75030 |
2TRFE..TRC600,TRU600 |
1 | ||
| 53097 - INLET SUB-ASSY | ||||
| 53097-37300 |
TRC600,TRU600 |
1 | ||
| 53982B - INLET, AIR CLEANER PIPE, NO.2 | ||||
| 53982-37070 |
TRC600,TRU600 |
1 | ||
| 53983 - INLET, AIR CLEANER PIPE, NO.3 | ||||
| 53983-37020 |
TRC600,TRU600 |
1 | ||
| Common parts | ||||
| 17778-78010 | ||||
| 90034-60048 | ||||
| 90099-00289 | ||||
| 90460-99007 | ||||
| 91551-80825 | ||||
| 91651-B0820 | ||||
| 91653-40820 | ||||
| 91653-40830 | ||||
| Linked diagrams | ||||
| 1201 | ||||
| 2211 | ||||
