TRC600A-TWMMK3 (2011)
Toyota Dyna/Toyoace
Production
Jul 2011
-
May 2015
Engine
2TRFE
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(1107- )2TRFE

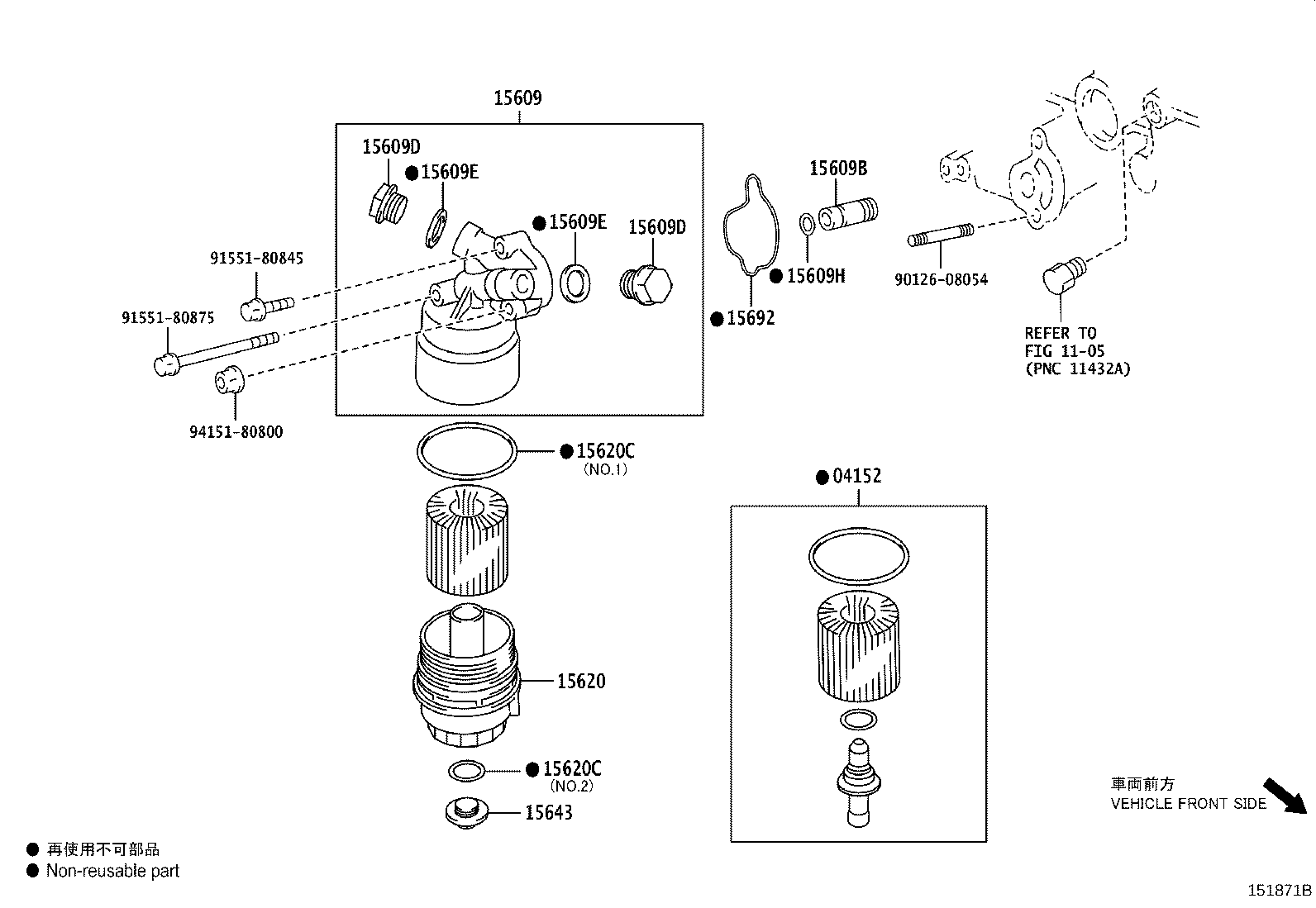

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04152 - ELEMENT KIT, OIL FILTER | ||||
| 04152-38010 |
2TRFE..TRC600,TRU600 |
1 | ||
| 15609 - BRACKET SUB-ASSY, OIL FILTER | ||||
| 15609-75100 |
2TRFE..TRC600,TRU600 |
1 | ||
| 15609B - UNION(FOR OIL FILTER BRACKET) | ||||
| 90404-19017 |
2TRFE..TRC600,TRU600 |
1 | ||
| 15609D - PLUG, W/HEAD STRAIGHT SCREW(FOR OIL FILTER BRACKET) | ||||
| 90341-22002 |
2TRFE..TRC600,TRU600 |
2 | ||
| 15609D - PLUG, W/HEAD STRAIGHT SCREW(FOR OIL FILTER BRACKET) | ||||
| 90341-22002 |
2TRFE..TRC600,TRU600 |
2 | ||
| 15609E - GASKET, W/HEAD STRAIGHT SCREW PLUG | ||||
| 90430-22011 |
2TRFE..TRC600,TRU600 |
2 | ||
| 15609E - GASKET, W/HEAD STRAIGHT SCREW PLUG | ||||
| 90430-22011 |
2TRFE..TRC600,TRU600 |
2 | ||
| 15609H - RING, O(FOR OIL FILTER BRACKET) | ||||
| 90301-17017 |
2TRFE..TRC600,TRU600 |
1 | ||
| 15620 - CAP ASSY, OIL FILTER | ||||
| 15620-31050 |
2TRFE..TRC600,TRU600 |
1 | ||
| 15620C - GASKET(FOR OIL FILTER CAP) | ||||
| 96723-35028 |
2TRFE..TRC600,TRU600 NO.2 |
1 | ||
| 90301-79006 |
2TRFE..TRC600,TRU600 NO.1 |
1 | ||
| 15620C - GASKET(FOR OIL FILTER CAP) | ||||
| 96723-35028 |
2TRFE..TRC600,TRU600 NO.2 |
1 | ||
| 90301-79006 |
2TRFE..TRC600,TRU600 NO.1 |
1 | ||
| 15643 - PLUG, OIL FILTER DRAIN | ||||
| 15643-31050 |
2TRFE..TRC600,TRU600 |
1 | ||
| 15692 - GASKET, OIL FILTER BRACKET | ||||
| 15692-75011 |
2TRFE..TRC600,TRU600 |
1 | ||
| Common parts | ||||
| 90126-08054 | ||||
| 91551-80845 | ||||
| 91551-80875 | ||||
| 94151-80800 | ||||
| Linked diagrams | ||||
| 1105 | ||||
