TRC600A-TWMMK3 (2011)

Toyota Dyna/Toyoace

Production Jul 2011 - May 2015
Engine 2TRFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1107-1411)2TRFE..TRC600..T4 ; (1107-1411)2TRFE..TRU600..T4..IV3 ; (1107- )2TRFE

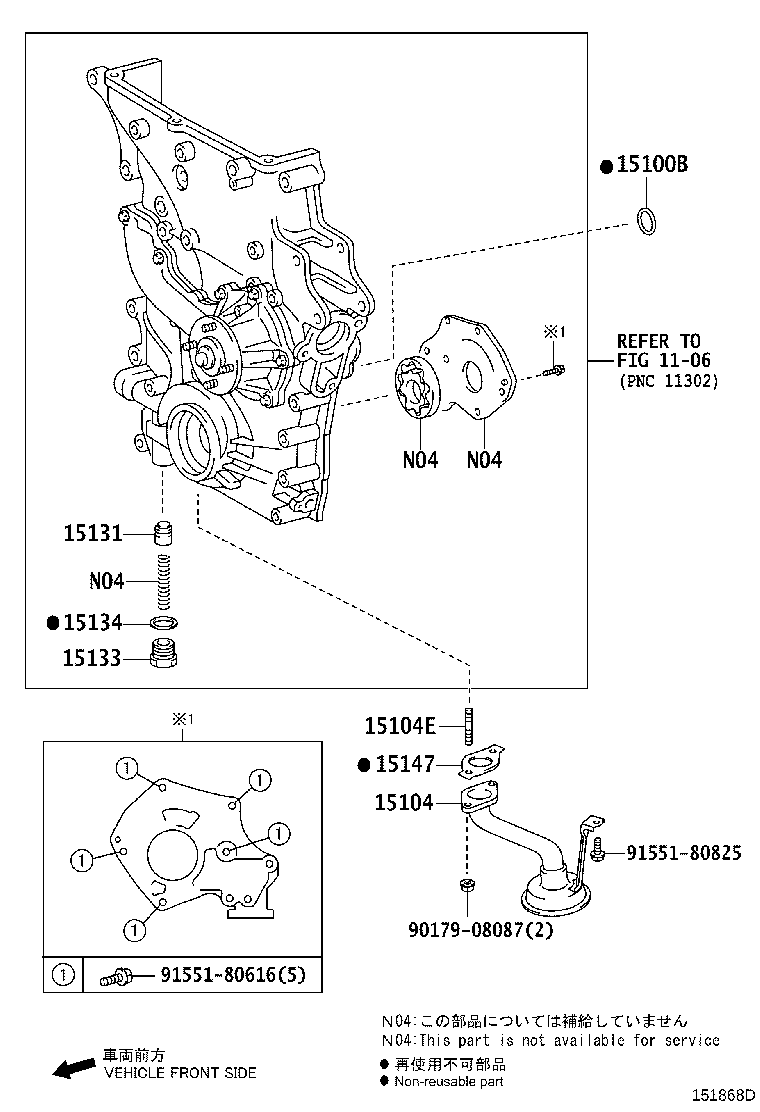

Click highlighted areas on diagram

diagram 1106 15100B 15104 15104E 15131 15133 15134 15147 9017908087 9155180616 9155180825
Part # Description Qty Price
15100B - RING, O(FOR OIL PUMP)
90301-19021

2TRFE..TRC600,TRU600

 1
90301-19021

2TRFE..TRC600,TRU600

 1
15104 - STRAINER SUB-ASSY, OIL
15104-75111

2TRFE..TRC600..DM5;2TRFE..TRU600..CBU;2TRFE..TRU600..T3..IV3

 1
15104-75111

2TRFE..TRC600..DM5;2TRFE..TRU600..CBU;2TRFE..TRU600..T3..IV3

 1
15104E - BOLT, STUD(FOR OIL STRAINER)
90126-08052

2TRFE..TRC600..DM5;2TRFE..TRU600..CBU;2TRFE..TRU600..T3..IV3

 2
90126-08052

2TRFE..TRC600..DM5;2TRFE..TRU600..CBU;2TRFE..TRU600..T3..IV3

 2
15131 - VALVE, OIL PUMP RELIEF
15131-46040

2TRFE..TRC600,TRU600

 1
15131-46040

2TRFE..TRC600,TRU600

 1
15134 - GASKET, OIL PUMP RELIEF VALVE
15134-67020

2TRFE..TRC600,TRU600

 1
15134-67020

2TRFE..TRC600,TRU600

 1
15147 - GASKET, OIL STRAINER
15147-75030

2TRFE..TRC600..DM5;2TRFE..TRU600..CBU;2TRFE..TRU600..T3..IV3

 1
15147-75030

2TRFE..TRC600..DM5;2TRFE..TRU600..CBU;2TRFE..TRU600..T3..IV3

 1
Common parts
90179-08087
91551-80616
91551-80825
Linked diagrams
1106
