TRC600A-TWMMK3 (2011)
Toyota Dyna/Toyoace
(1107- )2TRFE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11011 - WASHER SET, CRANKSHAFT THRUST | ||||
| 11011-75020 |
2TRFE..TRC600,TRU600 STD |
2 | ||
| 11011 - WASHER SET, CRANKSHAFT THRUST | ||||
| 11011-75020 |
2TRFE..TRC600,TRU600 STD |
2 | ||
| 11702 - BEARING SET, CRANKSHAFT | ||||
| 11704-75031 |
2TRFE..TRC600,TRU600 U/S 0.25 |
1 | ||
| 11704-75032 |
2TRFE..TRC600,TRU600 U/S 0.25 |
1 | ||
| 11711 - BEARING, CRANKSHAFT | ||||
| 11701-7503101 |
2TRFE..TRC600,TRU600 MARK1 |
5 | ||
| 11701-7503103 |
2TRFE..TRC600,TRU600 MARK3 |
5 | ||
| 11701-7503201 |
2TRFE..TRC600,TRU600 MARK 1 |
5 | ||
| 11701-7503203 |
2TRFE..TRC600,TRU600 MARK 3 |
5 | ||
| 11701-7503102 |
2TRFE..TRC600,TRU600 MARK2 |
5 | ||
| 11701-7503205 |
2TRFE..TRC600,TRU600 MARK 5 |
5 | ||
| 11701-7503202 |
2TRFE..TRC600,TRU600 MARK 2 |
5 | ||
| 11701-7503204 |
2TRFE..TRC600,TRU600 MARK 4 |
5 | ||
| 11711 - BEARING, CRANKSHAFT | ||||
| 11701-7503101 |
2TRFE..TRC600,TRU600 MARK1 |
5 | ||
| 11701-7503103 |
2TRFE..TRC600,TRU600 MARK3 |
5 | ||
| 11701-7503201 |
2TRFE..TRC600,TRU600 MARK 1 |
5 | ||
| 11701-7503203 |
2TRFE..TRC600,TRU600 MARK 3 |
5 | ||
| 11701-7503102 |
2TRFE..TRC600,TRU600 MARK2 |
5 | ||
| 11701-7503205 |
2TRFE..TRC600,TRU600 MARK 5 |
5 | ||
| 11701-7503202 |
2TRFE..TRC600,TRU600 MARK 2 |
5 | ||
| 11701-7503204 |
2TRFE..TRC600,TRU600 MARK 4 |
5 | ||
| 11711 - BEARING, CRANKSHAFT | ||||
| 11701-7503101 |
2TRFE..TRC600,TRU600 MARK1 |
5 | ||
| 11701-7503103 |
2TRFE..TRC600,TRU600 MARK3 |
5 | ||
| 11701-7503201 |
2TRFE..TRC600,TRU600 MARK 1 |
5 | ||
| 11701-7503203 |
2TRFE..TRC600,TRU600 MARK 3 |
5 | ||
| 11701-7503102 |
2TRFE..TRC600,TRU600 MARK2 |
5 | ||
| 11701-7503205 |
2TRFE..TRC600,TRU600 MARK 5 |
5 | ||
| 11701-7503202 |
2TRFE..TRC600,TRU600 MARK 2 |
5 | ||
| 11701-7503204 |
2TRFE..TRC600,TRU600 MARK 4 |
5 | ||
| 11711 - BEARING, CRANKSHAFT | ||||
| 11701-7503101 |
2TRFE..TRC600,TRU600 MARK1 |
5 | ||
| 11701-7503103 |
2TRFE..TRC600,TRU600 MARK3 |
5 | ||
| 11701-7503201 |
2TRFE..TRC600,TRU600 MARK 1 |
5 | ||
| 11701-7503203 |
2TRFE..TRC600,TRU600 MARK 3 |
5 | ||
| 11701-7503102 |
2TRFE..TRC600,TRU600 MARK2 |
5 | ||
| 11701-7503205 |
2TRFE..TRC600,TRU600 MARK 5 |
5 | ||
| 11701-7503202 |
2TRFE..TRC600,TRU600 MARK 2 |
5 | ||
| 11701-7503204 |
2TRFE..TRC600,TRU600 MARK 4 |
5 | ||
| 11711 - BEARING, CRANKSHAFT | ||||
| 11701-7503101 |
2TRFE..TRC600,TRU600 MARK1 |
5 | ||
| 11701-7503103 |
2TRFE..TRC600,TRU600 MARK3 |
5 | ||
| 11701-7503201 |
2TRFE..TRC600,TRU600 MARK 1 |
5 | ||
| 11701-7503203 |
2TRFE..TRC600,TRU600 MARK 3 |
5 | ||
| 11701-7503102 |
2TRFE..TRC600,TRU600 MARK2 |
5 | ||
| 11701-7503205 |
2TRFE..TRC600,TRU600 MARK 5 |
5 | ||
| 11701-7503202 |
2TRFE..TRC600,TRU600 MARK 2 |
5 | ||
| 11701-7503204 |
2TRFE..TRC600,TRU600 MARK 4 |
5 | ||
| 11991 - WASHER, BALANCESHAFT THRUST | ||||
| 11991-75010 |
2TRFE..TRC600,TRU600 |
1 | ||
| 11992 - WASHER, BALANCESHAFT THRUST, NO.2 | ||||
| 11992-75010 |
2TRFE..TRC600,TRU600 |
1 | ||
| 13011 - RING SET, PISTON | ||||
| 13013-75110 |
2TRFE..TRC600,TRU600 O/S 0.50 |
1 | ||
| 13011-75110 |
2TRFE..TRC600,TRU600 STD |
1 | ||
| 13041 - BEARING, CONNECTING ROD | ||||
| 13041-7505005 |
2TRFE..TRC600,TRU600 MARK5 |
4 | ||
| 13041-7505004 |
2TRFE..TRC600,TRU600 MARK4 |
4 | ||
| 13041-7505006 |
2TRFE..TRC600,TRU600 MARK6 |
4 | ||
| 13101 - PISTON SUB-ASSY, W/PIN | ||||
| 13101-75130 |
2TRFE..TRC600,TRU600 STD |
4 | ||
| 13103-75130 |
2TRFE..TRC600,TRU600 O/S 0.50 |
4 | ||
| 13101A - RING, HOLE SNAP(FOR PISTON PIN) | ||||
| 90520-22025 |
2TRFE..TRC600,TRU600 |
8 | ||
| 13101A - RING, HOLE SNAP(FOR PISTON PIN) | ||||
| 90520-22025 |
2TRFE..TRC600,TRU600 |
8 | ||
| 13201 - ROD SUB-ASSY, CONNECTING | ||||
| 13201-79576 |
2TRFE..TRC600,TRU600 |
4 | ||
| 13201A - BUSH(FOR CONNECTING ROD SMALL END) | ||||
| 90999-73144 |
2TRFE..TRC600,TRU600 |
4 | ||
| 13202 - BEARING SET, CONNECTING ROD | ||||
| 13204-75050 |
2TRFE..TRC600,TRU600 U/S 0.25 |
1 | ||
| 13265 - BOLT, CONNECTING ROD | ||||
| 13265-28010 |
2TRFE..TRC600,TRU600 |
8 | ||
| 13405 - FLYWHEEL SUB-ASSY | ||||
| 13405-75060 |
2TRFE..TRC600,TRU600 |
1 | ||
| 13405A - PIN, STRAIGHT(FOR FLYWHEEL) | ||||
| 90250-08054 |
2TRFE..TRC600,TRU600 長さ=23,外径=8 |
3 | ||
| 13405B - BOLT, FLYWHEEL SETTING | ||||
| 90910-02116 |
2TRFE..TRC600,TRU600 |
10 | ||
| 13411 - CRANKSHAFT | ||||
| 13401-75020 |
2TRFE..TRC600,TRU600 |
1 | ||
| 13453 - GEAR, FLYWHEEL RING | ||||
| 13453-20010 |
2TRFE..TRC600,TRU600 |
1 | ||
| 13471 - PULLEY, CRANKSHAFT | ||||
| 13408-75050 |
2TRFE..TRC600,TRU600 |
1 | ||
| 13471A - KEY, CRANKSHAFT(FOR CRANKSHAFT PULLEY SET) | ||||
| 90280-05005 |
2TRFE..TRC600,TRU600 |
2 | ||
| 13471C - BOLT(FOR CRANKSHAFT PULLEY SET) | ||||
| 90105-16041 |
2TRFE..TRC600,TRU600 |
1 | ||
| 13521 - GEAR OR SPROCKET, CRANKSHAFT TIMING | ||||
| 13521-75020 |
2TRFE..TRC600,TRU600 |
1 | ||
| 13621 - BALANCESHAFT, NO.1 | ||||
| 13621-75020 |
2TRFE..TRC600,TRU600 |
1 | ||
| 13622 - BALANCESHAFT, NO.2 | ||||
| 13622-75020 |
2TRFE..TRC600,TRU600 |
1 | ||
| 13632 - GEAR, BALANCESHAFT DRIVEN, NO.1 | ||||
| 13632-75010 |
2TRFE..TRC600,TRU600 |
1 | ||
| 13633 - GEAR, BALANCESHAFT DRIVEN, NO.2 | ||||
| 13633-75010 |
2TRFE..TRC600,TRU600 |
1 | ||
| 13635 - SPACER, BALANCESHAFT THRUST | ||||
| 13635-75010 |
2TRFE..TRC600,TRU600 |
1 | ||
| Common parts | ||||
| 90105-08323 | ||||
| 90281-03001 | ||||
| 91551-80814 | ||||

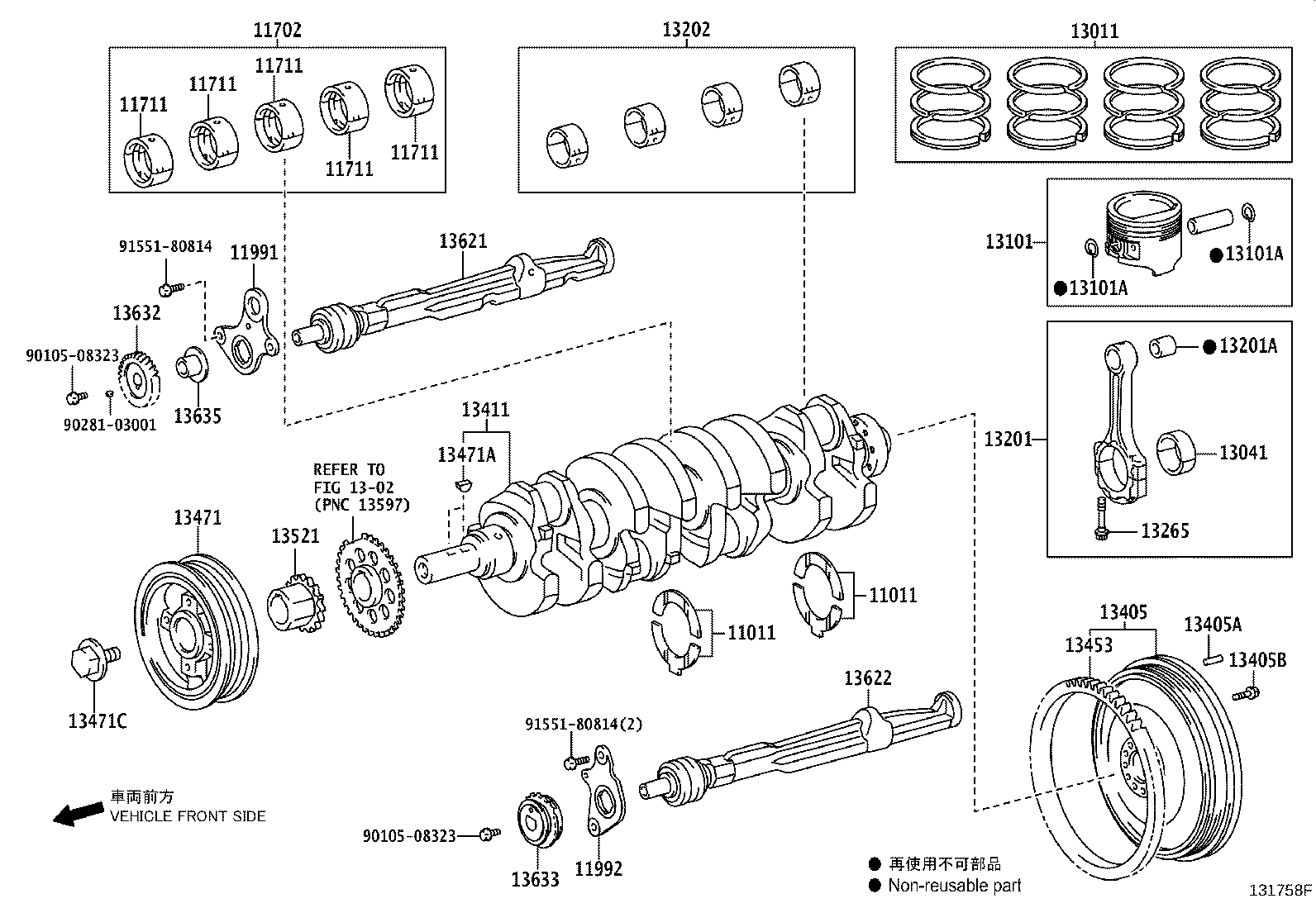

| Linked diagrams | ||||
| 1302 | ||||
