TRC600A-TWMMK3 (2011)
Toyota Dyna/Toyoace
Production
Jul 2011
-
May 2015
Engine
2TRFE
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(1107- )2TRFE

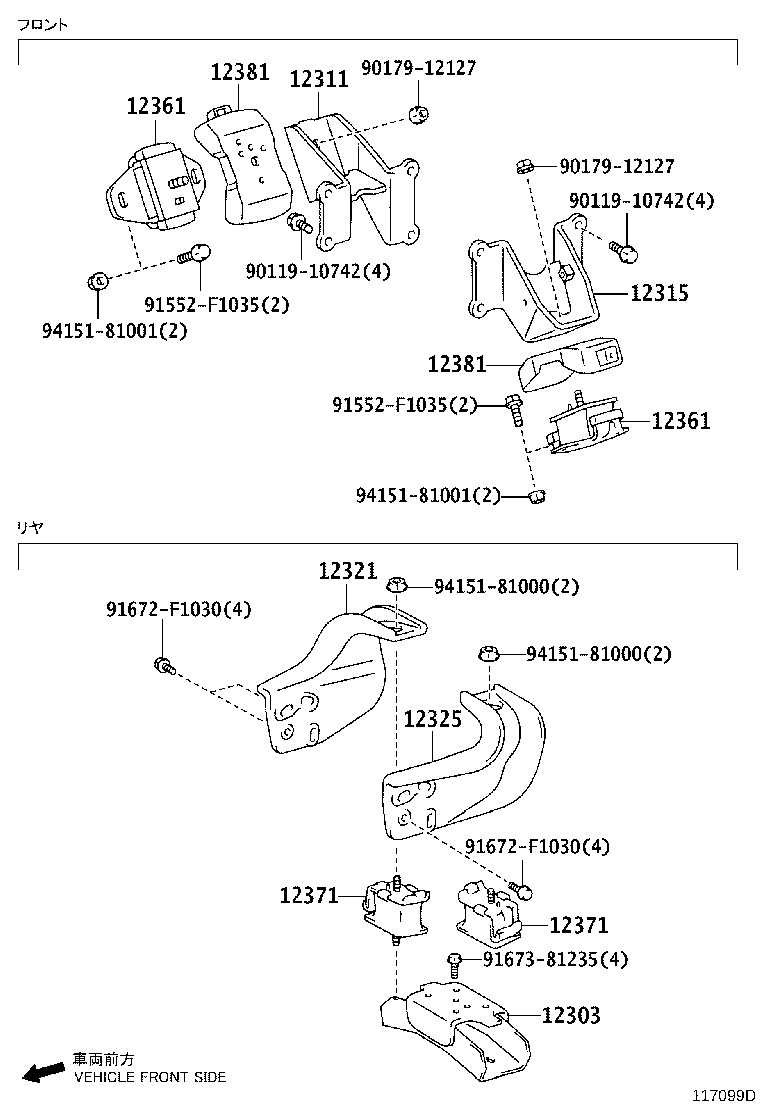

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 12303 - BRACKET SUB-ASSY, ENGINE MOUNTING, REAR | ||||
| 12303-78010 |
2TRFE..TRC600,TRU600 |
1 | ||
| 12311 - BRACKET, ENGINE MOUNTING, FRONT NO.1 RH | ||||
| 12311-75040 |
2TRFE..TRC600,TRU600 |
1 | ||
| 12315 - BRACKET, ENGINE MOUNTING, FRONT NO.1 LH | ||||
| 12315-75100 |
2TRFE..TRC600,TRU600 |
1 | ||
| 12321 - BRACKET, ENGINE MOUNTING, REAR, NO.1 | ||||
| 12321-58230 |
2TRFE..TRC600,TRU600 |
1 | ||
| 12325 - BRACKET, ENGINE MOUNTING, NO.3 | ||||
| 12325-58190 |
2TRFE..TRC600,TRU600 |
1 | ||
| 12361 - INSULATOR, ENGINE MOUNTING, FRONT | ||||
| 12361-75031 |
2TRFE..TRC600,TRU600 |
2 | ||
| 12361 - INSULATOR, ENGINE MOUNTING, FRONT | ||||
| 12361-75031 |
2TRFE..TRC600,TRU600 |
2 | ||
| 12371 - INSULATOR, ENGINE MOUNTING, REAR NO.1 | ||||
| 12371-78010 |
2TRFE..TRC600,TRU600 |
2 | ||
| 12371 - INSULATOR, ENGINE MOUNTING, REAR NO.1 | ||||
| 12371-78010 |
2TRFE..TRC600,TRU600 |
2 | ||
| 12381 - STABILIZER, ENGINE MOUNTING | ||||
| 12381-65030 |
2TRFE..TRC600,TRU600 |
2 | ||
| 12381 - STABILIZER, ENGINE MOUNTING | ||||
| 12381-65030 |
2TRFE..TRC600,TRU600 |
2 | ||
| Common parts | ||||
| 90119-10742 | ||||
| 90179-12127 | ||||
| 91552-F1035 | ||||
| 91672-F1030 | ||||
| 91673-81235 | ||||
| 94151-81000 | ||||
| 94151-81001 | ||||
