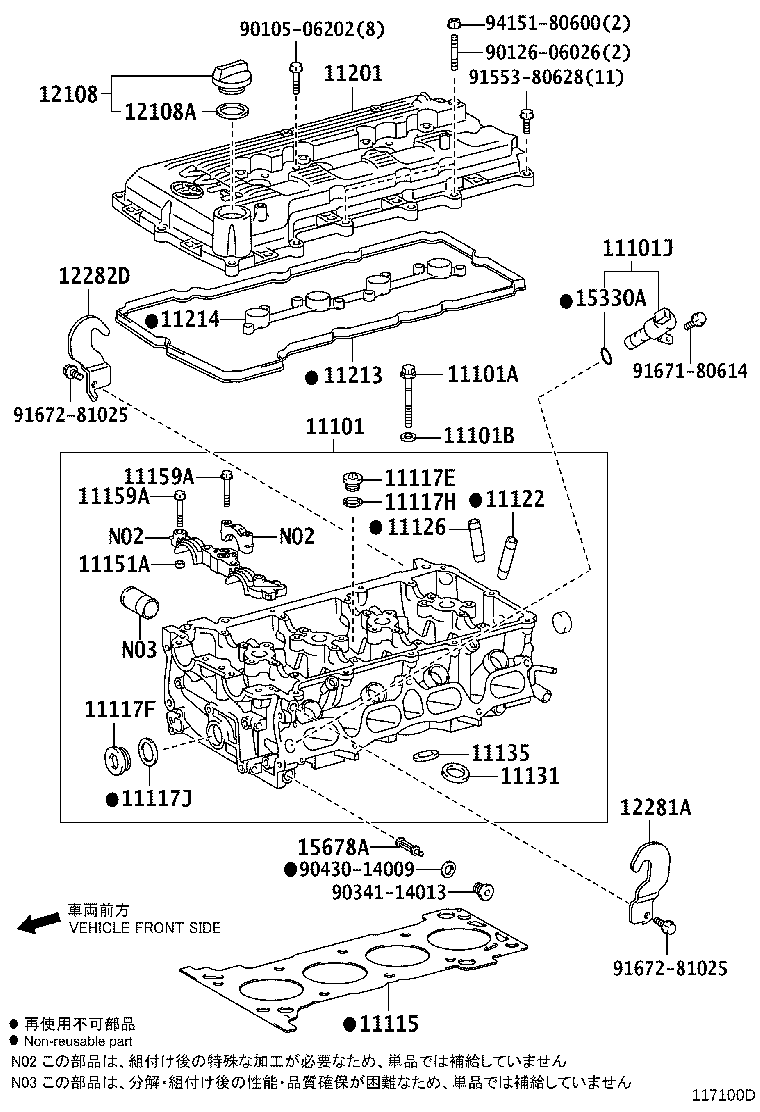

Toyota Dyna/toyoace TRC600 CYLINDER HEAD

Part #	Description	Period	Qty
11101 - HEAD SUB-ASSY, CYLINDER
11101-75170	2TRFE..TRC600,TRU600	07/2011 - 03/2014	1
11101A - BOLT(FOR CYLINDER HEAD SET)
90910-02091	2TRFE..TRC600,TRU600	07/2011 - 03/2013	10
11101B - WASHER, PLATE(FOR CYLINDER HEAD SET)
90201-11034	2TRFE..TRC600,TRU600	07/2011 - 05/2016	10
11101J - VALVE ASSY, CAMSHAFT TIMING OIL CONTROL
15330-75020	2TRFE..TRC600,TRU600	07/2011 - 11/2014	1
11115 - GASKET, CYLINDER HEAD
11115-75051	2TRFE..TRC600,TRU600	07/2011 - 02/2016	1
11117E - PLUG, W/HEAD STRAIGHT SCREW, NO.1
90341-20002	2TRFE..TRC600,TRU600	07/2011 - 05/2016	3
11117F - PLUG, W/HEAD STRAIGHT SCREW, NO.2
90341-32002	2TRFE..TRC600,TRU600	07/2011 - 05/2016	1
11117H - GASKET(FOR WATER HOLE)
90430-20004	2TRFE..TRC600,TRU600	07/2011 - 05/2016	3
11117J - GASKET(FOR CYLINDER HEAD SCREW PLUG)
90430-32004	2TRFE..TRC600,TRU600	07/2011 - 05/2016	1
11122 - BUSH, INTAKE VALVE GUIDE
11123-75020	2TRFE..TRC600,TRU600 O/S 0.05	07/2011 - 05/2016	8
11122-75020	2TRFE..TRC600,TRU600 STD	07/2011 - 05/2016	8
11126 - BUSH, EXHAUST VALVE GUIDE
11123-75020	2TRFE..TRC600,TRU600 O/S 0.05	07/2011 - 05/2016	8
11122-75020	2TRFE..TRC600,TRU600 STD	07/2011 - 05/2016	8
11131 - SEAT, INTAKE VALVE
11131-75080	2TRFE..TRC600,TRU600 STD	07/2011 - 04/2014	8
11132-75080	2TRFE..TRC600,TRU600 O/S 0.03	07/2011 - 04/2014	8
11135 - SEAT, EXHAUST VALVE
11135-75100	2TRFE..TRC600,TRU600 STD	07/2011 - 05/2016	8
11136-75100	2TRFE..TRC600,TRU600 O/S 0.03	07/2011 - 05/2016	8
11151A - PIN, RING(FOR CAMSHAFT BEARING CAP SETTING)
90253-10006	2TRFE..TRC600,TRU600 長さ=7,外径=10	07/2011 - 05/2016	2
11159A - BOLT(FOR HEAD TO CAMSHAFT BEARING CAP)
90119-07013	2TRFE..TRC600,TRU600	07/2011 - 05/2016	20
11159A - BOLT(FOR HEAD TO CAMSHAFT BEARING CAP)
90119-07013	2TRFE..TRC600,TRU600	07/2011 - 05/2016	20
11201 - COVER SUB-ASSY, CYLINDER HEAD
11201-75053	2TRFE..TRC600,TRU600	08/2011 - 03/2012	1
11201-75054	2TRFE..TRC600,TRU600	03/2012 - 10/2013	1
11201-75052	2TRFE..TRC600,TRU600	07/2011 - 08/2011	1
11213 - GASKET, CYLINDER HEAD COVER
11213-75041	2TRFE..TRC600,TRU600	07/2011 - 05/2016	1
11214 - GASKET, CYLINDER HEAD COVER, NO.2
11214-75012	2TRFE..TRC600,TRU600	07/2011 - 05/2016	1
12108 - CAP SUB-ASSY, OIL FILLER
12180-55010	2TRFE..TRC600,TRU600	07/2011 - 05/2016	1
12108A - GASKET(FOR OIL FILLER CAP)
90430-37004	2TRFE..TRC600,TRU600	07/2011 - 05/2016	1
12281A - HANGER, ENGINE, NO.1
12281-75050	2TRFE..TRC600,TRU600	07/2011 - 05/2016	1
12282D - HANGER, ENGINE, NO.2
12281-75050	2TRFE..TRC600,TRU600	07/2011 - 05/2016	1
15330A - RING, O(FOR CAM TIMING OIL CONTROL VALVE)
90099-14137	2TRFE..TRC600,TRU600	07/2011 - 05/2016	1
15678A - FILTER, OIL CONTROL VALVE
15678-21010	2TRFE..TRC600,TRU600	07/2011 - 05/2016	1
Common parts
90105-06202
90126-06026
90341-14013
90430-14009
91553-80628
91671-80614
91672-81025
94151-80600

TRC600A-TWMMK3 (2011)

(1107- )2TRFE
