RZY281H-TQPGC3 (2003)
Toyota Dyna/Toyoace

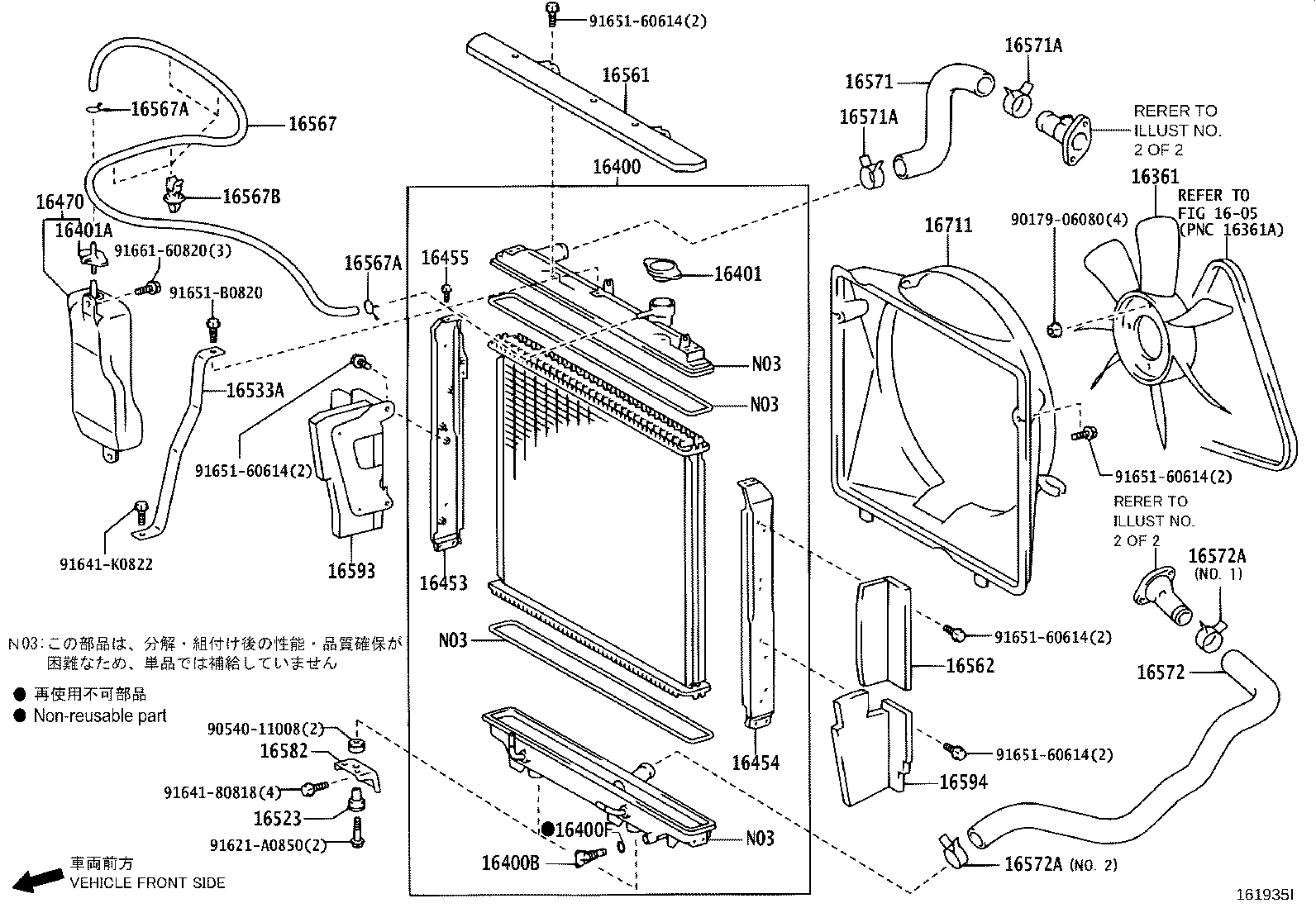

ILLUST NO. 1 OF 2(0308-0708)3RZFPE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16361 - FAN | ||||
| 16361-41070 |
3RZFPE..RZY231,281 |
1 | ||
| 16400 - RADIATOR ASSY | ||||
| 16400-75400 |
1RZE,3RZFPE..RZY220,23#,281..ATM |
1 | ||
| 16400B - PLUG, RADIATOR DRAIN COCK | ||||
| 16417-15210 |
1RZE,3RZFPE..RZY220,23#,281 |
1 | ||
| 16400F - PACKING(FOR RADIATOR DRAIN COCK) | ||||
| 16418-15520 |
1RZE,3RZFPE..RZY220,23#,281 |
1 | ||
| 16401 - CAP SUB-ASSY, RADIATOR | ||||
| 16401-67150 |
1RZE,3RZFPE..RZY220,23#,281 |
1 | ||
| 16401A - CAP SUB-ASSY, RADIATOR RESERVE TANK | ||||
| 16405-54360 |
1RZE,3RZFPE..RZY220,23#,281..T2,T3,T4 |
1 | ||
| 16453 - PLATE, RADIATOR SIDE | ||||
| 16453-75390 |
1RZE,3RZFPE..RZY220,23#,281 |
1 | ||
| 16454 - PLATE, RADIATOR SIDE | ||||
| 16454-75390 |
1RZE,3RZFPE..RZY220,23#,281 |
1 | ||
| 16455 - BOLT, RADIATOR SIDE SUPPORT PLATE | ||||
| 16455-67020 |
1RZE,3RZFPE..RZY220,23#,281 |
8 | ||
| 16470 - TANK ASSY, RADIATOR RESERVE | ||||
| 16470-54410 |
1RZE,3RZFPE..RZY220,23#,281..T2,T3,T4 |
1 | ||
| 16523 - CUSHION, SUB-RADIATOR SUPPORT | ||||
| 16523-54050 |
1RZE,3RZFPE..RZY220,23#,281 |
2 | ||
| 16533A - SUPPORT, SUB-RADIATOR | ||||
| 16533-54050 |
1RZE,3RZFPE..RZY220,23#,281 |
1 | ||
| 16561 - SEAL, RADIATOR TO SUPPORT, NO.1 | ||||
| 16561-54040 |
3RZFPE..RZY231,281 |
1 | ||
| 16562 - SEAL, RADIATOR TO SUPPORT, NO.2 | ||||
| 16562-54010 |
3RZFPE..RZY231,281 |
1 | ||
| 16567 - HOSE(FOR RADIATOR RESERVE TANK) | ||||
| 16567-54160 |
1RZE,3RZFPE..RZY220,23#,281..T2,T3,T4 |
1 | ||
| 16567A - CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
1RZE,3RZFPE..RZY220,23#,281..T2,T3,T4 |
2 | ||
| 16567A - CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
1RZE,3RZFPE..RZY220,23#,281..T2,T3,T4 |
2 | ||
| 16567B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE NO.2) | ||||
| 90469-12009 |
1RZE,3RZFPE..RZY220,23#,281..T2,T3,T4 |
4 | ||
| 16571 - HOSE, RADIATOR, INLET | ||||
| 16571-75200 |
3RZFPE..RZY231,281 |
1 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90467-37005 |
3RZFPE..RZY231,281 |
2 | ||
| 90466-35001 |
3RZFPE..RZY231,281 |
2 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90467-37005 |
3RZFPE..RZY231,281 |
2 | ||
| 90466-35001 |
3RZFPE..RZY231,281 |
2 | ||
| 16572 - HOSE, RADIATOR, OUTLET | ||||
| 16572-75220 |
3RZFPE..RZY231,281 |
1 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 90466-35001 |
3RZFPE..RZY231,281 NO.1 |
1 | ||
| 90467-37005 |
3RZFPE..RZY231,281 NO.2 |
1 | ||
| 90466-35001 |
3RZFPE..RZY231,281 NO.1 & NO.2 |
2 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 90466-35001 |
3RZFPE..RZY231,281 NO.1 |
1 | ||
| 90467-37005 |
3RZFPE..RZY231,281 NO.2 |
1 | ||
| 90466-35001 |
3RZFPE..RZY231,281 NO.1 & NO.2 |
2 | ||
| 16582 - BRACKET, RADIATOR, NO.1 | ||||
| 16582-54050 |
1RZE,3RZFPE..RZY220,23#,281 |
2 | ||
| 16593 - GUIDE, RADIATOR AIR, NO.1 | ||||
| 16593-54110 |
3RZFPE..RZY231,281 |
1 | ||
| 16594 - GUIDE, RADIATOR AIR, NO.2 | ||||
| 16594-54120 |
3RZFPE..RZY231,281 |
1 | ||
| 16711 - SHROUD, FAN | ||||
| 16711-75190 |
1RZE,3RZFPE..RZY220,23#,281 |
1 | ||
| Common parts | ||||
| 90179-06080 | ||||
| 90540-11008 | ||||
| 91621-A0850 | ||||
| 91641-80818 | ||||
| 91641-K0822 | ||||
| 91651-60614 | ||||
| 91651-B0820 | ||||
| 91661-60820 | ||||
| Linked diagrams | ||||
| 1605 | ||||

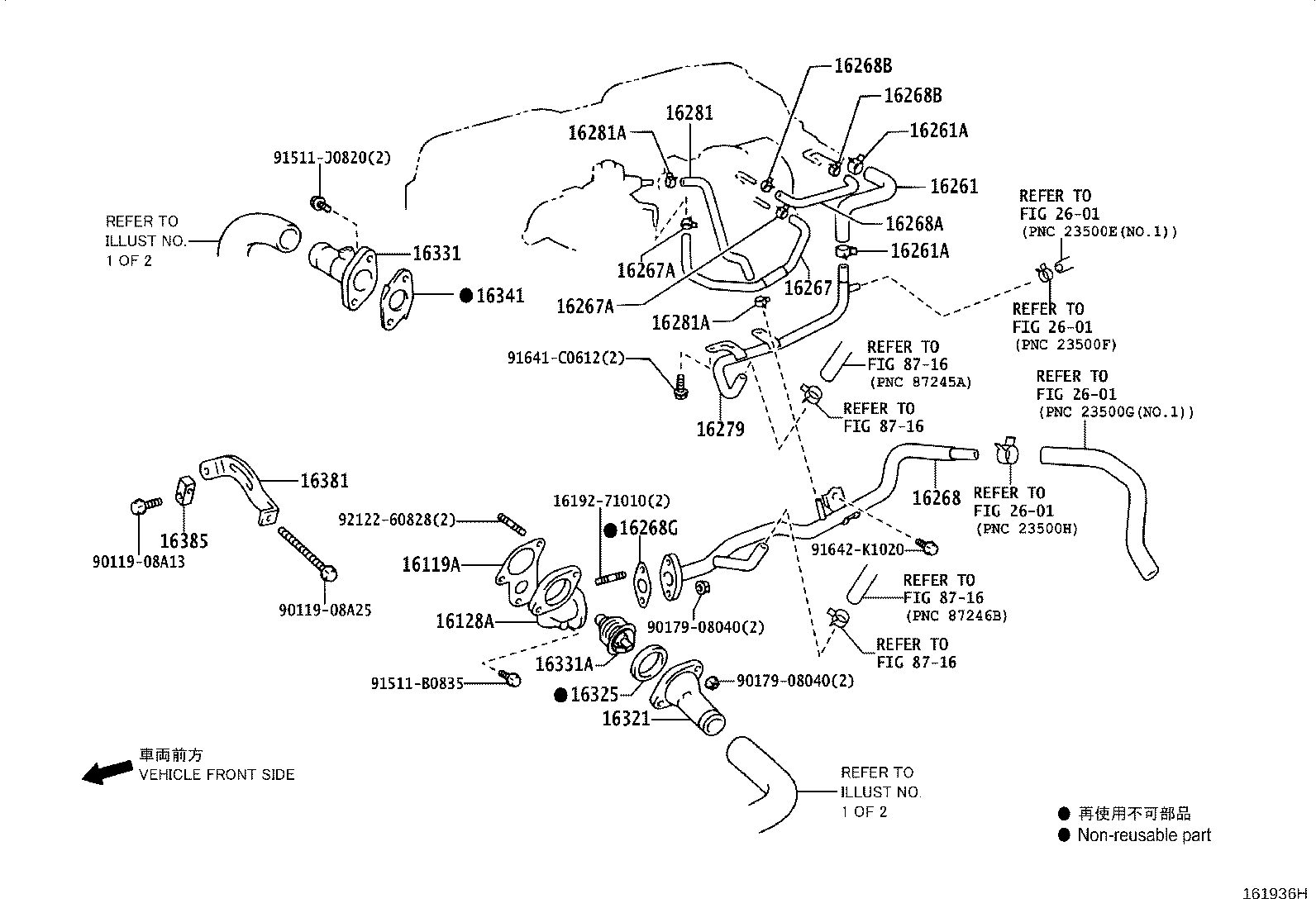

ILLUST NO. 2 OF 2(0308-0708)3RZFPE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16119A - GASKET, THERMOSTAT GUIDE | ||||
| 16119-75020 |
3RZFPE..RZY231,281 |
1 | ||
| 16128A - PLATE, WATER PUMP THERMOSTAT GUIDE | ||||
| 16128-75020 |
3RZFPE..RZY231,281 |
1 | ||
| 16261 - HOSE, WATER BY-PASS | ||||
| 16261-75090 |
3RZFPE..RZY231,281 |
1 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 90467-21010 |
3RZFPE..RZY231,281 |
2 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 90467-21010 |
3RZFPE..RZY231,281 |
2 | ||
| 16267 - HOSE, WATER BY-PASS, NO.3 | ||||
| 16267-75050 |
3RZFPE..RZY231,281 |
1 | ||
| 16267A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3) | ||||
| 96135-51300 |
3RZFPE..RZY231,281 |
2 | ||
| 16267A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3) | ||||
| 96135-51300 |
3RZFPE..RZY231,281 |
2 | ||
| 16268 - PIPE, WATER BY-PASS, NO.1 | ||||
| 16268-75050 |
3RZFPE..RZY231,281 |
1 | ||
| 16268A - HOSE(FOR WATER BY-PASS PIPE) | ||||
| 99555-10200 |
3RZFPE..RZY231,281 *H,L=200 |
1 | ||
| 16268B - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS PIPE) | ||||
| 96135-51300 |
3RZFPE..RZY231,281 |
2 | ||
| 16268B - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS PIPE) | ||||
| 96135-51300 |
3RZFPE..RZY231,281 |
2 | ||
| 16268G - GASKET(FOR WATER BY-PASS PIPE) | ||||
| 17175-75010 |
3RZFPE..RZY231,281 |
1 | ||
| 16279 - PIPE, WATER BY-PASS, NO.3 | ||||
| 16279-75040 |
3RZFPE..RZY231,281 |
1 | ||
| 16281 - HOSE, WATER BY-PASS, NO.4 | ||||
| 16281-75050 |
3RZFPE..RZY231,281 |
1 | ||
| 16281A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.4) | ||||
| 96135-51300 |
3RZFPE..RZY231,281 |
2 | ||
| 16281A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.4) | ||||
| 96135-51300 |
3RZFPE..RZY231,281 |
2 | ||
| 16321 - INLET, WATER | ||||
| 16321-0W010 |
3RZFPE..RZY231,281 |
1 | ||
| 16325 - GASKET, WATER INLET HOUSING, NO.1 | ||||
| 16325-76010 |
3RZFPE..RZY231,281 |
1 | ||
| 16331 - OUTLET, WATER | ||||
| 16331-0W010 |
3RZFPE..RZY231,281 |
1 | ||
| 16331A - THERMOSTAT | ||||
| 90916-03120 |
3RZFPE..RZY231,281 *WAX 82−95 |
1 | ||
| 16341 - GASKET, WATER OUTLET | ||||
| 16341-75020 |
3RZFPE..RZY231,281 |
1 | ||
| 16381 - BAR, FAN BELT ADJUSTING | ||||
| 16381-75050 |
3RZFPE..RZY231,281 |
1 | ||
| 16385 - SLIDER, FAN BELT ADJUSTING | ||||
| 16385-75030 |
3RZFPE..RZY231,281 |
1 | ||
| Common parts | ||||
| 16192-71010 | ||||
| 90119-08A13 | ||||
| 90119-08A25 | ||||
| 90179-08040 | ||||
| 91511-B0835 | ||||
| 91511-J0820 | ||||
| 91641-C0612 | ||||
| 91642-K1020 | ||||
| 92122-60828 | ||||
| Linked diagrams | ||||
| 2601 | ||||
| 8716 | ||||
