RZY281H-TQPGC3 (2003)

Toyota Dyna/Toyoace

Production Aug 2003 - Aug 2007
Engine 3RZFPE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0308- )3RZFPE

Click highlighted areas on diagram

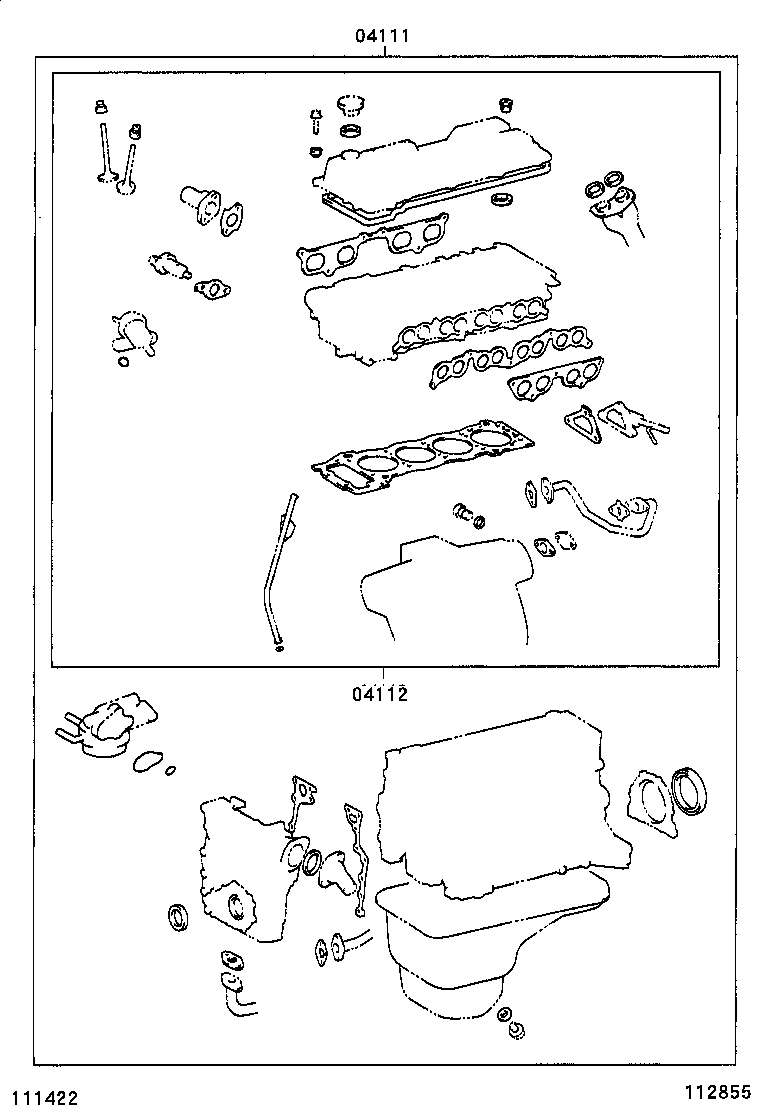

diagram 04111 04112
Part # Description Qty Price
04111 - GASKET KIT, ENGINE OVERHAUL
04111-75280

3RZFPE..RZY231,281

 1
04111-75231

3RZFPE..RZY231,281

 1
04112 - GASKET KIT, ENGINE VALVE GRIND
04112-75270

3RZFPE..RZY231,281

 1
04112-75220

3RZFPE..RZY231,281

 1
