RZY281H-TQPGC (2003)
Toyota Dyna/Toyoace
Production
Aug 2003
-
Aug 2007
Engine
3RZFPE
Transmission
ATM
Displacement
2500cc
Power
168 HP (125 kW)
(0308-0708)3RZFPE

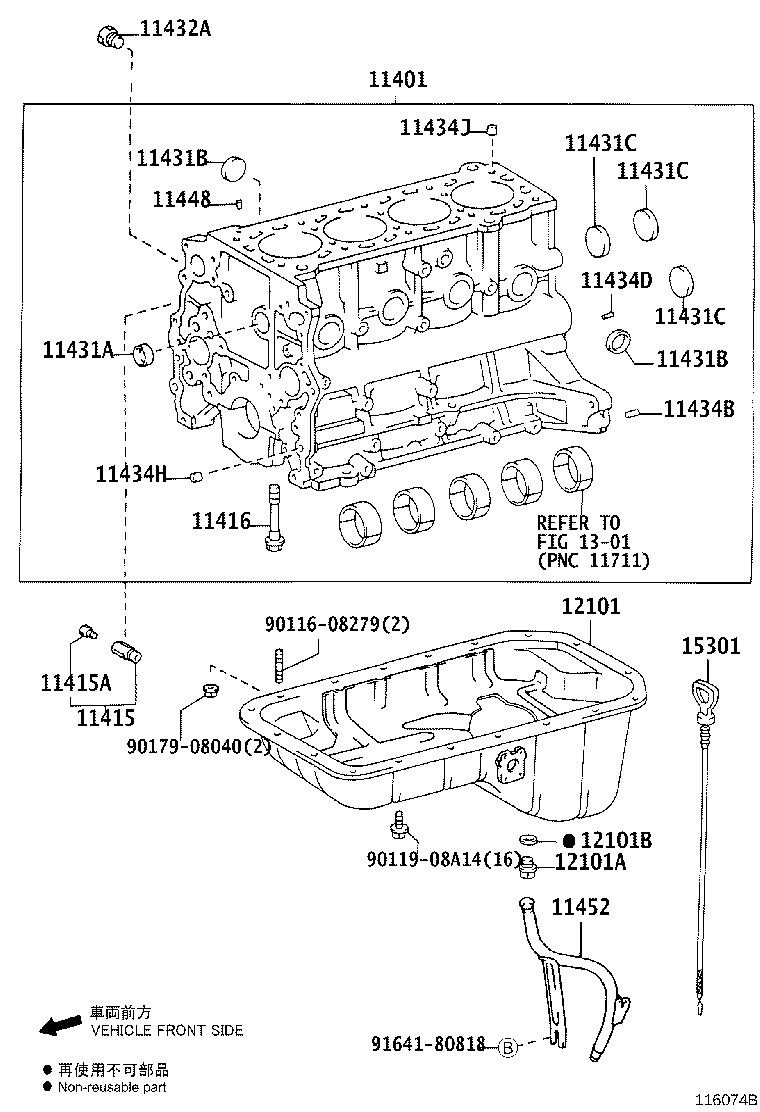

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11401 - BLOCK SUB-ASSY, CYLINDER | ||||
| 11401-79686 |
3RZFPE..RZY231,281 |
1 | ||
| 11401-79687 |
3RZFPE..RZY231,281 |
1 | ||
| 11415 - COCK SUB-ASSY, WATER DRAIN(FOR CYLINDER BLOCK) | ||||
| 90910-09118 |
3RZFPE..RZY231,281 |
1 | ||
| 11415A - PLUG, WATER DRAIN COCK(FOR CYLINDER BLOCK) | ||||
| 90910-09087 |
1RZE,3RZFPE..RZY220,23#,281 |
1 | ||
| 11416 - BOLT(FOR CRANKSHAFT BEARING CAP SET) | ||||
| 90910-02092 |
3RZFPE..RZY231,281 |
10 | ||
| 11431A - PLUG, TIGHT, NO.1(FOR CYLINDER BLOCK) | ||||
| 96411-63000 |
3RZFPE..RZY231,281 |
1 | ||
| 11431B - PLUG, TIGHT, NO.2(FOR CYLINDER BLOCK) | ||||
| 96411-63500 |
3RZFPE..RZY231,281 |
8 | ||
| 11431B - PLUG, TIGHT, NO.2(FOR CYLINDER BLOCK) | ||||
| 96411-63500 |
3RZFPE..RZY231,281 |
8 | ||
| 11431C - PLUG, TIGHT, NO.3(FOR CYLINDER BLOCK) | ||||
| 96411-64000 |
3RZFPE..RZY231,281 |
3 | ||
| 11431C - PLUG, TIGHT, NO.3(FOR CYLINDER BLOCK) | ||||
| 96411-64000 |
3RZFPE..RZY231,281 |
3 | ||
| 11431C - PLUG, TIGHT, NO.3(FOR CYLINDER BLOCK) | ||||
| 96411-64000 |
3RZFPE..RZY231,281 |
3 | ||
| 11432A - PLUG, W/HEAD TAPER SCREW, NO.1 | ||||
| 90345-53009 |
3RZFPE..RZY231,281 |
1 | ||
| 11434B - PIN, STRAIGHT(FOR CLUTCH HOUSING SET) | ||||
| 90250-10113 |
1RZE,3RZFPE..RZY220,23#,281 長さ=22,外径=10 |
2 | ||
| 11434D - PIN, STRAIGHT(FOR ENGINE REAR OIL SEAL) | ||||
| 90250-06003 |
1RZE,3RZFPE..RZY220,23#,281 長さ=14,外径=6 |
2 | ||
| 11434H - PIN, RING (FOR TIMING BELT COVER SET) | ||||
| 90253-11005 |
3RZFPE..RZY231,281 |
3 | ||
| 11434J - PIN, RING (FOR CYLINDER HEAD SET) | ||||
| 90253-15001 |
3RZFPE..RZY231,281 |
2 | ||
| 90253-15016 |
1RZE,3RZFPE..RZY220,23#,281 |
2 | ||
| 11448 - ORIFICE, CYLINDER BLOCK OIL | ||||
| 90977-02011 |
3RZFPE..RZY231,281 |
1 | ||
| 11452 - GUIDE, OIL LEVEL GAGE | ||||
| 11409-75020 |
1RZE,3RZFPE..RZY220,23#,281 |
1 | ||
| 12101 - PAN SUB-ASSY, OIL | ||||
| 12101-75060 |
1RZE,3RZFPE..RZY220,23#,281 |
1 | ||
| 12101A - PLUG(FOR OIL PAN DRAIN) | ||||
| 90341-12012 |
1RZE,3RZFPE..RZY220,23#,281 |
1 | ||
| 12101B - GASKET(FOR OIL PAN DRAIN PLUG) | ||||
| 90430-12031 |
1RZE,3RZFPE..RZY220,23#,281 |
1 | ||
| 15301 - GAGE SUB-ASSY, OIL LEVEL | ||||
| 15301-75020 |
1RZE,3RZFPE..RZY220,23#,281 |
1 | ||
| Common parts | ||||
| 90116-08279 | ||||
| 90119-08A14 | ||||
| 90179-08040 | ||||
| 91641-80818 | ||||
| Linked diagrams | ||||
| 1301 | ||||
