RZY281H-TQMGC3 (2003)

Toyota Dyna/Toyoace

Production Aug 2003 - Aug 2007
Engine 3RZFPE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

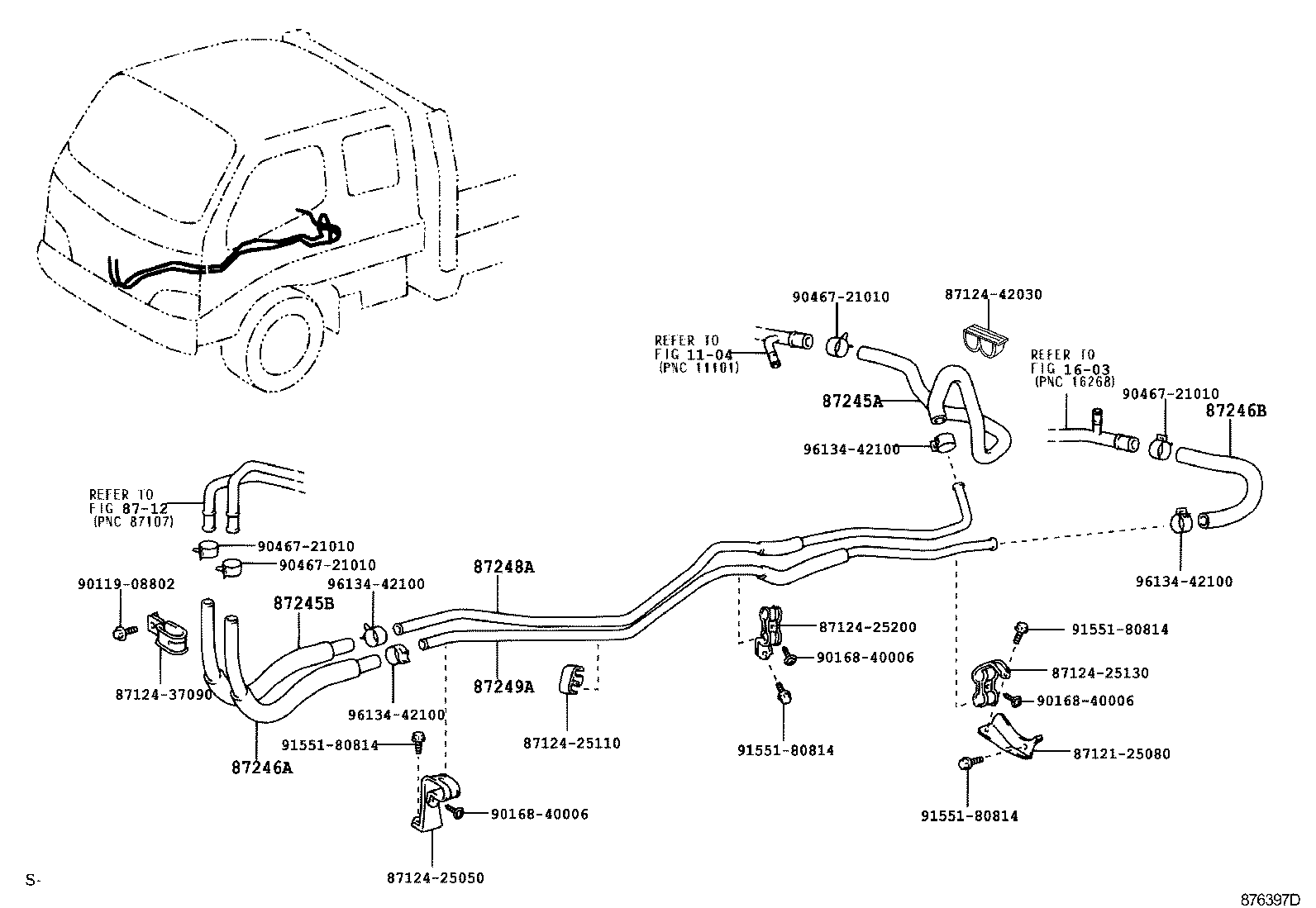

ILLUST NO. 1 OF 2(0308- )TRY220,23#,281

Click highlighted areas on diagram

ﾌﾛﾝﾄ

diagram 1104 1603 8712 8712125080 8712425050 8712425110 8712425130 8712425200 8712437090 8712442030 87245A 87245B 87246A 87246B 87248A 87249A 9011908802 9016840006 9016840006 9016840006 9046721010 9046721010 9046721010 9046721010 9155180814 9155180814 9155180814 9155180814 9613442100 9613442100 9613442100 9613442100
Part # Description Qty Price
87245A - HOSE, HEATER WATER, INLET A
87245-25530

LY230,280,RZY231,281..LPG

 1
87245B - HOSE, HEATER WATER, INLET B
87245-25450

TRY231,281;LY220,230,240,270,280,290,RZY220,230,TRY220,230..DSL,EFI

 1
87245-25520

LY230,280,RZY231,281..LPG

 1
87246A - HOSE, HEATER WATER, OUTLET A
87245-25520

LY230,280,RZY231,281..LPG

 1
87245-25680

TRY231,281;LY220,230,240,270,280,290,RZY220,230,TRY220,230..DSL,EFI

 1
87245-25860

KDY22#,23#,24#,27#,28#,290

 1
87246B - HOSE, HEATER WATER, OUTLET B
87245-25540

LY230,280,RZY231,281..LPG

 1
87248A - PIPE, HEATER WATER INLET, A
87248-25050

LY220,230,240,270,280,290,RZY231,281

 1
87248-25260

TRY220,23#,281

 1
87248-25310

KDY22#,23#,24#,27#,28#,290

 1
87249A - PIPE, HEATER WATER OUTLET, A
87248-25060

LY220,230,240,270,280,290,RZY231,281

 1
87248-25270

TRY220,23#,281

 1
87248-25320

KDY22#,23#,24#,27#,28#,290

 1
Common parts
87121-25080
87124-25050
87124-25110
87124-25130
87124-25200
87124-37090
87124-42030
90119-08802
90168-40006
90467-21010
91551-80814
96134-42100
Linked diagrams
1104
1603
8712

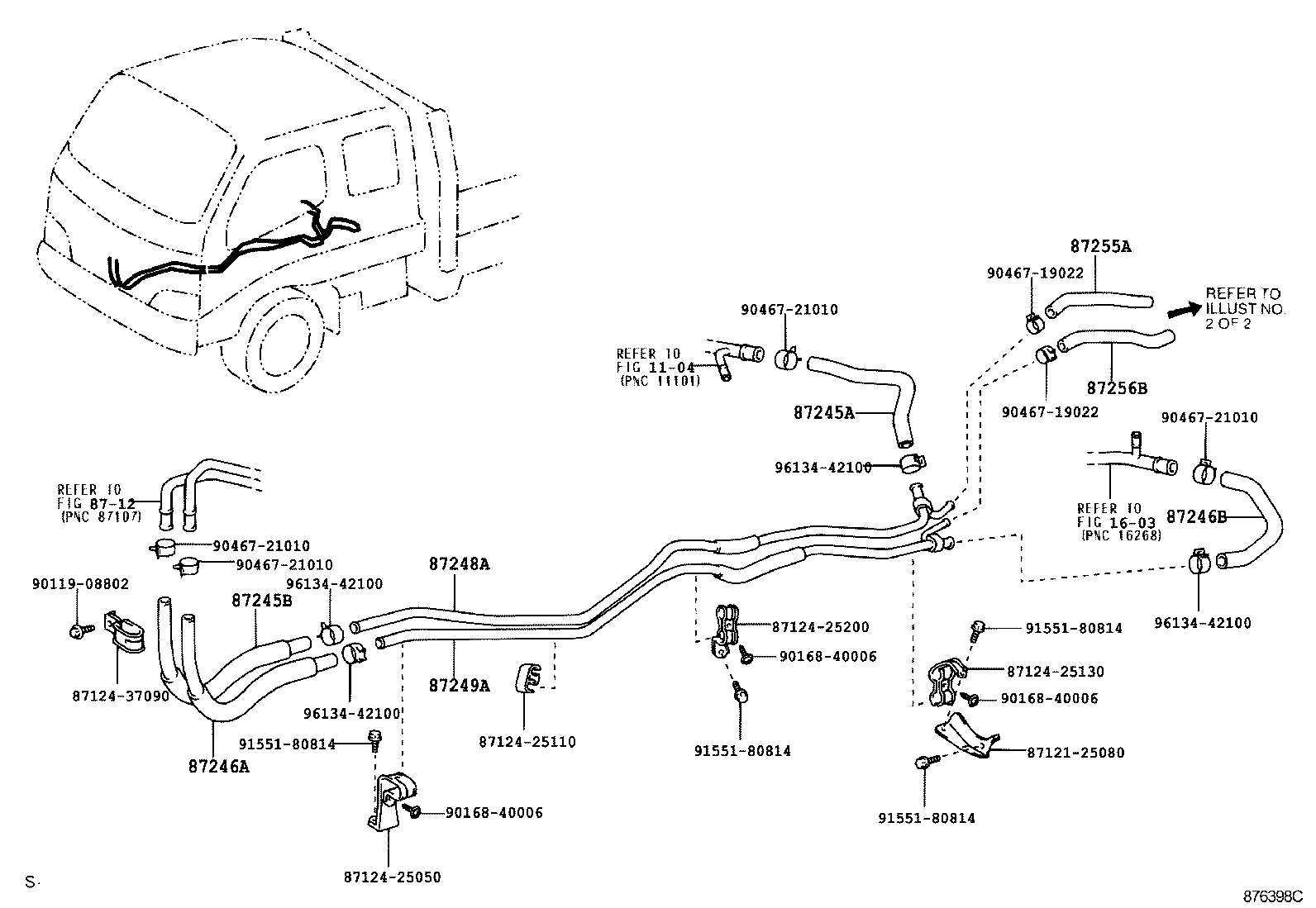

ILLUST NO. 1 OF 2(0308- )TRY230..ST..IV6 ; (0308- )TRY220,23#,281..CBU,IV3

Click highlighted areas on diagram

ﾌﾛﾝﾄ--ｱﾘ(ﾘﾔ ﾋ-ﾀ)

diagram 1104 1603 8712 8712125080 8712425050 8712425110 8712425130 8712425200 8712437090 87245A 87245B 87246A 87246B 87248A 87249A 87255A 87256B 9011908802 9016840006 9016840006 9016840006 9046719022 9046719022 9046721010 9046721010 9046721010 9046721010 9155180814 9155180814 9155180814 9155180814 9613442100 9613442100 9613442100 9613442100
Part # Description Qty Price
87245A - HOSE, HEATER WATER, INLET A
87245-25530

LY230,280,RZY231,281..LPG

 1
87245B - HOSE, HEATER WATER, INLET B
87245-25450

TRY231,281;LY220,230,240,270,280,290,RZY220,230,TRY220,230..DSL,EFI

 1
87245-25520

LY230,280,RZY231,281..LPG

 1
87246A - HOSE, HEATER WATER, OUTLET A
87245-25520

LY230,280,RZY231,281..LPG

 1
87245-25680

TRY231,281;LY220,230,240,270,280,290,RZY220,230,TRY220,230..DSL,EFI

 1
87245-25860

KDY22#,23#,24#,27#,28#,290

 1
87246B - HOSE, HEATER WATER, OUTLET B
87245-25540

LY230,280,RZY231,281..LPG

 1
87248A - PIPE, HEATER WATER INLET, A
87248-25050

LY220,230,240,270,280,290,RZY231,281

 1
87248-25260

TRY220,23#,281

 1
87248-25310

KDY22#,23#,24#,27#,28#,290

 1
87249A - PIPE, HEATER WATER OUTLET, A
87248-25060

LY220,230,240,270,280,290,RZY231,281

 1
87248-25270

TRY220,23#,281

 1
87248-25320

KDY22#,23#,24#,27#,28#,290

 1
Common parts
87121-25080
87124-25050
87124-25110
87124-25130
87124-25200
87124-37090
90119-08802
90168-40006
90467-19022
90467-21010
91551-80814
96134-42100
Linked diagrams
1104
1603
8712

ILLUST NO. 1 OF 2(0408- )KDY22#,23#,24#,27#,28#,290

Click highlighted areas on diagram

ﾌﾛﾝﾄ

diagram 1603 1603 1603 8712125040 8712425040 8712425070 8712425070 8712425140 8712425190 8712437090 8714 87245 87245A 87246A 87246B 87246B 87246B 87246C 87246C 87248A 87249A 87251C 87251C 9011908802 9016840006 9016840006 9016840006 9016840006 9046721010 9046721010 9046721010 9046721010 9155180814 9163140614 9165160616 9165160616 9415180600 9613442100 9613442100 9613442100 9613442100 9613442100 9613442100 9613442100 9613442100 9613442100
Part # Description Qty Price
87245 - HOSE, HEATER WATER, INLET
87245-25840

KDY22#,23#,24#,27#,28#,290

 1
87245A - HOSE, HEATER WATER, INLET A
87245-25530

LY230,280,RZY231,281..LPG

 1
87246A - HOSE, HEATER WATER, OUTLET A
87245-25520

LY230,280,RZY231,281..LPG

 1
87245-25680

TRY231,281;LY220,230,240,270,280,290,RZY220,230,TRY220,230..DSL,EFI

 1
87245-25860

KDY22#,23#,24#,27#,28#,290

 1
87246B - HOSE, HEATER WATER, OUTLET B
87245-25540

LY230,280,RZY231,281..LPG

 1
87246B - HOSE, HEATER WATER, OUTLET B
87245-25540

LY230,280,RZY231,281..LPG

 1
87246B - HOSE, HEATER WATER, OUTLET B
87245-25540

LY230,280,RZY231,281..LPG

 1
87248A - PIPE, HEATER WATER INLET, A
87248-25050

LY220,230,240,270,280,290,RZY231,281

 1
87248-25260

TRY220,23#,281

 1
87248-25310

KDY22#,23#,24#,27#,28#,290

 1
87249A - PIPE, HEATER WATER OUTLET, A
87248-25060

LY220,230,240,270,280,290,RZY231,281

 1
87248-25270

TRY220,23#,281

 1
87248-25320

KDY22#,23#,24#,27#,28#,290

 1
Common parts
87121-25040
87124-25040
87124-25070
87124-25140
87124-25190
87124-37090
90119-08802
90168-40006
90467-21010
91551-80814
91631-40614
91651-60616
94151-80600
96134-42100
Linked diagrams
1603
8714

ILLUST NO. 1 OF 2(0408- )KDY220,230,24#,27#,28#,290

Click highlighted areas on diagram

ﾌﾛﾝﾄ--ｱﾘ(ﾘﾔ ﾋｰﾀ)

diagram 1603 1603 1603 8712 8712125040 8712425040 8712425070 8712425080 8712425140 8712425190 8712437090 87245 87245A 87246A 87246B 87246B 87246B 87246C 87246C 87248A 87249A 87249B 87251C 87251C 87256D 9011908802 9016840006 9016840006 9016840006 9016840006 9046719022 9046719022 9046721010 9046721010 9046721010 9046721010 9155180814 9163140614 9165160616 9165160616 9415180600 9613442100 9613442100 9613442100 9613442100 9613442100 9613442100 9613442100 9613442100 9613442100
Part # Description Qty Price
87245 - HOSE, HEATER WATER, INLET
87245-25840

KDY22#,23#,24#,27#,28#,290

 1
87245-25840

KDY22#,23#,24#,27#,28#,290

 1
87245A - HOSE, HEATER WATER, INLET A
87245-25530

LY230,280,RZY231,281..LPG

 1
87245-25530

LY230,280,RZY231,281..LPG

 1
87246A - HOSE, HEATER WATER, OUTLET A
87245-25520

LY230,280,RZY231,281..LPG

 1
87245-25520

LY230,280,RZY231,281..LPG

 1
87245-25680

TRY231,281;LY220,230,240,270,280,290,RZY220,230,TRY220,230..DSL,EFI

 1
87245-25680

TRY231,281;LY220,230,240,270,280,290,RZY220,230,TRY220,230..DSL,EFI

 1
87245-25860

KDY22#,23#,24#,27#,28#,290

 1
87245-25860

KDY22#,23#,24#,27#,28#,290

 1
87246B - HOSE, HEATER WATER, OUTLET B
87245-25540

LY230,280,RZY231,281..LPG

 1
87245-25540

LY230,280,RZY231,281..LPG

 1
87246B - HOSE, HEATER WATER, OUTLET B
87245-25540

LY230,280,RZY231,281..LPG

 1
87245-25540

LY230,280,RZY231,281..LPG

 1
87246B - HOSE, HEATER WATER, OUTLET B
87245-25540

LY230,280,RZY231,281..LPG

 1
87245-25540

LY230,280,RZY231,281..LPG

 1
87248A - PIPE, HEATER WATER INLET, A
87248-25050

LY220,230,240,270,280,290,RZY231,281

 1
87248-25050

LY220,230,240,270,280,290,RZY231,281

 1
87248-25260

TRY220,23#,281

 1
87248-25260

TRY220,23#,281

 1
87248-25310

KDY22#,23#,24#,27#,28#,290

 1
87248-25310

KDY22#,23#,24#,27#,28#,290

 1
87249A - PIPE, HEATER WATER OUTLET, A
87248-25060

LY220,230,240,270,280,290,RZY231,281

 1
87248-25060

LY220,230,240,270,280,290,RZY231,281

 1
87248-25270

TRY220,23#,281

 1
87248-25270

TRY220,23#,281

 1
87248-25320

KDY22#,23#,24#,27#,28#,290

 1
87248-25320

KDY22#,23#,24#,27#,28#,290

 1
Common parts
87121-25040
87124-25040
87124-25070
87124-25080
87124-25140
87124-25190
87124-37090
90119-08802
90168-40006
90467-19022
90467-21010
91551-80814
91631-40614
91651-60616
94151-80600
96134-42100
Linked diagrams
1603
8712

ILLUST NO. 1 OF 2(0408- )KDY220,230,24#,27#,28#,290 ; (0408-)KDY231..T2,T3,T4,TW3,TW4..CBU,IV

Click highlighted areas on diagram

ﾚｲﾄｳｼﾔ

diagram 1603 1603 1603 8712 8712125040 8712425040 8712425070 8712425070 8712425140 8712425190 8712437090 87245 87245A 87245B 87246A 87246B 87246B 87246B 87246C 87246C 87248A 87249A 87251C 87251C 87251C 9011908802 9016840006 9016840006 9016840006 9016840006 9046721010 9046721010 9046721010 9046721010 9163140614 9165160616 9165160616 9415180600 9613442100 9613442100 9613442100 9613442100 9613442100 9613442100 9613442100 9613442100 9613442100 9613442100 9613442100
Part # Description Qty Price
87245 - HOSE, HEATER WATER, INLET
87245-25840

KDY22#,23#,24#,27#,28#,290

 1
87245-25840

KDY22#,23#,24#,27#,28#,290

 1
87245A - HOSE, HEATER WATER, INLET A
87245-25530

LY230,280,RZY231,281..LPG

 1
87245-25530

LY230,280,RZY231,281..LPG

 1
87245B - HOSE, HEATER WATER, INLET B
87245-25450

TRY231,281;LY220,230,240,270,280,290,RZY220,230,TRY220,230..DSL,EFI

 1
87245-25450

TRY231,281;LY220,230,240,270,280,290,RZY220,230,TRY220,230..DSL,EFI

 1
87245-25520

LY230,280,RZY231,281..LPG

 1
87245-25520

LY230,280,RZY231,281..LPG

 1
87246A - HOSE, HEATER WATER, OUTLET A
87245-25520

LY230,280,RZY231,281..LPG

 1
87245-25520

LY230,280,RZY231,281..LPG

 1
87245-25680

TRY231,281;LY220,230,240,270,280,290,RZY220,230,TRY220,230..DSL,EFI

 1
87245-25680

TRY231,281;LY220,230,240,270,280,290,RZY220,230,TRY220,230..DSL,EFI

 1
87245-25860

KDY22#,23#,24#,27#,28#,290

 1
87245-25860

KDY22#,23#,24#,27#,28#,290

 1
87246B - HOSE, HEATER WATER, OUTLET B
87245-25540

LY230,280,RZY231,281..LPG

 1
87245-25540

LY230,280,RZY231,281..LPG

 1
87246B - HOSE, HEATER WATER, OUTLET B
87245-25540

LY230,280,RZY231,281..LPG

 1
87245-25540

LY230,280,RZY231,281..LPG

 1
87246B - HOSE, HEATER WATER, OUTLET B
87245-25540

LY230,280,RZY231,281..LPG

 1
87245-25540

LY230,280,RZY231,281..LPG

 1
87248A - PIPE, HEATER WATER INLET, A
87248-25050

LY220,230,240,270,280,290,RZY231,281

 1
87248-25050

LY220,230,240,270,280,290,RZY231,281

 1
87248-25260

TRY220,23#,281

 1
87248-25260

TRY220,23#,281

 1
87248-25310

KDY22#,23#,24#,27#,28#,290

 1
87248-25310

KDY22#,23#,24#,27#,28#,290

 1
87249A - PIPE, HEATER WATER OUTLET, A
87248-25060

LY220,230,240,270,280,290,RZY231,281

 1
87248-25060

LY220,230,240,270,280,290,RZY231,281

 1
87248-25270

TRY220,23#,281

 1
87248-25270

TRY220,23#,281

 1
87248-25320

KDY22#,23#,24#,27#,28#,290

 1
87248-25320

KDY22#,23#,24#,27#,28#,290

 1
Common parts
87121-25040
87124-25040
87124-25070
87124-25140
87124-25190
87124-37090
90119-08802
90168-40006
90467-21010
91631-40614
91651-60616
94151-80600
96134-42100
Linked diagrams
1603
8712
