RZY281H-TQMGC (2003)

Toyota Dyna/Toyoace

Production Aug 2003 - Aug 2007
Engine 3RZFPE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0308-0708)3RZFPE

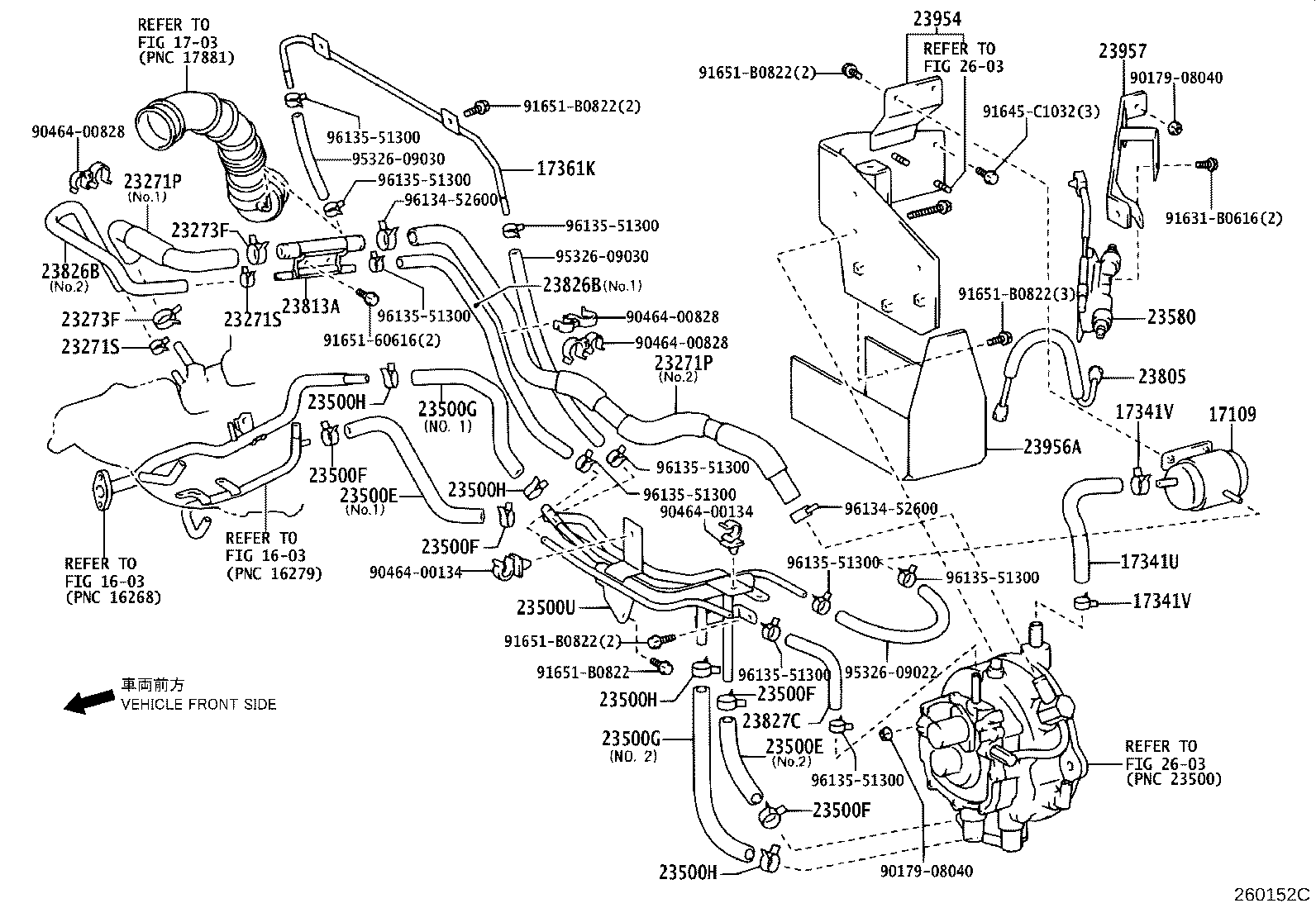

Click highlighted areas on diagram

diagram 1603 1603 1703 17109 17341U 17341V 17341V 17361K 23271P 23271P 23271S 23271S 23273F 23273F 23500E 23500E 23500F 23500F 23500F 23500F 23500G 23500G 23500H 23500H 23500H 23500H 23500U 23580 23805 23813A 23826B 23826B 23827C 23954 23956A 23957 2603 2603 9017908040 9017908040 9046400134 9046400134 9046400828 9046400828 9046400828 91631B0616 91645C1032 9165160616 91651B0822 91651B0822 91651B0822 91651B0822 91651B0822 9532609022 9532609030 9532609030 9613452600 9613452600 9613551300 9613551300 9613551300 9613551300 9613551300 9613551300 9613551300 9613551300 9613551300 9613551300
Part # Description Qty Price
17109 - TANK SUB-ASSY, INTAKE AIR SURGE
17109-75050

3RZFPE..RZY231,281

 1
17341U - HOSE, AIR, NO.1(FOR LPG REGULATOR)
17341-75120

3RZFPE..RZY231,281

 1
17341V - CLIP(FOR LPG REGULATOR AIR HOSE)
96134-41900

3RZFPE..RZY231,281

 2
17341V - CLIP(FOR LPG REGULATOR AIR HOSE)
96134-41900

3RZFPE..RZY231,281

 2
17361K - TUBE, AIR(FOR LPG REGULATOR)
17361-75030

3RZFPE..RZY231,281

 1
23271P - HOSE, FUEL, NO.1(FOR REGULATOR TO FUEL PIPE)
23271-75160

3RZFPE..RZY231,281

NO.2

 1
23271-75150

3RZFPE..RZY231,281

NO.1

 1
23271P - HOSE, FUEL, NO.1(FOR REGULATOR TO FUEL PIPE)
23271-75160

3RZFPE..RZY231,281

NO.2

 1
23271-75150

3RZFPE..RZY231,281

NO.1

 1
23271S - CLAMP OR CLIP(FOR FUEL HOSE NO.1)
96135-51300

3RZFPE..RZY231,281

 2
23271S - CLAMP OR CLIP(FOR FUEL HOSE NO.1)
96135-51300

3RZFPE..RZY231,281

 2
23273F - CLAMP OR CLIP(FOR FUEL HOSE NO.3)
96134-52600

3RZFPE..RZY231,281

 2
23273F - CLAMP OR CLIP(FOR FUEL HOSE NO.3)
96134-52600

3RZFPE..RZY231,281

 2
23500E - HOSE, WATER(FOR LPG REGULATOR INLET)
16267-75020

3RZFPE..RZY231,281

NO.2

 1
16261-75110

3RZFPE..RZY231,281

NO.1

 1
23500E - HOSE, WATER(FOR LPG REGULATOR INLET)
16267-75020

3RZFPE..RZY231,281

NO.2

 1
16261-75110

3RZFPE..RZY231,281

NO.1

 1
23500F - CLAMP OR CLIP(FOR LPG REGULATOR INLET WATER HOSE)
96134-41900

3RZFPE..RZY231,281

 4
23500F - CLAMP OR CLIP(FOR LPG REGULATOR INLET WATER HOSE)
96134-41900

3RZFPE..RZY231,281

 4
23500F - CLAMP OR CLIP(FOR LPG REGULATOR INLET WATER HOSE)
96134-41900

3RZFPE..RZY231,281

 4
23500F - CLAMP OR CLIP(FOR LPG REGULATOR INLET WATER HOSE)
96134-41900

3RZFPE..RZY231,281

 4
23500G - HOSE, WATER(FOR LPG REGULATOR OUTLET)
16281-75070

3RZFPE..RZY231,281

NO.1

 1
99555-20250

3RZFPE..RZY231,281

NO.2

 1
23500G - HOSE, WATER(FOR LPG REGULATOR OUTLET)
16281-75070

3RZFPE..RZY231,281

NO.1

 1
99555-20250

3RZFPE..RZY231,281

NO.2

 1
23500H - CLAMP OR CLIP(FOR LPG REGULATOR OUTLET WATER HOSE)
96134-41900

3RZFPE..RZY231,281

 4
23500H - CLAMP OR CLIP(FOR LPG REGULATOR OUTLET WATER HOSE)
96134-41900

3RZFPE..RZY231,281

 4
23500H - CLAMP OR CLIP(FOR LPG REGULATOR OUTLET WATER HOSE)
96134-41900

3RZFPE..RZY231,281

 4
23500H - CLAMP OR CLIP(FOR LPG REGULATOR OUTLET WATER HOSE)
96134-41900

3RZFPE..RZY231,281

 4
23500U - PIPE, WATER BY-PASS, NO.2(FOR LPG)
16278-75081

3RZFPE..RZY231,281

 1
23580 - PREHEATER ASSY, LPG
23587-75040

3RZFPE..RZY231,281

 1
23805 - PIPE SUB-ASSY, LPG REGULATOR
23805-75041

3RZFPE..RZY231,281

 1
23813A - PIPE, LPG FUEL
23801-75090

3RZFPE..RZY231,281

 1
23826B - HOSE, FUEL VAPOR FEED, NO.1
23829-75290

3RZFPE..RZY231,281

NO.2

 1
23826-75090

3RZFPE..RZY231,281

NO.1

 1
23826B - HOSE, FUEL VAPOR FEED, NO.1
23829-75290

3RZFPE..RZY231,281

NO.2

 1
23826-75090

3RZFPE..RZY231,281

NO.1

 1
23827C - HOSE, FUEL VAPOR FEED, NO.2
23827-75220

3RZFPE..RZY231,281

 1
23954 - BRACKET, LPG REGULATOR
23954-75041

3RZFPE..RZY231,281

 1
23956A - COVER, LPG REGULATOR
23956-75041

3RZFPE..RZY231,281

 1
23957 - STAY, LPG REGULATOR
23957-75030

3RZFPE..RZY231,281

 1
Common parts
90179-08040
90464-00134
90464-00828
91631-B0616
91645-C1032
91651-60616
91651-B0822
95326-09022
95326-09030
96134-52600
96135-51300
