RZY230-TQMGE3 (2001)

Toyota Dyna/Toyoace

Production Jul 2001 - Aug 2003
Engine 1RZE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0107-0308)1RZE

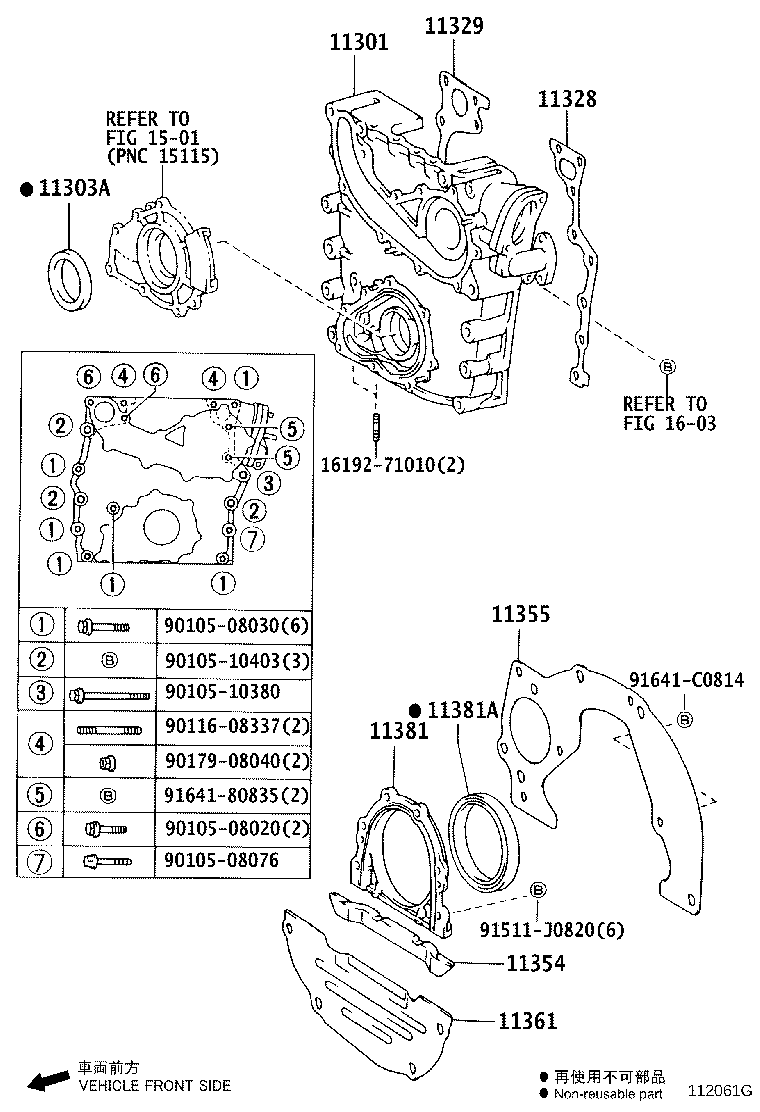

Click highlighted areas on diagram

diagram 11301 11303A 11328 11329 11354 11355 11361 11381 11381A 1501 1603 1619271010 9010508020 9010508030 9010508076 9010510380 9010510403 9011608337 9017908040 91511J0820 9164180835 91641C0814
Part # Description Qty Price
11301 - CASE SUB-ASSY, TIMING GEAR
11301-75050

1RZE..RZY220,230

 1
11303A - SEAL, OIL(FOR CRANKSHAFT FRONT)
90311-48020

1RZE..RZY220,230

KOYO

 1
11328 - GASKET, TIMING GEAR OR CHAIN COVER
11328-75010

1RZE..RZY220,230

 1
11329 - GASKET, TIMING GEAR REAR COVER
11329-75010

1RZE..RZY220,230

 1
11354 - SEAL, FLYWHEEL HOUSING DUST
11354-75010

1RZE,3RZFPE..RZY220,23#,281

 1
11355 - PLATE, REAR END
11355-75010

1RZE,3RZFPE..RZY220,23#,281

 1
11361 - COVER, FLYWHEEL HOUSING UNDER
11361-75020

1RZE,3RZFPE..RZY220,23#,281

 1
11381 - RETAINER, ENGINE REAR OIL SEAL
11381-75010

1RZE,3RZFPE..RZY220,23#,281

 1
11381A - SEAL, ENGINE REAR OIL
90311-88005

1RZE,3RZFPE..RZY220,23#,281

 1
Common parts
16192-71010
90105-08020
90105-08030
90105-08076
90105-10380
90105-10403
90116-08337
90179-08040
91511-J0820
91641-80835
91641-C0814
Linked diagrams
1501
1603
