RZY230-TLPDE3 (2001)

Toyota Dyna/Toyoace

Production Jul 2001 - Aug 2003
Engine 1RZE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

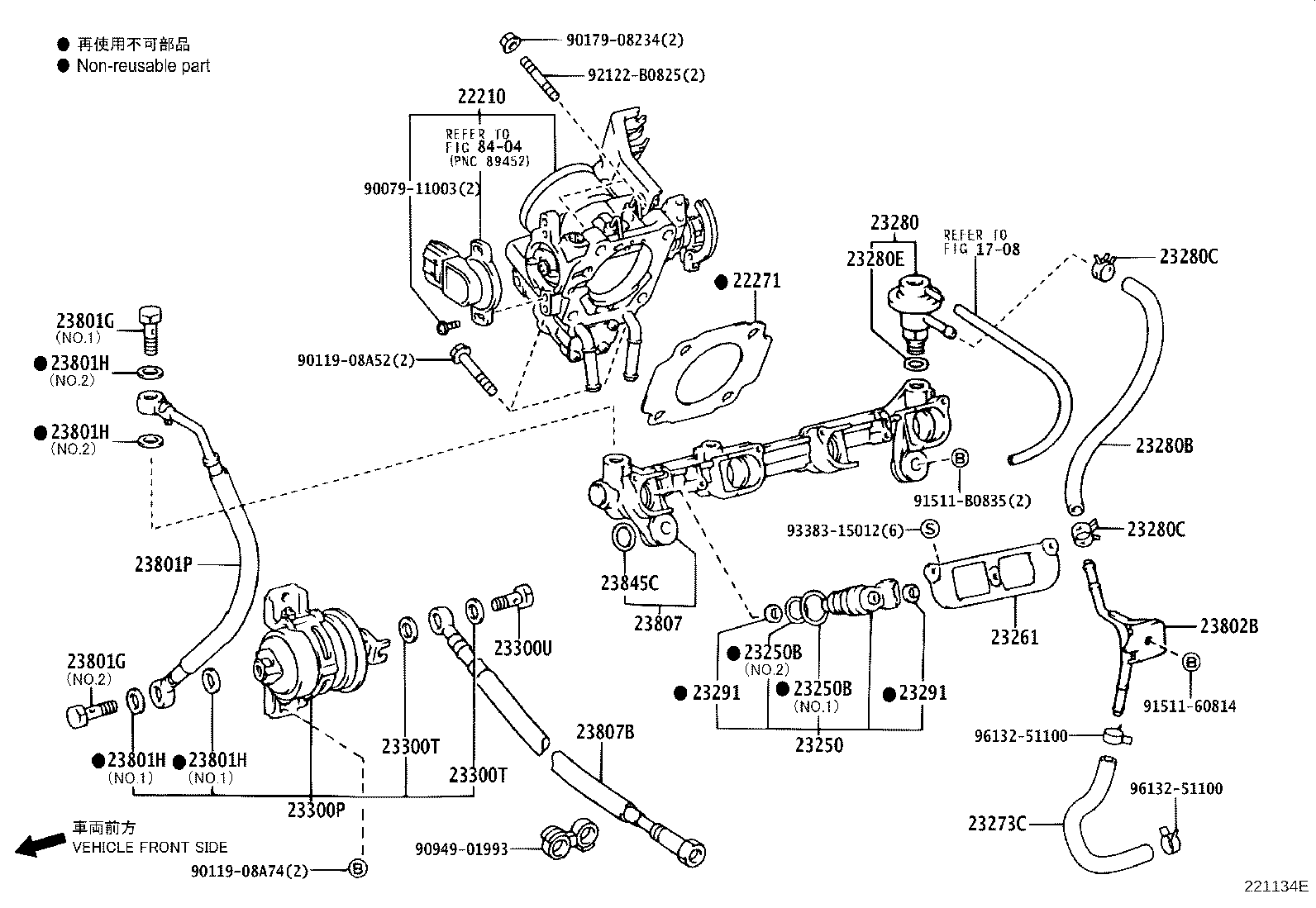

ILLUST NO. 1 OF 2(0107- )1RZE

Click highlighted areas on diagram

diagram 1708 22210 22271 23250 23250B 23250B 23261 23273C 23280 23280B 23280C 23280C 23280E 23291 23291 23300P 23300T 23300T 23300U 23801G 23801G 23801H 23801H 23801H 23801H 23801P 23802B 23807 23807B 23845C 8404 9007911003 9011908A52 9011908A74 9017908234 9094901993 9151160814 91511B0835 92122B0825 9338315012 9613251100 9613251100
Part # Description Qty Price
22210 - BODY ASSY, THROTTLE
22210-75170

1RZE..RZY220,230

 1
22271 - GASKET, THROTTLE BODY
22271-75010

1RZE..RZY220,230

 1
23250 - INJECTOR ASSY, FUEL
23209-79115

1RZE..RZY220,230

 4
23250B - RING, O(FOR FUEL INJECTOR)
90301-14006

1RZE..RZY220,230

NO.2

 4
90301-17007

1RZE..RZY220,230

NO.1

 4
23250B - RING, O(FOR FUEL INJECTOR)
90301-14006

1RZE..RZY220,230

NO.2

 4
90301-17007

1RZE..RZY220,230

NO.1

 4
23261 - COVER, INJECTOR
23261-75020

1RZE..RZY220,230

 2
23273C - HOSE, FUEL, NO.2
23273-75190

1RZE..RZY220,230

 1
23280 - REGULATOR ASSY, FUEL PRESSURE
23280-75010

1RZE..RZY220,230

 1
23280B - HOSE, FUEL PRESSURE REGULATOR RETURN
95333-06020

1RZE..RZY220,230

*H,L=190

 1
23280C - CLAMP OR CLIP(FOR FUEL PRESSURE REGULATOR RETURN HOSE)
96135-51100

1RZE..RZY220,230

 2
23280C - CLAMP OR CLIP(FOR FUEL PRESSURE REGULATOR RETURN HOSE)
96135-51100

1RZE..RZY220,230

 2
23280E - RING, O(FOR FUEL PRESSURE REGULATOR)
90301-09002

1RZE..RZY220,230

 1
23291 - INSULATOR, INJECTOR VIBRATION
23291-75020

1RZE..RZY220,230

 8
23291 - INSULATOR, INJECTOR VIBRATION
23291-75020

1RZE..RZY220,230

 8
23300P - FILTER, FUEL(FOR EFI)
23300-79625

1RZE..RZY220,230

 1
23300T - GASKET(FOR FUEL FILTER)
90430-12026

1RZE..RZY220,230

 2
23300T - GASKET(FOR FUEL FILTER)
90430-12026

1RZE..RZY220,230

 2
23300U - BOLT, UNION(FOR FUEL FILTER)
90401-12097

1RZE..RZY220,230

 1
23801G - BOLT, UNION(FOR FUEL PIPE)
90401-12033

1RZE..RZY220,230

NO.1

 1
90401-12097

1RZE..RZY220,230

NO.2

 1
23801G - BOLT, UNION(FOR FUEL PIPE)
90401-12033

1RZE..RZY220,230

NO.1

 1
90401-12097

1RZE..RZY220,230

NO.2

 1
23801H - GASKET(FOR FUEL PIPE)
23279-74010

1RZE..RZY220,230

NO.2

 2
90430-12026

1RZE..RZY220,230

NO.1

 2
23801H - GASKET(FOR FUEL PIPE)
23279-74010

1RZE..RZY220,230

NO.2

 2
90430-12026

1RZE..RZY220,230

NO.1

 2
23801H - GASKET(FOR FUEL PIPE)
23279-74010

1RZE..RZY220,230

NO.2

 2
90430-12026

1RZE..RZY220,230

NO.1

 2
23801H - GASKET(FOR FUEL PIPE)
23279-74010

1RZE..RZY220,230

NO.2

 2
90430-12026

1RZE..RZY220,230

NO.1

 2
23801P - PIPE SUB-ASSY, FUEL, NO.1
23801-75050

1RZE..RZY220,230

 1
23802B - PIPE SUB-ASSY, FUEL, NO.2
23802-75010

1RZE..RZY220,230

 1
23807 - PIPE SUB-ASSY, FUEL DELIVERY
23807-75030

1RZE..RZY220,230

 1
23807B - HOSE, FUEL DELIVERY PIPE
23906-75100

1RZE..RZY220,230

 1
23845C - INSULATOR, FUEL PIPE
23845-75010

1RZE..RZY220,230

 4
Common parts
90079-11003
90119-08A52
90119-08A74
90179-08234
90949-01993
91511-60814
91511-B0835
92122-B0825
93383-15012
96132-51100
Linked diagrams
1708
8404

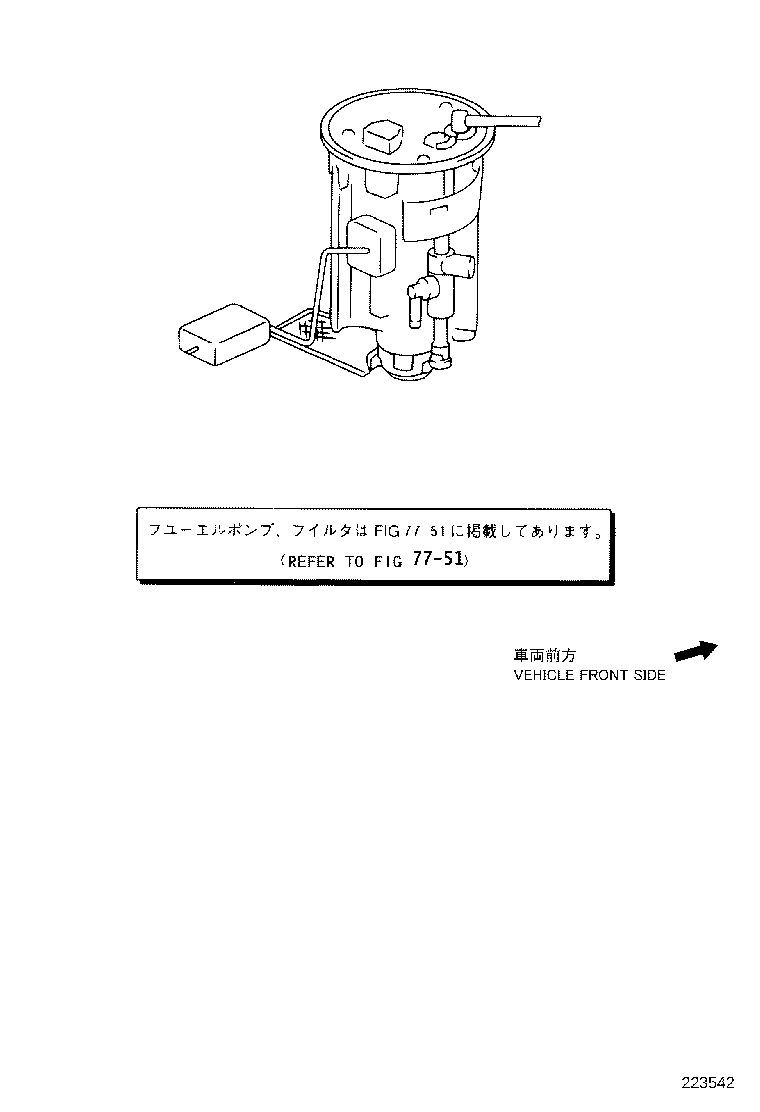

ILLUST NO. 2 OF 2(0107- )1RZE

Click highlighted areas on diagram

diagram 7751
Part # Description Qty Price
Linked diagrams
7751
