RZY230-TLPDE (2001)
Toyota Dyna/Toyoace

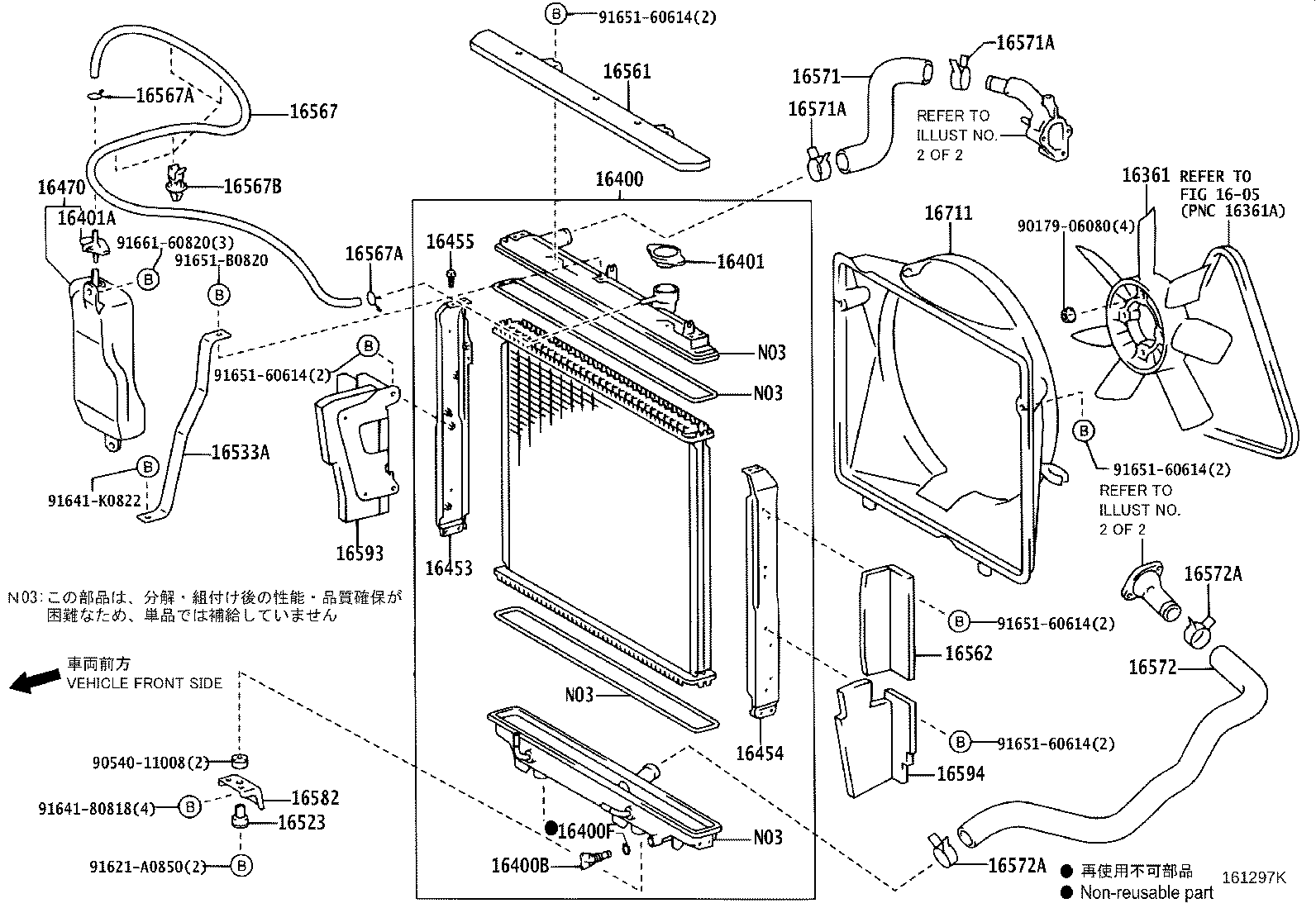

ILLUST NO. 1 OF 2(0107-0308)1RZE..T2,T3,T4
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16361 - FAN | ||||
| 16361-38010 |
1RZE..RZY220,230 |
1 | ||
| 16400 - RADIATOR ASSY | ||||
| 16400-75400 |
1RZE,3RZFPE..RZY220,23#,281..ATM |
1 | ||
| 16400B - PLUG, RADIATOR DRAIN COCK | ||||
| 16417-15210 |
1RZE,3RZFPE..RZY220,23#,281 |
1 | ||
| 16400F - PACKING(FOR RADIATOR DRAIN COCK) | ||||
| 16418-15520 |
1RZE,3RZFPE..RZY220,23#,281 |
1 | ||
| 16401 - CAP SUB-ASSY, RADIATOR | ||||
| 16401-67150 |
1RZE,3RZFPE..RZY220,23#,281 |
1 | ||
| 16401A - CAP SUB-ASSY, RADIATOR RESERVE TANK | ||||
| 16405-54360 |
1RZE,3RZFPE..RZY220,23#,281..T2,T3,T4 |
1 | ||
| 16453 - PLATE, RADIATOR SIDE | ||||
| 16453-75390 |
1RZE,3RZFPE..RZY220,23#,281 |
1 | ||
| 16454 - PLATE, RADIATOR SIDE | ||||
| 16454-75390 |
1RZE,3RZFPE..RZY220,23#,281 |
1 | ||
| 16455 - BOLT, RADIATOR SIDE SUPPORT PLATE | ||||
| 16455-67020 |
1RZE,3RZFPE..RZY220,23#,281 |
8 | ||
| 16470 - TANK ASSY, RADIATOR RESERVE | ||||
| 16470-54410 |
1RZE,3RZFPE..RZY220,23#,281..T2,T3,T4 |
1 | ||
| 16523 - CUSHION, SUB-RADIATOR SUPPORT | ||||
| 16523-54050 |
1RZE,3RZFPE..RZY220,23#,281 |
2 | ||
| 16533A - SUPPORT, SUB-RADIATOR | ||||
| 16533-54050 |
1RZE,3RZFPE..RZY220,23#,281 |
1 | ||
| 16567 - HOSE(FOR RADIATOR RESERVE TANK) | ||||
| 16567-54160 |
1RZE,3RZFPE..RZY220,23#,281..T2,T3,T4 |
1 | ||
| 16567A - CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
1RZE,3RZFPE..RZY220,23#,281..T2,T3,T4 |
2 | ||
| 16567A - CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
1RZE,3RZFPE..RZY220,23#,281..T2,T3,T4 |
2 | ||
| 16567B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE NO.2) | ||||
| 90469-12009 |
1RZE,3RZFPE..RZY220,23#,281..T2,T3,T4 |
4 | ||
| 16571 - HOSE, RADIATOR, INLET | ||||
| 16571-75210 |
1RZE..RZY220,230 |
1 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90467-37005 |
1RZE..RZY220,230 |
2 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90467-37005 |
1RZE..RZY220,230 |
2 | ||
| 16572 - HOSE, RADIATOR, OUTLET | ||||
| 16572-75230 |
1RZE..RZY220,230 |
1 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 90467-37005 |
1RZE..RZY220,230 |
2 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 90467-37005 |
1RZE..RZY220,230 |
2 | ||
| 16582 - BRACKET, RADIATOR, NO.1 | ||||
| 16582-54050 |
1RZE,3RZFPE..RZY220,23#,281 |
2 | ||
| 16711 - SHROUD, FAN | ||||
| 16711-75190 |
1RZE,3RZFPE..RZY220,23#,281 |
1 | ||
| Common parts | ||||
| 90179-06080 | ||||
| 90540-11008 | ||||
| 91621-A0850 | ||||
| 91641-80818 | ||||
| 91641-K0822 | ||||
| 91651-60614 | ||||
| 91651-B0820 | ||||
| 91661-60820 | ||||
| Linked diagrams | ||||
| 1605 | ||||

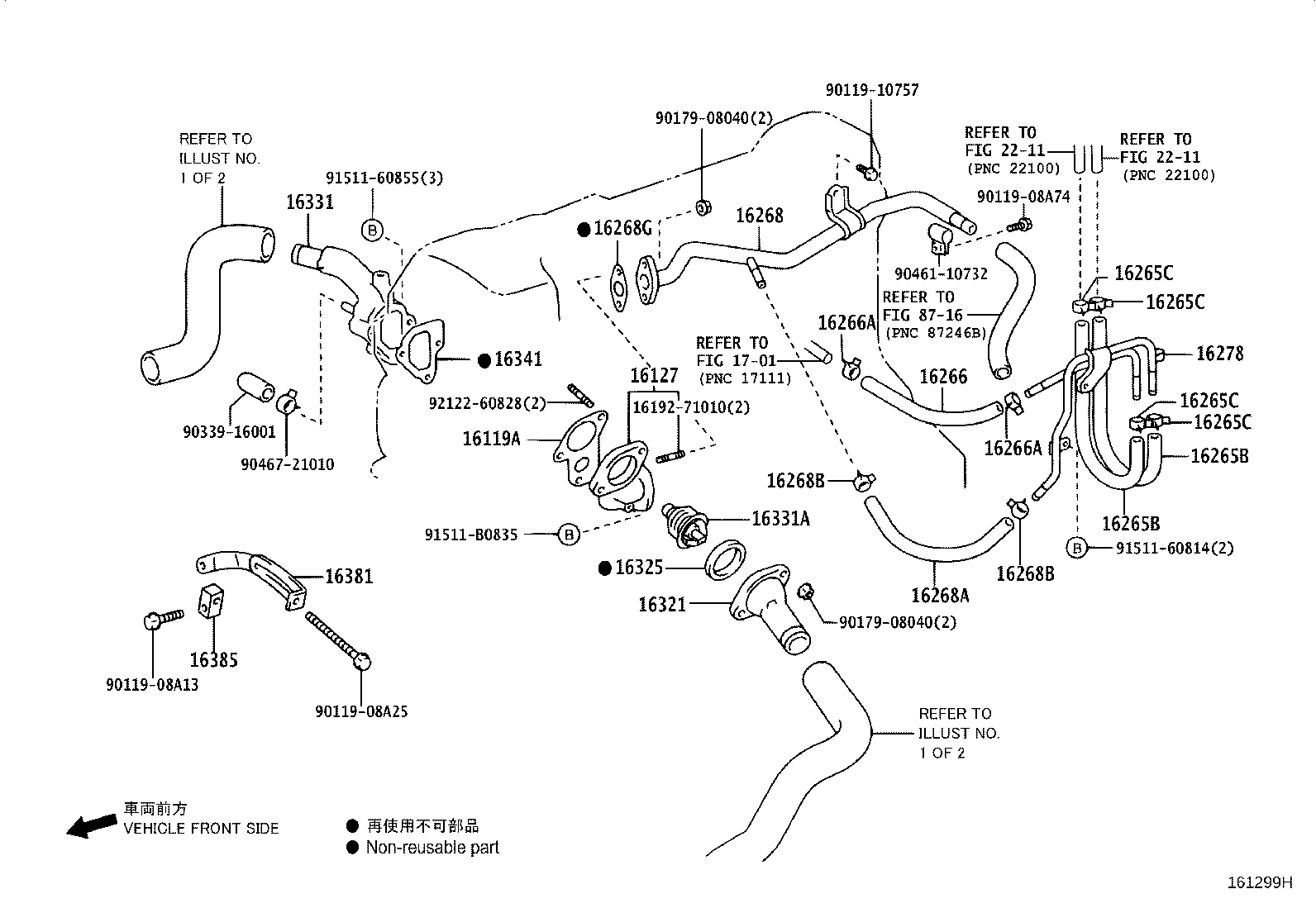

ILLUST NO. 2 OF 2(0107-0308)1RZE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16119A - GASKET, THERMOSTAT GUIDE | ||||
| 16119-75020 |
1RZE..RZY220,230 |
1 | ||
| 16127 - PLATE, WATER PUMP THERMOSTAT GUIDE | ||||
| 16127-75020 |
1RZE..RZY220,230 |
1 | ||
| 16265B - HOSE, INTAKE MANIFOLD WATER, NO.1 | ||||
| 99555-10500 |
1RZE..RZY220,230 *H,L=250 |
2 | ||
| 16265B - HOSE, INTAKE MANIFOLD WATER, NO.1 | ||||
| 99555-10500 |
1RZE..RZY220,230 *H,L=250 |
2 | ||
| 16265C - CLAMP OR CLIP(FOR INTAKE MANIFOLD WATER HOSE NO.1) | ||||
| 96135-51300 |
1RZE..RZY220,230 |
4 | ||
| 16265C - CLAMP OR CLIP(FOR INTAKE MANIFOLD WATER HOSE NO.1) | ||||
| 96135-51300 |
1RZE..RZY220,230 |
4 | ||
| 16265C - CLAMP OR CLIP(FOR INTAKE MANIFOLD WATER HOSE NO.1) | ||||
| 96135-51300 |
1RZE..RZY220,230 |
4 | ||
| 16265C - CLAMP OR CLIP(FOR INTAKE MANIFOLD WATER HOSE NO.1) | ||||
| 96135-51300 |
1RZE..RZY220,230 |
4 | ||
| 16266 - HOSE, INTAKE MANIFOLD WATER, NO.2 | ||||
| 99555-10200 |
1RZE..RZY220,230 *H,L=140 |
1 | ||
| 16266A - CLAMP OR CLIP(FOR INTAKE MANIFOLD WATER HOSE, NO.2) | ||||
| 96135-51300 |
1RZE..RZY220,230 |
2 | ||
| 16266A - CLAMP OR CLIP(FOR INTAKE MANIFOLD WATER HOSE, NO.2) | ||||
| 96135-51300 |
1RZE..RZY220,230 |
2 | ||
| 16268 - PIPE, WATER BY-PASS, NO.1 | ||||
| 16268-75010 |
1RZE..RZY220,230 |
1 | ||
| 16268A - HOSE(FOR WATER BY-PASS PIPE) | ||||
| 99555-10200 |
1RZE..RZY220,230 *H,L=170 |
1 | ||
| 16268B - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS PIPE) | ||||
| 96135-51300 |
1RZE..RZY220,230 |
2 | ||
| 16268B - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS PIPE) | ||||
| 96135-51300 |
1RZE..RZY220,230 |
2 | ||
| 16268G - GASKET(FOR WATER BY-PASS PIPE) | ||||
| 17175-75010 |
1RZE..RZY220,230 |
1 | ||
| 16278 - PIPE, WATER BY-PASS, NO.2 | ||||
| 16278-75011 |
1RZE..RZY220,230 |
1 | ||
| 16321 - INLET, WATER | ||||
| 16321-75010 |
1RZE..RZY220,230 |
1 | ||
| 16325 - GASKET, WATER INLET HOUSING, NO.1 | ||||
| 16325-76010 |
1RZE..RZY220,230 |
1 | ||
| 16331 - OUTLET, WATER | ||||
| 16304-75010 |
1RZE..RZY220,230 |
1 | ||
| 16331A - THERMOSTAT | ||||
| 90916-03120 |
1RZE..RZY220,230 *WAX 82−95 |
1 | ||
| 16341 - GASKET, WATER OUTLET | ||||
| 16341-75010 |
1RZE..RZY220,230 |
1 | ||
| 16381 - BAR, FAN BELT ADJUSTING | ||||
| 16381-75050 |
1RZE..RZY220,230 |
1 | ||
| 16385 - SLIDER, FAN BELT ADJUSTING | ||||
| 16385-75030 |
1RZE..RZY220,230 |
1 | ||
| Common parts | ||||
| 16192-71010 | ||||
| 90119-08A13 | ||||
| 90119-08A25 | ||||
| 90119-08A74 | ||||
| 90119-10757 | ||||
| 90179-08040 | ||||
| 90339-16001 | ||||
| 90461-10732 | ||||
| 90467-21010 | ||||
| 91511-60814 | ||||
| 91511-60855 | ||||
| 91511-B0835 | ||||
| 92122-60828 | ||||
| Linked diagrams | ||||
| 1701 | ||||
| 2211 | ||||
| 8716 | ||||
