RZY230-TLPDE (2001)

Toyota Dyna/Toyoace

Production Jul 2001 - Aug 2003
Engine 1RZE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0107-0308)1RZE

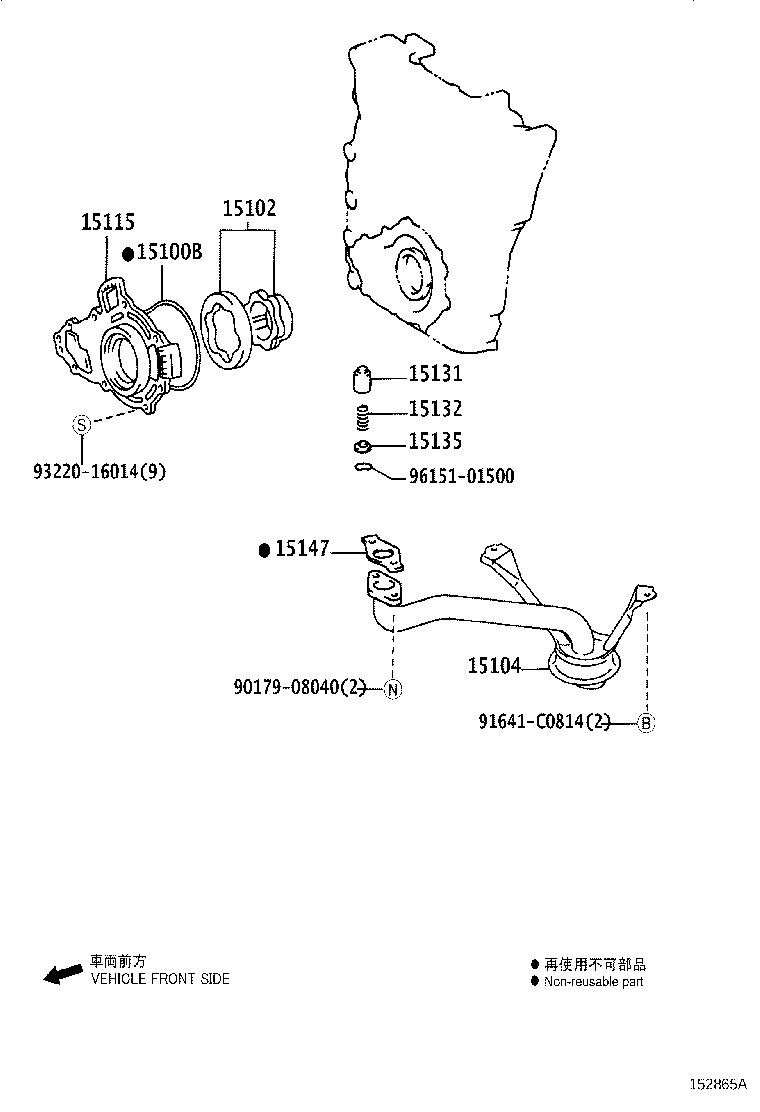

Click highlighted areas on diagram

diagram 15100B 15102 15104 15115 15131 15132 15135 15147 9017908040 91641C0814 9322016014 9615101500
Part # Description Qty Price
15100B - RING, O(FOR OIL PUMP)
15188-75021

1RZE,3RZFPE..RZY220,23#,281

 1
15102 - ROTOR SET, OIL PUMP
15103-75010

1RZE..RZY220,230

 1
15104 - STRAINER SUB-ASSY, OIL
15104-75020

1RZE,3RZFPE..RZY220,23#,281

 1
15115 - COVER, OIL PUMP
15115-75051

1RZE..RZY220,230

 1
15131 - VALVE, OIL PUMP RELIEF
15131-24010

1RZE,3RZFPE..RZY220,23#,281

 1
15132 - SPRING, OIL PUMP RELIEF VALVE
15132-75010

1RZE..RZY220,230

 1
15135 - RETAINER, OIL PUMP RELIEF VALVE
15135-15010

1RZE..RZY220,230

 1
15147 - GASKET, OIL STRAINER
15147-75020

1RZE,3RZFPE..RZY220,23#,281

 1
Common parts
90179-08040
91641-C0814
93220-16014
96151-01500
