RZY230-TBPDE6 (2002)

Toyota Dyna/Toyoace

Production Jul 2002 - Aug 2003
Engine 1RZE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0107-0308)EFI,LPG

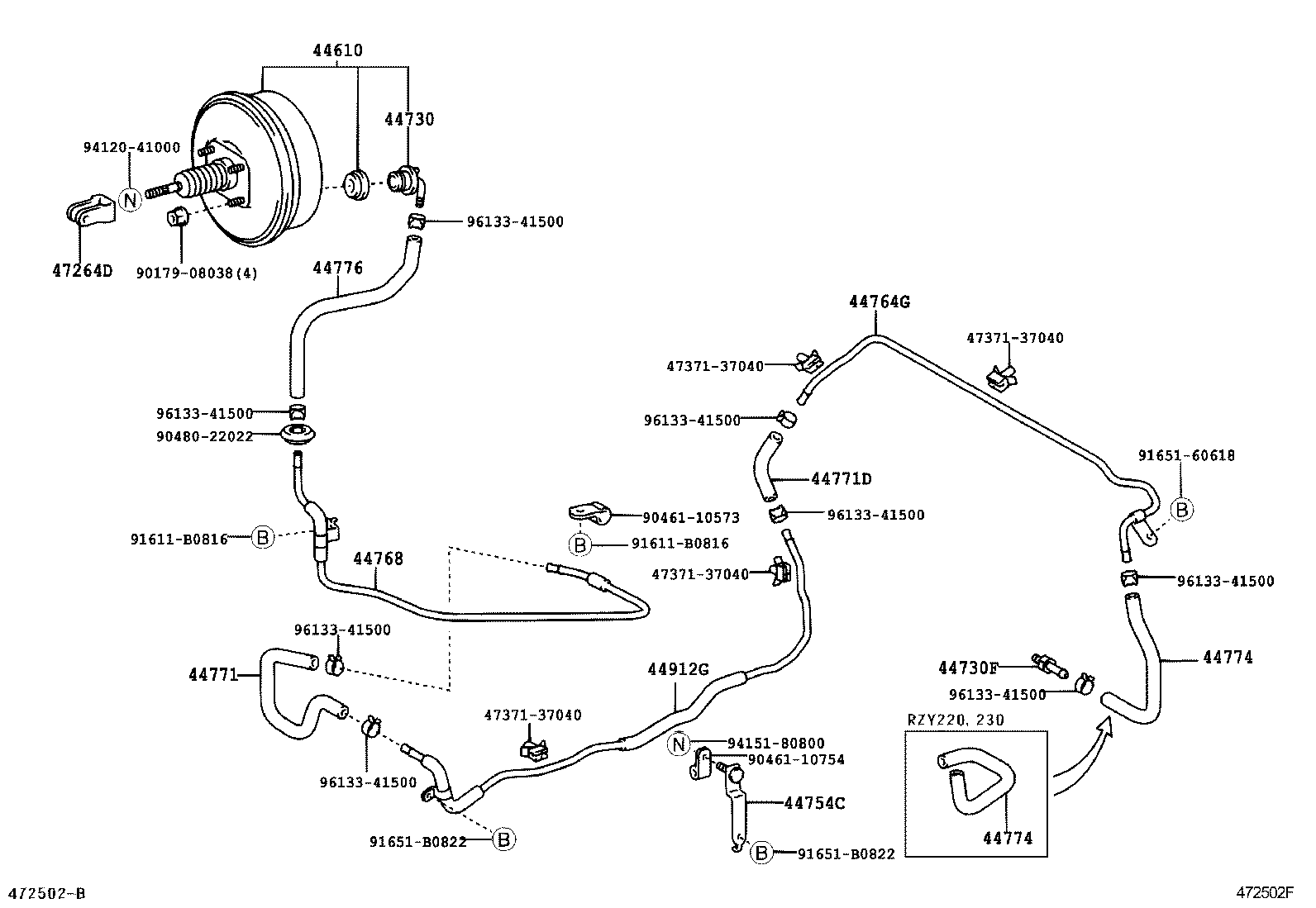

Click highlighted areas on diagram

diagram 44610 44730 44730F 44754C 44764G 44768 44771 44771D 44774 44774 44776 44912G 47264D 4737137040 4737137040 4737137040 4737137040 9017908038 9046110573 9046110754 9048022022 91611B0816 91611B0816 9165160618 91651B0822 91651B0822 9412041000 9415180800 9613341500 9613341500 9613341500 9613341500 9613341500 9613341500 9613341500 9613341500
Part # Description Qty Price
44610 - BOOSTER ASSY, BRAKE
44610-25320

LY230,280,RZY220,23#,281,TRY220,23#,281..EFI,LPG

 1
44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE)
44730-14050

LY230,280,RZY220,23#,281,TRY220,23#,281..EFI,LPG

 1
44730F - UNION, VACUUM HOSE(FOR MANIFOLD SIDE)
90404-51319

LY230,280,RZY220,230..EFI,LPG

 1
44768 - TUBE, BOOSTER VACUUM
44768-25080

TRY230..(TW2,TW3)..TS;KDY231,TRY230..WT..IV6;KDY231,TRY220..(TW1,TW2,TW3)..TS;KDY221,241..(T3,TW1,VAN)..(06S,TB,TS);KDY220,230,240,270,280,290,LY220,230,240,270,280,290,RZY220,23#,281

 1
44771 - HOSE, VACUUM TUBE CONNECTOR
44771-25110

LY230,280,RZY220,230..EFI,LPG

 1
44774 - HOSE, UNION TO CONNECTOR TUBE
44774-25100

RZY220,230

 1
44774 - HOSE, UNION TO CONNECTOR TUBE
44774-25100

RZY220,230

 1
44776 - HOSE, BRAKE BOOSTER
44776-25040

KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281

 1
47264D - CLEVIS, BRAKE MASTER CYLINDER PUSH ROD
47264-25020

KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281

 1
Common parts
47371-37040
90179-08038
90461-10573
90461-10754
90480-22022
91611-B0816
91651-60618
91651-B0822
94120-41000
94151-80800
96133-41500
