RZY230-TBPDE6 (2002)

Toyota Dyna/Toyoace

Production Jul 2002 - Aug 2003
Engine 1RZE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0107-0308)1RZE

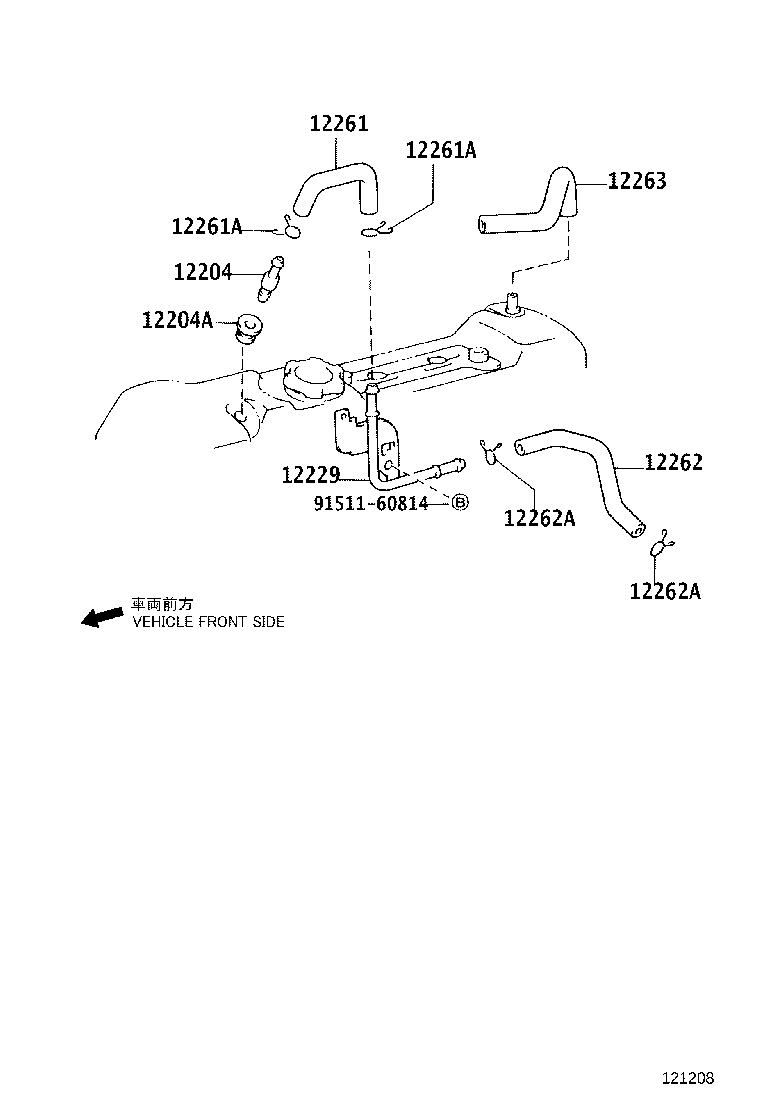

Click highlighted areas on diagram

diagram 12204 12204A 12229 12261 12261A 12261A 12262 12262A 12262A 12263 9151160814
Part # Description Qty Price
12204 - VALVE SUB-ASSY, VENTILATION
12204-15022

1RZE..RZY220,230

 1
12204A - GROMMET(FOR VENTILATION SYSTEM)
90480-18001

1RZE..RZY220,230

 1
12229 - PIPE, VENTILATION
12229-75021

1RZE..RZY220,230

 1
12261 - HOSE, VENTILATION
12262-75060

1RZE..RZY220,230

 1
12261A - CLIP OR CLAMP(FOR VENTILATION HOSE)
90467-14001

1RZE,3RZFPE..RZY220,23#,281

 2
12261A - CLIP OR CLAMP(FOR VENTILATION HOSE)
90467-14001

1RZE,3RZFPE..RZY220,23#,281

 2
12262 - HOSE, VENTILATION, NO.2
12262-75010

1RZE..RZY220,230

 1
12262A - CLIP(FOR VENTILATION HOSE NO.2)
90467-14001

1RZE,3RZFPE..RZY220,23#,281

 2
12262A - CLIP(FOR VENTILATION HOSE NO.2)
90467-14001

1RZE,3RZFPE..RZY220,23#,281

 2
12263 - HOSE, VENTILATION, NO.3
12262-75030

1RZE..RZY220,230

 1
Common parts
91511-60814
