RZY230-PBMBE (2001)
Toyota Dyna/Toyoace
Production
Jul 2001
-
Aug 2003
Engine
1RZE
Transmission
MTM
Displacement
2500cc
Power
168 HP (125 kW)
(0107- )1RZE..TW1,TW2,TW3,TW4

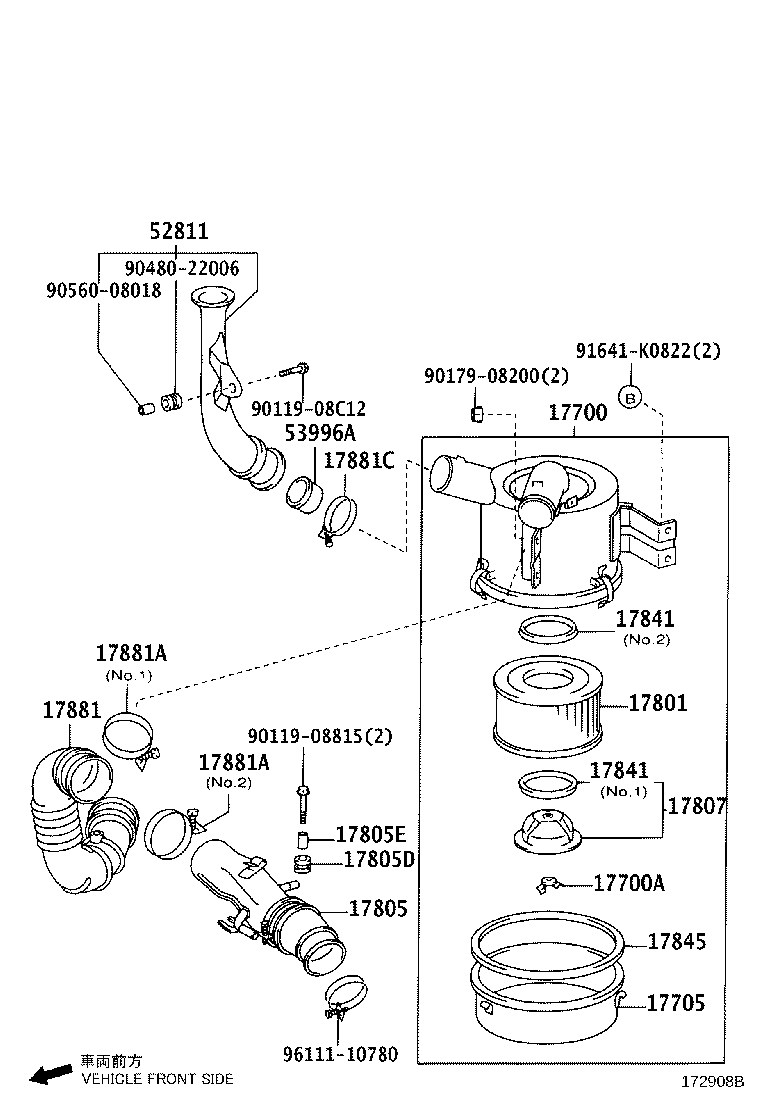

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17700 - CLEANER ASSY, AIR | ||||
| 17700-75380 |
1RZE..RZY220,230 |
1 | ||
| 17700A - NUT, WING(FOR AIR CLEANER) | ||||
| 90175-08008 |
1RZE..RZY220,230 |
1 | ||
| 17705 - CAP SUB-ASSY, AIR CLEANER | ||||
| 17705-54490 |
1RZE..RZY220,230 |
1 | ||
| 17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER | ||||
| 17801-54070 |
1RZE..RZY220,230 |
1 | ||
| 17805 - CONNECTOR SUB-ASSY, INTAKE AIR | ||||
| 17860-75020 |
1RZE..RZY220,230 |
1 | ||
| 17805D - GROMMET(FOR INTAKE AIR CONNECTOR) | ||||
| 90540-12009 |
1RZE..RZY220,230 |
2 | ||
| 17805E - COLLAR(FOR INTAKE AIR CONNECTOR) | ||||
| 90389-09016 |
1RZE..RZY220,230 |
2 | ||
| 17807 - PLATE SUB-ASSY, AIR CLEANER FILTER SET | ||||
| 17807-73010 |
1RZE..RZY220,230 |
1 | ||
| 17841 - GASKET, FILTER ELEMENT | ||||
| 17841-75010 |
1RZE..RZY220,230 NO.2 |
1 | ||
| 17841-54010 |
1RZE..RZY220,230 NO.1 |
1 | ||
| 17841 - GASKET, FILTER ELEMENT | ||||
| 17841-75010 |
1RZE..RZY220,230 NO.2 |
1 | ||
| 17841-54010 |
1RZE..RZY220,230 NO.1 |
1 | ||
| 17845 - GASKET, AIR CLEANER CAP | ||||
| 17845-54030 |
1RZE..RZY220,230 |
1 | ||
| 17881 - HOSE, AIR CLEANER, NO.1 | ||||
| 17881-75190 |
1RZE..RZY220,230 |
1 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 96111-10750 |
1RZE..RZY220,230 NO.1 |
1 | ||
| 96111-10850 |
1RZE..RZY220,230 NO.2 |
1 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 96111-10750 |
1RZE..RZY220,230 NO.1 |
1 | ||
| 96111-10850 |
1RZE..RZY220,230 NO.2 |
1 | ||
| 17881C - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 96111-10800 |
1RZE..RZY220,230 |
1 | ||
| 52811 - DUCT, COOL AIR INTAKE, NO.1 | ||||
| 52811-25020 |
LY220,230,240,270,280,290..TW1,TW2,TW3,TW4,VAN |
1 | ||
| 52811-25020 |
RZY220,230..TW1,TW2,TW3,TW4 |
1 | ||
| 53996A - PACKING, AIR CLEANER INLET PIPE | ||||
| 53996-25020 |
LY220,230,240,270,280,290 |
1 | ||
| 53996-25020 |
RZY220,23#,281 |
1 | ||
| Common parts | ||||
| 90119-08815 | ||||
| 90119-08C12 | ||||
| 90179-08200 | ||||
| 90480-22006 | ||||
| 90560-08018 | ||||
| 91641-K0822 | ||||
| 96111-10780 | ||||
