RZY220-TLPDE3 (2001)
Toyota Dyna/Toyoace
Production
Jul 2001
-
Aug 2003
Engine
1RZE
Transmission
ATM
Displacement
2500cc
Power
168 HP (125 kW)
(0107-0308)EFI,LPG ; (0308- )RZY231,281

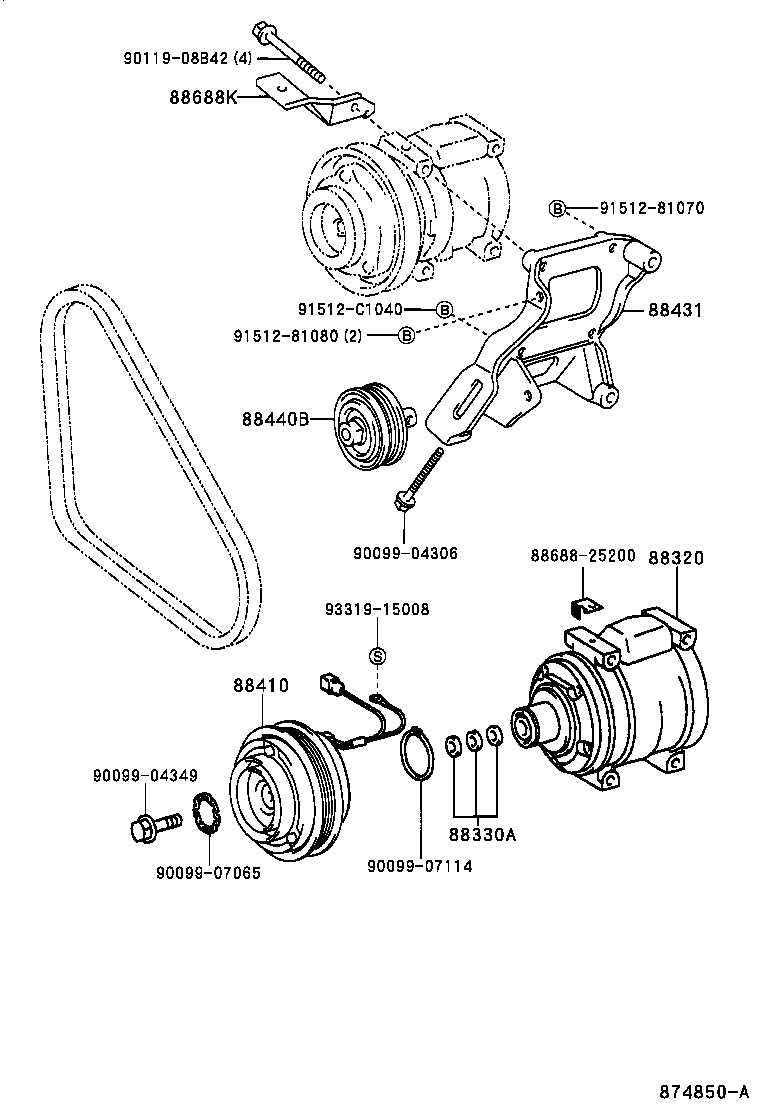

Click highlighted areas on diagram
ﾉｿﾞｸ(ﾚｲﾄｳｼｬ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88320 - COMPRESSOR ASSY, COOLER | ||||
| 88320-37080 |
LY220,230,240,270,280,290,RZY220,23#,281 |
1 | ||
| 88330A - WASHER (FOR MAGNET CLUTCH) | ||||
| 88335-14020 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281 |
1 | ||
| 88410 - CLUTCH ASSY, MAGNET | ||||
| 88410-37110 |
LY230,280,RZY220,23#,281..EFI,LPG |
1 | ||
| 88431 - BRACKET, COMPRESSOR MOUNTING, NO.1 | ||||
| 88345-37131 |
LY230,280,RZY220,23#,281..EFI,LPG |
1 | ||
| 88440B - PULLEY ASSY, IDLE | ||||
| 88440-35080 |
LY230,280,RZY220,23#,281..EFI,LPG |
1 | ||
| 88688K - BRACKET, COOLER COMPRESSOR | ||||
| 88688-25310 |
LY220,230,240,270,280,290,RZY220,23#,281 |
1 | ||
| Common parts | ||||
| 88688-25200 | ||||
| 90099-04306 | ||||
| 90099-04349 | ||||
| 90099-07065 | ||||
| 90099-07114 | ||||
| 90119-08B42 | ||||
| 91512-81070 | ||||
| 91512-81080 | ||||
| 91512-C1040 | ||||
| 93319-15008 | ||||
