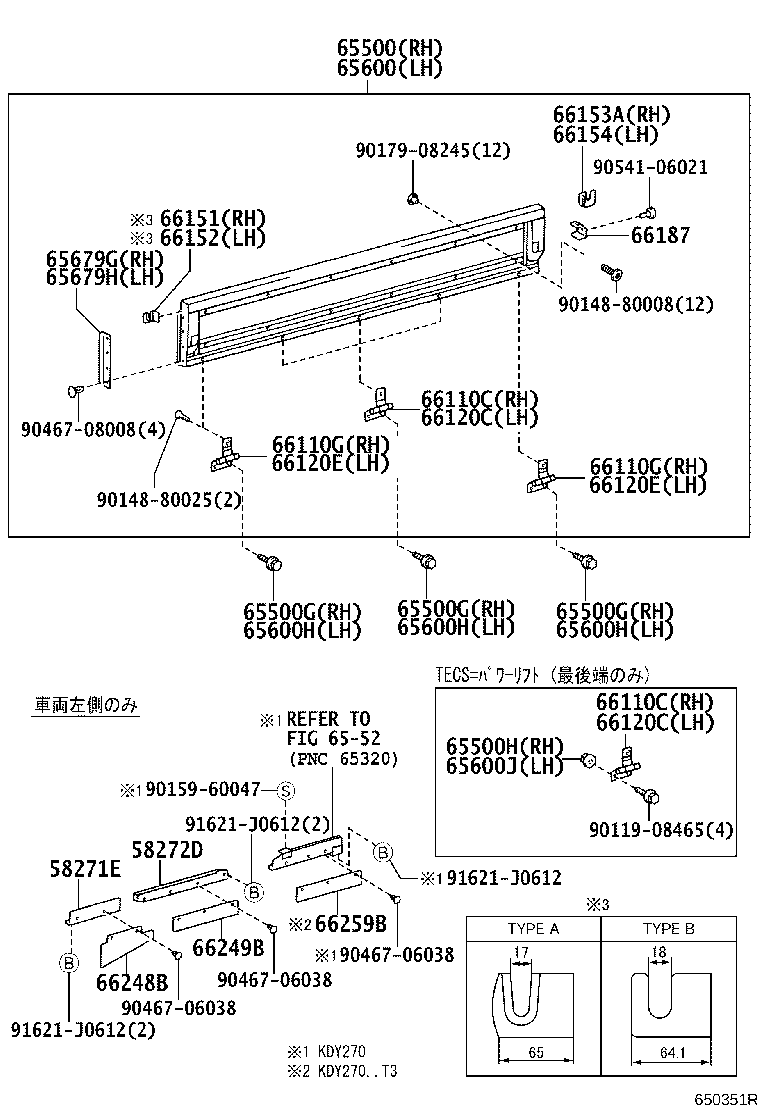

RZY220-TLPDE3 (2001)
Toyota Dyna/Toyoace
(0107- )KDY23#..TS..CBU ; (0107- )KDY22#,27#,28#,LY220,230,270,280,RZY220,230
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 65500 - PANEL ASSY, REAR BODY SIDE, RH | ||||
| 65500-25190 |
RZY220..T2..ST..IV3;KDY22#,LY220..T2..ATM..IV3;KDY22#,27#,LY220,270,RZY220,TRY220..TB..CBU |
1 | ||
| 65600 - PANEL ASSY, REAR BODY SIDE, LH | ||||
| 65600-25190 |
KDY22#,LY220..T2..ATM..IV3;RZY220,TRY220..T2..ST..IV3;KDY22#,27#,LY220,270,RZY220,TRY220..TB..CBU |
1 | ||
| 66110C - HINGE ASSY, SIDE GATE, NO.1 RH | ||||
| 65010-37040 |
KDY22#,LY220..T2..ATM..IV3;RZY220,TRY220..T2..ST..IV3;LY230,280..(T2,T3,T4)..TB..DSL..CBU;KDY22#,23#,27#,28#,LY220,270,RZY220,230,TRY220,23#,281..(T2,T3,T4)..TB..CBU ### |
3 | ||
| 66120C - HINGE ASSY, SIDE GATE, NO.1 LH | ||||
| 65010-37040 |
KDY22#,LY220..T2..ATM..IV3;RZY220,TRY220..T2..ST..IV3;KDY22#,27#,LY220,270,RZY220,231,281,TRY220..TB..CBU |
3 | ||
| 66153A - LATCH, TAIL GATE FEMALE, RH | ||||
| 66153-37010 |
LY230..TB..125T..ST;RZY220..T2..ST..IV3;KDY221..T2..ATM..IV3;KDY221,231,271,281,LY230,280,RZY220,230,TRY231,281..TB..(DCR,EFI,LPG)..CBU |
1 | ||
| 66154 - LATCH, TAIL GATE FEMALE, LH | ||||
| 66154-37010 |
KDY22#,LY220..T2..ATM..IV3;RZY220,TRY220..T2..ST..IV3;KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,23#,281,TRY220,23#,281..TB..CBU |
1 | ||
| 66187 - HANDLE, SIDE GATE LATCH, CENTER NO.2 | ||||
| 66187-37010 |
KDY22#,LY220..T2..ATM..IV3;RZY220,TRY220..T2..ST..IV3;KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,23#,281,TRY220,23#,281..TB..CBU |
1 | ||
| Common parts | ||||
| 90119-08657 | ||||
| 90119-08957 | ||||
| 90179-08123 | ||||
| 90467-08011 | ||||
| 90501-07041 | ||||
| 90541-06021 | ||||
| 91631-40620 | ||||
| 93230-18020 | ||||
| 93260-18025 | ||||
| 96160-00600 | ||||
(0107-0308)TB..CBU ; (0107-0308)LY220..T2..ATM..IV3 ; (0107-0308)RZY220..T2..ST..IV
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 65500 - PANEL ASSY, REAR BODY SIDE, RH | ||||
| 65500-25190 |
RZY220..T2..ST..IV3;KDY22#,LY220..T2..ATM..IV3;KDY22#,27#,LY220,270,RZY220,TRY220..TB..CBU |
1 | ||
| 65500-25190 |
RZY220..T2..ST..IV3;KDY22#,LY220..T2..ATM..IV3;KDY22#,27#,LY220,270,RZY220,TRY220..TB..CBU |
1 | ||
| 65500G - BOLT, W/WASHER(FOR SIDE GATE, RH) | ||||
| 90119-08464 |
KDY22#,LY220..T2..ATM..IV3;RZY220,TRY220..T2..ST..IV3;KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,23#,281,TRY220,23#,281..(T2,T3,T4)..TB..CBU |
10 | ||
| 90119-08464 |
KDY22#,LY220..T2..ATM..IV3;RZY220,TRY220..T2..ST..IV3;KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,23#,281,TRY220,23#,281..(T2,T3,T4)..TB..CBU |
10 | ||
| 65500G - BOLT, W/WASHER(FOR SIDE GATE, RH) | ||||
| 90119-08464 |
KDY22#,LY220..T2..ATM..IV3;RZY220,TRY220..T2..ST..IV3;KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,23#,281,TRY220,23#,281..(T2,T3,T4)..TB..CBU |
10 | ||
| 90119-08464 |
KDY22#,LY220..T2..ATM..IV3;RZY220,TRY220..T2..ST..IV3;KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,23#,281,TRY220,23#,281..(T2,T3,T4)..TB..CBU |
10 | ||
| 65500G - BOLT, W/WASHER(FOR SIDE GATE, RH) | ||||
| 90119-08464 |
KDY22#,LY220..T2..ATM..IV3;RZY220,TRY220..T2..ST..IV3;KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,23#,281,TRY220,23#,281..(T2,T3,T4)..TB..CBU |
10 | ||
| 90119-08464 |
KDY22#,LY220..T2..ATM..IV3;RZY220,TRY220..T2..ST..IV3;KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,23#,281,TRY220,23#,281..(T2,T3,T4)..TB..CBU |
10 | ||
| 65600 - PANEL ASSY, REAR BODY SIDE, LH | ||||
| 65600-25190 |
KDY22#,LY220..T2..ATM..IV3;RZY220,TRY220..T2..ST..IV3;KDY22#,27#,LY220,270,RZY220,TRY220..TB..CBU |
1 | ||
| 65600-25190 |
KDY22#,LY220..T2..ATM..IV3;RZY220,TRY220..T2..ST..IV3;KDY22#,27#,LY220,270,RZY220,TRY220..TB..CBU |
1 | ||
| 65600H - BOLT, W/WASHER(FOR SIDE GATE, LH) | ||||
| 90119-08464 |
KDY22#,LY220..T2..ATM..IV3;RZY220,TRY220..T2..ST..IV3;KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,23#,281,TRY220,23#,281..(T2,T3,T4)..TB..CBU |
10 | ||
| 90119-08464 |
KDY22#,LY220..T2..ATM..IV3;RZY220,TRY220..T2..ST..IV3;KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,23#,281,TRY220,23#,281..(T2,T3,T4)..TB..CBU |
10 | ||
| 65600H - BOLT, W/WASHER(FOR SIDE GATE, LH) | ||||
| 90119-08464 |
KDY22#,LY220..T2..ATM..IV3;RZY220,TRY220..T2..ST..IV3;KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,23#,281,TRY220,23#,281..(T2,T3,T4)..TB..CBU |
10 | ||
| 90119-08464 |
KDY22#,LY220..T2..ATM..IV3;RZY220,TRY220..T2..ST..IV3;KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,23#,281,TRY220,23#,281..(T2,T3,T4)..TB..CBU |
10 | ||
| 65600H - BOLT, W/WASHER(FOR SIDE GATE, LH) | ||||
| 90119-08464 |
KDY22#,LY220..T2..ATM..IV3;RZY220,TRY220..T2..ST..IV3;KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,23#,281,TRY220,23#,281..(T2,T3,T4)..TB..CBU |
10 | ||
| 90119-08464 |
KDY22#,LY220..T2..ATM..IV3;RZY220,TRY220..T2..ST..IV3;KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,23#,281,TRY220,23#,281..(T2,T3,T4)..TB..CBU |
10 | ||
| 65679G - SEAL, SIDE GATE | ||||
| 65679-37010 |
KDY22#,LY220..T2..ATM..IV3;RZY220,TRY220..T2..ST..IV3;KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,23#,281,TRY220,23#,281..TB..CBU |
1 | ||
| 65679-37010 |
KDY22#,LY220..T2..ATM..IV3;RZY220,TRY220..T2..ST..IV3;KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,23#,281,TRY220,23#,281..TB..CBU |
1 | ||
| 65679H - SEAL, SIDE GATE | ||||
| 65679-37010 |
KDY22#,LY220..T2..ATM..IV3;RZY220,TRY220..T2..ST..IV3;KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,23#,281,TRY220,23#,281..TB..CBU |
1 | ||
| 65679-37010 |
KDY22#,LY220..T2..ATM..IV3;RZY220,TRY220..T2..ST..IV3;KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,23#,281,TRY220,23#,281..TB..CBU |
1 | ||
| 66110C - HINGE ASSY, SIDE GATE, NO.1 RH | ||||
| 65010-37040 |
KDY22#,LY220..T2..ATM..IV3;RZY220,TRY220..T2..ST..IV3;LY230,280..(T2,T3,T4)..TB..DSL..CBU;KDY22#,23#,27#,28#,LY220,270,RZY220,230,TRY220,23#,281..(T2,T3,T4)..TB..CBU ### |
3 | ||
| 65010-37040 |
KDY22#,LY220..T2..ATM..IV3;RZY220,TRY220..T2..ST..IV3;LY230,280..(T2,T3,T4)..TB..DSL..CBU;KDY22#,23#,27#,28#,LY220,270,RZY220,230,TRY220,23#,281..(T2,T3,T4)..TB..CBU ### |
3 | ||
| 66110C - HINGE ASSY, SIDE GATE, NO.1 RH | ||||
| 65010-37040 |
KDY22#,LY220..T2..ATM..IV3;RZY220,TRY220..T2..ST..IV3;LY230,280..(T2,T3,T4)..TB..DSL..CBU;KDY22#,23#,27#,28#,LY220,270,RZY220,230,TRY220,23#,281..(T2,T3,T4)..TB..CBU ### |
3 | ||
| 65010-37040 |
KDY22#,LY220..T2..ATM..IV3;RZY220,TRY220..T2..ST..IV3;LY230,280..(T2,T3,T4)..TB..DSL..CBU;KDY22#,23#,27#,28#,LY220,270,RZY220,230,TRY220,23#,281..(T2,T3,T4)..TB..CBU ### |
3 | ||
| 66110G - HINGE ASSY, SIDE GATE, NO.2 RH | ||||
| 65050-37080 |
KDY22#,LY220..T2..ATM..IV3;RZY220,TRY220..T2..ST..IV3;KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,23#,281,TRY220,23#,281..TB..CBU |
2 | ||
| 65050-37080 |
KDY22#,LY220..T2..ATM..IV3;RZY220,TRY220..T2..ST..IV3;KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,23#,281,TRY220,23#,281..TB..CBU |
2 | ||
| 66110G - HINGE ASSY, SIDE GATE, NO.2 RH | ||||
| 65050-37080 |
KDY22#,LY220..T2..ATM..IV3;RZY220,TRY220..T2..ST..IV3;KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,23#,281,TRY220,23#,281..TB..CBU |
2 | ||
| 65050-37080 |
KDY22#,LY220..T2..ATM..IV3;RZY220,TRY220..T2..ST..IV3;KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,23#,281,TRY220,23#,281..TB..CBU |
2 | ||
| 66120C - HINGE ASSY, SIDE GATE, NO.1 LH | ||||
| 65010-37040 |
KDY22#,LY220..T2..ATM..IV3;RZY220,TRY220..T2..ST..IV3;KDY22#,27#,LY220,270,RZY220,231,281,TRY220..TB..CBU |
3 | ||
| 65010-37040 |
KDY22#,LY220..T2..ATM..IV3;RZY220,TRY220..T2..ST..IV3;KDY22#,27#,LY220,270,RZY220,231,281,TRY220..TB..CBU |
3 | ||
| 66120C - HINGE ASSY, SIDE GATE, NO.1 LH | ||||
| 65010-37040 |
KDY22#,LY220..T2..ATM..IV3;RZY220,TRY220..T2..ST..IV3;KDY22#,27#,LY220,270,RZY220,231,281,TRY220..TB..CBU |
3 | ||
| 65010-37040 |
KDY22#,LY220..T2..ATM..IV3;RZY220,TRY220..T2..ST..IV3;KDY22#,27#,LY220,270,RZY220,231,281,TRY220..TB..CBU |
3 | ||
| 66120E - HINGE ASSY, SIDE GATE, NO.2 LH | ||||
| 65050-37080 |
LY230,280..TB..DSL..CBU;KDY22#,LY220..T2..ATM..IV3;RZY220,TRY220..T2..ST..IV3;KDY22#,23#,27#,28#,LY220,270,RZY220,23#,281,TRY220,23#,281..TB..CBU |
2 | ||
| 65050-37080 |
LY230,280..TB..DSL..CBU;KDY22#,LY220..T2..ATM..IV3;RZY220,TRY220..T2..ST..IV3;KDY22#,23#,27#,28#,LY220,270,RZY220,23#,281,TRY220,23#,281..TB..CBU |
2 | ||
| 66120E - HINGE ASSY, SIDE GATE, NO.2 LH | ||||
| 65050-37080 |
LY230,280..TB..DSL..CBU;KDY22#,LY220..T2..ATM..IV3;RZY220,TRY220..T2..ST..IV3;KDY22#,23#,27#,28#,LY220,270,RZY220,23#,281,TRY220,23#,281..TB..CBU |
2 | ||
| 65050-37080 |
LY230,280..TB..DSL..CBU;KDY22#,LY220..T2..ATM..IV3;RZY220,TRY220..T2..ST..IV3;KDY22#,23#,27#,28#,LY220,270,RZY220,23#,281,TRY220,23#,281..TB..CBU |
2 | ||
| 66151 - LATCH, SIDE GATE FEMALE, RH | ||||
| 66151-92703 |
KDY22#,LY220..T2..ATM..IV3;RZY220,TRY220..T2..ST..IV3;KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,23#,281,TRY220,23#,281..TB..CBU TYPE A:ｲﾗｽﾄ参照 |
1 | ||
| 66151-92703 |
KDY22#,LY220..T2..ATM..IV3;RZY220,TRY220..T2..ST..IV3;KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,23#,281,TRY220,23#,281..TB..CBU TYPE A:ｲﾗｽﾄ参照 |
1 | ||
| 66152 - LATCH, SIDE GATE FEMALE, LH | ||||
| 66152-92703 |
KDY22#,LY220..T2..ATM..IV3;RZY220,TRY220..T2..ST..IV3;KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,23#,281,TRY220,23#,281..TB..CBU TYPE A:ｲﾗｽﾄ参照 |
1 | ||
| 66152-92703 |
KDY22#,LY220..T2..ATM..IV3;RZY220,TRY220..T2..ST..IV3;KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,23#,281,TRY220,23#,281..TB..CBU TYPE A:ｲﾗｽﾄ参照 |
1 | ||
| 66153A - LATCH, TAIL GATE FEMALE, RH | ||||
| 66153-37010 |
LY230..TB..125T..ST;RZY220..T2..ST..IV3;KDY221..T2..ATM..IV3;KDY221,231,271,281,LY230,280,RZY220,230,TRY231,281..TB..(DCR,EFI,LPG)..CBU |
1 | ||
| 66153-37010 |
LY230..TB..125T..ST;RZY220..T2..ST..IV3;KDY221..T2..ATM..IV3;KDY221,231,271,281,LY230,280,RZY220,230,TRY231,281..TB..(DCR,EFI,LPG)..CBU |
1 | ||
| 66154 - LATCH, TAIL GATE FEMALE, LH | ||||
| 66154-37010 |
KDY22#,LY220..T2..ATM..IV3;RZY220,TRY220..T2..ST..IV3;KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,23#,281,TRY220,23#,281..TB..CBU |
1 | ||
| 66154-37010 |
KDY22#,LY220..T2..ATM..IV3;RZY220,TRY220..T2..ST..IV3;KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,23#,281,TRY220,23#,281..TB..CBU |
1 | ||
| 66187 - HANDLE, SIDE GATE LATCH, CENTER NO.2 | ||||
| 66187-37010 |
KDY22#,LY220..T2..ATM..IV3;RZY220,TRY220..T2..ST..IV3;KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,23#,281,TRY220,23#,281..TB..CBU |
1 | ||
| 66187-37010 |
KDY22#,LY220..T2..ATM..IV3;RZY220,TRY220..T2..ST..IV3;KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,23#,281,TRY220,23#,281..TB..CBU |
1 | ||
| Common parts | ||||
| 90119-08465 | ||||
| 90148-80008 | ||||
| 90148-80025 | ||||
| 90159-60047 | ||||
| 90179-08245 | ||||
| 90467-06038 | ||||
| 90467-08008 | ||||
| 90541-06021 | ||||
| 91621-J0612 | ||||
| Linked diagrams | ||||
| 6552 | ||||
