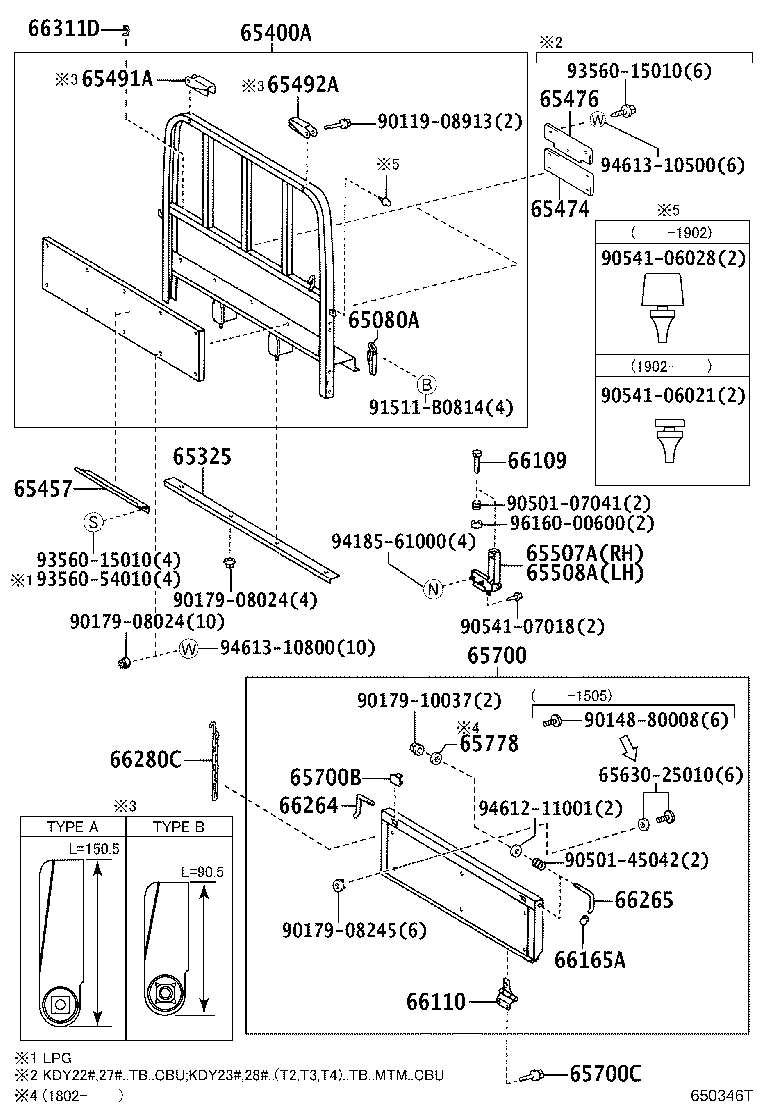

RZY220-TLPDE3 (2001)
Toyota Dyna/Toyoace
(0107-0308)TB..CBU ; (0107-0308)LY220..T2..ATM..IV3 ; (0107-0308)RZY220..T2..ST..IV
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 65080A - HANDLE ASSY, SIDE GATE LATCH | ||||
| 65080-92701 |
KDY22#,LY220..T2..ATM..IV3;RZY220,TRY220..T2..ST..IV3;KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,23#,281,TRY220,23#,281..TB..CBU |
2 | ||
| 65080-92701 |
KDY22#,LY220..T2..ATM..IV3;RZY220,TRY220..T2..ST..IV3;KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,23#,281,TRY220,23#,281..TB..CBU |
2 | ||
| 65325 - PLATE, FLOOR BOARD, FRONT | ||||
| 65325-37020 |
KDY22#,LY220..T2..ATM..IV3;RZY220,TRY220..T2..ST..IV3;KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,23#,281,TRY220,23#,281..TB..CBU |
1 | ||
| 65325-37020 |
KDY22#,LY220..T2..ATM..IV3;RZY220,TRY220..T2..ST..IV3;KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,23#,281,TRY220,23#,281..TB..CBU |
1 | ||
| 65400A - GUARD ASSY, REAR BODY | ||||
| 65400-25500 |
LY230..TB..125T..ST;KDY23#..T2..ATM..WT..CBU;KDY22#,LY220..T2..ATM..IV3;RZY220,TRY220..T2..ST..IV3;LY220,270,RZY220,TRY220..T2..TB;LY230,RZY230,TRY230..T2..TB..WT..CBU |
1 | ||
| 65400-25500 |
LY230..TB..125T..ST;KDY23#..T2..ATM..WT..CBU;KDY22#,LY220..T2..ATM..IV3;RZY220,TRY220..T2..ST..IV3;LY220,270,RZY220,TRY220..T2..TB;LY230,RZY230,TRY230..T2..TB..WT..CBU |
1 | ||
| 65491A - STOP, GUARD FRAME LOAD SLIDE, RH | ||||
| 65491-37010 |
KDY22#,LY220..T2..ATM..IV3;RZY220,TRY220..T2..ST..IV3;KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,23#,281,TRY220,23#,281..TB..CBU TYPE A:ｲﾗｽﾄ参照 |
1 | ||
| 65491-37010 |
KDY22#,LY220..T2..ATM..IV3;RZY220,TRY220..T2..ST..IV3;KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,23#,281,TRY220,23#,281..TB..CBU TYPE A:ｲﾗｽﾄ参照 |
1 | ||
| 65492A - STOP, GUARD FRAME LOAD SLIDE, LH | ||||
| 65492-37010 |
KDY22#,LY220..T2..ATM..IV3;RZY220,TRY220..T2..ST..IV3;KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,23#,281,TRY220,23#,281..TB..CBU TYPE A:ｲﾗｽﾄ参照 |
1 | ||
| 65492-37010 |
KDY22#,LY220..T2..ATM..IV3;RZY220,TRY220..T2..ST..IV3;KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,23#,281,TRY220,23#,281..TB..CBU TYPE A:ｲﾗｽﾄ参照 |
1 | ||
| 65507A - SUPPORT SUB-ASSY, CORNER, RH | ||||
| 65507-37040 |
KDY22#,LY220..T2..ATM..IV3;RZY220,TRY220..T2..ST..IV3;KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,23#,281,TRY220,23#,281..TB..CBU |
1 | ||
| 65507-37040 |
KDY22#,LY220..T2..ATM..IV3;RZY220,TRY220..T2..ST..IV3;KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,23#,281,TRY220,23#,281..TB..CBU |
1 | ||
| 65508A - SUPPORT SUB-ASSY, CORNER, LH | ||||
| 65508-37040 |
KDY22#,LY220..T2..ATM..IV3;RZY220,TRY220..T2..ST..IV3;KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,23#,281,TRY220,23#,281..TB..CBU |
1 | ||
| 65508-37040 |
KDY22#,LY220..T2..ATM..IV3;RZY220,TRY220..T2..ST..IV3;KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,23#,281,TRY220,23#,281..TB..CBU |
1 | ||
| 65700 - GATE ASSY, REAR BODY TAIL | ||||
| 65700-37110 |
KDY22#,LY220..T2..ATM..IV3;RZY220,TRY220..T2..ST..IV3;KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,23#,281,TRY220,23#,281..TB..CBU |
1 | ||
| 65700-37110 |
KDY22#,LY220..T2..ATM..IV3;RZY220,TRY220..T2..ST..IV3;KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,23#,281,TRY220,23#,281..TB..CBU |
1 | ||
| 65700B - PLUG, HOLE(FOR TAIL GATE) | ||||
| 90950-01430 |
KDY22#,LY220..T2..ATM..IV3;RZY220,TRY220..T2..ST..IV3;KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,23#,281,TRY220,23#,281..TB..CBU |
2 | ||
| 90950-01430 |
KDY22#,LY220..T2..ATM..IV3;RZY220,TRY220..T2..ST..IV3;KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,23#,281,TRY220,23#,281..TB..CBU |
2 | ||
| 65700C - BOLT, W/WASHER(FOR TAIL GATE) | ||||
| 90119-08464 |
KDY22#,LY220..T2..ATM..IV3;RZY220,TRY220..T2..ST..IV3;KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,23#,281,TRY220,23#,281..TB..CBU |
6 | ||
| 90119-08464 |
KDY22#,LY220..T2..ATM..IV3;RZY220,TRY220..T2..ST..IV3;KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,23#,281,TRY220,23#,281..TB..CBU |
6 | ||
| 66109 - HANDLE SUB-ASSY, SIDE GATE SUPPORT CORNER | ||||
| 66193-37010 |
KDY22#,LY220..T2..ATM..IV3;RZY220,TRY220..T2..ST..IV3;KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,23#,281,TRY220,23#,281..TB..CBU |
2 | ||
| 66193-37010 |
KDY22#,LY220..T2..ATM..IV3;RZY220,TRY220..T2..ST..IV3;KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,23#,281,TRY220,23#,281..TB..CBU |
2 | ||
| 66110 - HINGE ASSY, TAIL GATE | ||||
| 66110-37010 |
KDY22#,LY220..T2..ATM..IV3;RZY220,TRY220..T2..ST..IV3;KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,23#,281,TRY220,23#,281..TB..CBU |
3 | ||
| 66110-37010 |
KDY22#,LY220..T2..ATM..IV3;RZY220,TRY220..T2..ST..IV3;KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,23#,281,TRY220,23#,281..TB..CBU |
3 | ||
| 66165A - CAP, GATE LATCH HANDLE | ||||
| 66165-92701 |
KDY22#,LY220..T2..ATM..IV3;RZY220,TRY220..T2..ST..IV3;KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,23#,281,TRY220,23#,281..TB..CBU |
2 | ||
| 66165-92701 |
KDY22#,LY220..T2..ATM..IV3;RZY220,TRY220..T2..ST..IV3;KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,23#,281,TRY220,23#,281..TB..CBU |
2 | ||
| 66264 - HANDLE, TAIL GATE LATCH, RH | ||||
| 66264-37010 |
KDY22#,LY220..T2..ATM..IV3;RZY220,TRY220..T2..ST..IV3;KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,23#,281,TRY220,23#,281..TB..CBU |
1 | ||
| 66264-37010 |
KDY22#,LY220..T2..ATM..IV3;RZY220,TRY220..T2..ST..IV3;KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,23#,281,TRY220,23#,281..TB..CBU |
1 | ||
| 66265 - HANDLE, TAIL GATE LATCH, LH | ||||
| 66265-37010 |
KDY22#,LY220..T2..ATM..IV3;RZY220,TRY220..T2..ST..IV3;KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,23#,281,TRY220,23#,281..TB..CBU |
1 | ||
| 66265-37010 |
KDY22#,LY220..T2..ATM..IV3;RZY220,TRY220..T2..ST..IV3;KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,23#,281,TRY220,23#,281..TB..CBU |
1 | ||
| 66280C - CHAIN ASSY, TAIL GATE | ||||
| 66280-37020 |
KDY22#,LY220..T2..ATM..IV3;RZY220,TRY220..T2..ST..IV3;KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,23#,281,TRY220,23#,281..TB..CBU |
2 | ||
| 66280-37020 |
KDY22#,LY220..T2..ATM..IV3;RZY220,TRY220..T2..ST..IV3;KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,23#,281,TRY220,23#,281..TB..CBU |
2 | ||
| 66311D - HOOK, ROPE | ||||
| 66312-37030 |
LY230,280..TB..DSL..CBU;KDY22#,LY220..T2..ATM..IV3;RZY220,TRY220..T2..ST..IV3;KDY22#,23#,27#,28#,LY220,270,RZY220,23#,281,TRY220,23#,281..TB..CBU |
2 | ||
| 66312-37030 |
LY230,280..TB..DSL..CBU;KDY22#,LY220..T2..ATM..IV3;RZY220,TRY220..T2..ST..IV3;KDY22#,23#,27#,28#,LY220,270,RZY220,23#,281,TRY220,23#,281..TB..CBU |
2 | ||
| Common parts | ||||
| 65630-25010 | ||||
| 90119-08913 | ||||
| 90148-80008 | ||||
| 90179-08024 | ||||
| 90179-08245 | ||||
| 90179-10037 | ||||
| 90501-07041 | ||||
| 90501-45042 | ||||
| 90541-06021 | ||||
| 90541-06028 | ||||
| 90541-07018 | ||||
| 91511-B0814 | ||||
| 93560-15010 | ||||
| 93560-54010 | ||||
| 94185-61000 | ||||
| 94612-11001 | ||||
| 94613-10500 | ||||
| 94613-10800 | ||||
| 96160-00600 | ||||
(0107- )KDY23#..TS..CBU ; (0107- )KDY22#,27#,28#,LY220,230,270,280,RZY220,230
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 65400A - GUARD ASSY, REAR BODY | ||||
| 65400-25500 |
LY230..TB..125T..ST;KDY23#..T2..ATM..WT..CBU;KDY22#,LY220..T2..ATM..IV3;RZY220,TRY220..T2..ST..IV3;LY220,270,RZY220,TRY220..T2..TB;LY230,RZY230,TRY230..T2..TB..WT..CBU |
1 | ||
| 65491A - STOP, GUARD FRAME LOAD SLIDE, RH | ||||
| 65491-37010 |
KDY22#,LY220..T2..ATM..IV3;RZY220,TRY220..T2..ST..IV3;KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,23#,281,TRY220,23#,281..TB..CBU TYPE A:ｲﾗｽﾄ参照 |
1 | ||
| 65492A - STOP, GUARD FRAME LOAD SLIDE, LH | ||||
| 65492-37010 |
KDY22#,LY220..T2..ATM..IV3;RZY220,TRY220..T2..ST..IV3;KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,23#,281,TRY220,23#,281..TB..CBU TYPE A:ｲﾗｽﾄ参照 |
1 | ||
| 65700 - GATE ASSY, REAR BODY TAIL | ||||
| 65700-37110 |
KDY22#,LY220..T2..ATM..IV3;RZY220,TRY220..T2..ST..IV3;KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,23#,281,TRY220,23#,281..TB..CBU |
1 | ||
| 66110 - HINGE ASSY, TAIL GATE | ||||
| 66110-37010 |
KDY22#,LY220..T2..ATM..IV3;RZY220,TRY220..T2..ST..IV3;KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,23#,281,TRY220,23#,281..TB..CBU |
3 | ||
| 66165A - CAP, GATE LATCH HANDLE | ||||
| 66165-92701 |
KDY22#,LY220..T2..ATM..IV3;RZY220,TRY220..T2..ST..IV3;KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,23#,281,TRY220,23#,281..TB..CBU |
2 | ||
| 66264 - HANDLE, TAIL GATE LATCH, RH | ||||
| 66264-37010 |
KDY22#,LY220..T2..ATM..IV3;RZY220,TRY220..T2..ST..IV3;KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,23#,281,TRY220,23#,281..TB..CBU |
1 | ||
| 66265 - HANDLE, TAIL GATE LATCH, LH | ||||
| 66265-37010 |
KDY22#,LY220..T2..ATM..IV3;RZY220,TRY220..T2..ST..IV3;KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,23#,281,TRY220,23#,281..TB..CBU |
1 | ||
| 66280C - CHAIN ASSY, TAIL GATE | ||||
| 66280-37020 |
KDY22#,LY220..T2..ATM..IV3;RZY220,TRY220..T2..ST..IV3;KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,23#,281,TRY220,23#,281..TB..CBU |
2 | ||
| 66311D - HOOK, ROPE | ||||
| 66312-37030 |
LY230,280..TB..DSL..CBU;KDY22#,LY220..T2..ATM..IV3;RZY220,TRY220..T2..ST..IV3;KDY22#,23#,27#,28#,LY220,270,RZY220,23#,281,TRY220,23#,281..TB..CBU |
2 | ||
| Common parts | ||||
| 90119-08657 | ||||
| 90119-08905 | ||||
| 90119-08A09 | ||||
| 90158-80005 | ||||
| 90179-08123 | ||||
| 90179-10037 | ||||
| 90501-45042 | ||||
| 93260-18016 | ||||
| 94612-11001 | ||||
| Linked diagrams | ||||
| 6552 | ||||
