RZY220-TLPDE3 (2001)
Toyota Dyna/Toyoace
(0107- )KDY28#,LY230,RZY230,TRY230..T3,TW3..125T,1T ; (0107- )KDY22#,23#,27#,

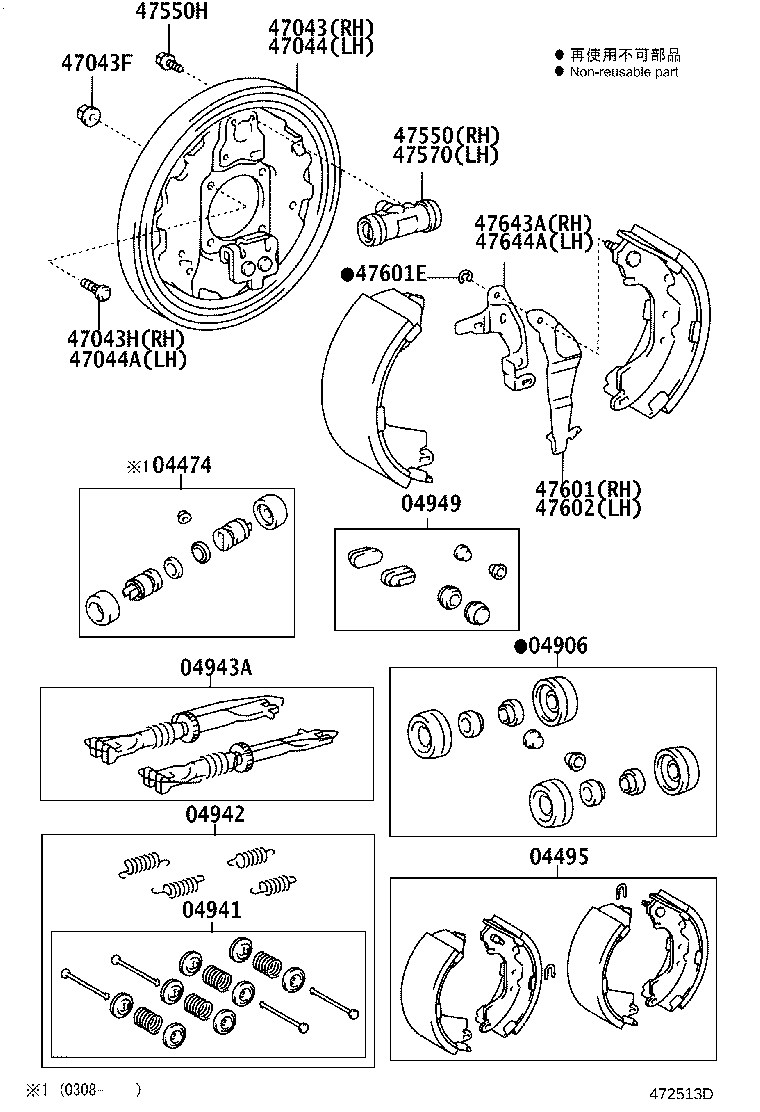

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04495 - SHOE KIT, REAR BRAKE | ||||
| 04495-25100 |
KDY22#,23#,270,28#,LY220,230,270,280,RZY220,230,TRY220,230..T2..(125T,12T)..ST ﾏｰｸ NBK LN525 |
1 | ||
| 04906 - CUP KIT, REAR WHEEL CYLINDER | ||||
| 04906-35140 |
KDY22#,23#,270,28#,LY220,230,270,280,RZY220,230,TRY220,230..T2..(125T,12T)..ST |
1 | ||
| 04941 - SPRING KIT, REAR BRAKE SHOE HOLD DOWN | ||||
| 04941-25010 |
KDY280..TB;LY280..T3..15T;RZY230..T4,TW4;TRY230..15T..ST;LY230..(T2,TW1)..ST;KDY230..T2..15T..ST;KDY231..ATM..15T..ST;KDY231..T2..ATM..125T;LY230..(T3,T4,TW4)..TB;KDY231..MTM..(125T,15T)..ST;RZY230..(125T,15T)..ST..(CBU,IV3);KDY22#,230,TRY230..(T2,TW1,TW4)..125T;KDY280,LY220,RZY220,TRY220..(T2,TW1)..125T..ST;KDY220,230,241,281,LY220,RZY220..(T3,T4,VAN)..(06S,TB,TS)..15T;KDY240,270,281,290,LY240,270,280,290,RZY231,281..(T2,T4,TW1,TW4,VAN)..(125T,12T,15T) |
1 | ||
| 04942 - SPRING KIT, REAR BRAKE | ||||
| 04942-25060 |
KDY22#,23#,270,28#,LY220,230,270,280,RZY220,230,TRY220,230..T2..(125T,12T)..ST |
1 | ||
| 04943A - STRUT KIT, REAR BRAKE | ||||
| 04943-25010 |
KDY22#,23#,270,28#,LY220,230,270,280,RZY220,230,TRY220,230..T2..(125T,12T)..ST |
1 | ||
| 04949 - PLUG KIT, REAR BRAKE | ||||
| 04949-13010 |
KDY28#,LY230,280,RZY230,TRY230..(T2,T3,TW3)..(125T,1T);KDY22#,23#,27#,LY220,270,RZY220,TRY220..(125T,12T,1T)..ST |
1 | ||
| 47043 - PLATE SUB-ASSY, BRAKE BACKING, REAR RH | ||||
| 47043-26120 |
KDY22#,23#,270,28#,LY220,230,270,280,RZY220,230,TRY220,230..T2..(125T,12T)..ST |
1 | ||
| 47043F - NUT(FOR BACKING PLATE TO REAR AXLE HOUSING SETTING) | ||||
| 90179-10041 |
KDY28#,LY230,280,RZY230,TRY230..(T2,T3,TW3)..(125T,1T);KDY22#,23#,27#,LY220,270,RZY220,TRY220..(125T,12T,1T)..ST |
8 | ||
| 47043H - BOLT, NO.1(FOR REAR BRAKE BACKING PLATE RH) | ||||
| 90114-10002 |
KDY28#,LY230,280,RZY230,TRY230..(T2,T3,TW3)..(125T,1T);KDY22#,23#,27#,LY220,270,RZY220,TRY220..(125T,12T,1T)..ST |
4 | ||
| 47044 - PLATE SUB-ASSY, BRAKE BACKING, REAR LH | ||||
| 47044-26120 |
KDY22#,23#,270,28#,LY220,230,270,280,RZY220,230,TRY220,230..T2..(125T,12T)..ST |
1 | ||
| 47044A - BOLT, NO.1(FOR REAR BRAKE BACKING PLATE LH) | ||||
| 90114-10002 |
KDY28#,LY230,280,RZY230,TRY230..(T2,T3,TW3)..(125T,1T);KDY22#,23#,27#,LY220,270,RZY220,TRY220..(125T,12T,1T)..ST |
4 | ||
| 47550 - CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, FRONT OR UPPER) | ||||
| 47550-35180 |
KDY22#,23#,270,28#,LY220,230,270,280,RZY220,230,TRY220,230..T2..(125T,12T)..ST |
1 | ||
| 47550H - BOLT(FOR REAR WHEEL CYLINDER) | ||||
| 90119-06084 |
KDY28#,LY230,280,RZY230,TRY230..(T2,T3,TW3)..(125T,1T);KDY22#,23#,27#,LY220,270,RZY220,TRY220..(125T,12T,1T)..ST |
4 | ||
| 47570 - CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, FRONT OR UPPER) | ||||
| 47550-35180 |
KDY22#,23#,270,28#,LY220,230,270,280,RZY220,230,TRY220,230..T2..(125T,12T)..ST |
1 | ||
| 47601 - LEVER SUB-ASSY, PARKING BRAKE SHOE, RH(FOR REAR BRAKE) | ||||
| 47611-26050 |
KDY22#,23#,270,28#,LY220,230,270,280,RZY220,230,TRY220,230..T2..(125T,12T)..ST |
1 | ||
| 47601E - RING, E(FOR REAR BRAKE) | ||||
| 96160-00500 |
KDY28#,LY230,280,RZY230,TRY230..(T2,T3,TW3)..(125T,1T);KDY22#,23#,27#,LY220,270,RZY220,TRY220..(125T,12T,1T)..ST |
2 | ||
| 47602 - LEVER SUB-ASSY, PARKING BRAKE SHOE, LH (FOR REAR BRAKE) | ||||
| 47612-26050 |
KDY22#,23#,270,28#,LY220,230,270,280,RZY220,230,TRY220,230..T2..(125T,12T)..ST |
1 | ||
| 47643A - LEVER, REAR BRAKE AUTOMATIC ADJUST, RH | ||||
| 47643-26020 |
KDY22#,23#,270,28#,LY220,230,270,280,RZY220,230,TRY220,230..T2..(125T,12T)..ST |
1 | ||
| 47643-26010 |
LY220,230,270,280,RZY220,230..T2..(125T,12T)..ST |
1 | ||
| 47644A - LEVER, REAR BRAKE AUTOMATIC ADJUST, LH | ||||
| 47644-26010 |
LY220,230,270,280,RZY220,230..T2..(125T,12T)..ST |
1 | ||
| 47644-26020 |
KDY22#,23#,270,28#,LY220,230,270,280,RZY220,230,TRY220,230..T2..(125T,12T)..ST |
1 | ||
(0107- )T2..125T,12T..ST
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04495 - SHOE KIT, REAR BRAKE | ||||
| 04495-25100 |
KDY22#,23#,270,28#,LY220,230,270,280,RZY220,230,TRY220,230..T2..(125T,12T)..ST ﾏｰｸ NBK LN525 |
1 | ||
| 04906 - CUP KIT, REAR WHEEL CYLINDER | ||||
| 04906-35140 |
KDY22#,23#,270,28#,LY220,230,270,280,RZY220,230,TRY220,230..T2..(125T,12T)..ST |
1 | ||
| 04941 - SPRING KIT, REAR BRAKE SHOE HOLD DOWN | ||||
| 04941-25010 |
KDY280..TB;LY280..T3..15T;RZY230..T4,TW4;TRY230..15T..ST;LY230..(T2,TW1)..ST;KDY230..T2..15T..ST;KDY231..ATM..15T..ST;KDY231..T2..ATM..125T;LY230..(T3,T4,TW4)..TB;KDY231..MTM..(125T,15T)..ST;RZY230..(125T,15T)..ST..(CBU,IV3);KDY22#,230,TRY230..(T2,TW1,TW4)..125T;KDY280,LY220,RZY220,TRY220..(T2,TW1)..125T..ST;KDY220,230,241,281,LY220,RZY220..(T3,T4,VAN)..(06S,TB,TS)..15T;KDY240,270,281,290,LY240,270,280,290,RZY231,281..(T2,T4,TW1,TW4,VAN)..(125T,12T,15T) |
1 | ||
| 04942 - SPRING KIT, REAR BRAKE | ||||
| 04942-25060 |
KDY22#,23#,270,28#,LY220,230,270,280,RZY220,230,TRY220,230..T2..(125T,12T)..ST |
1 | ||
| 04943A - STRUT KIT, REAR BRAKE | ||||
| 04943-25010 |
KDY22#,23#,270,28#,LY220,230,270,280,RZY220,230,TRY220,230..T2..(125T,12T)..ST |
1 | ||
| 04949 - PLUG KIT, REAR BRAKE | ||||
| 04949-13010 |
KDY28#,LY230,280,RZY230,TRY230..(T2,T3,TW3)..(125T,1T);KDY22#,23#,27#,LY220,270,RZY220,TRY220..(125T,12T,1T)..ST |
1 | ||
| 47043 - PLATE SUB-ASSY, BRAKE BACKING, REAR RH | ||||
| 47043-26120 |
KDY22#,23#,270,28#,LY220,230,270,280,RZY220,230,TRY220,230..T2..(125T,12T)..ST |
1 | ||
| 47043F - NUT(FOR BACKING PLATE TO REAR AXLE HOUSING SETTING) | ||||
| 90179-10041 |
KDY28#,LY230,280,RZY230,TRY230..(T2,T3,TW3)..(125T,1T);KDY22#,23#,27#,LY220,270,RZY220,TRY220..(125T,12T,1T)..ST |
8 | ||
| 47043H - BOLT, NO.1(FOR REAR BRAKE BACKING PLATE RH) | ||||
| 90114-10002 |
KDY28#,LY230,280,RZY230,TRY230..(T2,T3,TW3)..(125T,1T);KDY22#,23#,27#,LY220,270,RZY220,TRY220..(125T,12T,1T)..ST |
4 | ||
| 47044 - PLATE SUB-ASSY, BRAKE BACKING, REAR LH | ||||
| 47044-26120 |
KDY22#,23#,270,28#,LY220,230,270,280,RZY220,230,TRY220,230..T2..(125T,12T)..ST |
1 | ||
| 47044A - BOLT, NO.1(FOR REAR BRAKE BACKING PLATE LH) | ||||
| 90114-10002 |
KDY28#,LY230,280,RZY230,TRY230..(T2,T3,TW3)..(125T,1T);KDY22#,23#,27#,LY220,270,RZY220,TRY220..(125T,12T,1T)..ST |
4 | ||
| 47550 - CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, FRONT OR UPPER) | ||||
| 47550-35180 |
KDY22#,23#,270,28#,LY220,230,270,280,RZY220,230,TRY220,230..T2..(125T,12T)..ST |
1 | ||
| 47550H - BOLT(FOR REAR WHEEL CYLINDER) | ||||
| 90119-06084 |
KDY28#,LY230,280,RZY230,TRY230..(T2,T3,TW3)..(125T,1T);KDY22#,23#,27#,LY220,270,RZY220,TRY220..(125T,12T,1T)..ST |
4 | ||
| 47570 - CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, FRONT OR UPPER) | ||||
| 47550-35180 |
KDY22#,23#,270,28#,LY220,230,270,280,RZY220,230,TRY220,230..T2..(125T,12T)..ST |
1 | ||
| 47601 - LEVER SUB-ASSY, PARKING BRAKE SHOE, RH(FOR REAR BRAKE) | ||||
| 47611-26050 |
KDY22#,23#,270,28#,LY220,230,270,280,RZY220,230,TRY220,230..T2..(125T,12T)..ST |
1 | ||
| 47601E - RING, E(FOR REAR BRAKE) | ||||
| 96160-00500 |
KDY28#,LY230,280,RZY230,TRY230..(T2,T3,TW3)..(125T,1T);KDY22#,23#,27#,LY220,270,RZY220,TRY220..(125T,12T,1T)..ST |
2 | ||
| 47602 - LEVER SUB-ASSY, PARKING BRAKE SHOE, LH (FOR REAR BRAKE) | ||||
| 47612-26050 |
KDY22#,23#,270,28#,LY220,230,270,280,RZY220,230,TRY220,230..T2..(125T,12T)..ST |
1 | ||
| 47643A - LEVER, REAR BRAKE AUTOMATIC ADJUST, RH | ||||
| 47643-26020 |
KDY22#,23#,270,28#,LY220,230,270,280,RZY220,230,TRY220,230..T2..(125T,12T)..ST |
1 | ||
| 47643-26010 |
LY220,230,270,280,RZY220,230..T2..(125T,12T)..ST |
1 | ||
| 47644A - LEVER, REAR BRAKE AUTOMATIC ADJUST, LH | ||||
| 47644-26010 |
LY220,230,270,280,RZY220,230..T2..(125T,12T)..ST |
1 | ||
| 47644-26020 |
KDY22#,23#,270,28#,LY220,230,270,280,RZY220,230,TRY220,230..T2..(125T,12T)..ST |
1 | ||
