RZY220-TLPDE3 (2001)

Toyota Dyna/Toyoace

Production Jul 2001 - Aug 2003
Engine 1RZE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0107- )RZY220,230..ATM

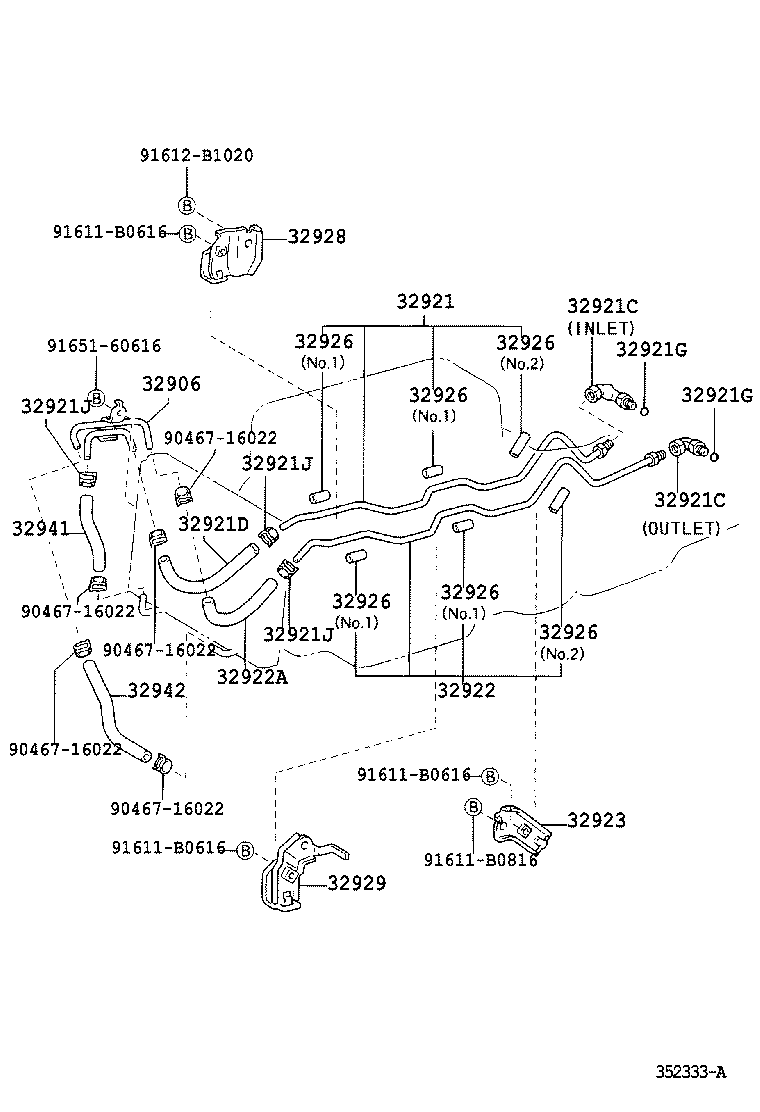

Click highlighted areas on diagram

A45DE

diagram 32906 32921 32921C 32921C 32921D 32921G 32921G 32921J 32921J 32921J 32922 32922A 32923 32926 32926 32926 32926 32926 32926 32928 32929 32941 32942 9046716022 9046716022 9046716022 9046716022 9046716022 91611B0616 91611B0616 91611B0616 91611B0816 91612B1020 9165160616
Part # Description Qty Price
32906 - TUBE SUB-ASSY, OIL COOLER
32907-25030

LY220,230,280,RZY220,23#,281,TRY220,230..ATM

 1
32921 - TUBE, OIL COOLER INLET, NO.1
32921-25080

RZY220,230..ATM

 1
32921C - UNION(FOR OIL COOLER TUBE)
90407-16010

LY220,230,280,RZY220,230,TRY220,230..TS..ATM

ｱｳﾄﾚｯﾄ

 1
32918-28010

RZY220,230,TRY220,230..ATM..125T

ｲﾝﾚｯﾄ

 1
32921C - UNION(FOR OIL COOLER TUBE)
90407-16010

LY220,230,280,RZY220,230,TRY220,230..TS..ATM

ｱｳﾄﾚｯﾄ

 1
32918-28010

RZY220,230,TRY220,230..ATM..125T

ｲﾝﾚｯﾄ

 1
32921D - HOSE(FOR OIL COOLER INLET)
90445-17088

RZY220,230,TRY220,230..ATM..125T

 1
32921G - RING, O(FOR OIL COOLER TUBE UNION)
90301-10189

LY220,230,280,RZY220,230,TRY220,230..TS..ATM

 2
32921G - RING, O(FOR OIL COOLER TUBE UNION)
90301-10189

LY220,230,280,RZY220,230,TRY220,230..TS..ATM

 2
32921J - CLIP(FOR OIL COOLER HOSE)
90467-16022

RZY220,230..ATM

 1
32921J - CLIP(FOR OIL COOLER HOSE)
90467-16022

RZY220,230..ATM

 1
32921J - CLIP(FOR OIL COOLER HOSE)
90467-16022

RZY220,230..ATM

 1
32922 - TUBE, OIL COOLER OUTLET, NO.1
32922-25080

RZY220,230..ATM

 1
32922A - HOSE(FOR OIL COOLER OUTLET)
90445-17124

LY230,280,RZY220,23#,281,TRY220,23#,281..ATM..(EFI,LPG)

 1
32923 - CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE
32909-35150

RZY220,230..ATM

 1
32926 - CUSHION, OIL COOLER TUBE(ATM)
32926-30060

LY220,230,280,RZY220,230..TS..ATM

長さ=35,内径=10,NO.1

 4
32926 - CUSHION, OIL COOLER TUBE(ATM)
32926-30060

LY220,230,280,RZY220,230..TS..ATM

長さ=35,内径=10,NO.1

 4
32926 - CUSHION, OIL COOLER TUBE(ATM)
32926-30060

LY220,230,280,RZY220,230..TS..ATM

長さ=35,内径=10,NO.1

 4
32926 - CUSHION, OIL COOLER TUBE(ATM)
32926-30060

LY220,230,280,RZY220,230..TS..ATM

長さ=35,内径=10,NO.1

 4
32926 - CUSHION, OIL COOLER TUBE(ATM)
32926-30060

LY220,230,280,RZY220,230..TS..ATM

長さ=35,内径=10,NO.1

 4
32926 - CUSHION, OIL COOLER TUBE(ATM)
32926-30060

LY220,230,280,RZY220,230..TS..ATM

長さ=35,内径=10,NO.1

 4
32928 - CLAMP, FLEXIBLE HOSE, NO.1
32909-25070

LY230,280,RZY220,23#,281,TRY220,23#,281..ATM..(EFI,LPG)

 1
32929 - CLAMP, FLEXIBLE HOSE, NO.2
32909-25060

LY230,280,RZY220,23#,281..ATM..(EFI,LPG)

 1
32941 - HOSE, OIL COOLER INLET, NO.1
90445-17151

LY220,230,280,RZY220,23#,281,TRY220,23#,281..ATM

 1
32942 - HOSE, OIL COOLER OUTLET, NO.1
90445-17155

LY230,280..TB..ATM;RZY220,23#,281,TRY220,23#,281..ATM

 1
Common parts
90467-16022
91611-B0616
91611-B0816
91612-B1020
91651-60616
