RZY220-TLPDE3 (2001)

Toyota Dyna/Toyoace

Production Jul 2001 - Aug 2003
Engine 1RZE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

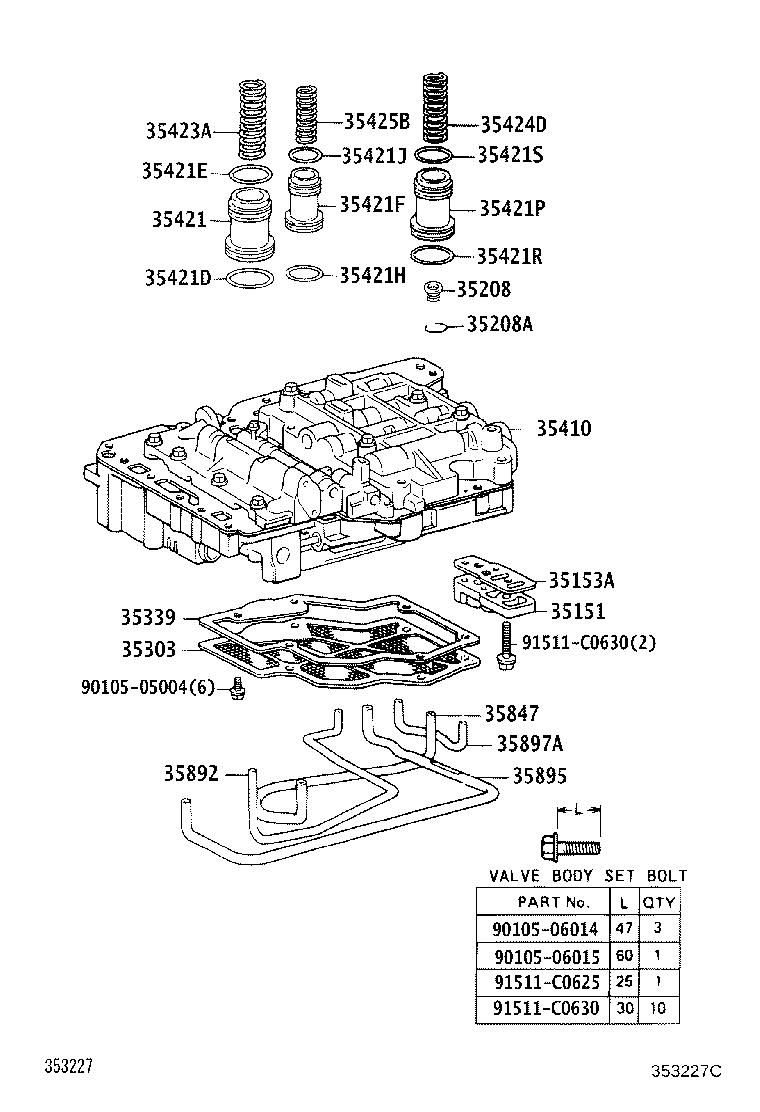

ILLUST NO. 1 OF 2(0107- )LY220,230,280,RZY220,230..TS..ATM

Click highlighted areas on diagram

A44DE,A44DF,A45DE

diagram 35151 35153A 35208 35208A 35303 35339 35410 35421 35421D 35421E 35421F 35421H 35421J 35421P 35421R 35421S 35423A 35424D 35425B 35847 35892 35895 35897A 9010505004 9010506014 9010506015 91511C0625 91511C0630 91511C0630
Part # Description Qty Price
35151 - COVER, TRANSMISSION CASE, LOWER
35151-30020

RZY220,230..ATM

 1
35153A - GASKET, TRANSMISSION CASE LOWER COVER
35153-30010

RZY220,230..ATM

 1
35208 - SPRING SUB-ASSY, B-2 ACCUMULATOR
35208-26010

LY220,230,280,RZY220,230..TS..ATM

 1
35208A - RING, HOLE SNAP (FOR B-2 ACCUMULATOR SPRING)
90521-22004

KDY22#,23#,28#,LY220,230,280,RZY220,230,TRY220,230..ATM..(125T,1T)..ST

 1
35303 - STRAINER SUB-ASSY, OIL
35303-30060

RZY220,230..ATM

 1
35339 - GASKET, OIL STRAINER
35339-28030

LY220,230,280,RZY220,230..TS..ATM

 1
35410 - BODY ASSY, TRANSMISSION VALVE
35410-25060

RZY220,230..ATM

 1
35421 - PISTON, ACCUMULATOR, NO.1
35421-26010

RZY220,230..ATM

 1
35421D - RING (FOR ACCUMULATOR PISTON NO.1)
90301-29011

RZY220,230..ATM

 1
35421E - RING (FOR ACCUMULATOR PISTON NO.1)
90301-23010

RZY220,230..ATM

 1
35421F - PISTON, ACCUMULATOR, NO.2
35441-30010

LY220,230,280,RZY220,230,TRY220,230..TS..ATM

 1
35421H - RING (FOR ACCUMULATOR PISTON NO.2)
90301-26012

LY220,230,280,RZY220,230,TRY220,230..TS..ATM

 1
35421J - RING (FOR ACCUMULATOR PISTON NO.2)
90301-18010

RZY220,230..ATM

 1
35421P - PISTON, ACCUMULATOR, NO.3
35421-22030

RZY220,230..ATM

 1
35421R - RING (FOR ACCUMULATOR PISTON NO.3)
90301-26012

RZY220,230..ATM

 1
35421S - RING (FOR ACCUMULATOR PISTON NO.3)
90301-21012

RZY220,230..ATM

 1
35423A - SPRING, COMPRESSION (FOR B-2 ACCUMULATOR PISTON)
90501-25037

RZY220,230,TRY220,230..ATM..125T

 1
35424D - SPRING, COMPRESSION (FOR C-1 ACCUMULATOR PISTON)
90501-20063

LY220,230,280,RZY220,230..TS..ATM

 1
35425B - SPRING, COMPRESSION (FOR C-2 ACCUMULATOR PISTON)
90501-25002

RZY220,230..ATM

 1
35847 - TUBE, TRANSMISSION LUBE APPLY
35847-30010

RZY220,230..ATM

 1
35892 - TUBE, OVERDRIVE BRAKE
35892-26010

RZY220,230..ATM

 1
35895 - TUBE, FRONT CLUTCH APPLY
35895-30030

RZY220,230..ATM

 1
35897A - TUBE, 1ST & REVERSE BRAKE, NO.1
35897-30010

RZY220,230..ATM

 1
Common parts
90105-05004
90105-06014
90105-06015
91511-C0625
91511-C0630

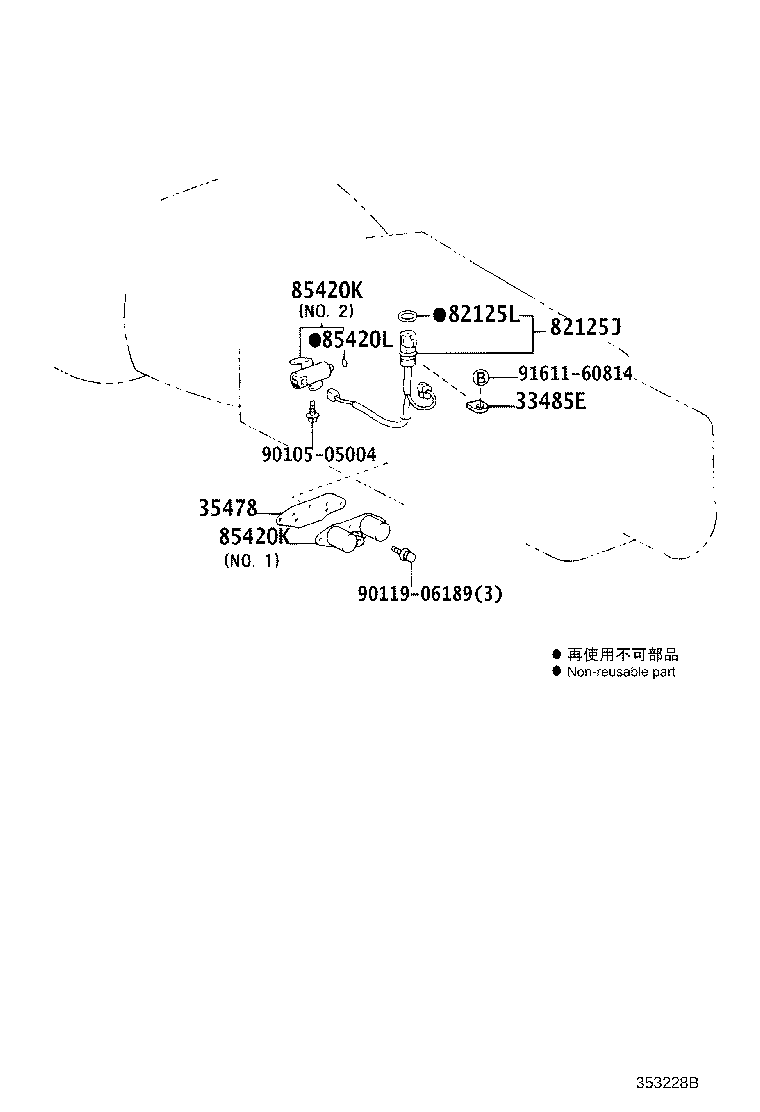

ILLUST NO. 2 OF 2(0107- )LY220,230,280,RZY220,230..TS..ATM

Click highlighted areas on diagram

A44DE,A44DF,A45DE

diagram 33485E 35478 82125J 82125L 85420K 85420K 85420L 9010505004 9011906189 9161160814
Part # Description Qty Price
33485E - PLATE, LOCK
33485-30020

RZY220,230..ATM

 1
35478 - GASKET, ACCUMULATOR COVER
35478-30010

RZY220,230..ATM

 1
82125J - WIRE, TRANSMISSION
82125-28010

LY220,230,280,RZY220,230..TS..ATM

 1
82125L - RING, O(FOR TRANSMISSION WIRE)
96721-24018

KDY23#,280,TRY230..TS..ATM..ST;KDY22#,281,LY220,230,280,RZY220,23#,281,TRY220..ATM

 1
85420K - SOLENOID ASSY, TRANSMISSION
85420-30070

LY220,230,280,RZY220,230..TS..ATM

NO.2

 1
85420-30050

LY220,230,280,RZY220,230..TS..ATM

NO.1

 1
85420K - SOLENOID ASSY, TRANSMISSION
85420-30070

LY220,230,280,RZY220,230..TS..ATM

NO.2

 1
85420-30050

LY220,230,280,RZY220,230..TS..ATM

NO.1

 1
85420L - RING, O(FOR TRANSMISSION SOLENOID)
90301-06004

LY220,230,280,RZY220,230..TS..ATM

 1
Common parts
90105-05004
90119-06189
91611-60814
